- 32 cc/rev
- 40 cc/rev
- 50 cc/rev
- 63 cc/rev
- 80 cc/rev
- 100 cc/rev
- 34 cc/rev
- 43 cc/rev
2417 Views are Looking for this Product

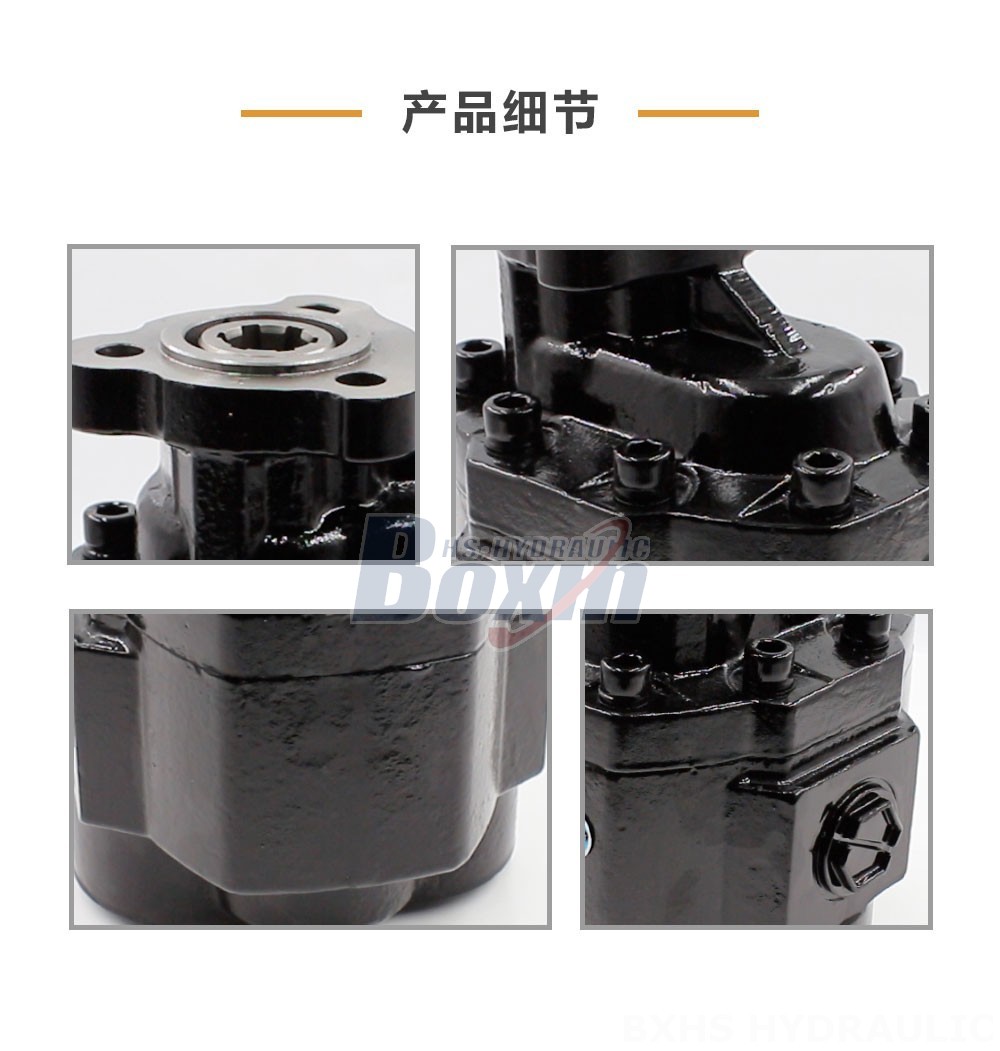

The CBHST1-UNI-63 is a high-performance hydraulic gear pump designed for demanding applications in various industries. With a displacement of 63 cc/rev, it delivers exceptional flow rates and pressures. Its robust cast iron construction and bidirectional rotation capability make it suitable for harsh operating conditions.
| CBHST1-UNI Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 34 cc/rev, 43 cc/rev |
| Rated Pressure | 23 MPa (3335 psi) |
| Max Pressure | 25 MPa (3625 psi) |
| Rated Speed | 2000 r/min |
| Max Speed | 2500 r/min |
| Rotation | /: (Bidirectional) |
| Structure | Swashplate |
| Material | Cast Iron |
| Flange Version | UNI-3 Mounting Holes |
| Shaft Type | H: Rectangle Spline, X: Involute Spline |
**Product Features and Benefits:**
* High displacement (63 cc/rev) for increased flow rates
* Rated pressure of 23 MPa (3335 psi) for demanding applications
* Maximum speed of 2500 r/min for efficient operation
* Bidirectional rotation capability for versatile use
* Swashplate structure for smooth and reliable operation
* Cast iron construction for durability and longevity
* UNI-3 mounting holes for easy installation
* Rectangle spline or involute spline shaft options for compatibility with various drives
**Applications:**
The CBHST1-UNI-63 hydraulic gear pump finds applications in a wide range of industries, including:
* Construction equipment: excavators, loaders, cranes
* Agricultural machinery: tractors, harvesters, balers
* Industrial vehicles: forklifts, telehandlers, sweepers
* Material handling equipment: conveyor systems, stackers, pallet trucks
