1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD25 Series Sectional Directional Valve

Productsize:49*30*20

Netweight:44.00 kg

Availability: In Stock

Description

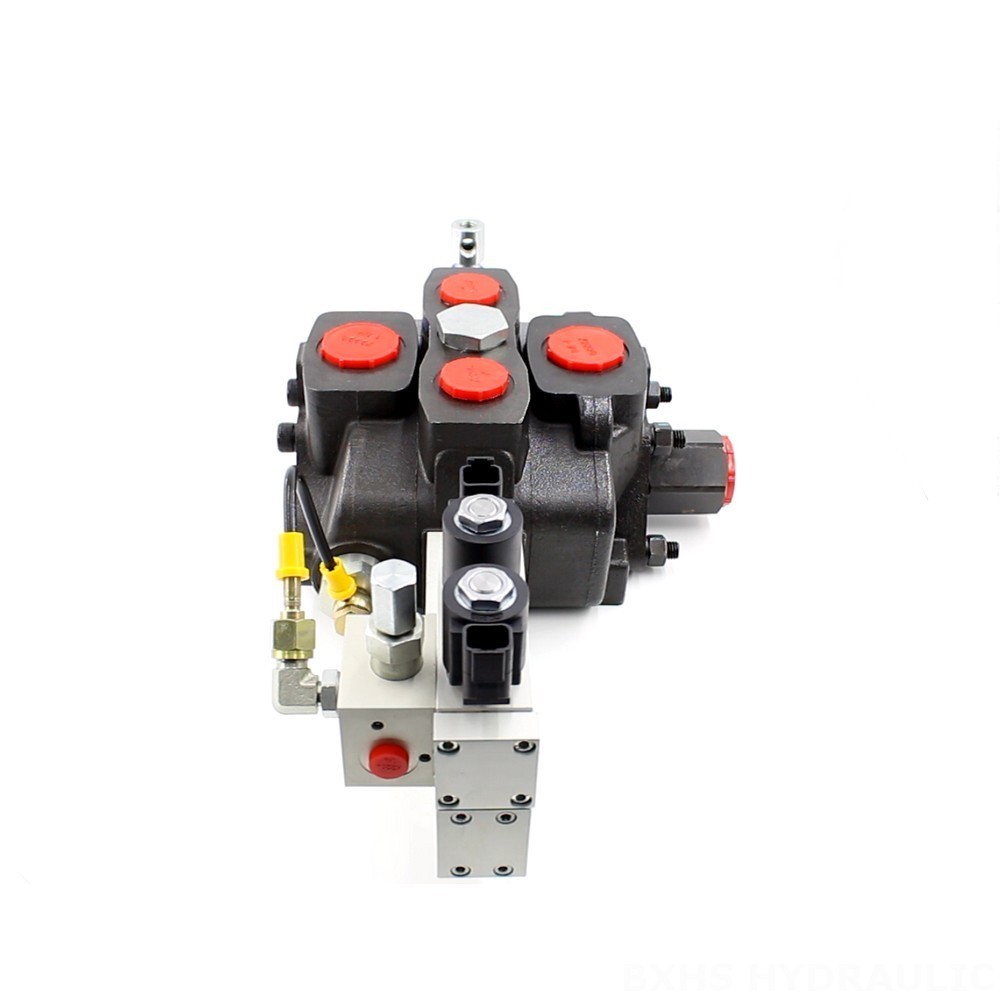

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable detailed image

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable drawing image

The SD25 Series 1 Spool Sectional Directional Valve is an electro-hydraulically controlled valve designed for use in a wide range of industrial applications. It features a compact monoblock design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi).

Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section
Structure Type	Monoblock valve
Rated Flow	240 L/min (63.4 US gpm)
Max Pressure	315 bar (4600 psi)
Operating Viscosity Range	12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

The SD25 Series 1 Spool Sectional Directional Valve is available in a variety of configurations to meet the specific requirements of any application. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Some typical applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable application image
