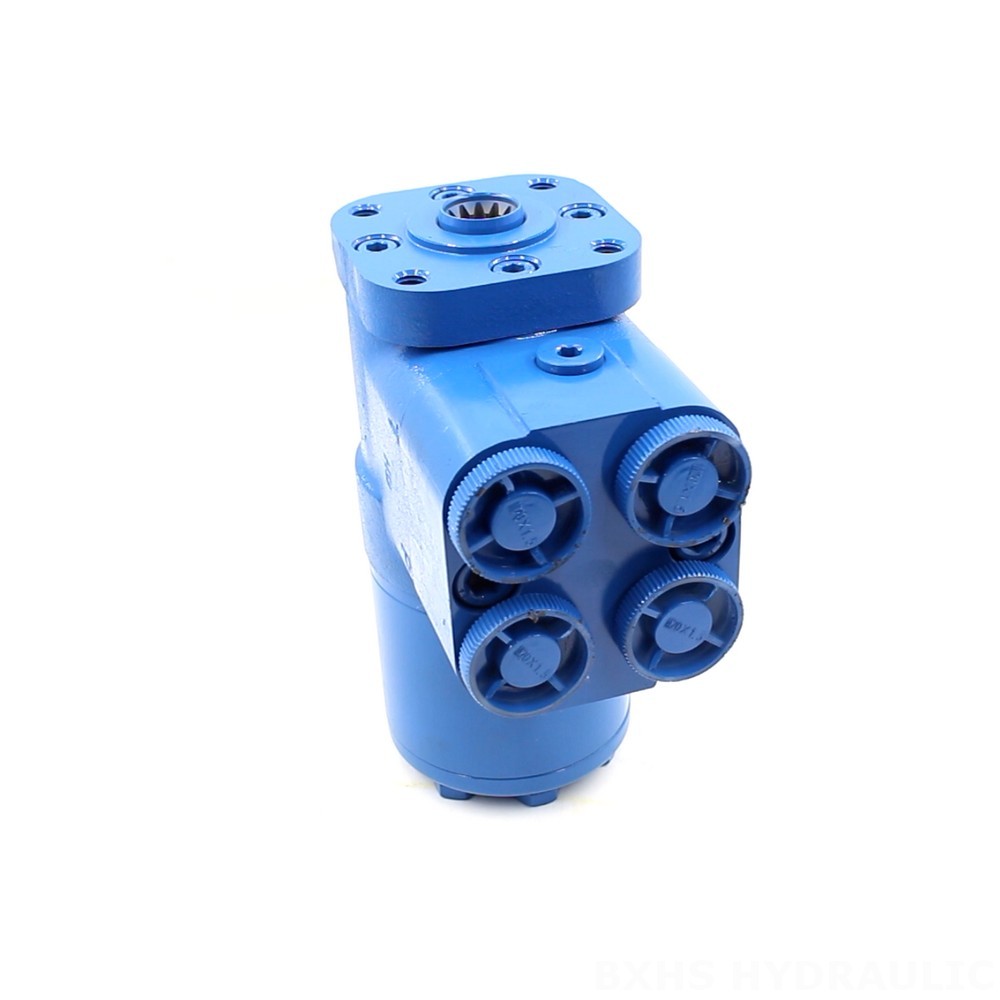

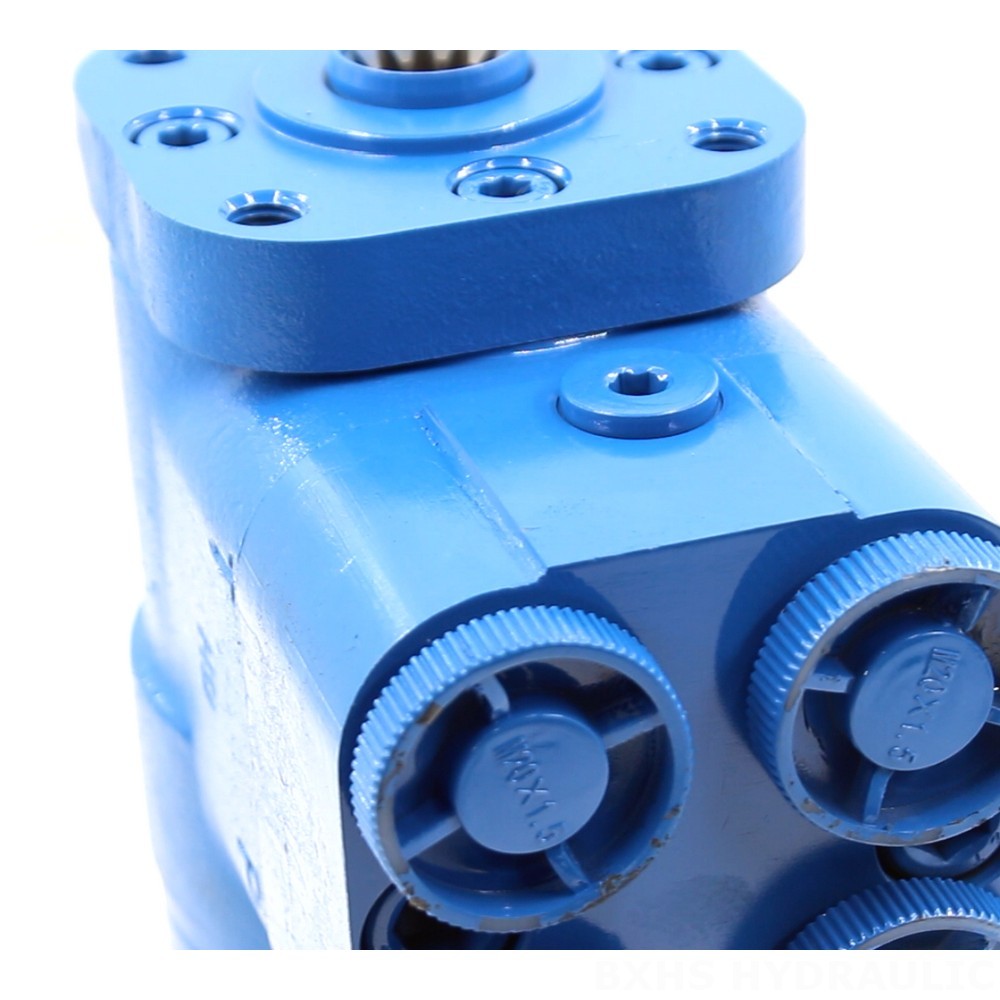

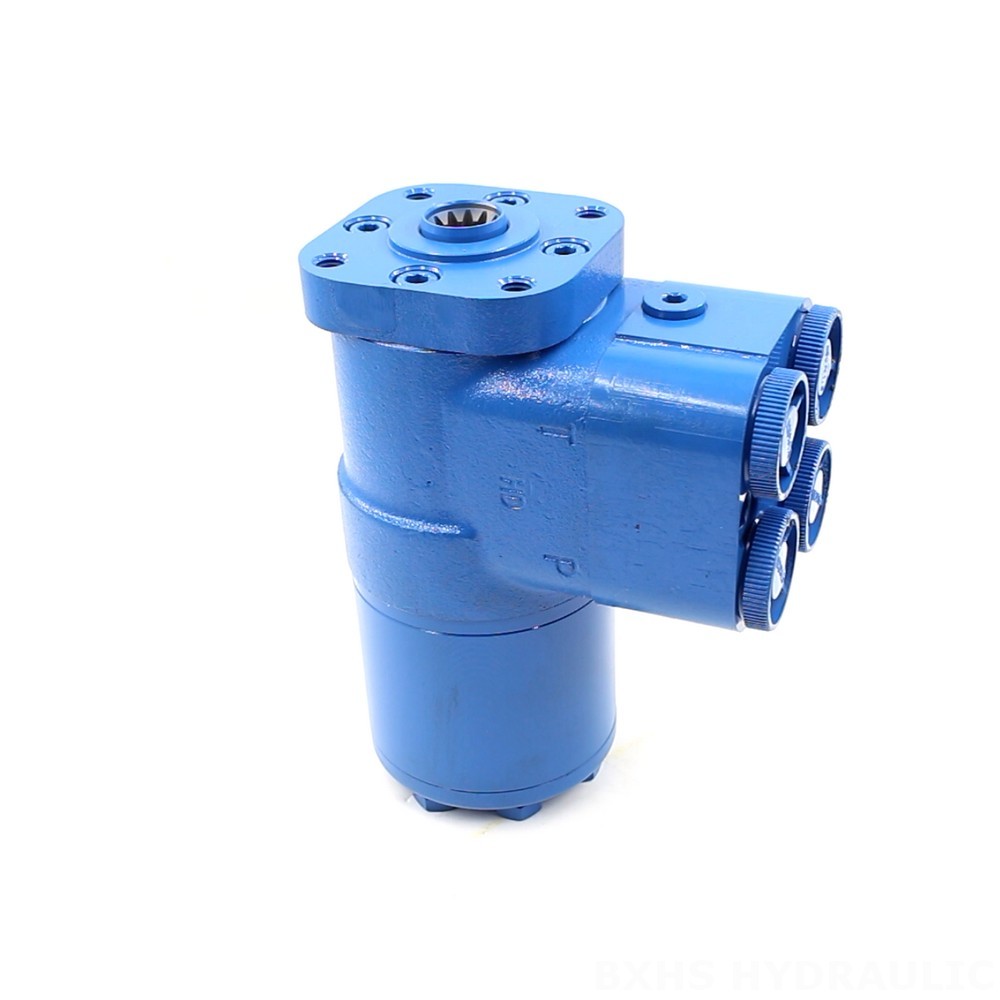

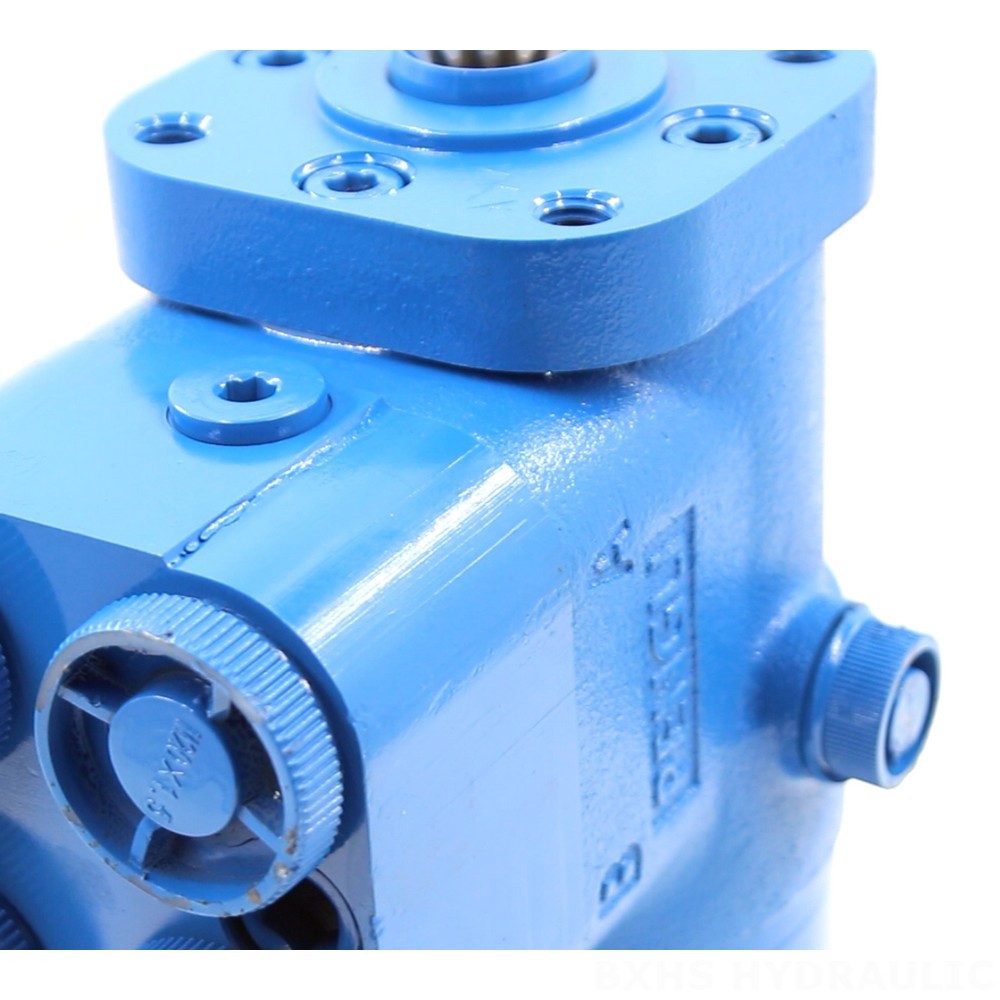

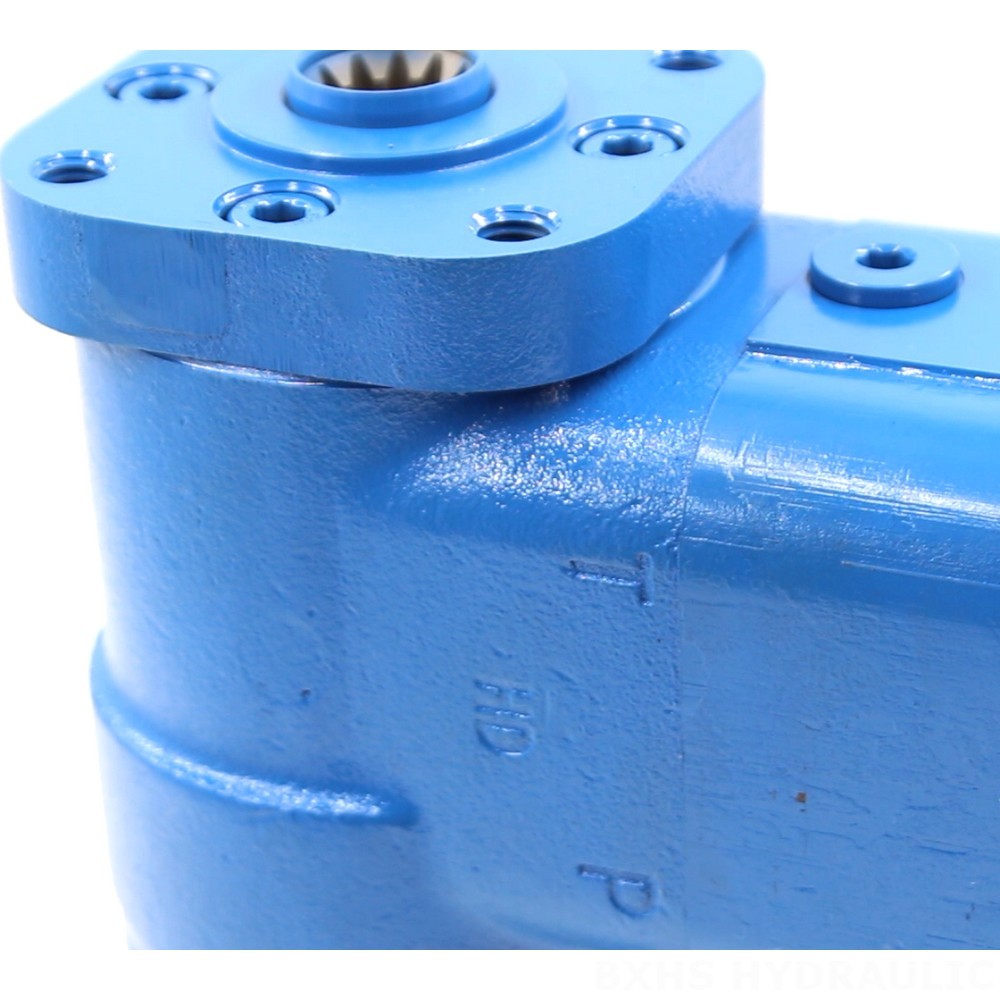

High-quality 7.5 L/min hydraulic steering unit (BZZ5-E100B), 100 ml/r displacement, cast iron construction, ideal for various applications including forklifts, construction equipment, and industrial vehicles. OEM, ODM, and wholesale inquiries welcome.
| BZZ5 Series Streering Unit Parameters | |
|---|---|
| Displacement | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| Valve Block | Customizable |
| Material | Cast Iron |
| Rated flow | 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/min, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| Max Cont Back pressure | 1.6 Mpa |
| Max input pressure | 16 Mpa |
Introducing the BZZ5-E100B hydraulic steering unit, a robust and reliable solution for a wide range of applications. This high-performance unit boasts a displacement of 100 ml/r and a rated flow of 7.5 L/min, making it perfect for demanding operations. With a maximum input pressure of 16 MPa and a maximum continuous back pressure of 1.6 MPa, the BZZ5-E100B offers exceptional durability and performance. Constructed from durable cast iron, this unit is built to withstand the rigors of heavy-duty use in various industries. Its customizable valve block allows for flexible integration into diverse systems.
**Key Features:**
* **Model:** BZZ5-E100B
* **Displacement:** 100 ml/r
* **Rated Flow:** 7.5 L/min
* **Max Input Pressure:** 16 MPa
* **Max Cont Back Pressure:** 1.6 MPa
* **Material:** Cast Iron
* **Customizable Valve Block**
**Applications:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, INDUSTRIAL VEHICLES, AGRICULTURE (Forklifts, Telehandlers, Skid Steer Loaders, Compact Wheel Loaders, Tractors, Mini-Excavators, Backhoe Loaders, Harvesters, Balers)
**We are a hydraulic product manufacturer offering:**
* Manufacturing
* OEM (Original Equipment Manufacturing)
* ODM (Original Design Manufacturing)
* Customization
* Wholesale
**Seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
**Contact us today to discuss your requirements and explore our collaborative opportunities. Benefit from factory-direct pricing and reliable supply from a reputable manufacturer. We offer factory wholesale and are committed to providing high-quality hydraulic steering units at competitive prices.**
