2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable

Control Method:Electro-hydraulic

Spool:2 Spool

Rated Flow:200 L/min (52 US gpm)

Max Pressure:350 bar (5100 psi)

Inlet Port:G1

Outlet Port:G1

Port Size:G1

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV200 Series Sectional Directional Valve

Packagingsize:48*30*18

Grossweight:32.00 kg

Availability: In Stock

571 Views are Looking for this Product

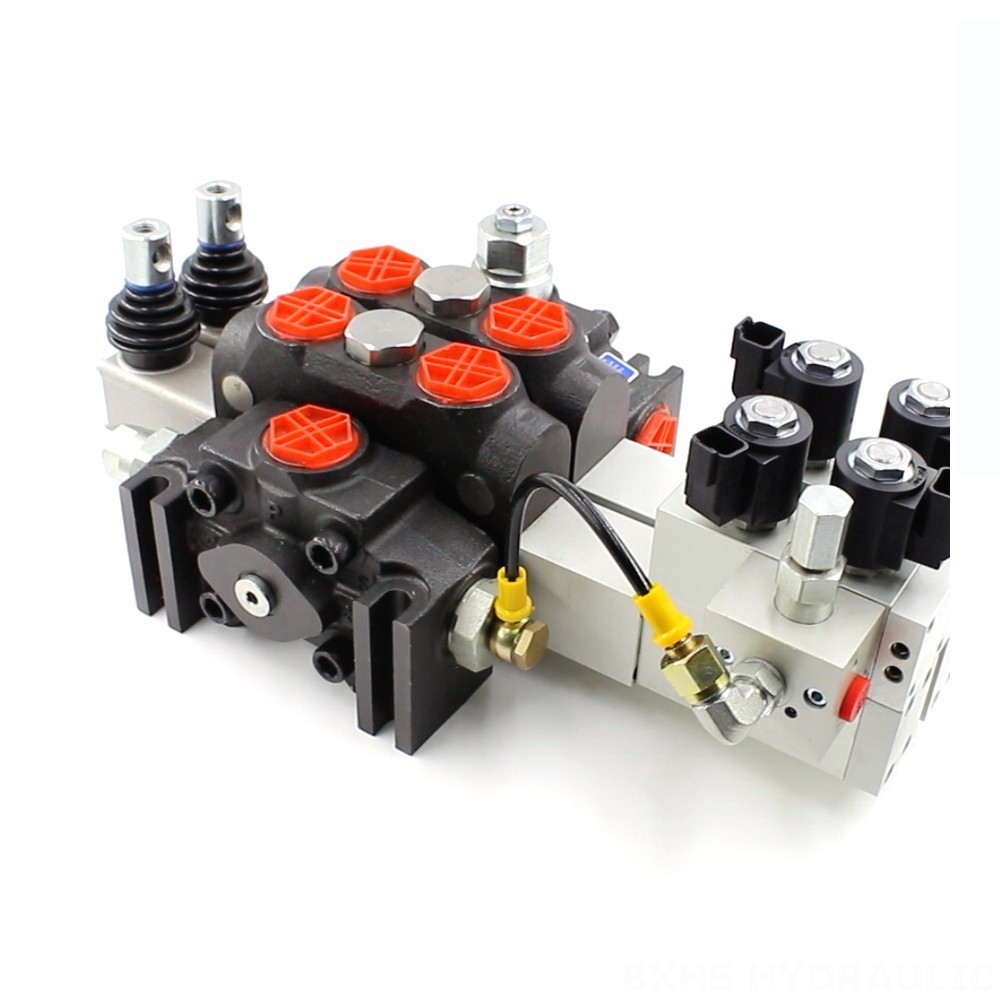

2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable detailed image

2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable detailed image

2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable drawing image

The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. It features a control method of electro-hydraulic, a section of 2 section, a max pressure of 350 bar (5100 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt).

DCV200 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 200 L/min (52 US gpm)
Max Pressure 350 bar (5100 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**2-Spool Electro-hydraulic Valve | DCV200 Model | Factory Direct & Customizable**

The DCV200 Model 2-Spool Electro-hydraulic Valve is a high-performance valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles.

**Key Features:**

* Control Method: Electro-hydraulic
* Section: 2 Section
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: DCV200 Series

**Application Areas:**

* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES

**Applicable Models:**

* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
