2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable

Control Method:Manual

Spool:2 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*18*11

Grossweight:8.00 kg

Availability: In Stock

632 Views are Looking for this Product

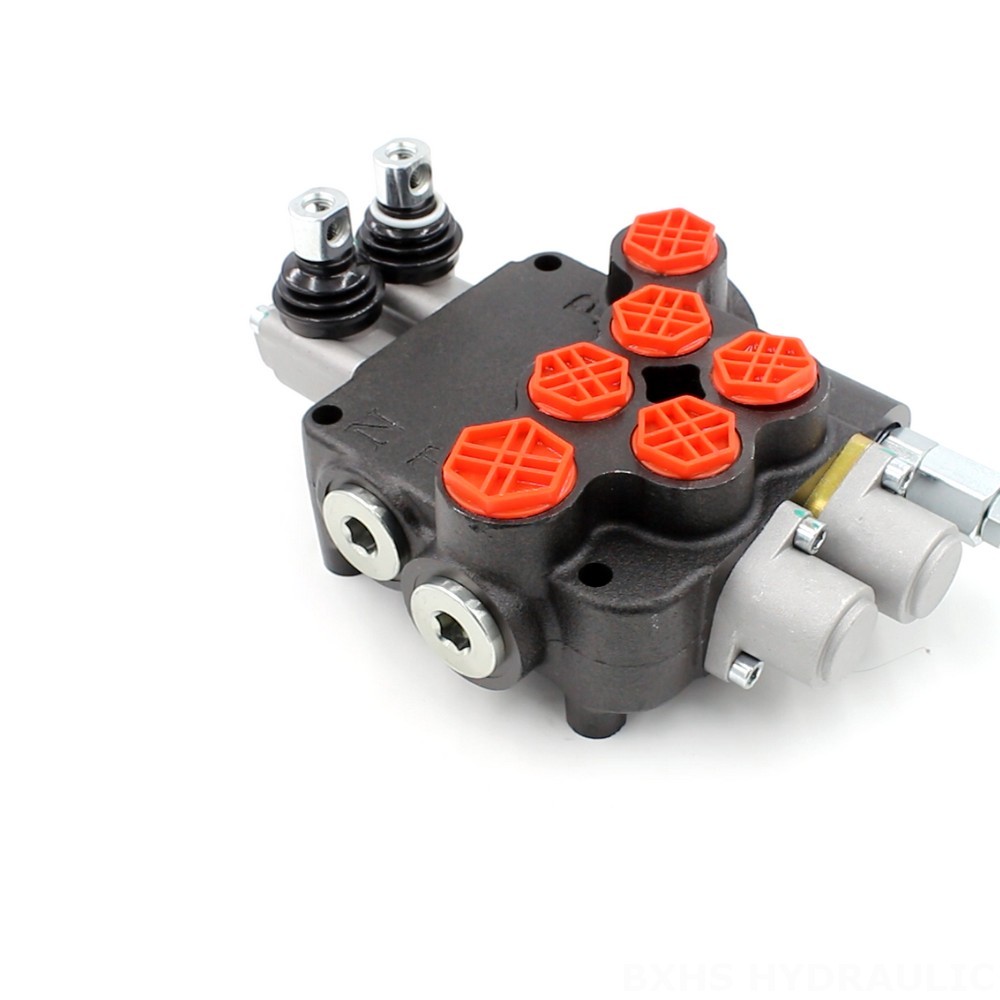

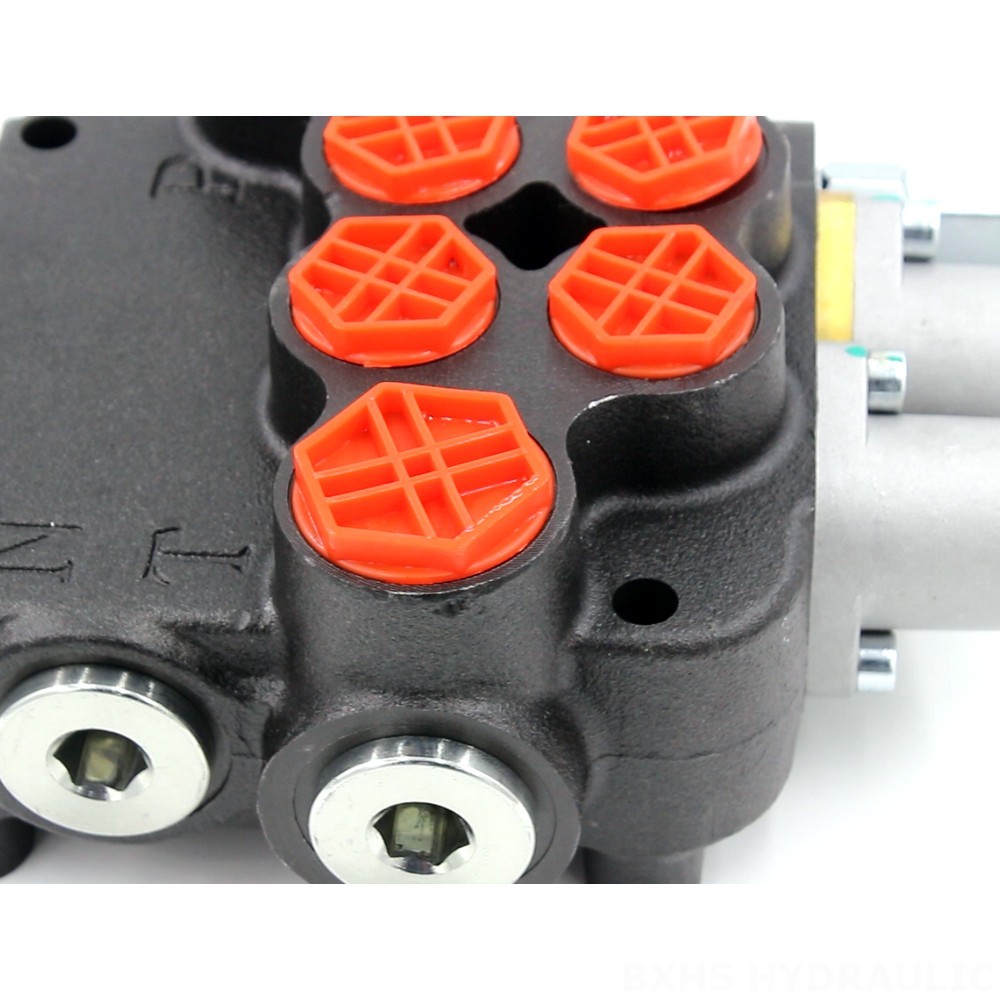

2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable detailed image

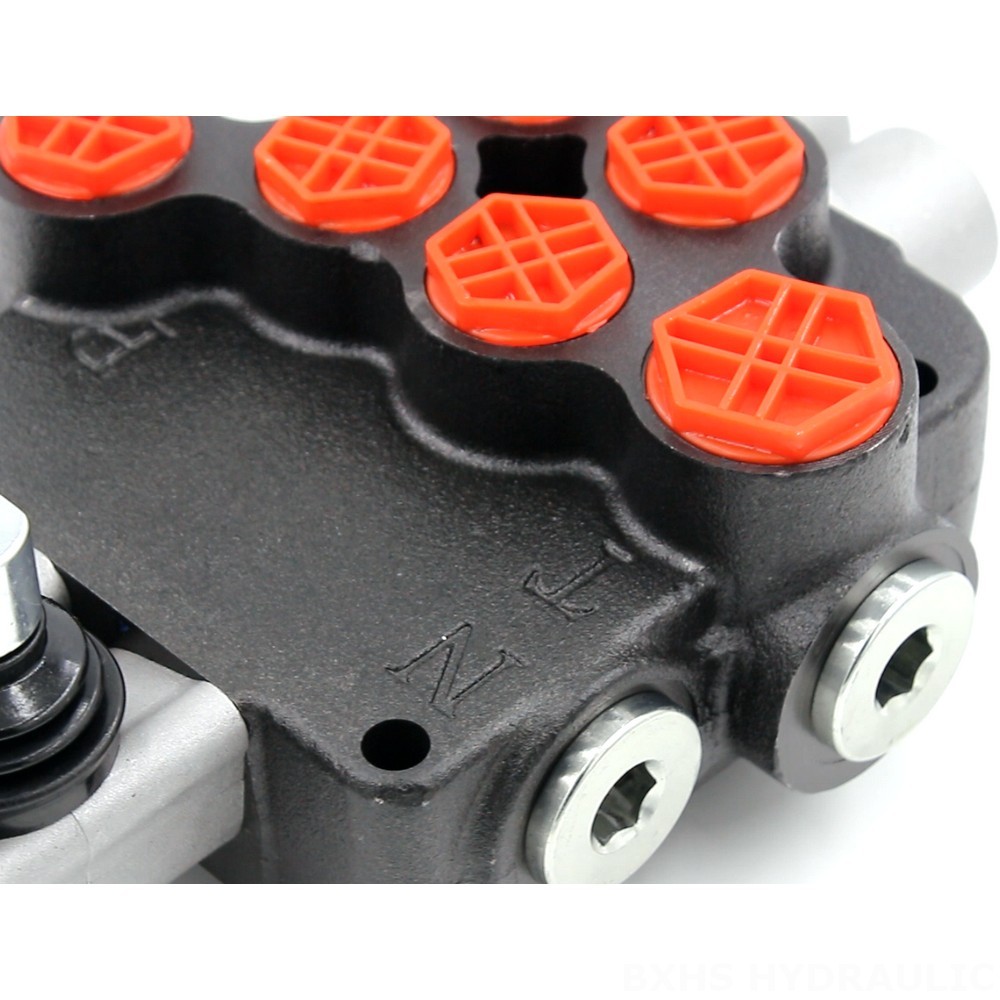

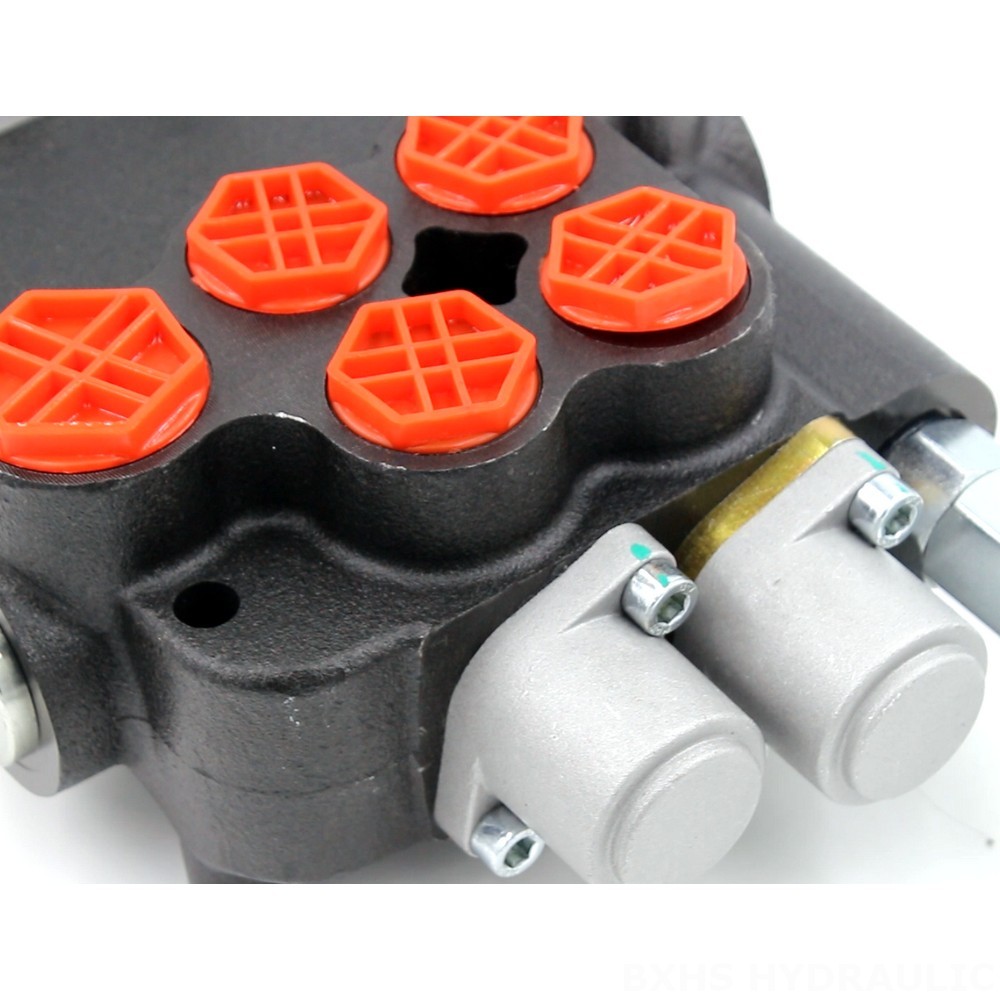

2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable detailed image

2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable drawing image

The P80-G12-G34-2OT 2-Spool Hydraulic Directional Valve is a manually controlled, monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

**2-Spool Hydraulic Directional Valve | P80-G12-G34-2OT | Factory Direct & Customizable**

**Product Features**

* Manual control
* Monoblock valve
* 80 L/min rated flow
* 250 bar maximum pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range

**Applications**

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

**Applicable Models**

* Telehandler
* Forklift
* All terrain crane
* Stacker
* Aerial platform
* Motor grader
* Compact wheel loader
* Wheel loader
* Backhoe loader
* Harvester
* Bale wrapper
* Seeding machine
