3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable

Control Method:Solenoid

Spool:3 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:30*21*13

Grossweight:9.00 kg

Availability: In Stock

875 Views are Looking for this Product

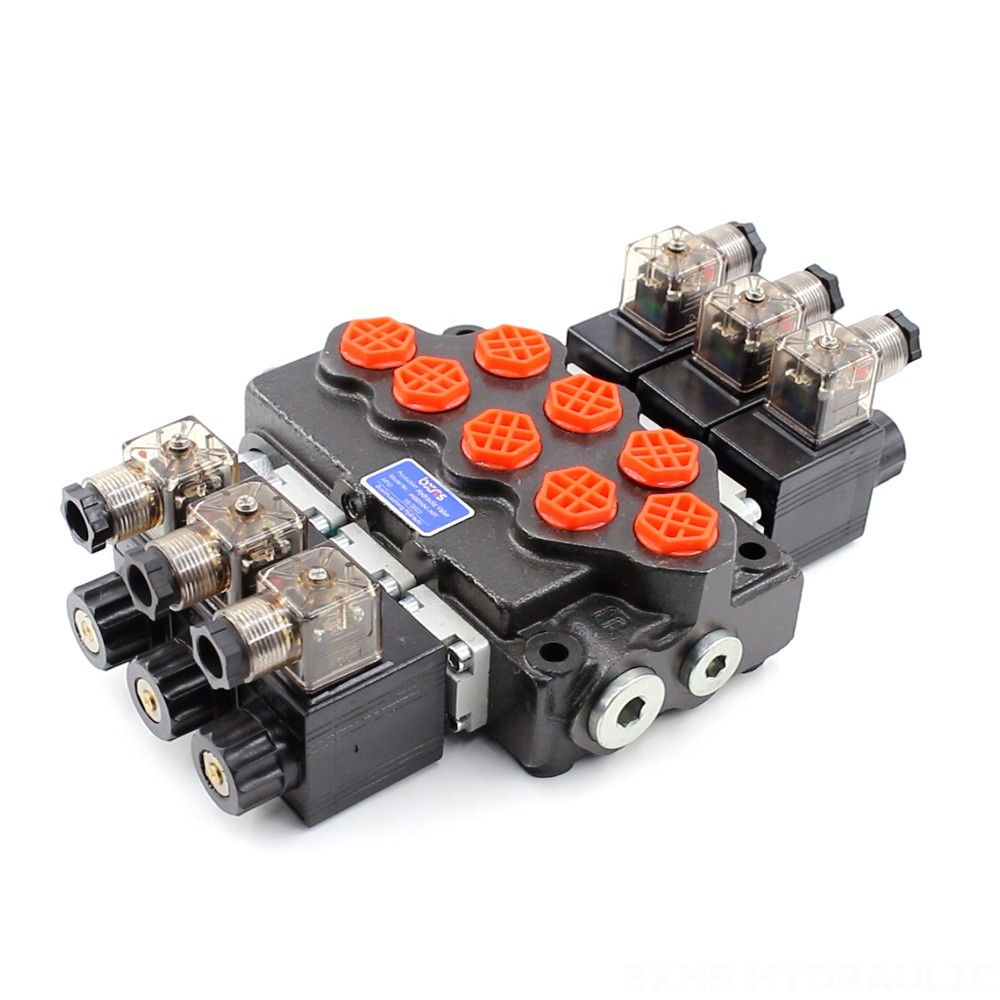

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable detailed image

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable detailed image

3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable drawing image

Our factory-direct and customizable SD5 Model 3-Position Monoblock Directional Valve is designed for various applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min, max pressure of 305 bar, and operating viscosity range of 15 - 75 mm²/s, it ensures optimal performance in demanding hydraulic systems.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**3-Position Monoblock Directional Valve | SD5 Model | Factory Direct & Customizable**

**Control Method:** Solenoid
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 305 bar (4400 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 3 Spool
**Series:** SD5 Series

**Applications:**

* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles

**Applicable Models:**

* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
