3-Spool Electro-hydraulic Valve | P80 Model | Factory Direct & Customizable

Control Method:Electro-hydraulic

Spool:3 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:35*38*21

Grossweight:18.00 kg

Availability: In Stock

657 Views are Looking for this Product

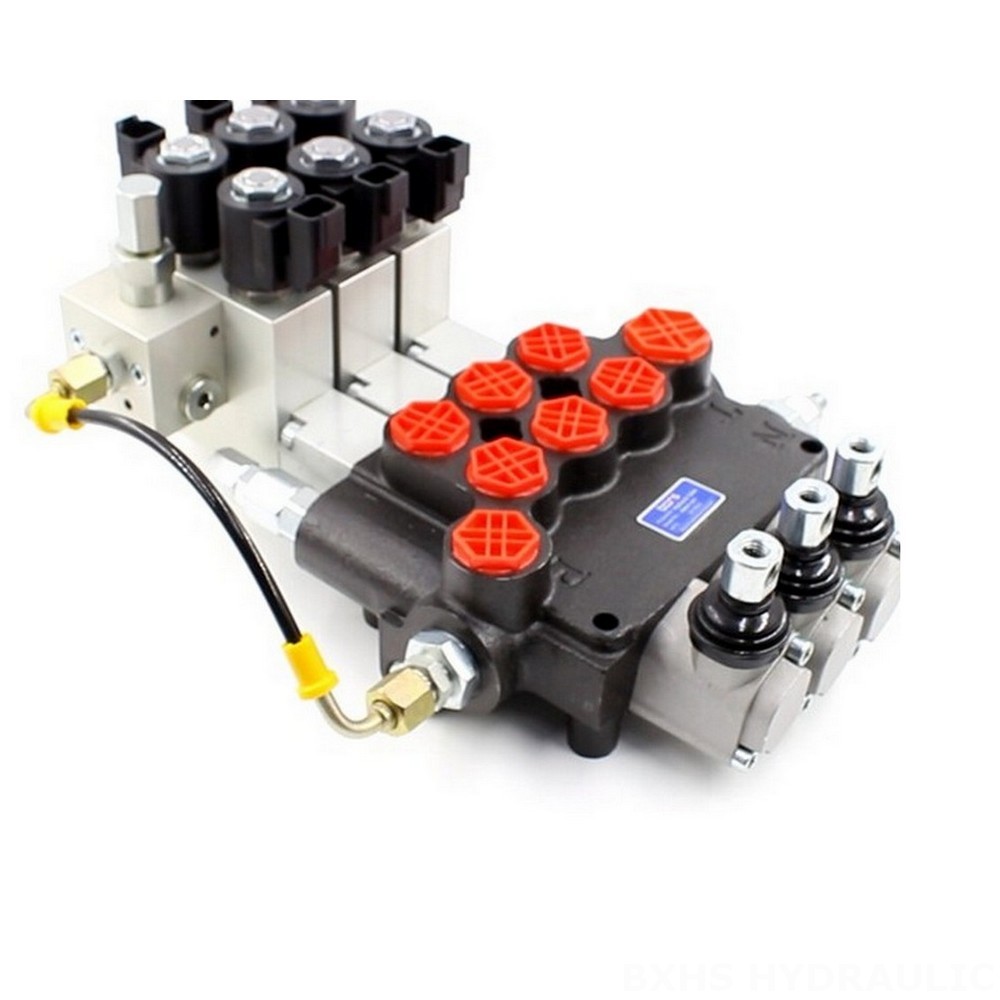

3-Spool Electro-hydraulic Valve | P80 Model | Factory Direct & Customizable detailed image

3-Spool Electro-hydraulic Valve | P80 Model | Factory Direct & Customizable detailed image

3-Spool Electro-hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

Introducing our P80 Model 3-Spool Electro-hydraulic Valve, a robust and versatile solution for demanding hydraulic systems. Manufactured with precision and customizable to your specifications, this valve offers exceptional performance and reliability.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

**P80 Model 3-Spool Electro-hydraulic Valve**

**Key Features:**

- Electro-hydraulic control for precise and responsive operation
- 3-section monoblock design for compact and efficient installation
- Rated flow of 80 L/min (21.2 US gpm) for high-flow applications
- Maximum pressure capacity of 250 bar (3600 psi) for demanding hydraulic systems
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
- 3 spool configuration for versatile control of multiple hydraulic functions
- Part of the P80 Series, known for durability and reliability

**Applications:**

- Material handling equipment (e.g., forklifts, telehandlers)
- Construction and earth-moving machinery (e.g., excavators, skid steer loaders)
- Agricultural machinery (e.g., tractors, combines)
- Industrial vehicles (e.g., aerial platforms, motor graders)
