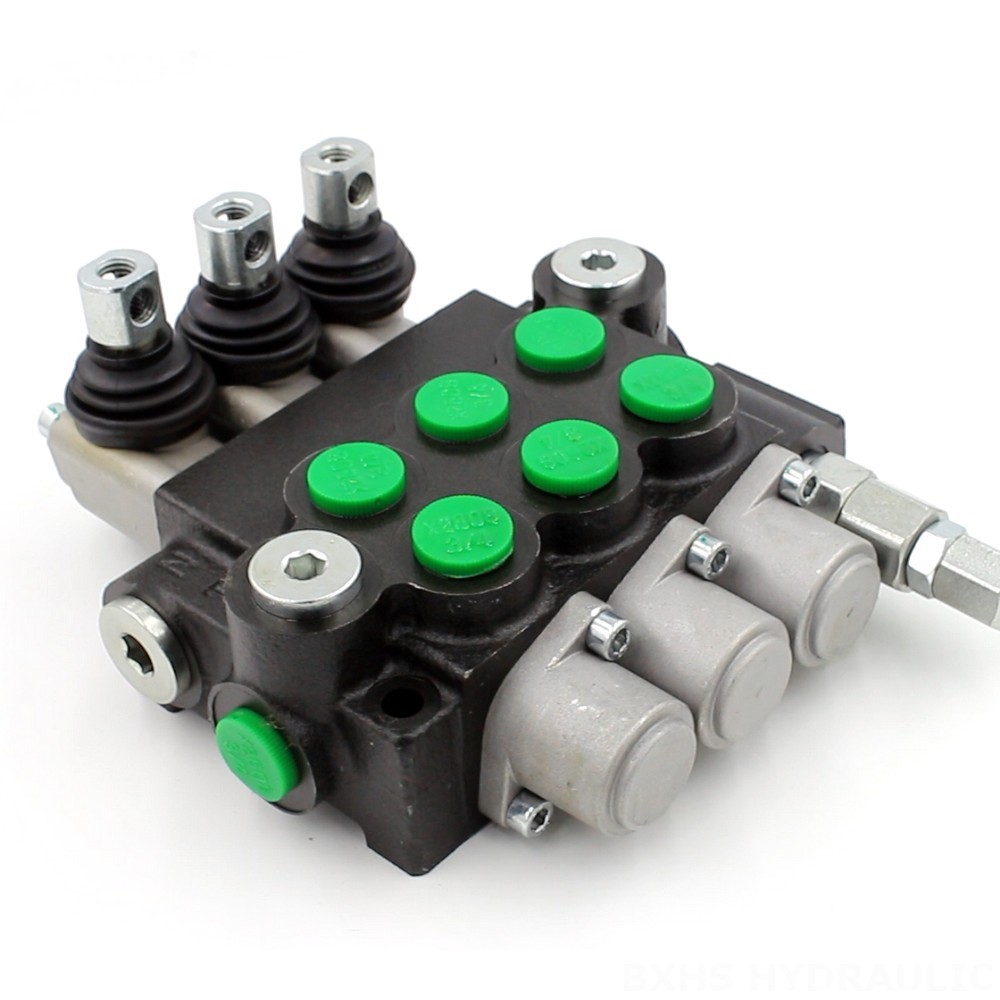

3-Spool Hydraulic Directional Valve - P40-U34-OT Series | Wholesale & OEM

Control Method:Manual

Spool:3 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 8

Outlet Port:SAE 8

Port Size:SAE 8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:24*21*13

Grossweight:6.60 kg

Availability: In Stock

628 Views are Looking for this Product

3-Spool Hydraulic Directional Valve - P40-U34-OT Series | Wholesale & OEM detailed image

3-Spool Hydraulic Directional Valve - P40-U34-OT Series | Wholesale & OEM detailed image

3-Spool Hydraulic Directional Valve - P40-U34-OT Series | Wholesale & OEM drawing image

The 3-Spool Hydraulic Directional Valve - P40-U34-OT Series is a high-quality, durable valve designed for use in a wide range of applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicle applications.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-U34-OT Series 3-Spool Hydraulic Directional Valve is a monoblock valve with manual control. It has a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Some of the specific applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders.
