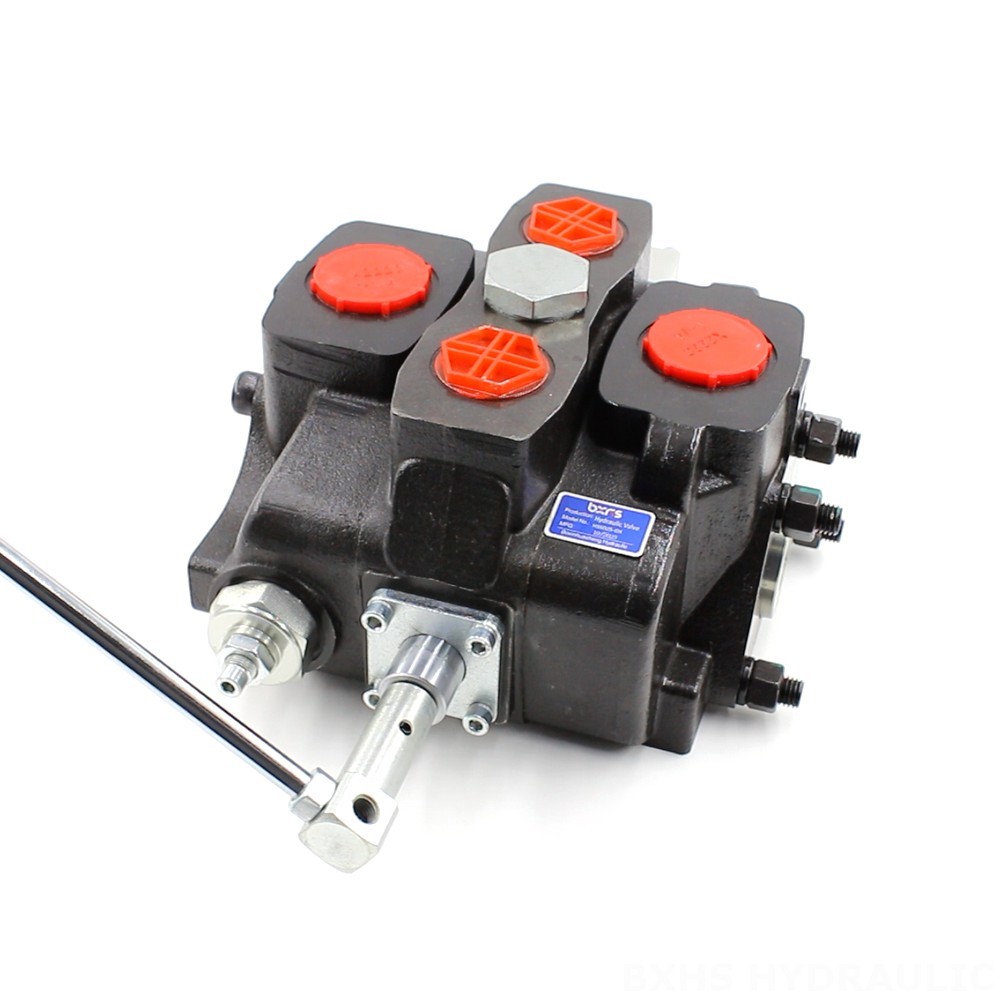

The SD25 3 Way Hydraulic Flow Control Valve is a reliable and durable hydraulic valve designed for demanding applications in construction, agriculture, and industrial vehicles. This manual, monoblock valve features a rated flow of 240 L/min and a maximum pressure of 315 bar, making it suitable for a wide range of heavy-duty machinery.
| SD25 Series Sectional Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Control Method | Manual, Electro-hydraulic, Hydraulic |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 240 L/min (63.4 US gpm) |
| Structure Type | Monoblock valve |
The SD25 Series 3 Way Hydraulic Flow Control Valve is a high-performance hydraulic valve designed for heavy-duty applications. This monoblock valve features a manual control method, providing precise control over hydraulic flow. With a rated flow of 240 L/min and a maximum pressure of 315 bar, this valve is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The SD25 Series valve is built to withstand harsh environments and demanding operating conditions, with an operating viscosity range of 12-400 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is available for direct factory purchase and can be customized to meet your specific application needs.
