4 Spool Monoblock Directional Valve - P40-G12-G38-4OT Series | Wholesale & OEM

Control Method:Manual

Spool:4 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:24*23*13

Grossweight:8.20 kg

Availability: In Stock

619 Views are Looking for this Product

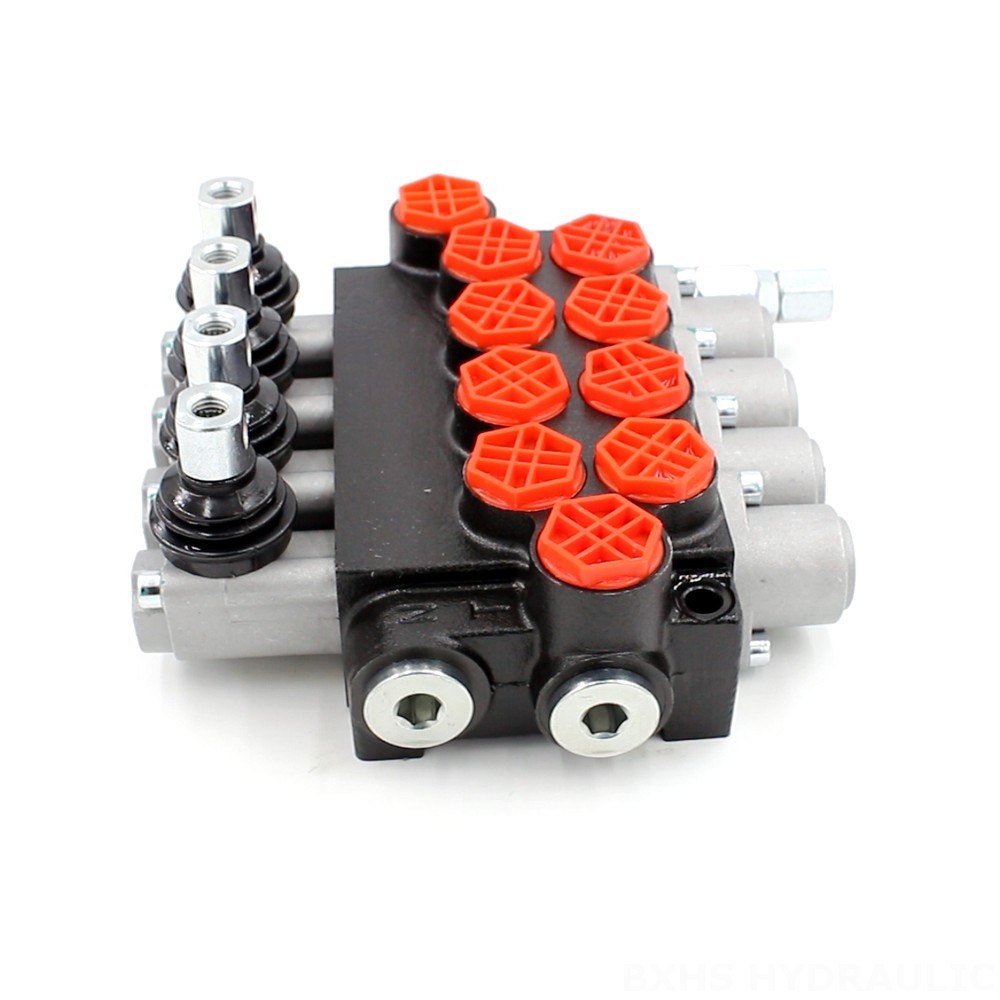

4 Spool Monoblock Directional Valve - P40-G12-G38-4OT Series | Wholesale & OEM detailed image

4 Spool Monoblock Directional Valve - P40-G12-G38-4OT Series | Wholesale & OEM detailed image

4 Spool Monoblock Directional Valve - P40-G12-G38-4OT Series | Wholesale & OEM drawing image

The P40-G12-G38-4OT Series is a 4 Spool Monoblock Directional Valve designed for use in a wide range of industrial and mobile hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for controlling the flow of hydraulic fluid in systems such as material handling equipment, construction machinery, agricultural machinery, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-G12-G38-4OT Series valve features a compact and robust monoblock design, ensuring high durability and reliability. It is manually controlled, allowing for precise and responsive operation. The valve has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making it suitable for a variety of operating conditions. The valve is also available in a range of configurations to meet specific application requirements.
