6 Port Diverter Valve 1-Spool Pneumatic Valve | DCV100 Model | Factory Direct & Customizable

Control Method:Pneumatic

Spool:1 Spool

Rated Flow:100 L/min (26.5 US gpm)

Max Pressure:350 bar (5100 psi)

Inlet Port:SAE 12

Outlet Port:SAE 12

Port Size:SAE 12

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV100 Series Sectional Directional Valve

Packagingsize:35*24*16

Grossweight:13.00 kg

Availability: In Stock

678 Views are Looking for this Product

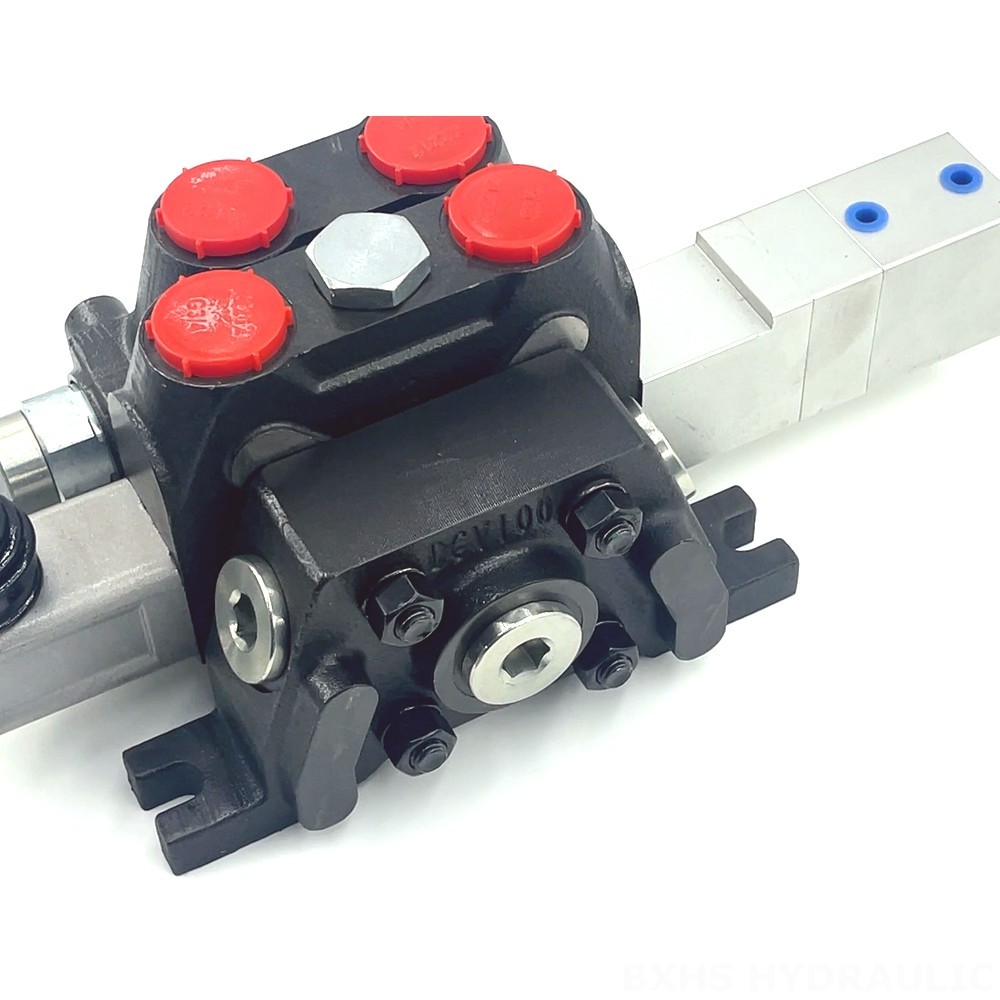

6 Port Diverter Valve 1-Spool Pneumatic Valve | DCV100 Model | Factory Direct & Customizable detailed image

6 Port Diverter Valve 1-Spool Pneumatic Valve | DCV100 Model | Factory Direct & Customizable detailed image

6 Port Diverter Valve 1-Spool Pneumatic Valve | DCV100 Model | Factory Direct & Customizable drawing image

The DCV100 6 Port Diverter Valve is a high-performance, customizable hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 350 bar, it offers robust performance and reliability for demanding operations.

DCV100 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 100 L/min (26.5 US gpm)
Max Pressure 350 bar (5100 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This 6 Port Diverter Valve is part of the DCV100 series, featuring pneumatic control, a 1-section design, and a 1-spool configuration. It provides precise and efficient hydraulic flow control with a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi). Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F). Its versatility makes it suitable for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders.
