7-Spool Hydraulic Directional Control Valve - P40-U78 Series | Wholesale & OEM

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:35*22*12

Netweight:12.50 kg

Availability: In Stock

Description

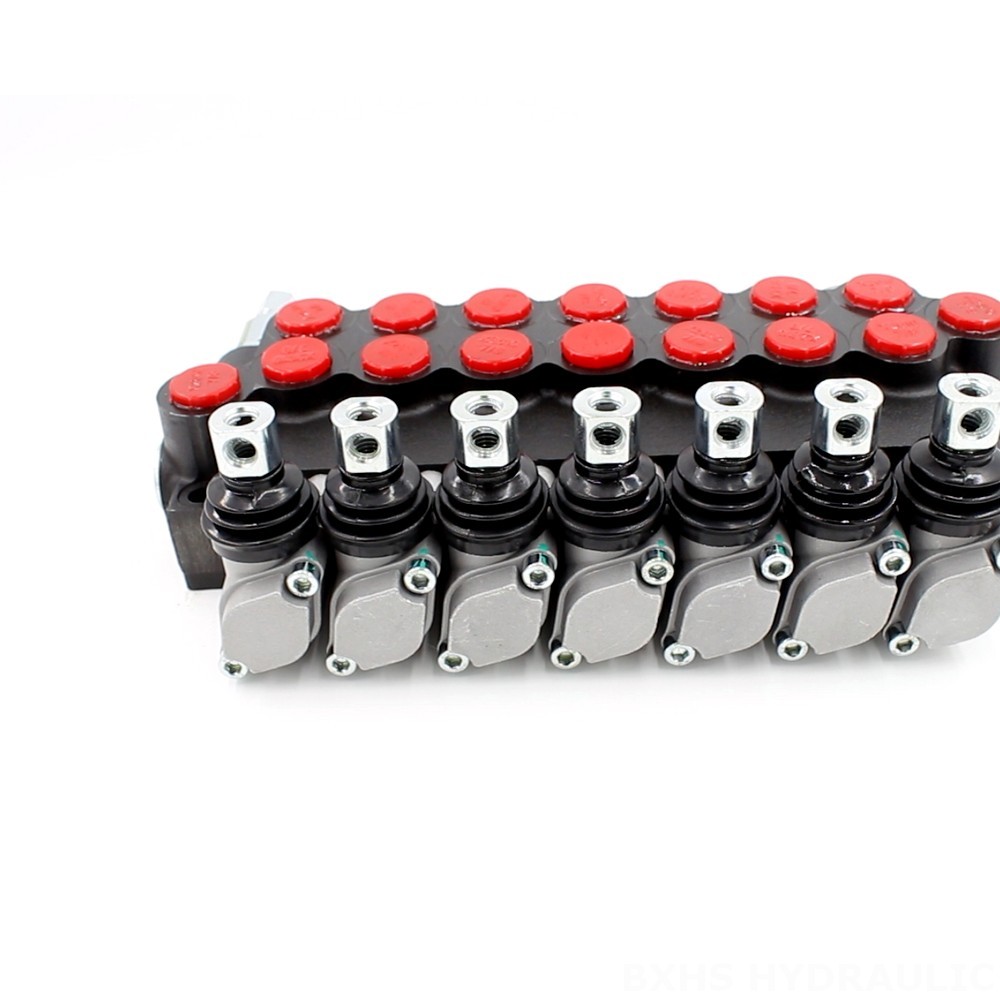

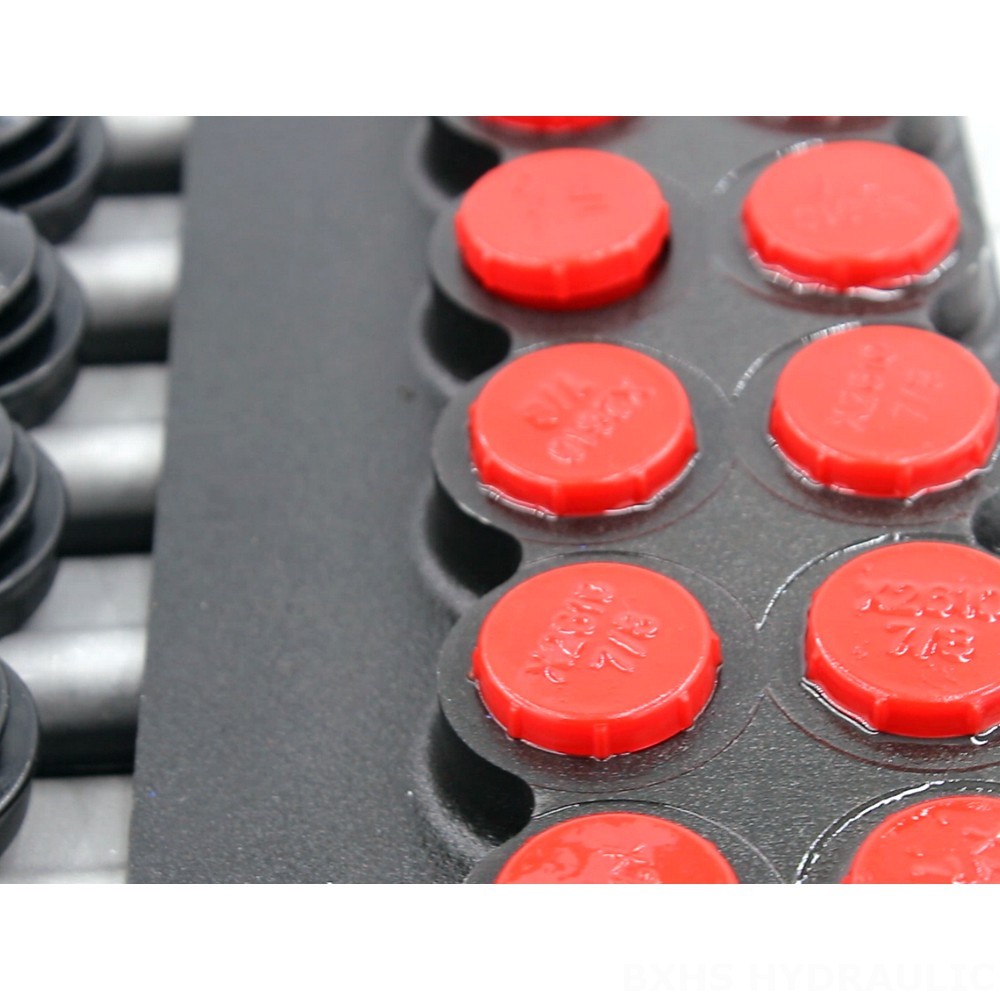

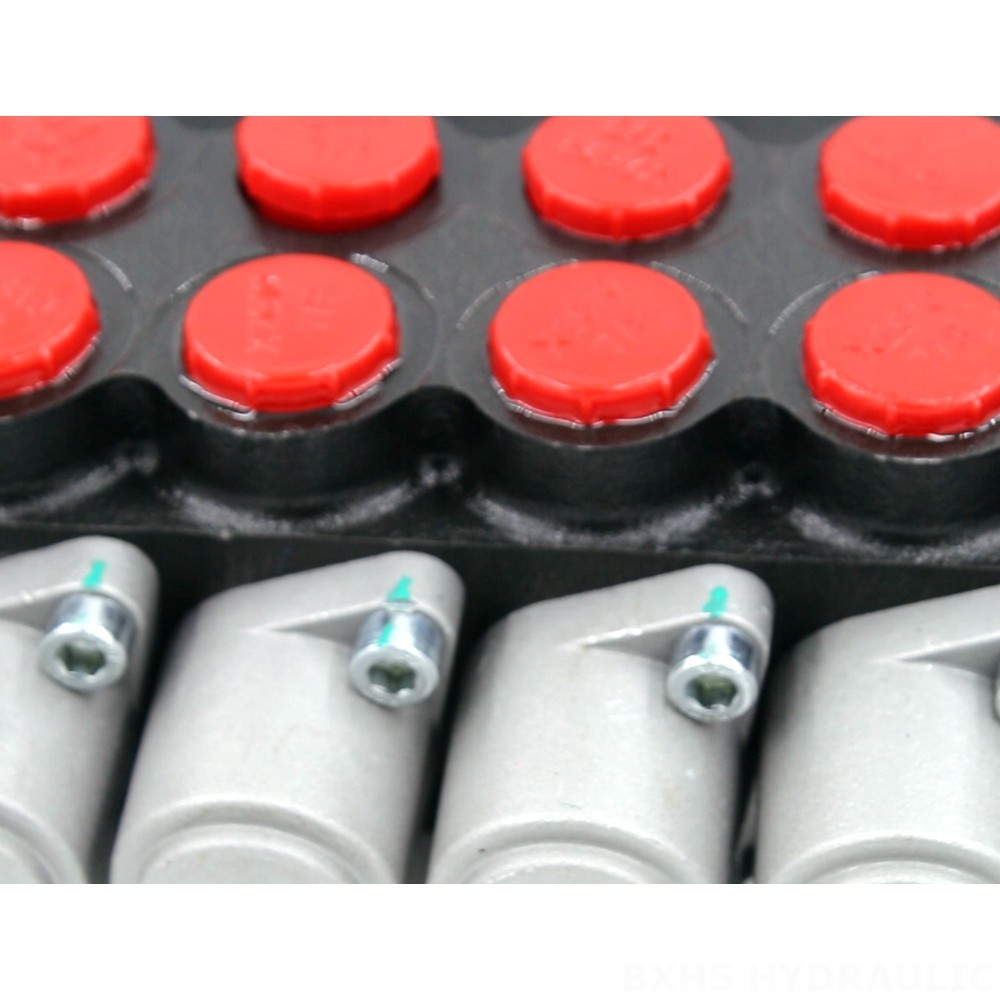

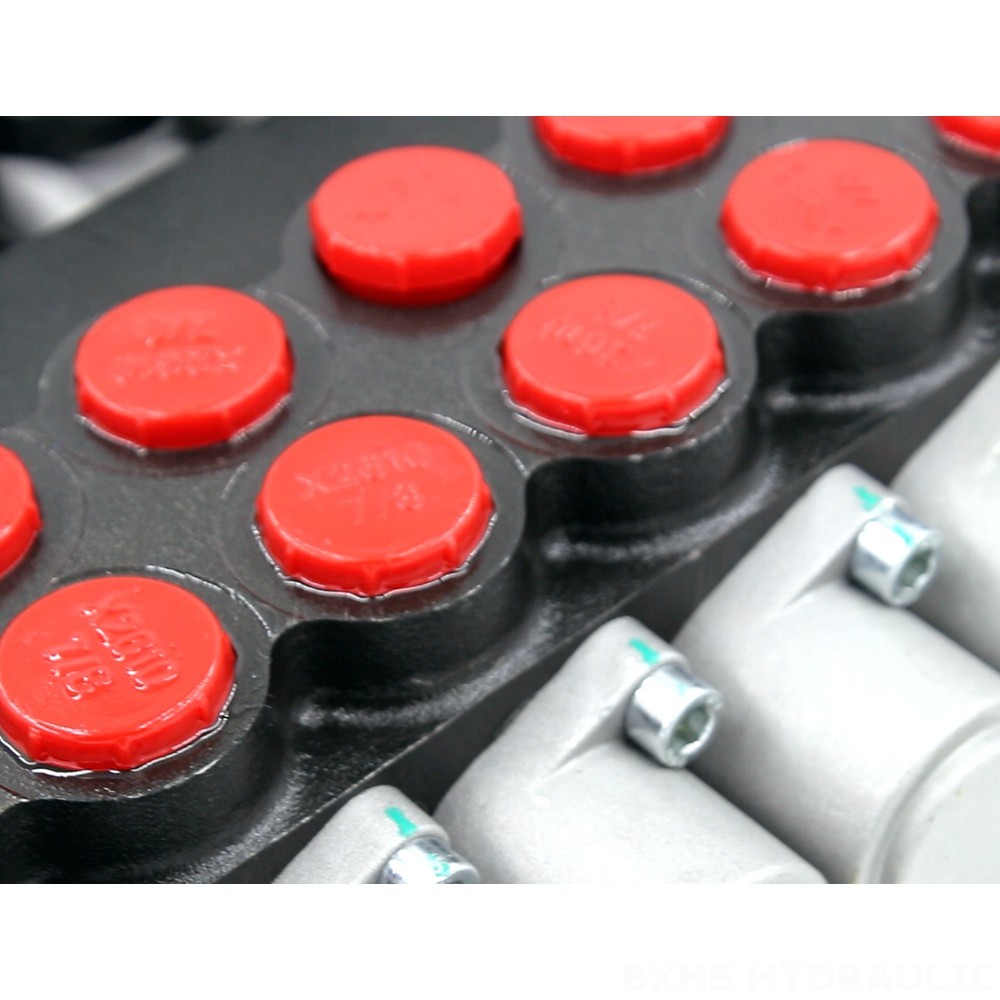

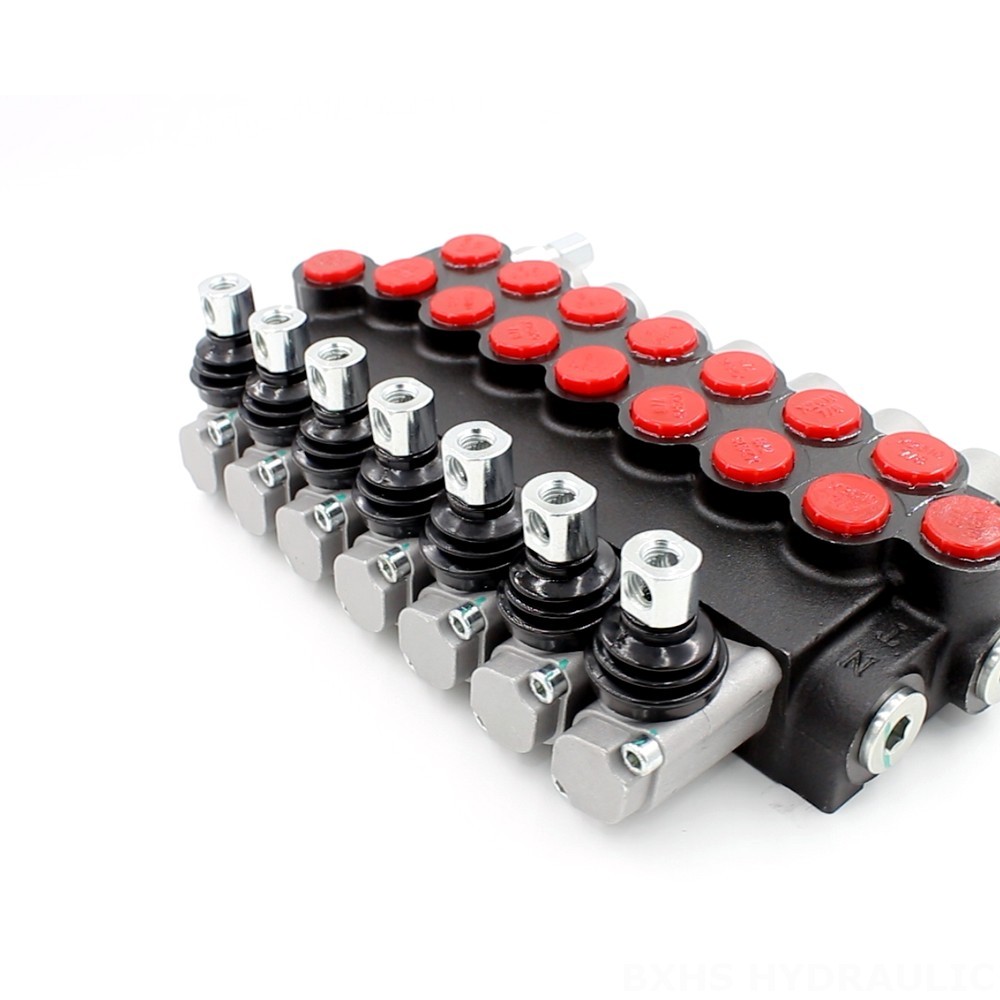

7-Spool Hydraulic Directional Control Valve - P40-U78 Series | Wholesale & OEM detailed image

7-Spool Hydraulic Directional Control Valve - P40-U78 Series | Wholesale & OEM drawing image

The 7-Spool Hydraulic Directional Control Valve from the P40-U78 Series is a high-performance valve designed for various hydraulic systems. It features manual control, a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar. With its wide operating viscosity and ambient temperature ranges, it is suitable for diverse applications in material handling, construction, agriculture, and industrial vehicles.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Name:** 7-Spool Hydraulic Directional Control Valve - P40-U78 Series

**Control Method:** Manual

**Section:** 7 Section

**Structure Type:** Monoblock valve

**Rated Flow:** 40 L/min (10.5 US gpm)

**Max Pressure:** 250 bar (3600 psi)

**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)

**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)

**Spool:** 7 Spool

**Series:** P40 Series

**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES

**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
