Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation

Control Method:Manual

Spool:1 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:23*20*12

Grossweight:3.80 kg

Availability: In Stock

653 Views are Looking for this Product

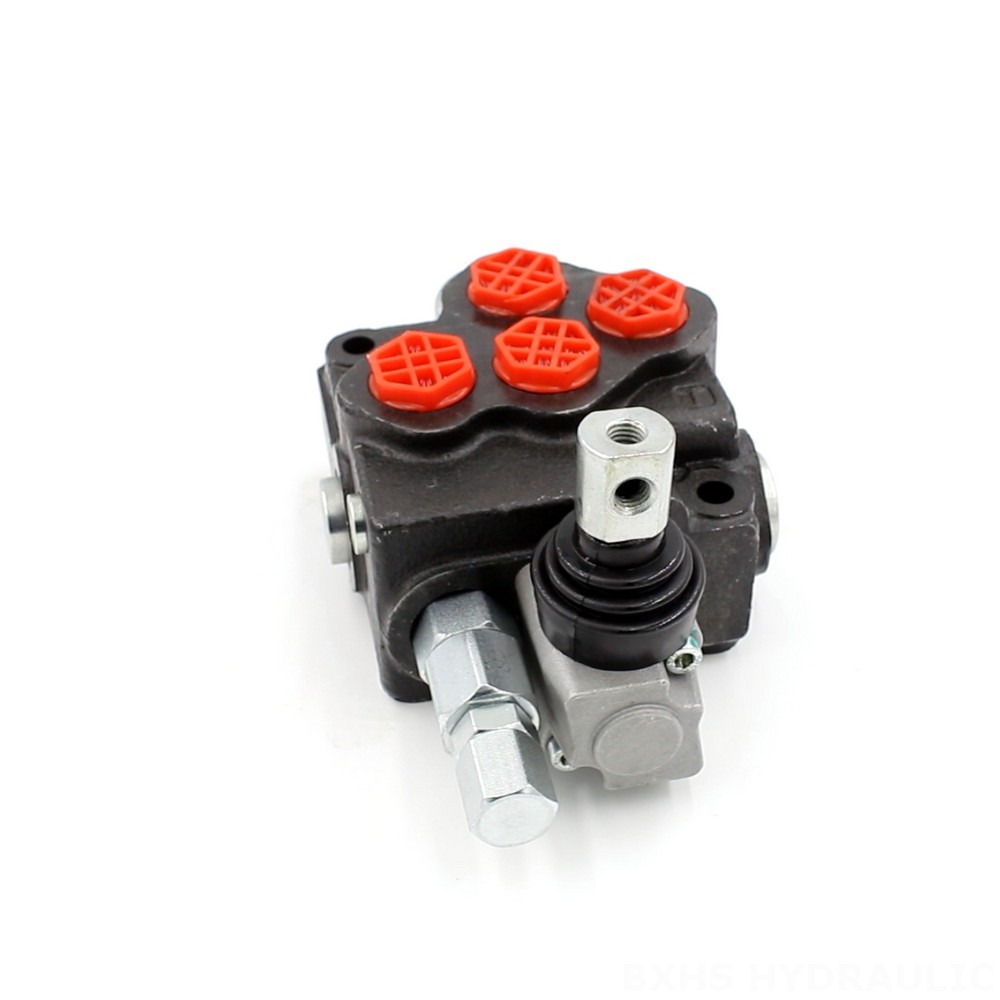

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation detailed image

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation detailed image

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation drawing image

The SD5-G38 Adjustable Pressure Controller is a reliable and durable hydraulic valve designed for smooth operation in a wide range of applications. It offers precise pressure control, high flow rate, and robust construction, making it ideal for use in construction equipment, material handling, agriculture, and industrial vehicles.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The SD5-G38 Adjustable Pressure Controller is a high-performance hydraulic valve designed for demanding applications. Its monoblock construction provides exceptional strength and durability, while its manual control method allows for precise pressure adjustments. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), this valve is suitable for a wide range of hydraulic systems. Its wide operating viscosity range and temperature range ensure reliable performance in various environments. The SD5-G38 is designed for use in a variety of applications, including telehandlers, forklifts, cranes, excavators, loaders, tractors, harvesters, and other industrial vehicles. Its robust construction and high performance make it the perfect choice for demanding applications requiring precise pressure control and reliable operation.

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation application image

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation packing image

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation company image

Adjustable Pressure Controller SD5-G38 Hydraulic Valve: The Ultimate Guide for Smooth Operation certification image
