B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump

Rated Pressure:25 MPa (3625 psi)

Max Pressure:30 MPa (4351 psi)

Vendor:BXHS

Product Type:Hydraulic Piston Pump

Product Series:B6 Series Hydraulic Piston Pump

Productsize:29*11*16

Netweight:12.80 kg

Availability: In Stock

  • 40 cc/rev
  • 50 cc/rev
380 Views are Looking for this Product

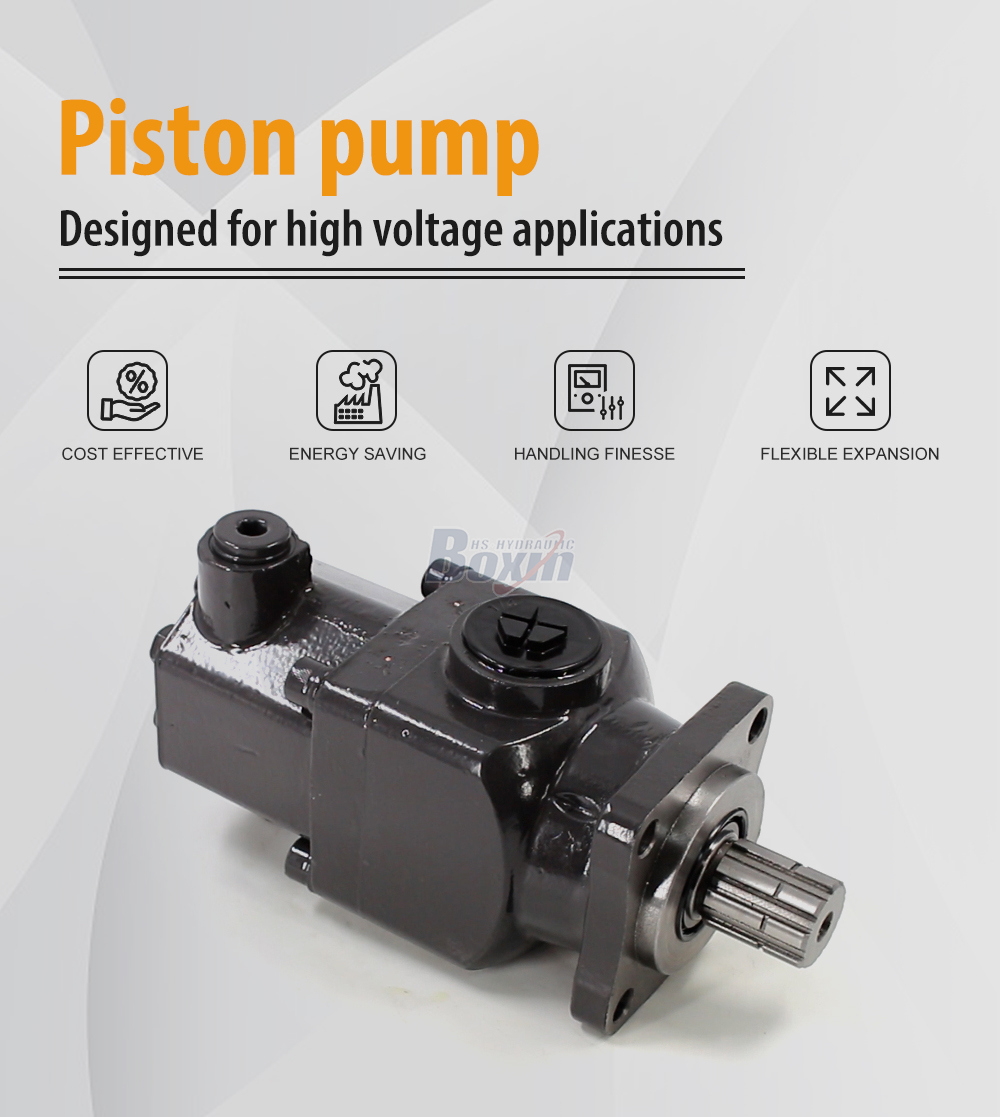

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump detailed image

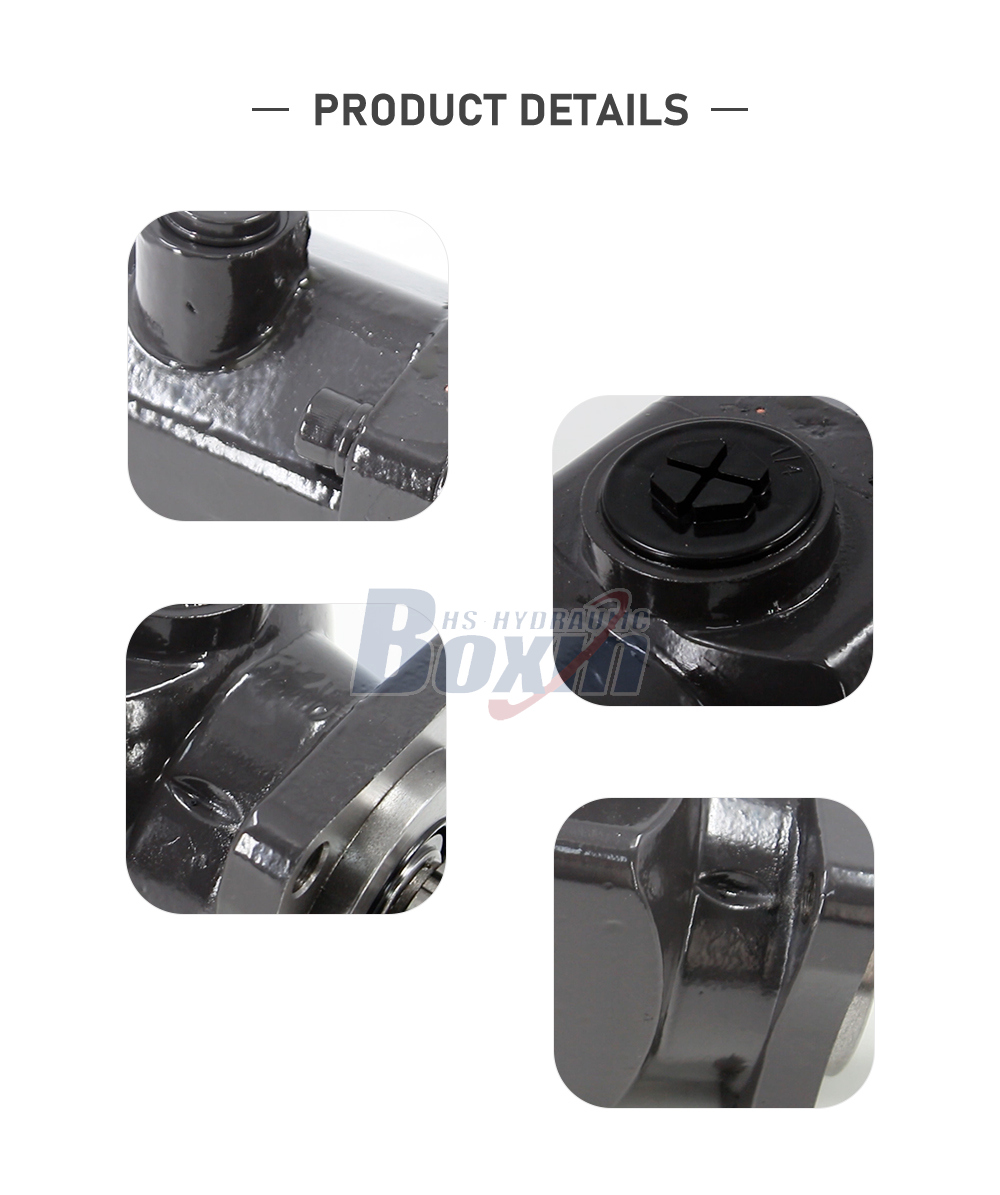

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump detailed image

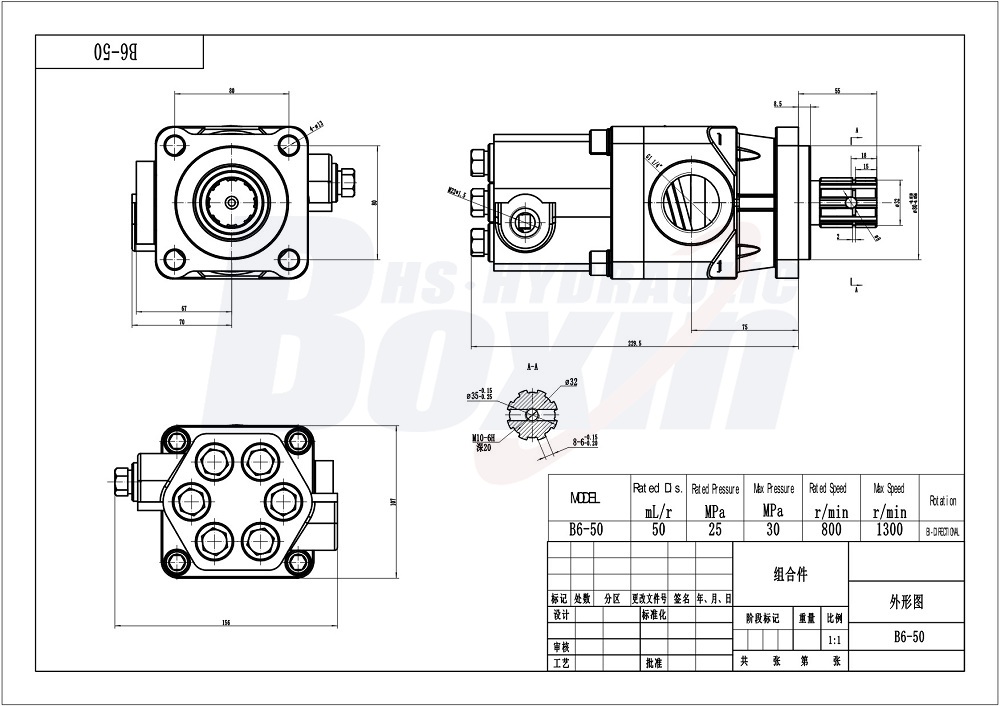

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump drawing image

The B6-50 is a high-performance 50 cc/rev swashplate axial piston pump designed for heavy-duty hydraulic systems. Featuring a robust cast iron construction and bidirectional rotation capability, it delivers a rated pressure of 25 MPa with a standard ISO-4 hole flange mounting and rectangle spline shaft, making it a versatile choice for global distributors and OEMs.

B6 Series Hydraulic Piston Pump Parameters
Displacement 40 cc/rev, 50 cc/rev
Rated Pressure 25 MPa (3625 psi)
Max Pressure 30 MPa (4351 psi)
Rated Speed 800 r/min
Max Speed 1300 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure Swashplate
Flange Version ISO-4 Mounting Holes
Shaft Type H: Rectangle Spline

The B6-50 50cc/rev hydraulic piston pump is engineered for durability and efficiency in demanding environments. Key benefits include: 1. Versatile Performance: Bi-directional (clockwise and counter-clockwise) rotation allows for flexible installation across various vehicle types. 2. Robust Construction: The high-strength cast iron housing ensures excellent wear resistance and a long service life under high-pressure conditions (up to 30 MPa). 3. Standardized Fitting: Equipped with an ISO 4-hole mounting flange and a rectangle spline shaft for seamless integration into existing machinery. 4. High Efficiency: The swashplate design provides stable displacement and energy-saving operation. Ideal for construction machinery (loaders, excavators), agricultural equipment (tractors, harvesters), and industrial utility vehicles. We offer comprehensive OEM, ODM, and wholesale services for global distributors and traders seeking reliable hydraulic solutions.

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump application image

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump packing image

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump company image

B6-50 50 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump certification image
