Bi Directional Control Valve Hydraulic Directional Valves: P80-G12-QTW | OEM & Global Supplier

Control Method:Manual

Spool:1 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*17*11

Grossweight:5.00 kg

Availability: In Stock

777 Views are Looking for this Product

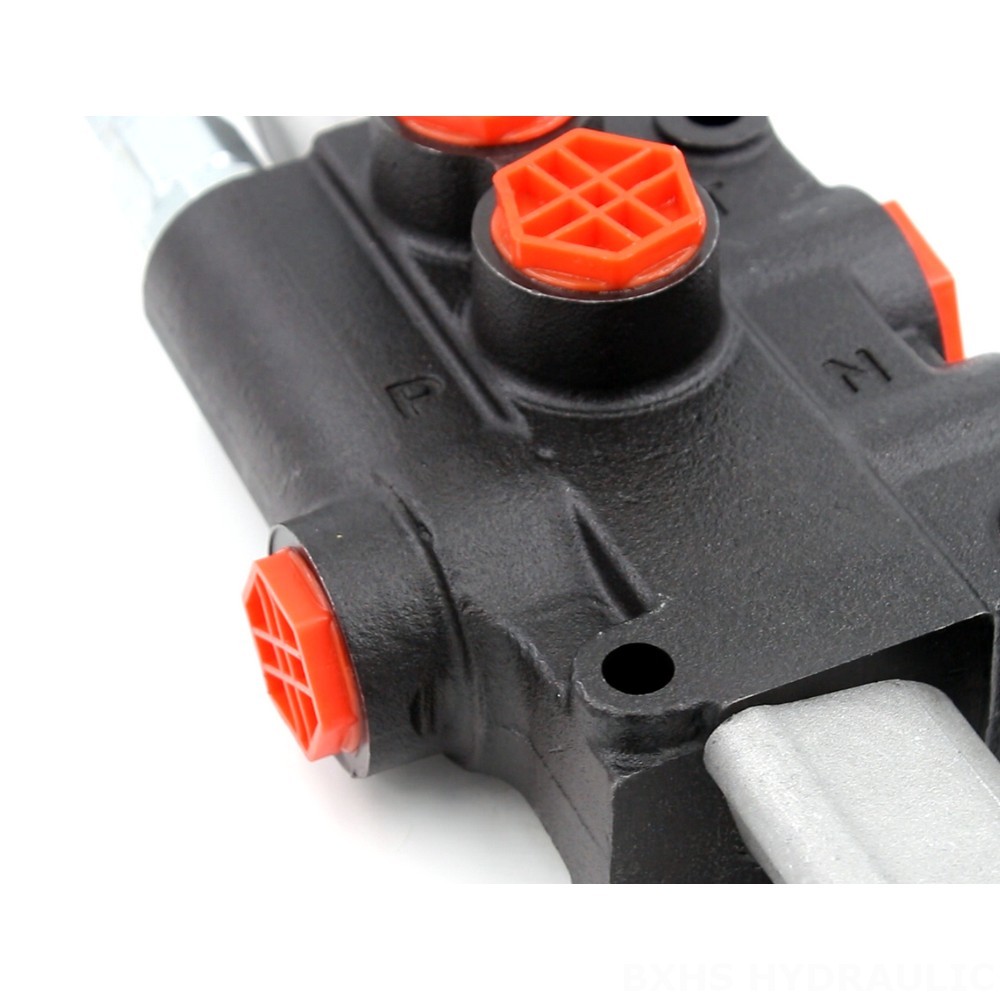

Bi Directional Control Valve Hydraulic Directional Valves: P80-G12-QTW | OEM & Global Supplier detailed image

Bi Directional Control Valve Hydraulic Directional Valves: P80-G12-QTW | OEM & Global Supplier detailed image

Bi Directional Control Valve Hydraulic Directional Valves: P80-G12-QTW | OEM & Global Supplier drawing image

The P80-G12-QTW Bi Directional Control Valve is a high-performance hydraulic directional valve designed for use in a wide range of applications, including construction equipment, material handling, and agriculture. This manual control valve features a monoblock construction, a rated flow of 80 L/min, and a maximum pressure of 250 bar. It is available as an OEM component or through global distribution.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80-G12-QTW Bi Directional Control Valve is a high-performance hydraulic directional valve designed for use in a wide range of applications, including construction equipment, material handling, and agriculture. This manual control valve features a monoblock construction, a rated flow of 80 L/min, and a maximum pressure of 250 bar. It is available as an OEM component or through global distribution. The valve is designed for use with hydraulic fluids with a viscosity range of 15 to 75 mm²/s (15 cSt to 75 cSt). The valve can be used in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The valve features a 1-section, 1-spool design, making it ideal for use in applications requiring precise control of hydraulic fluid flow. The valve is suitable for use with a variety of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
