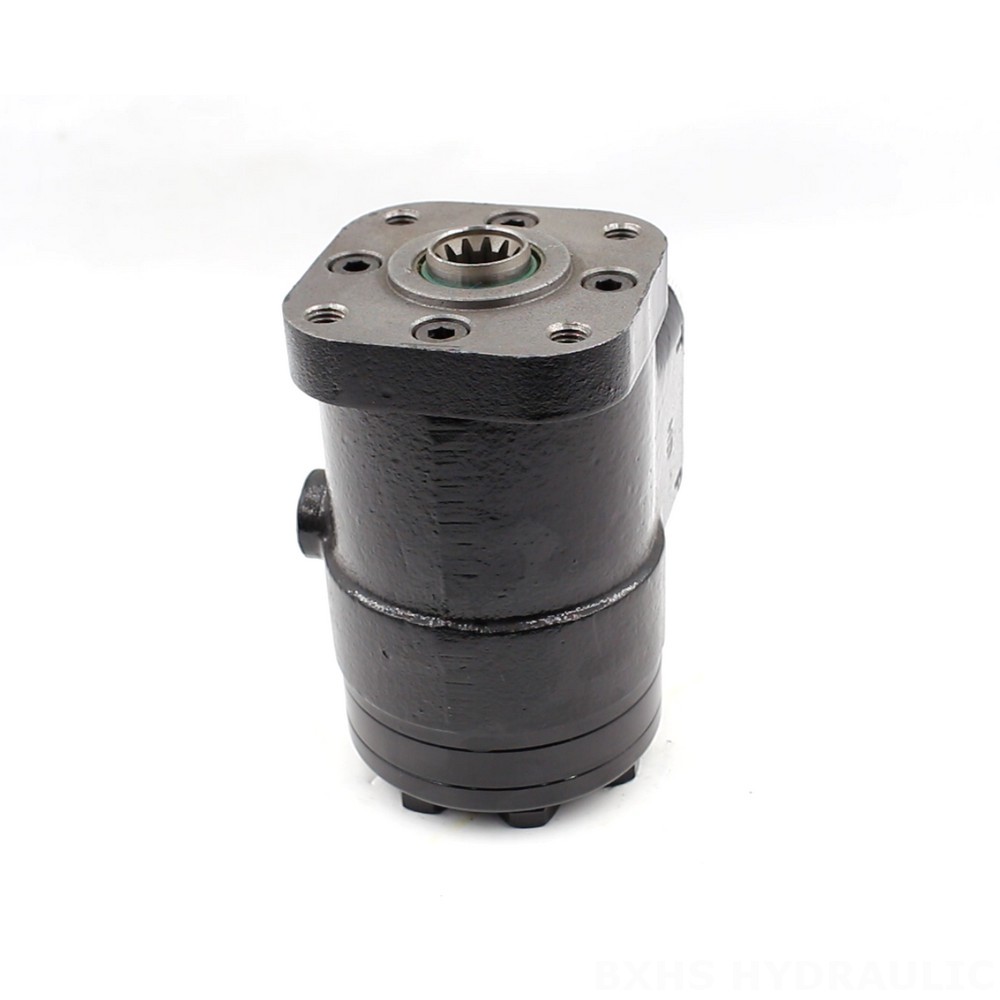

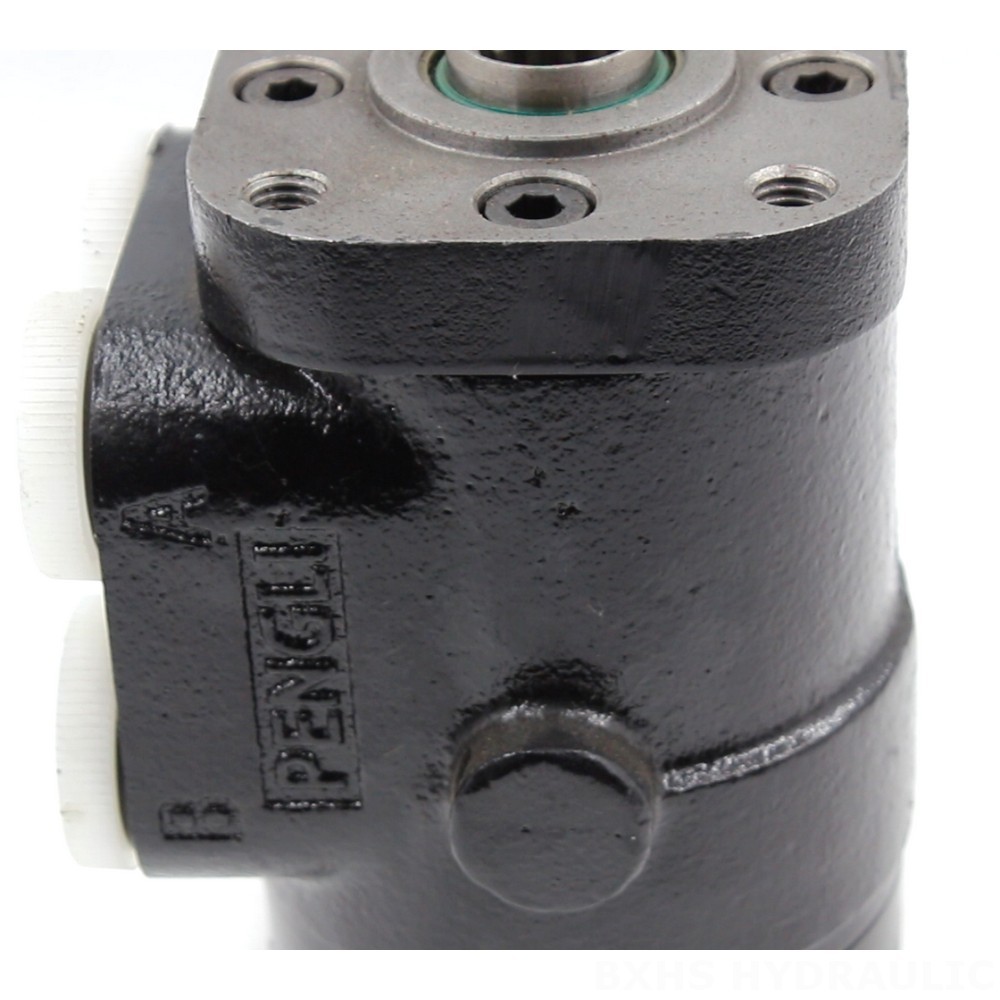

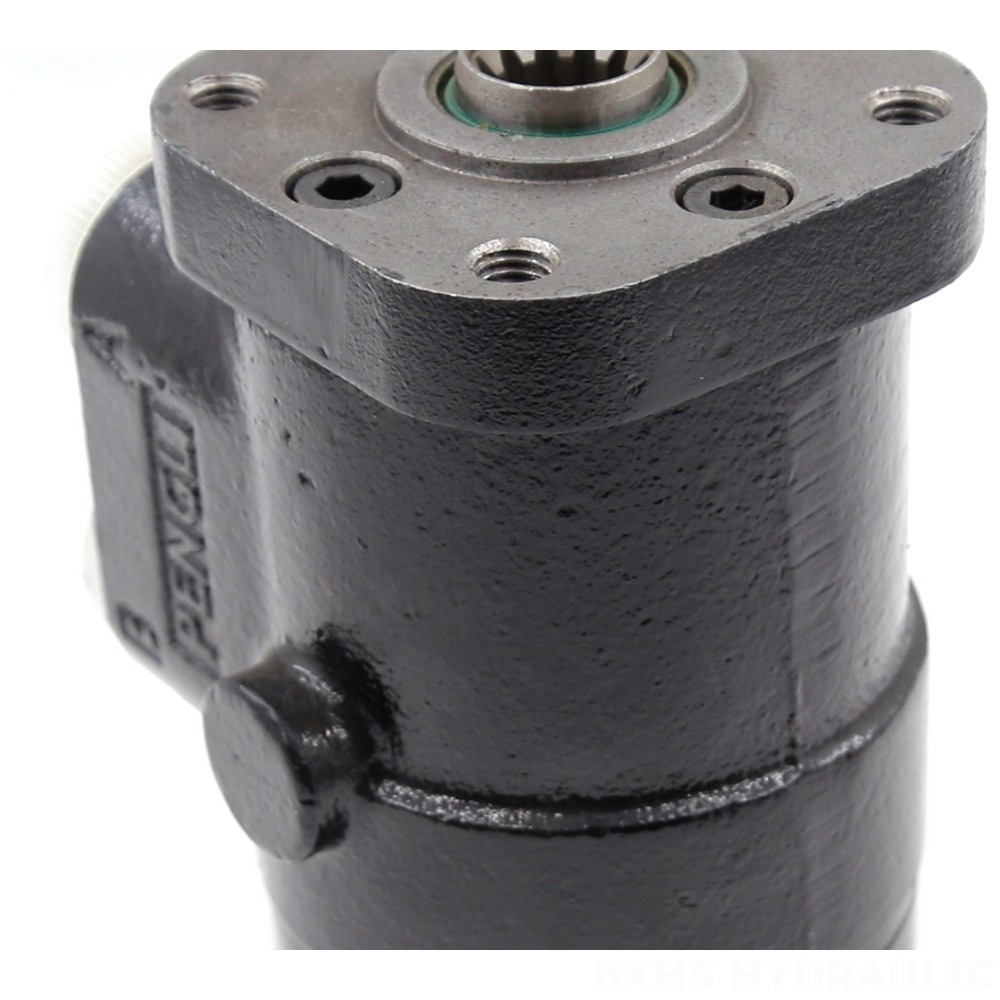

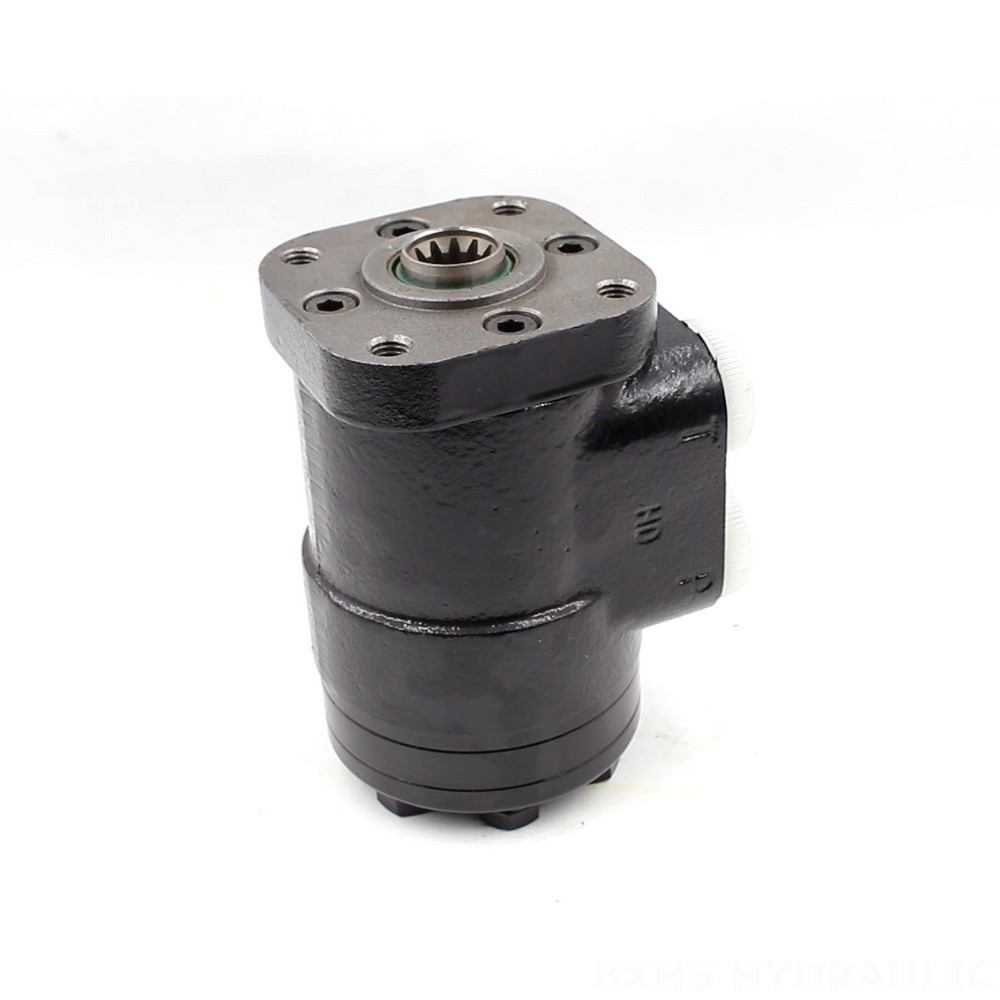

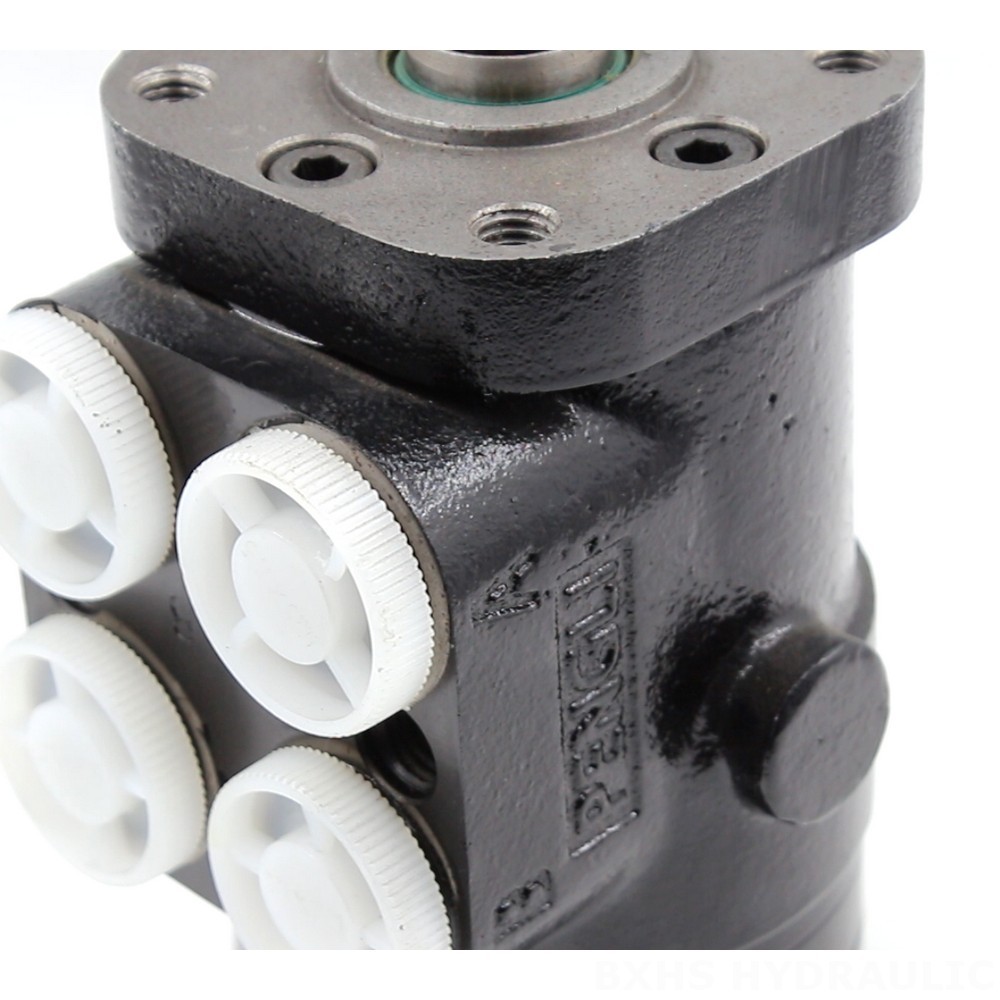

BZZ1-E100B Hydraulic Steering Unit (100 ml/r displacement) for material handling, construction, and industrial vehicles. OEM, ODM, custom design, and wholesale services available. Contact us for distribution opportunities.
| BZZ1 Series Streering Unit Parameters | |
|---|---|
| Displacement | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| Valve Block | Customizable |
| Material | Cast Iron |
| Rated flow | 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/min, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| Max Cont Back pressure | 2.5 Mpa |
| Max input pressure | 16 Mpa |
The BZZ1-E100B Hydraulic Steering Unit is a high-performance, reliable solution for a wide range of applications, including forklifts, skid steer loaders, compact wheel loaders, telehandlers, mini-excavators, tractors, and front-end loaders. With a displacement of 100 ml/r, a maximum input pressure of 16 MPa, and a rated flow of 7.5 L/min, this cast iron unit offers exceptional durability and performance. Its customizable valve block ensures adaptability to specific customer requirements.
**Key Features:**
* Displacement: 100 ml/r
* Max. Input Pressure: 16 MPa
* Max. Cont. Back Pressure: 2.5 MPa
* Rated Flow: 7.5 L/min
* Material: Cast Iron
* Customizable Valve Block
* Applications: Material Handling, Construction & Earth Moving, Industrial Vehicles
**We Offer:**
* **OEM Services:** Manufacture to your specifications.
* **ODM Services:** Design and manufacture according to your requirements.
* **Private Labeling:** Brand your own hydraulic steering unit.
* **Custom Design:** Tailored solutions to meet your unique needs.
* **Wholesale Pricing:** Competitive pricing for bulk orders.
**We are seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
As a leading manufacturer and factory supplier, we provide high-quality hydraulic steering units at factory-direct wholesale prices. Partner with us to expand your product offerings and tap into growing global markets. Contact us today to discuss your specific needs and explore our OEM, ODM, and private labeling opportunities.
