BZZ1-E100C hydraulic steering unit, 100 ml/r displacement, 16 MPa max pressure. Factory wholesale prices. Ideal for material handling, construction, and agricultural applications. OEM/ODM available.
| BZZ1 Series Streering Unit Parameters | |
|---|---|
| Displacement | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| Valve Block | Customizable |
| Material | Cast Iron |
| Rated flow | 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/min, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| Max Cont Back pressure | 2.5 Mpa |
| Max input pressure | 16 Mpa |

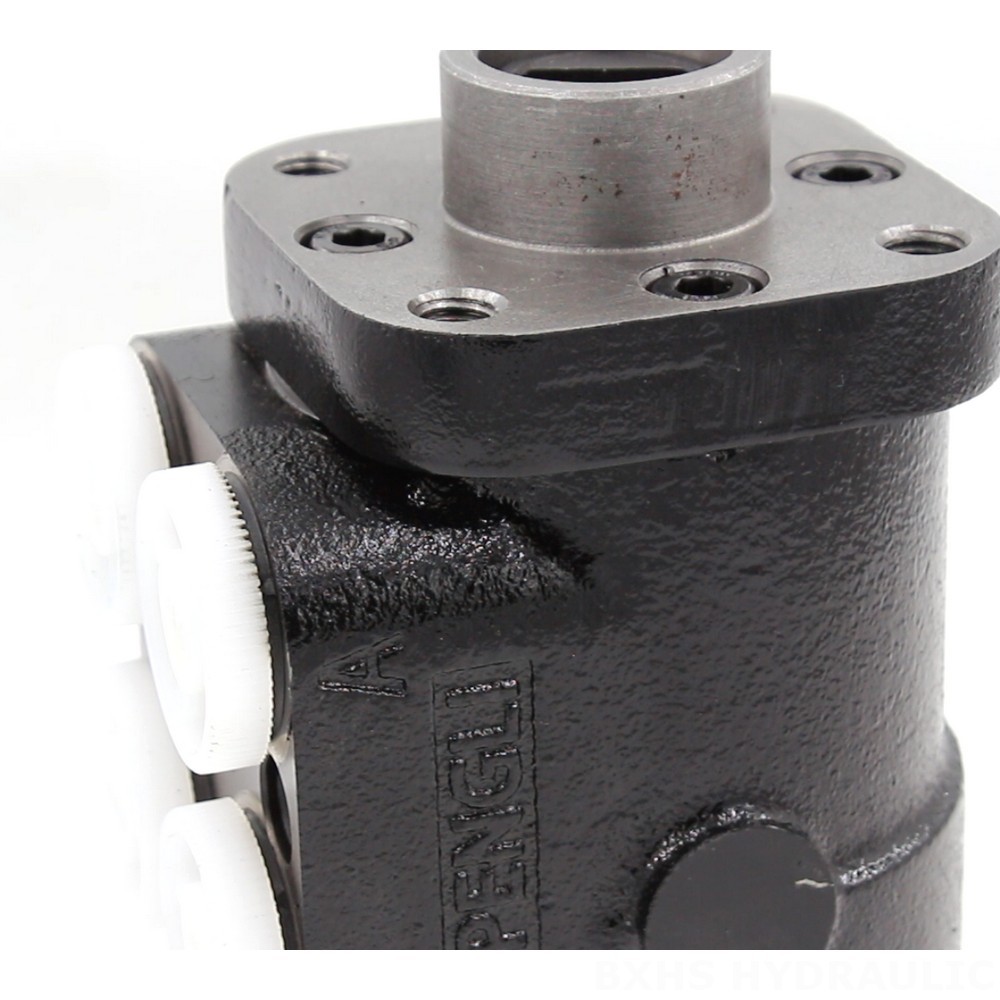

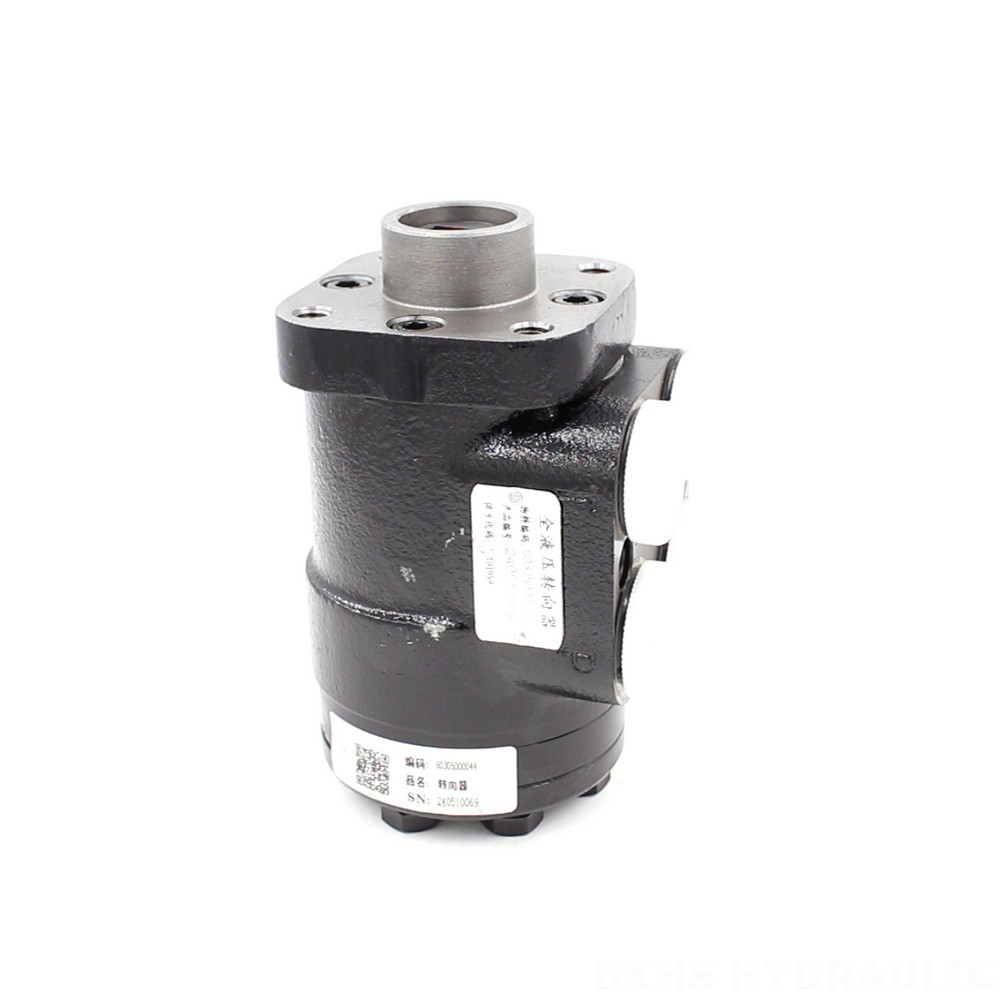

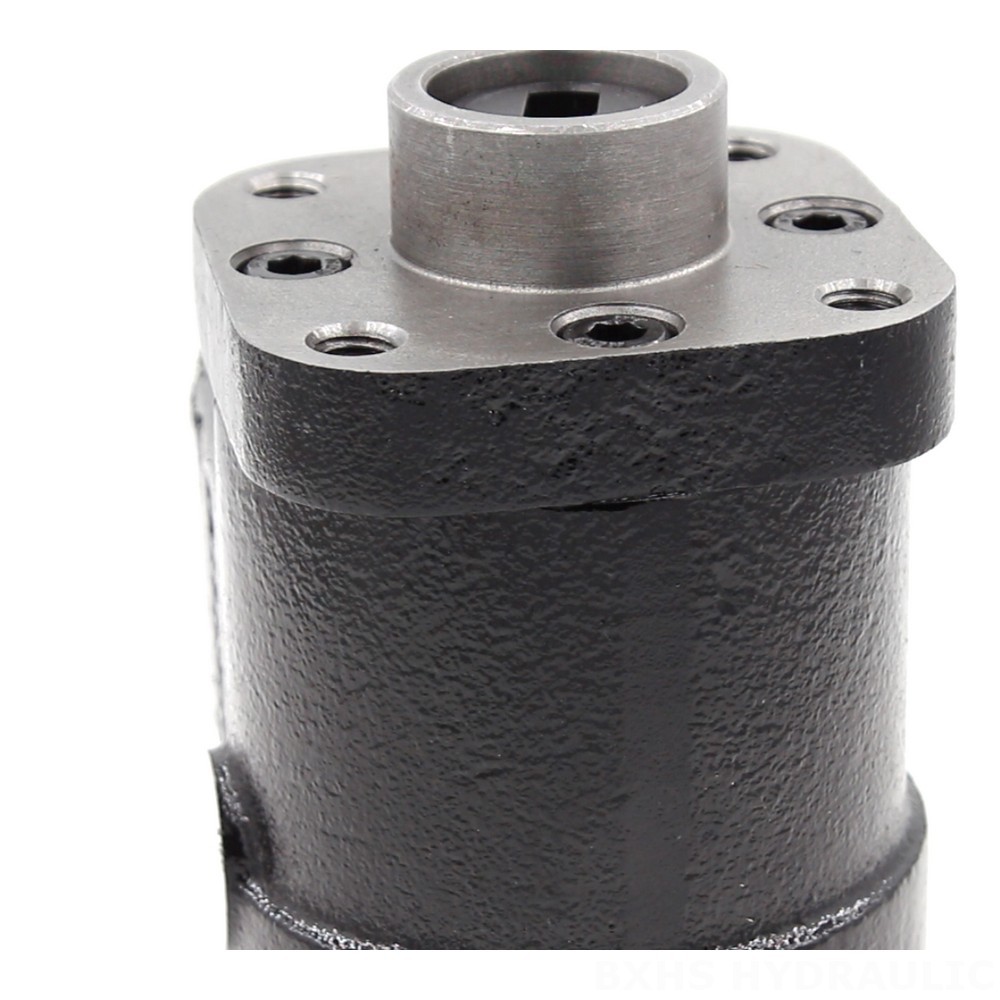

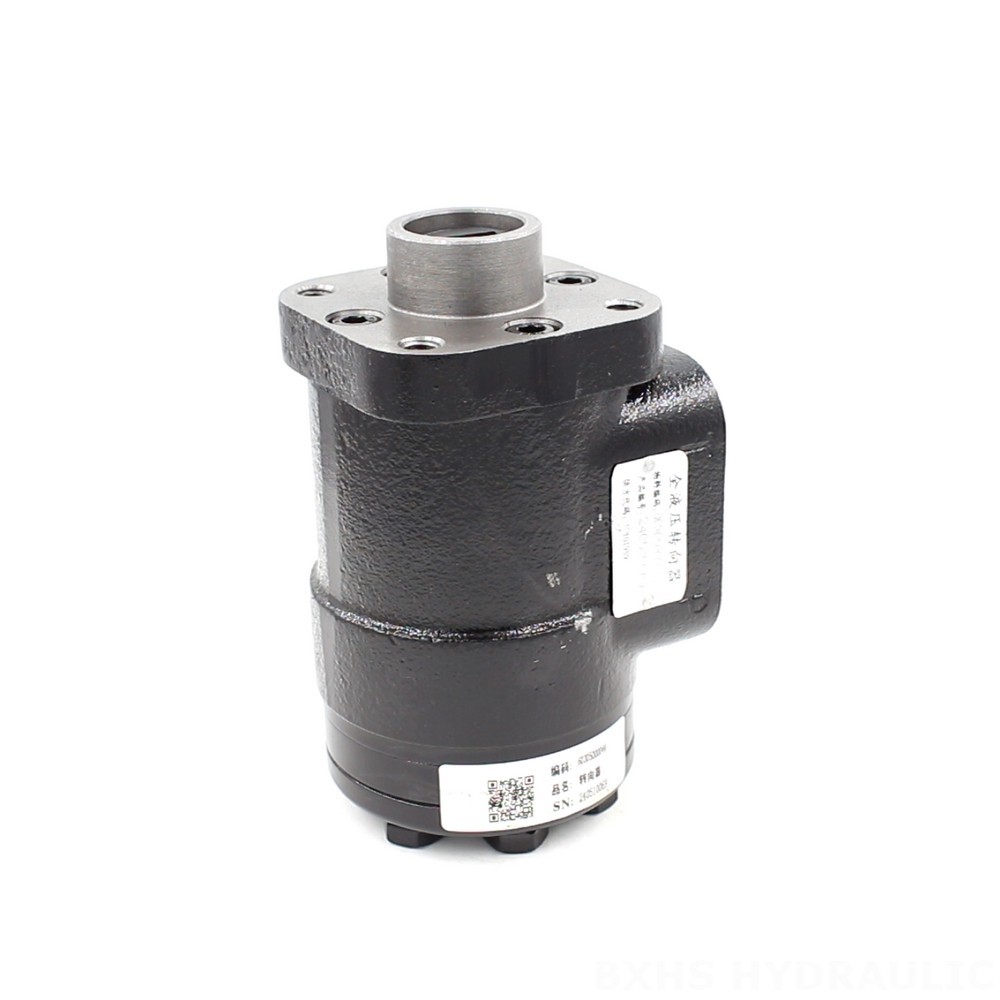

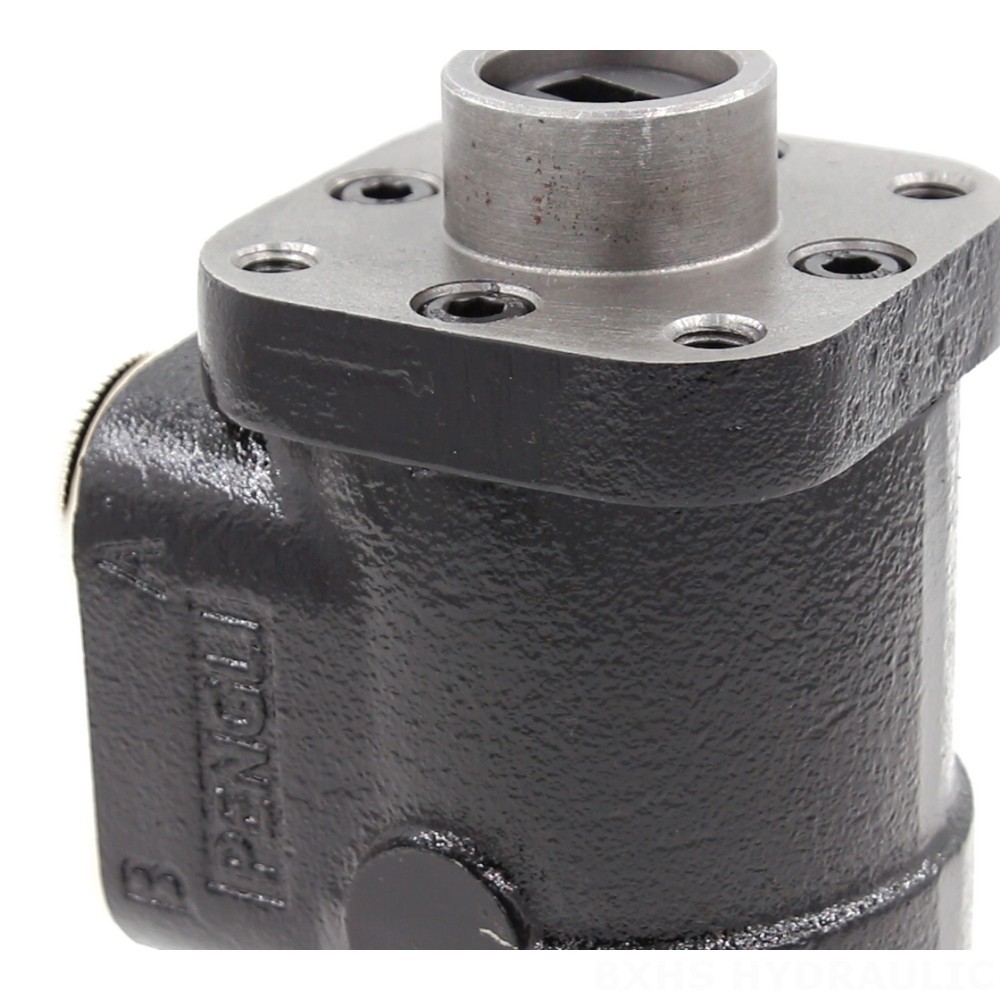

The BZZ1-E100C hydraulic steering unit is a high-performance, reliable component designed for a wide range of applications. With a displacement of 100 ml/r and a maximum input pressure of 16 MPa, it delivers a rated flow of 7.5 L/min. Constructed from durable cast iron, this unit features a customizable valve block for optimal performance in your specific application.
**Key Features:**
* Displacement: 100 ml/r
* Max Input Pressure: 16 MPa
* Max Cont Back Pressure: 2.5 MPa
* Rated Flow: 7.5 L/min
* Material: Cast Iron
* Customizable Valve Block
**Applications:**
* Material Handling
* Construction and Earth Moving
* Industrial Vehicles
* Agriculture
**Applicable Models:**
* Forklifts
* Telehandlers
* Skid Steer Loaders
* Compact Wheel Loaders
* Mini-Excavators
* Tractors and Front-End Loaders
* Harvesters
* Balers
We are a hydraulic product manufacturer offering **manufacturing, OEM, ODM, customization, and wholesale** services to global markets. We are actively seeking distributors, wholesalers, agents, and trading companies to partner with us. Benefit from our **factory wholesale prices** and high-quality products. As a **manufacturer and factory supplier**, we provide competitive pricing and reliable supply chains. Contact us today to discuss your requirements and explore the opportunities for collaboration. We offer **factory direct wholesale** pricing for bulk orders. Let's build a mutually beneficial partnership.
