CBHST1-ISO-120 120 cc/rev 25 MPa (3625 psi) Hydraulic Gear Pump

Rated Pressure:25 MPa (3625 psi)

Max Pressure:28 MPa (4061 psi)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:CBHST1-ISO Series Hydraulic Gear Pump

Productsize:28.3*16.8*14.8

Netweight:19.55 kg

Availability: In Stock

  • 50 cc/rev
  • 63 cc/rev
  • 80 cc/rev
  • 100 cc/rev
  • 34 cc/rev
  • 43 cc/rev
  • 120 cc/rev
365 Views are Looking for this Product

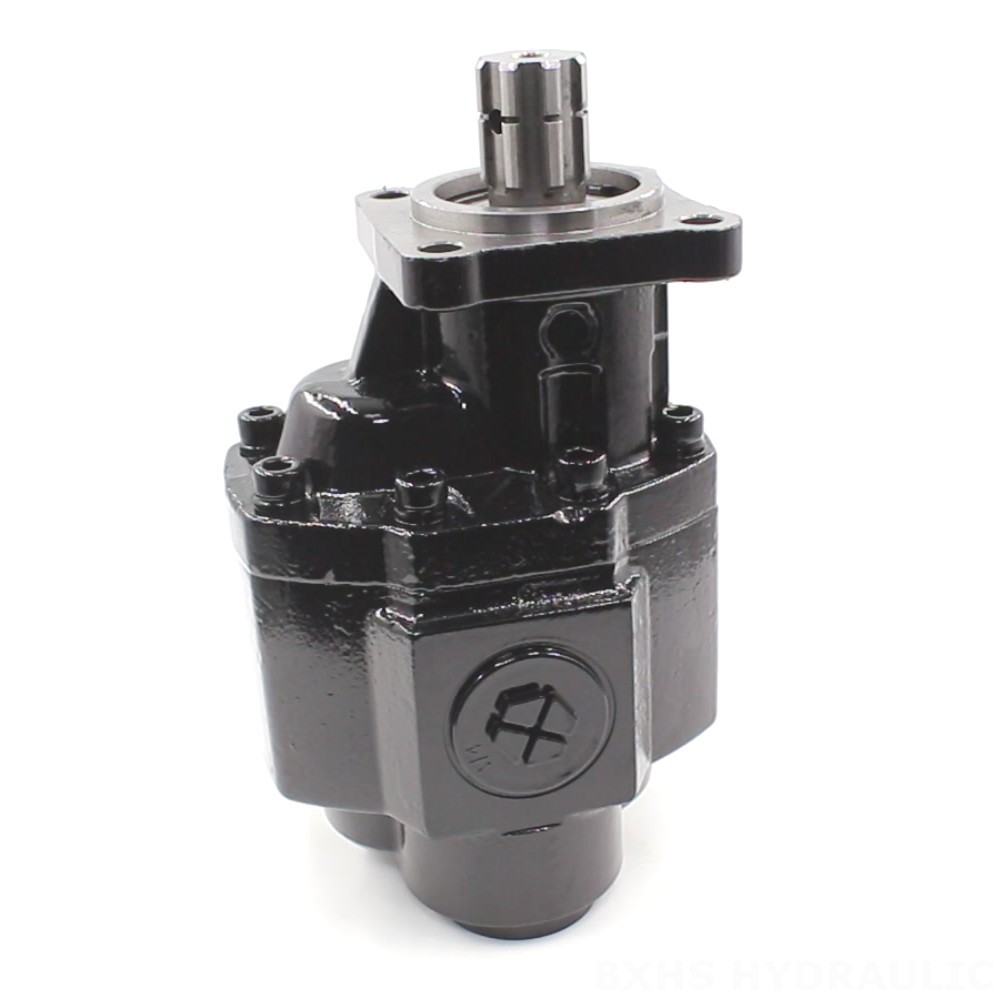

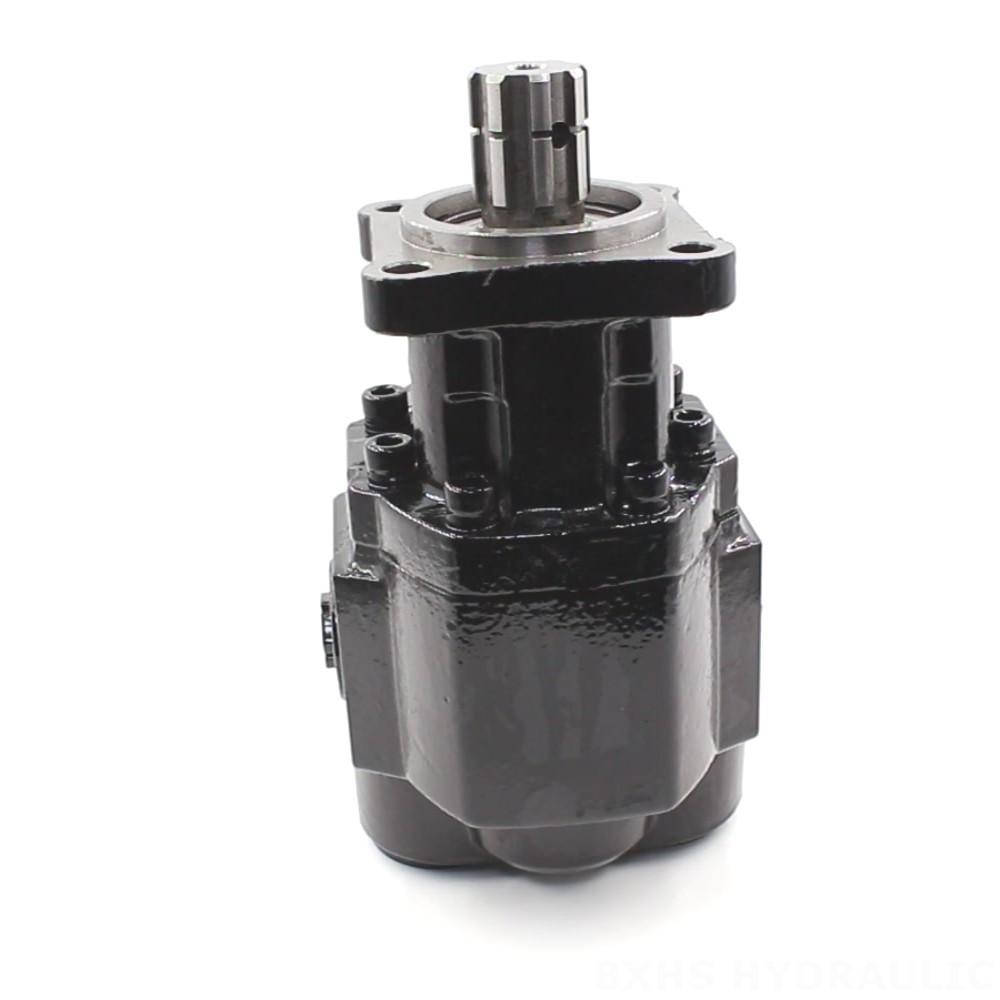

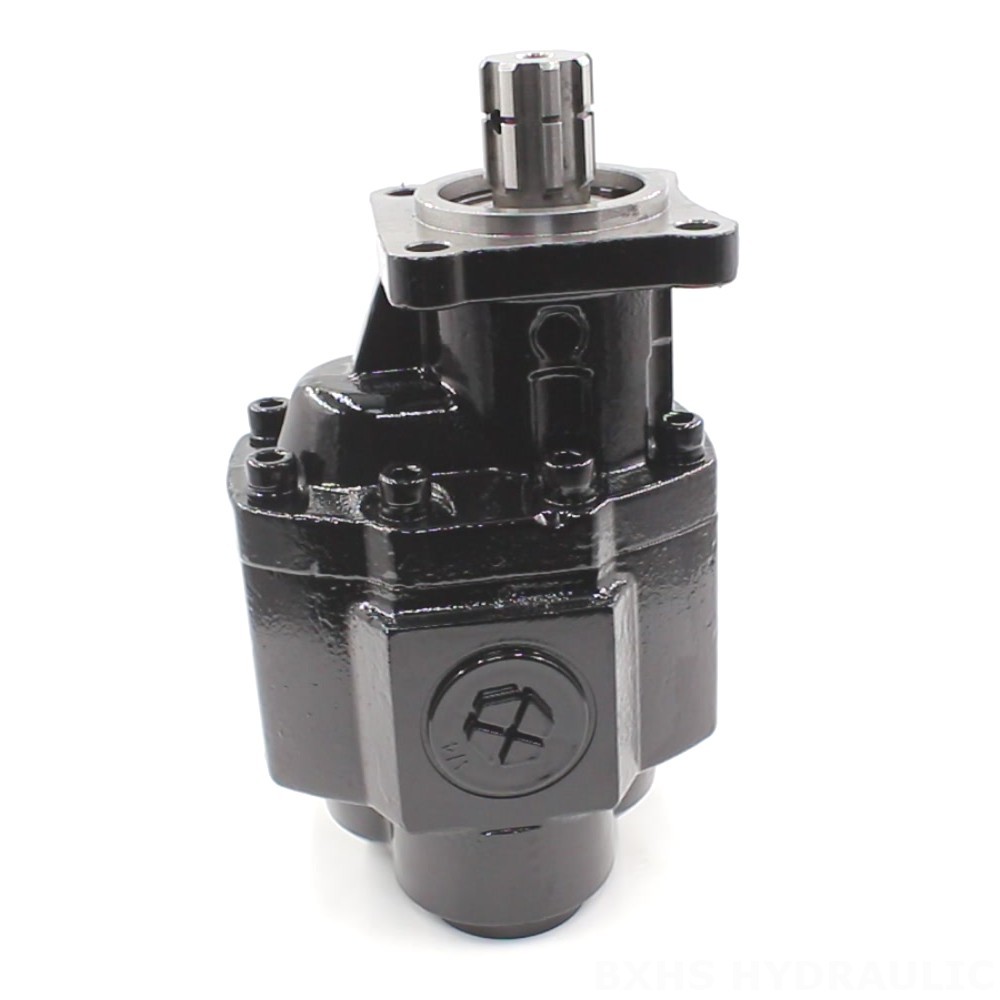

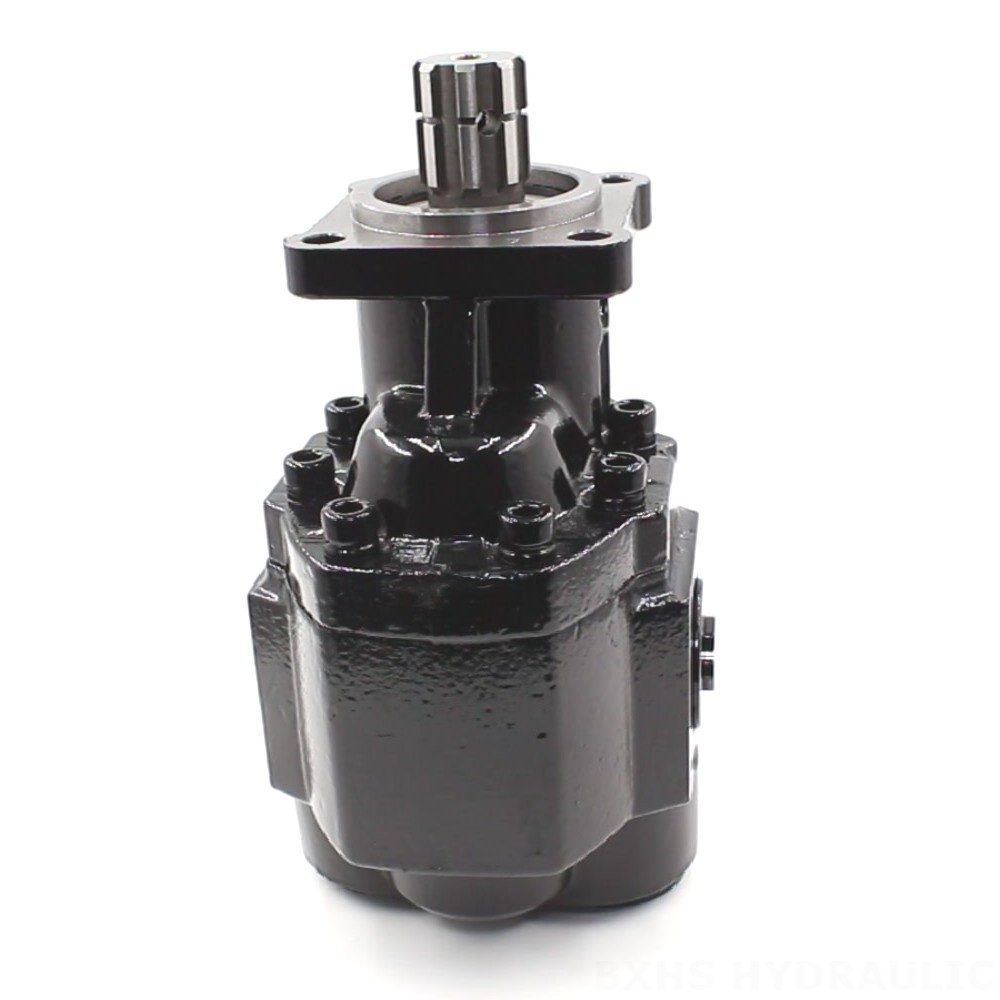

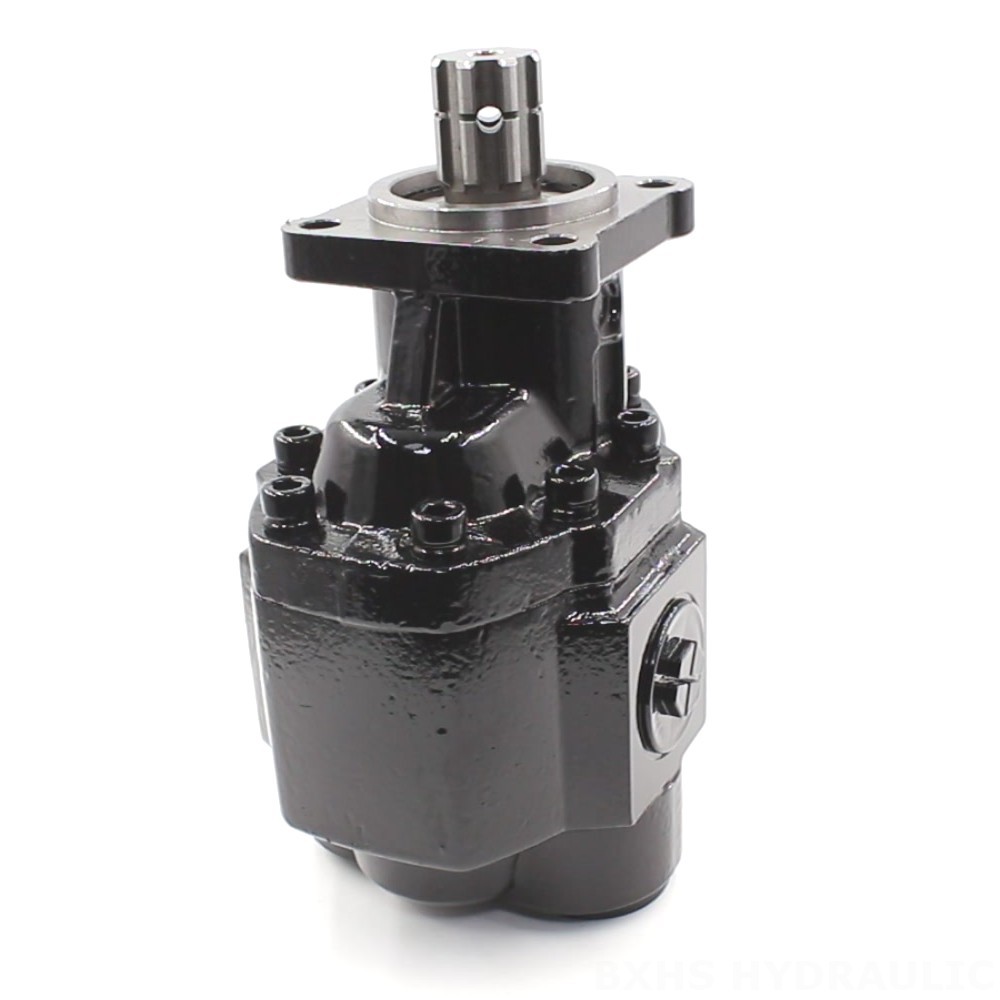

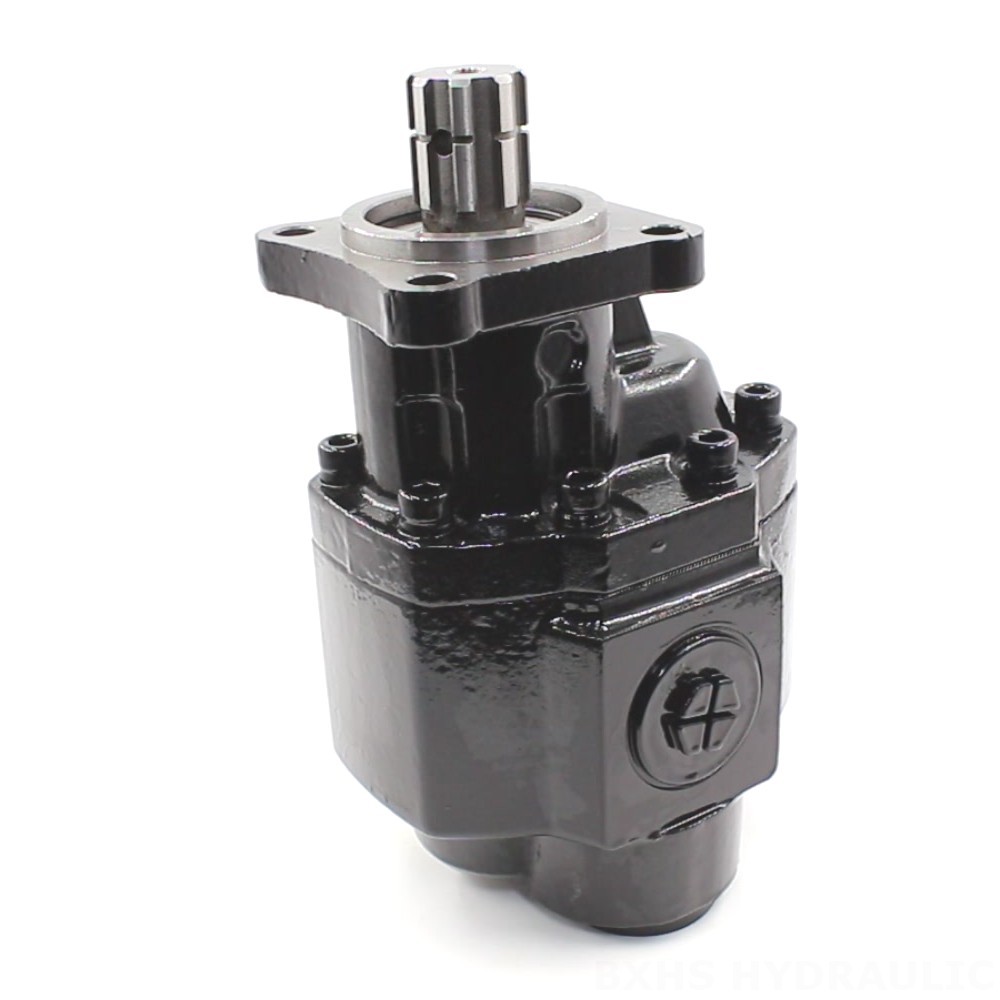

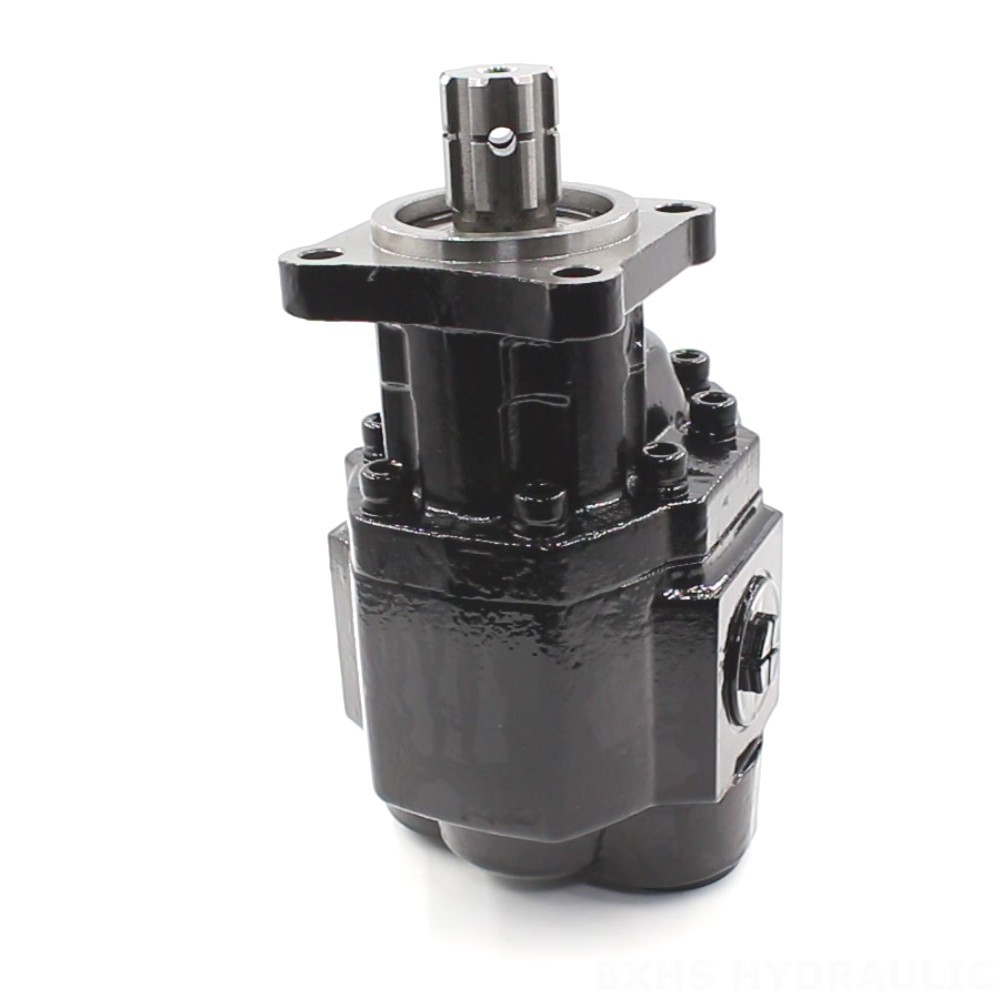

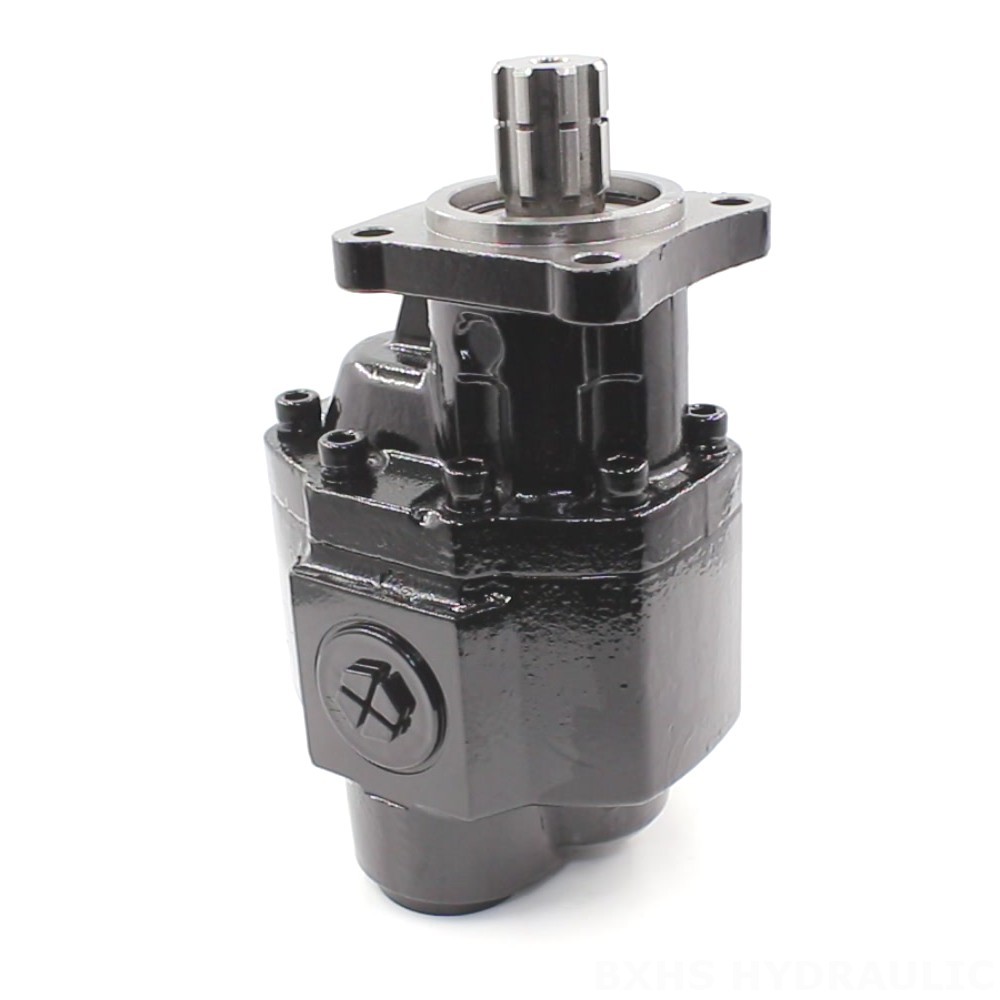

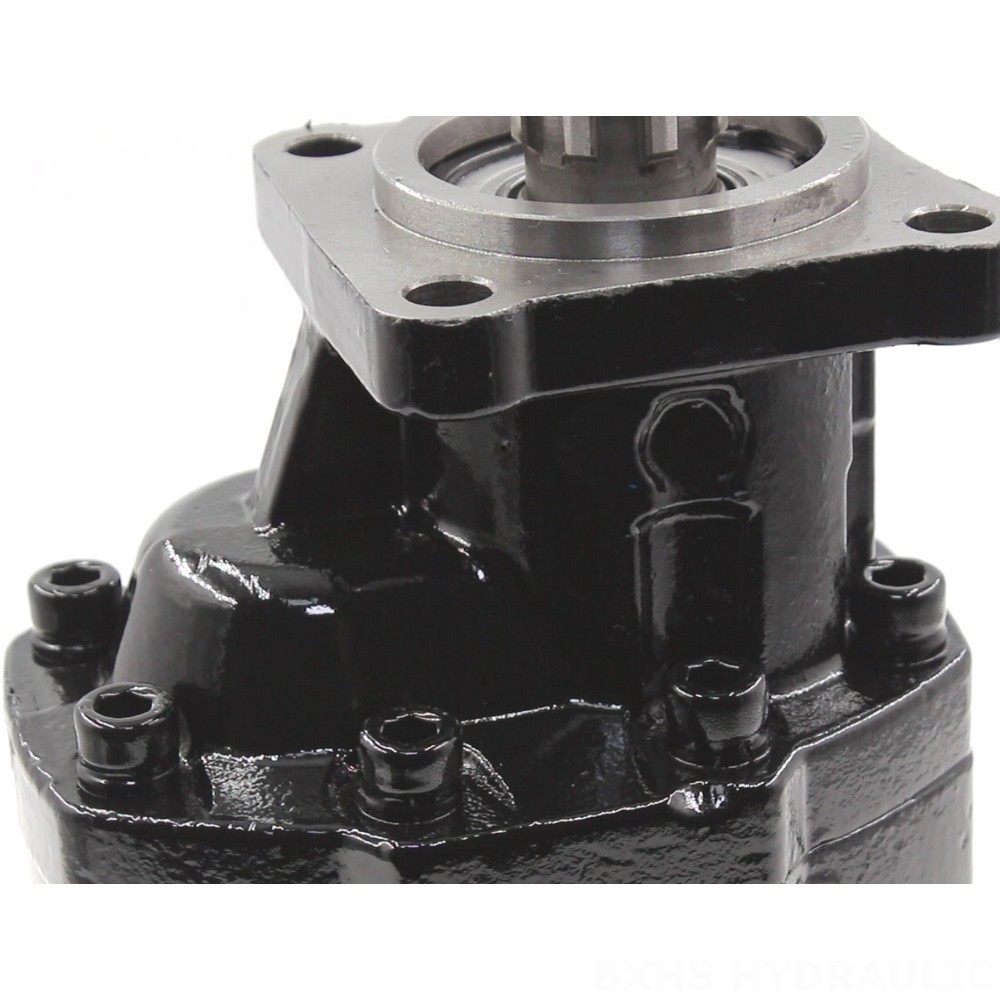

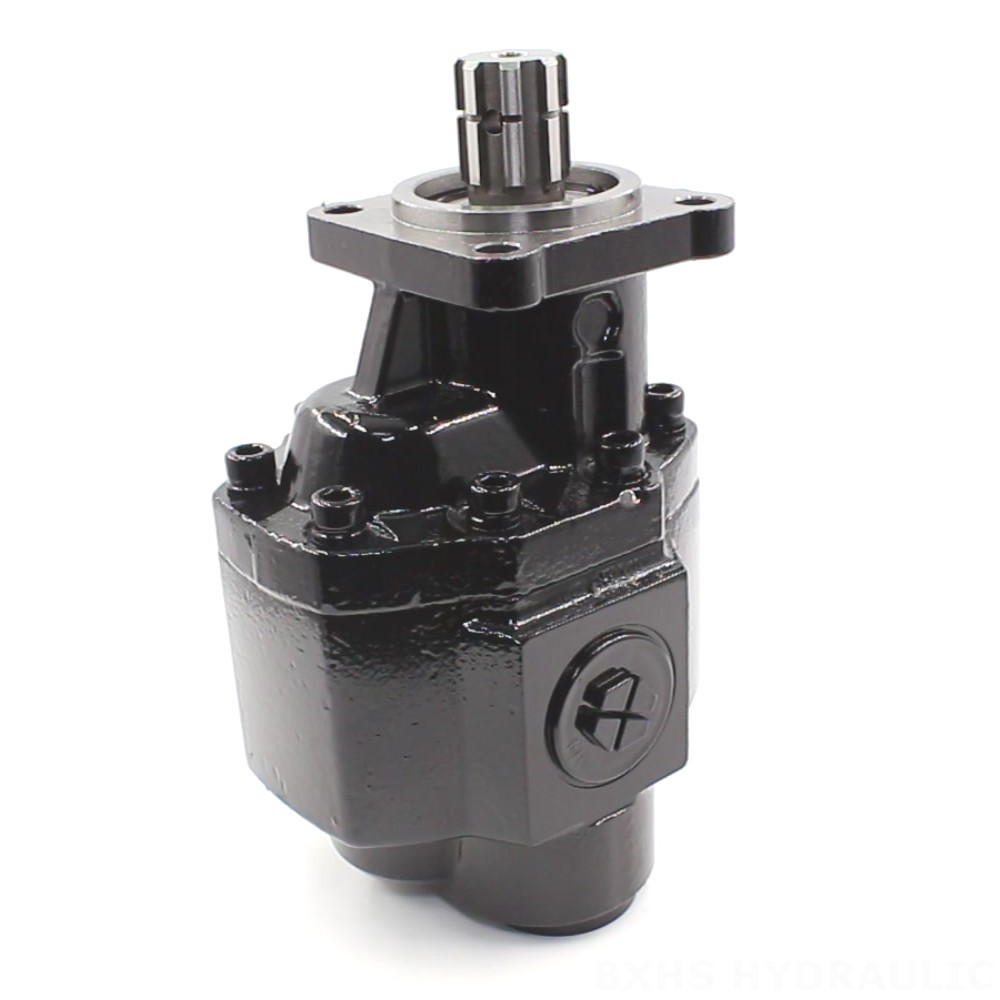

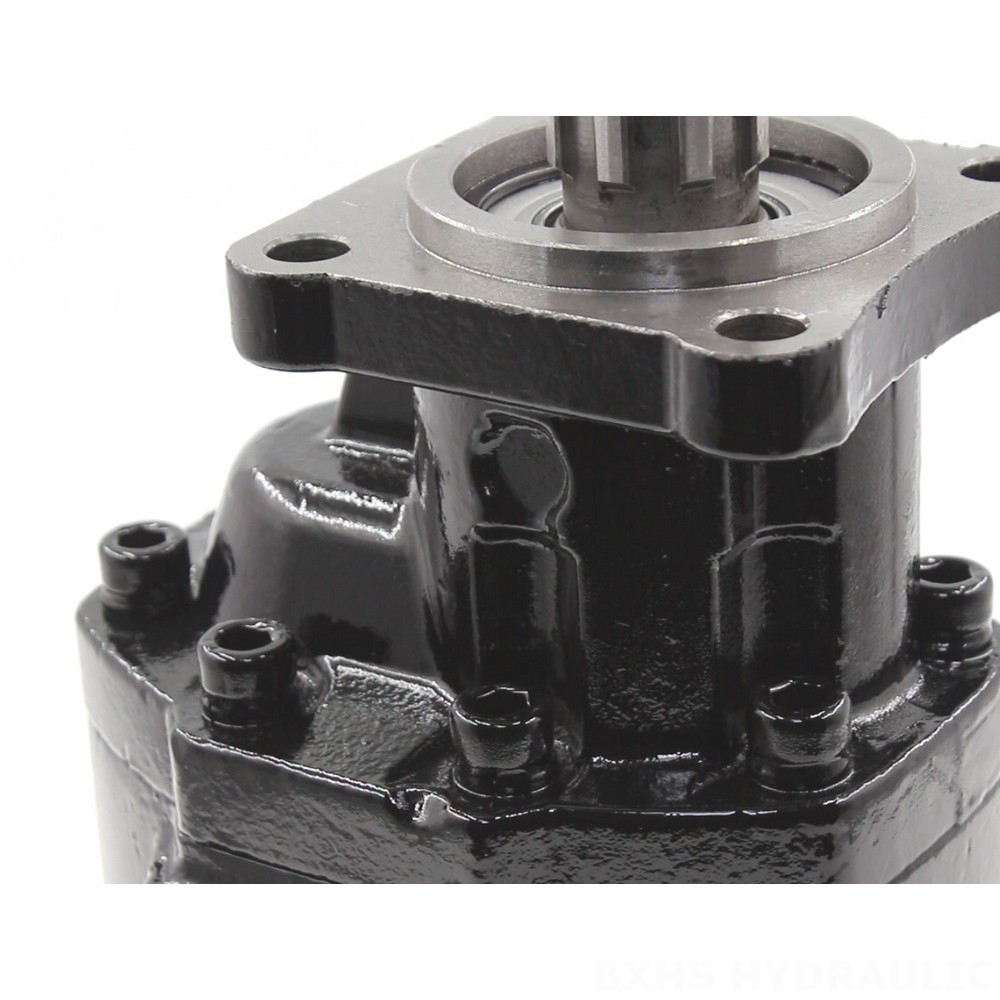

CBHST1-ISO-120 120 cc/rev 25 MPa (3625 psi) Hydraulic Gear Pump detailed image

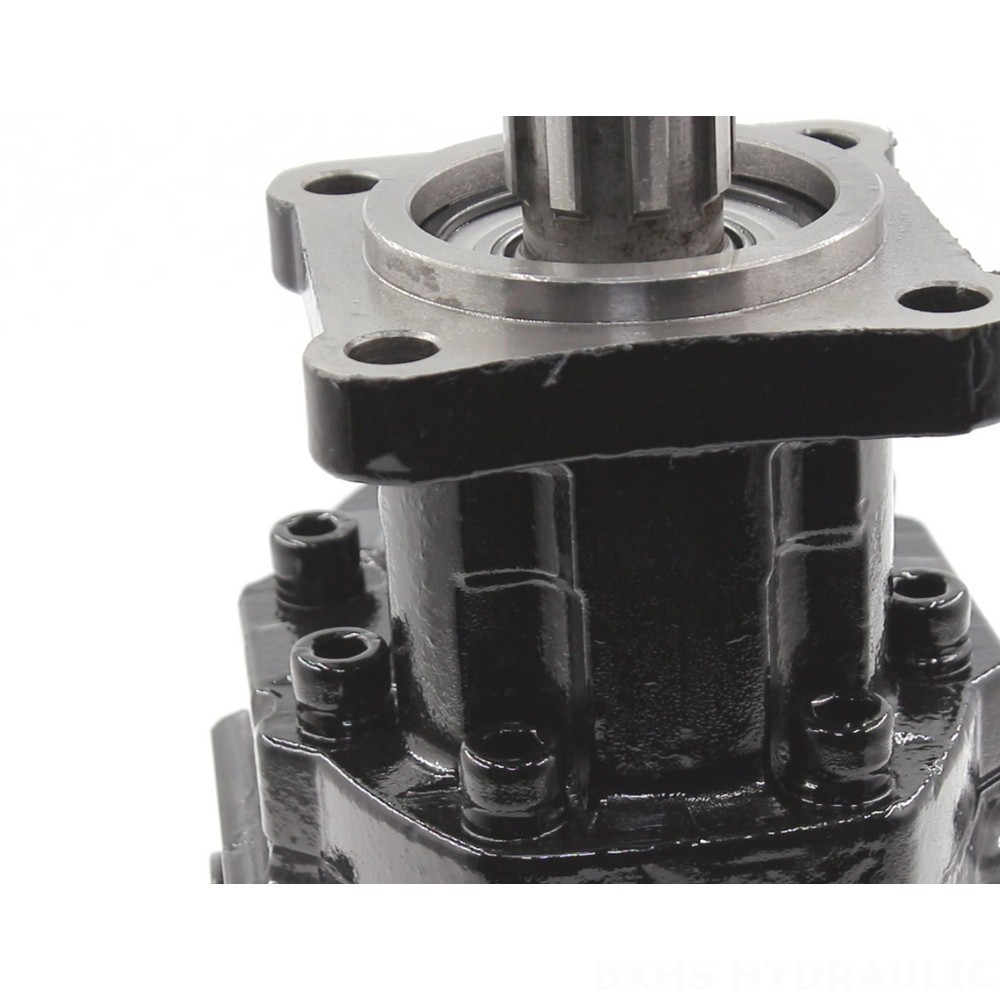

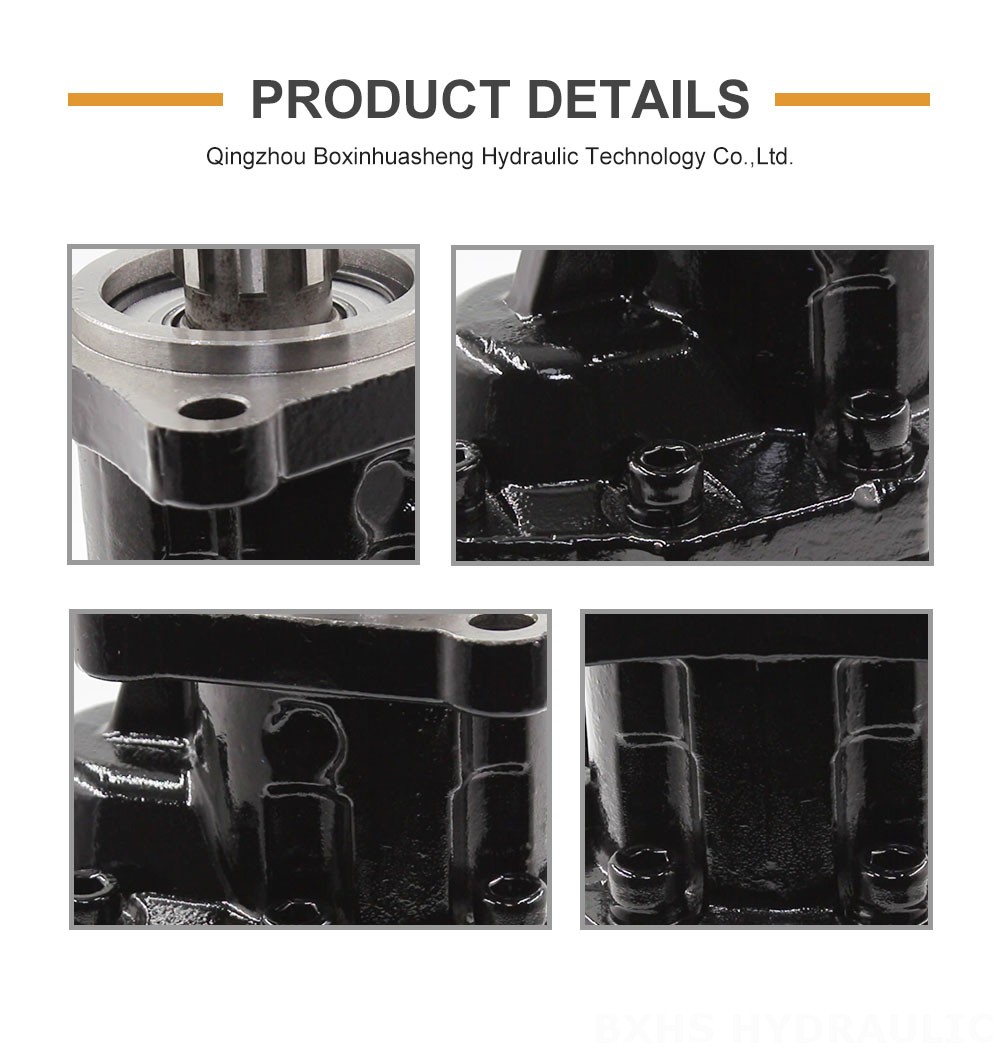

CBHST1-ISO-120 120 cc/rev 25 MPa (3625 psi) Hydraulic Gear Pump detailed image

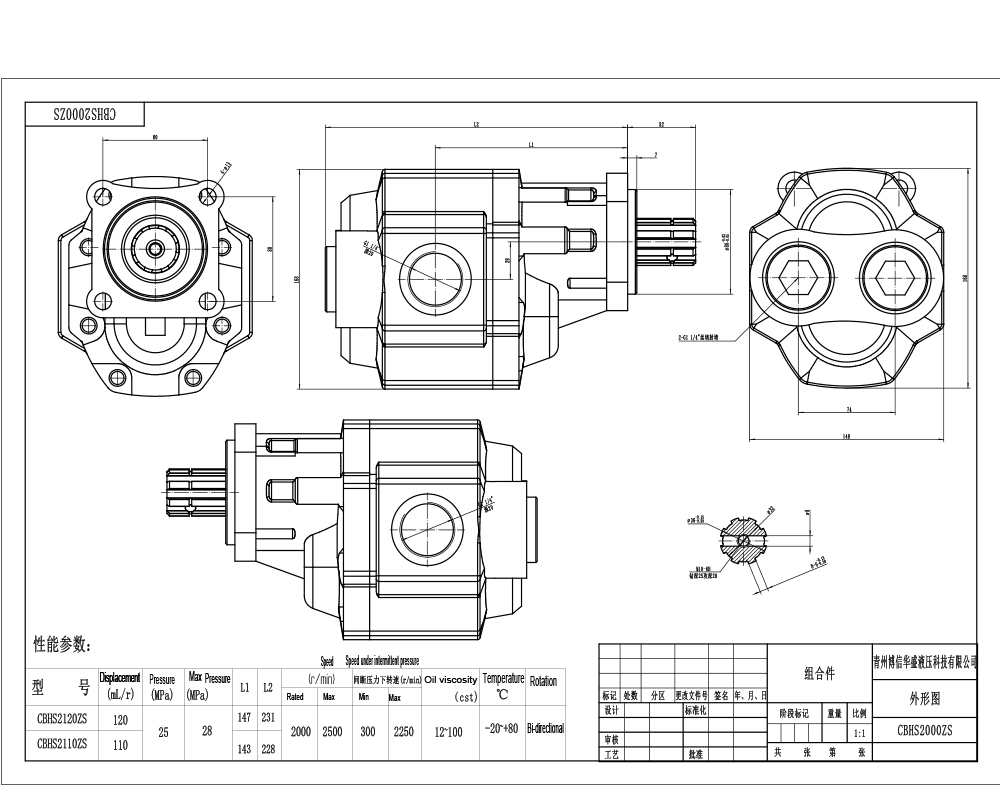

CBHST1-ISO-120 120 cc/rev 25 MPa (3625 psi) Hydraulic Gear Pump drawing image

The CBHST1-ISO-120 is a high-performance, bidirectional hydraulic gear pump with a displacement of 120 cc/rev and a rated pressure of 23 MPa. Made from durable cast iron with an ISO-4 mounting flange, it's ideal for various applications in construction, agriculture, material handling, and industrial vehicles. We offer manufacturing, OEM, private labeling, and customization options.

CBHST1-ISO Series Hydraulic Gear Pump Parameters
Displacement 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 34 cc/rev, 43 cc/rev, 120 cc/rev
Rated Pressure 23 MPa (3335 psi)
Max Pressure 25 MPa (3625 psi)
Rated Speed 2000 r/min
Max Speed 2500 r/min
Rotation /: (Bidirectional)
Structure Swashplate
Material Cast Iron
Flange Version ISO-4 Mounting Holes
Shaft Type H: Rectangle Spline

The CBHST1-ISO-120 hydraulic gear pump is a robust and reliable solution for demanding applications. Its cast iron construction ensures longevity and resistance to wear, while the swashplate design provides efficient and smooth operation. The pump boasts a rated pressure of 23 MPa (3335 psi) and a maximum pressure of 25 MPa (3625 psi), making it suitable for high-pressure hydraulic systems. The bidirectional rotation capability enhances versatility, allowing for use in various equipment configurations. The ISO-4 mounting flange ensures easy integration with existing hydraulic systems. Its high displacement (120 cc/rev) makes it suitable for applications requiring significant hydraulic flow. We offer various customization options, including different shaft types and flange configurations to meet specific customer requirements. We are a manufacturer and supplier, providing services from manufacturing to private labeling, allowing customers flexibility in their supply chain management. Ideal applications include forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, harvesters, balers, telehandlers, and waste compactors, among others.
