CBHX1025SK 25 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump

Rated Pressure:20 MPa (2900 psi)

Max Pressure:25 MPa (3625 psi)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:CBHX Series Hydraulic Gear Pump

Productsize:21*12.8*10.2

Netweight:7.00 kg

Availability: In Stock

  • 32 cc/rev
  • 25 cc/rev
124 Views are Looking for this Product

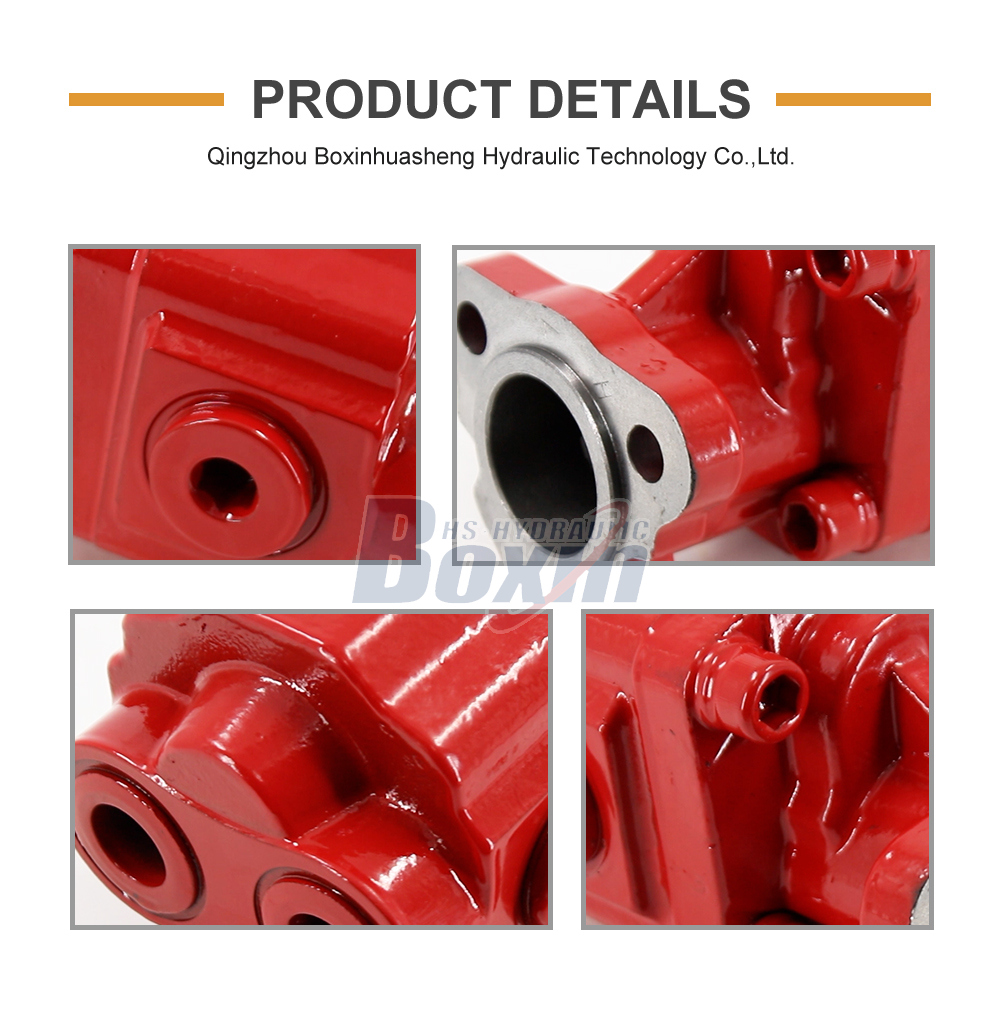

CBHX1025SK 25 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump detailed image

CBHX1025SK 25 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump detailed image

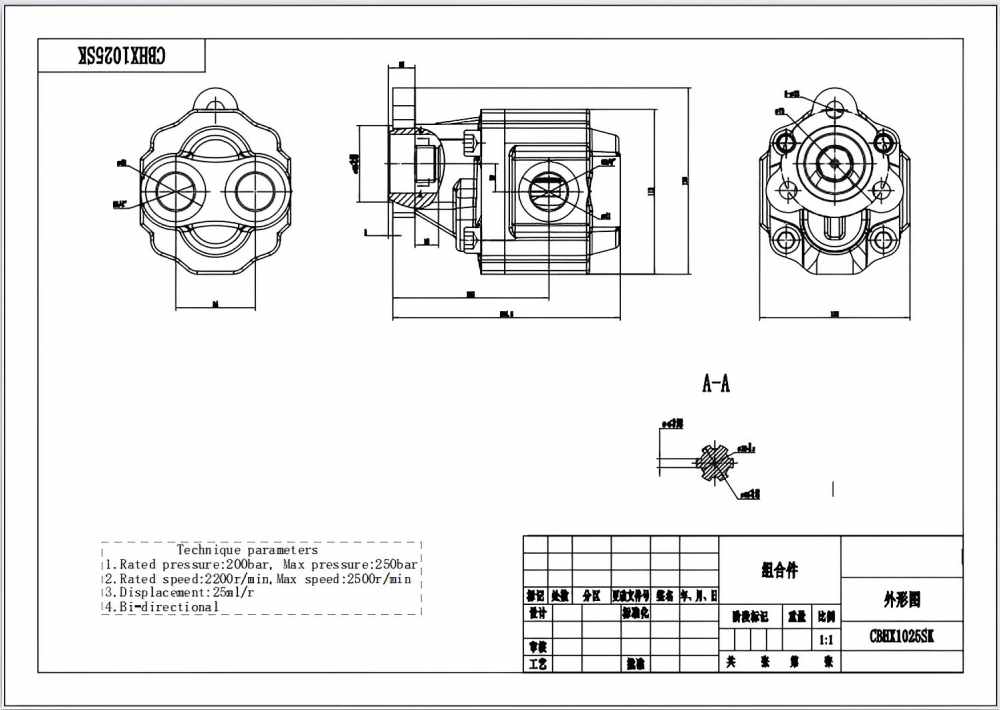

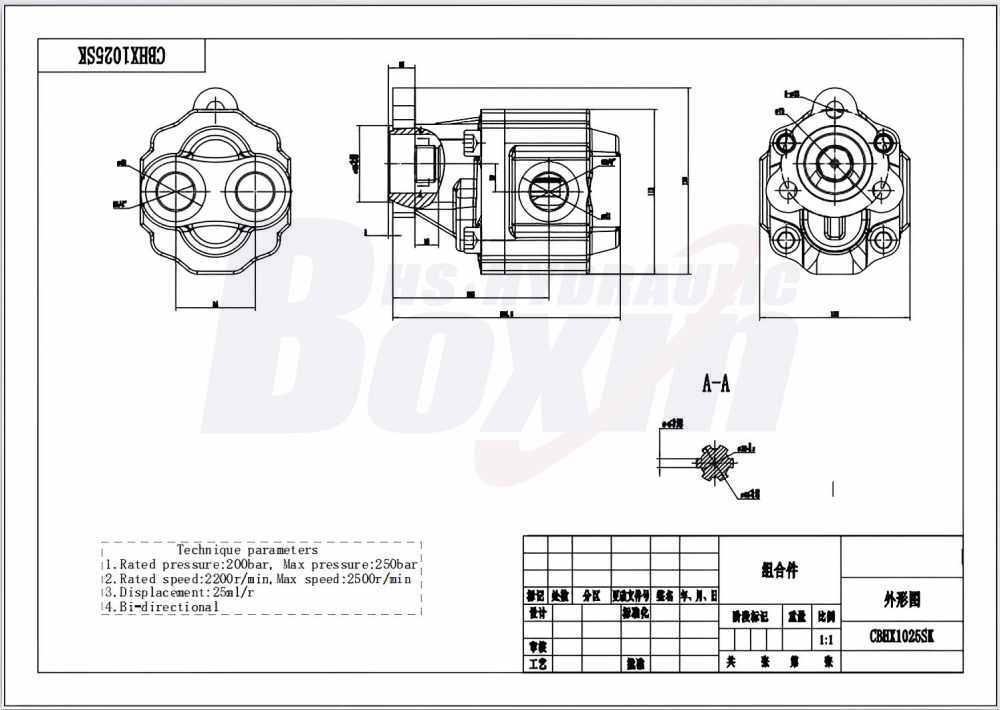

CBHX1025SK 25 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump drawing image

The CBHX1025SK is a high-performance 25 cc/rev external gear pump constructed from durable cast iron. Designed for global distribution, it features a bidirectional rotation capability and an involute spline shaft, making it a versatile and robust solution for demanding hydraulic systems requiring pressures up to 25 MPa.

CBHX Series Hydraulic Gear Pump Parameters
Displacement 32 cc/rev, 25 cc/rev
Rated Pressure 20 MPa (2900 psi), 19 MPa (2755 psi)
Max Pressure 25 MPa (3625 psi)
Rated Speed 2200 r/min
Max Speed 2500 r/min
Rotation /: (Bidirectional)
Material Cast Iron
Structure External Gear Pump
Flange Version UNI-3 Mounting Holes
Shaft Type X: Involute Spline

Product Features & Advantages: 1. Robust Construction: Built with high-strength cast iron housing to withstand high pressure and ensure a long service life in harsh environments. 2. Versatility: Features a bidirectional (reversible) rotation design, allowing for flexible installation in various hydraulic circuits. 3. Precision Engineering: Equipped with an involute spline shaft (X-type) and UNI-3 mounting flange for secure and standardized power transmission. 4. High Efficiency: Provides a steady displacement of 25 cc/rev with a rated pressure of 20 MPa, reaching up to 25 MPa for peak loads. 5. Low Noise & Stable Flow: The external gear structure ensures smooth operation at speeds up to 2500 r/min. Application Scenarios: Ideal for integration into material handling equipment, agricultural machinery, and construction vehicles. It is widely used in forklifts, tractors, log splitters, and aerial work platforms. As a leading manufacturer, we offer comprehensive OEM, ODM, and wholesale services for global distributors and traders.
