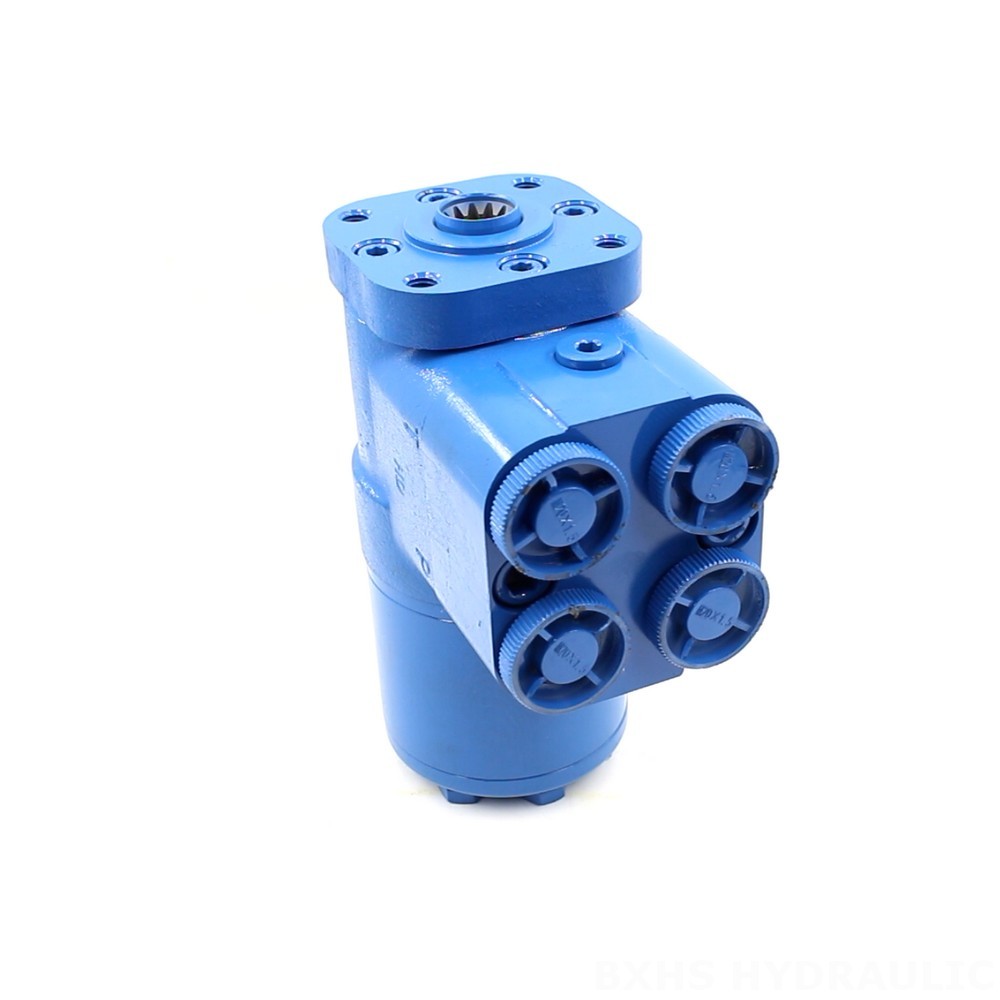

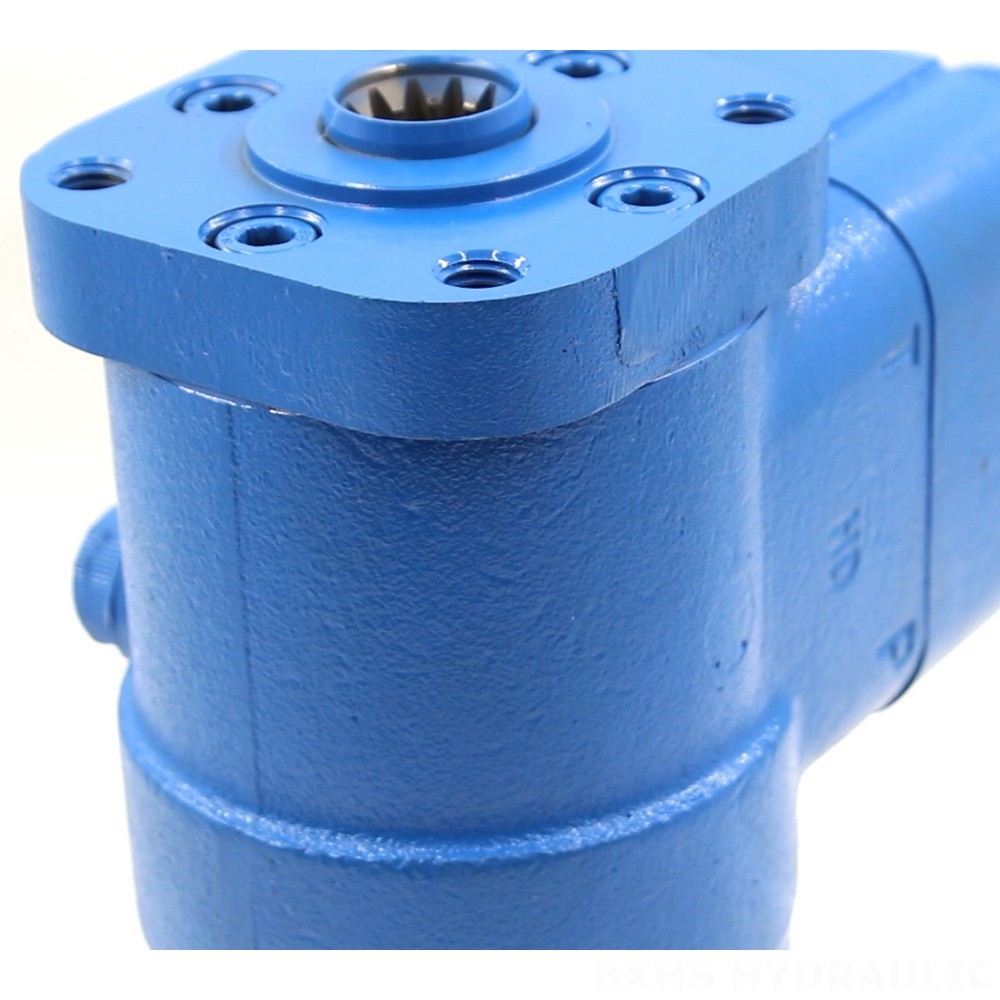

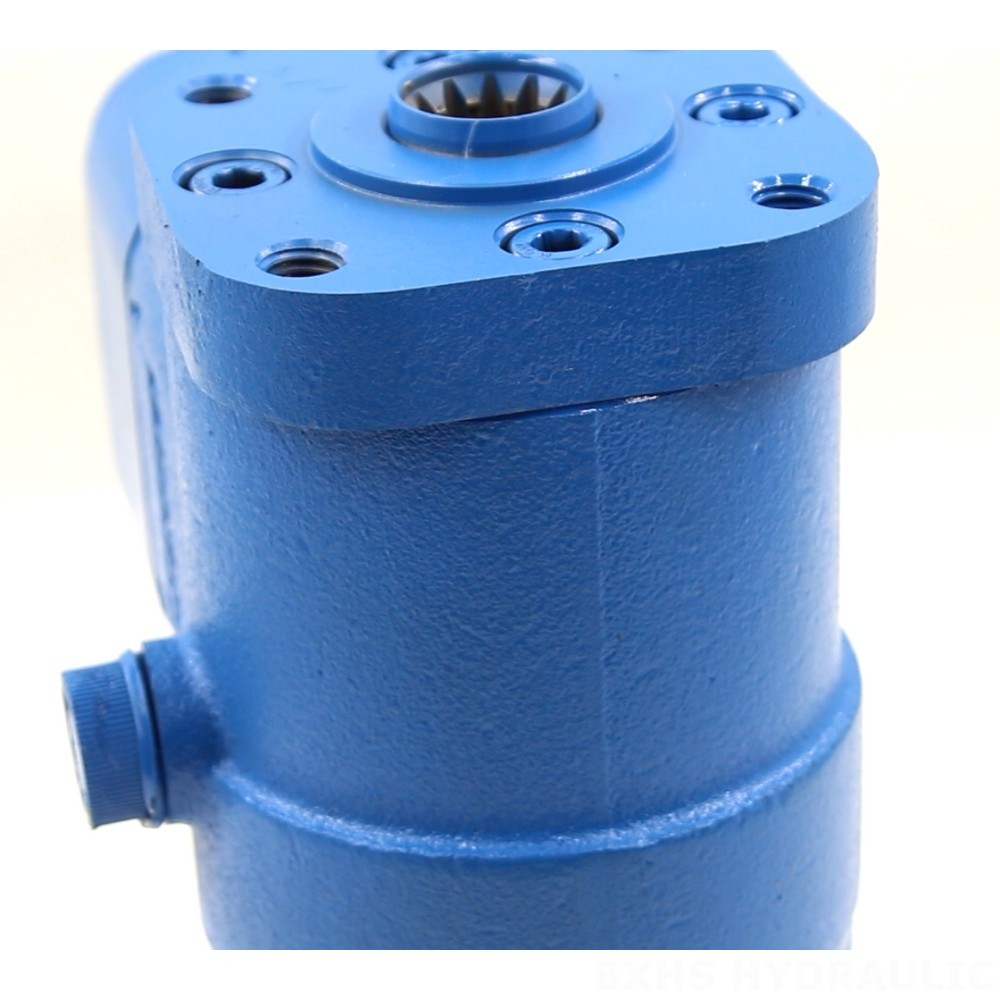

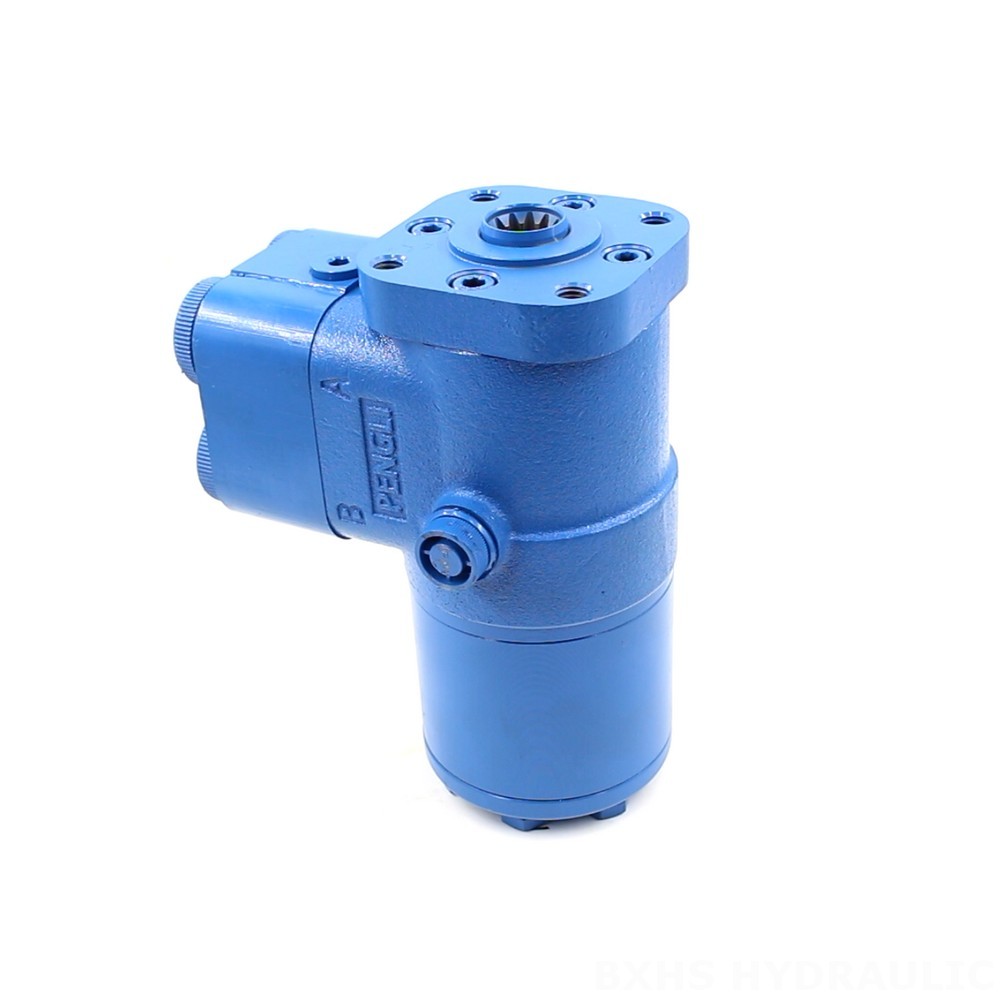

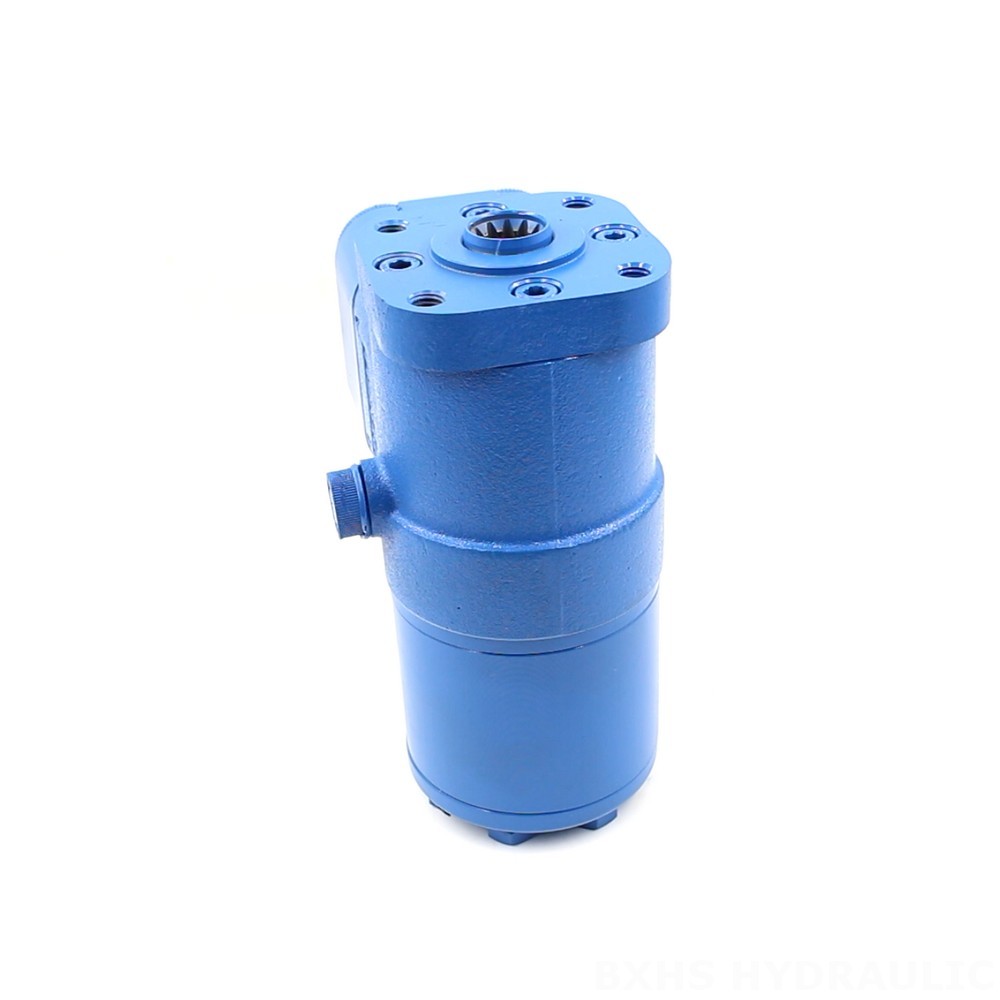

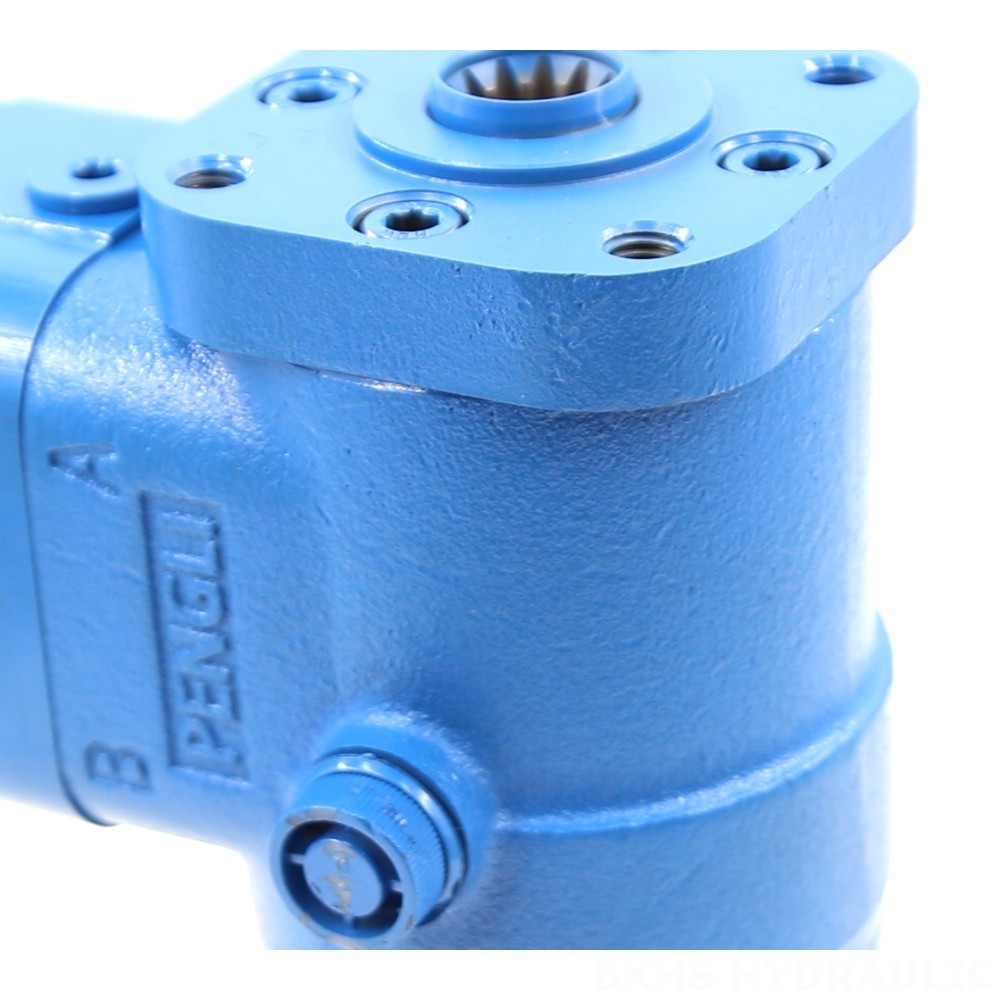

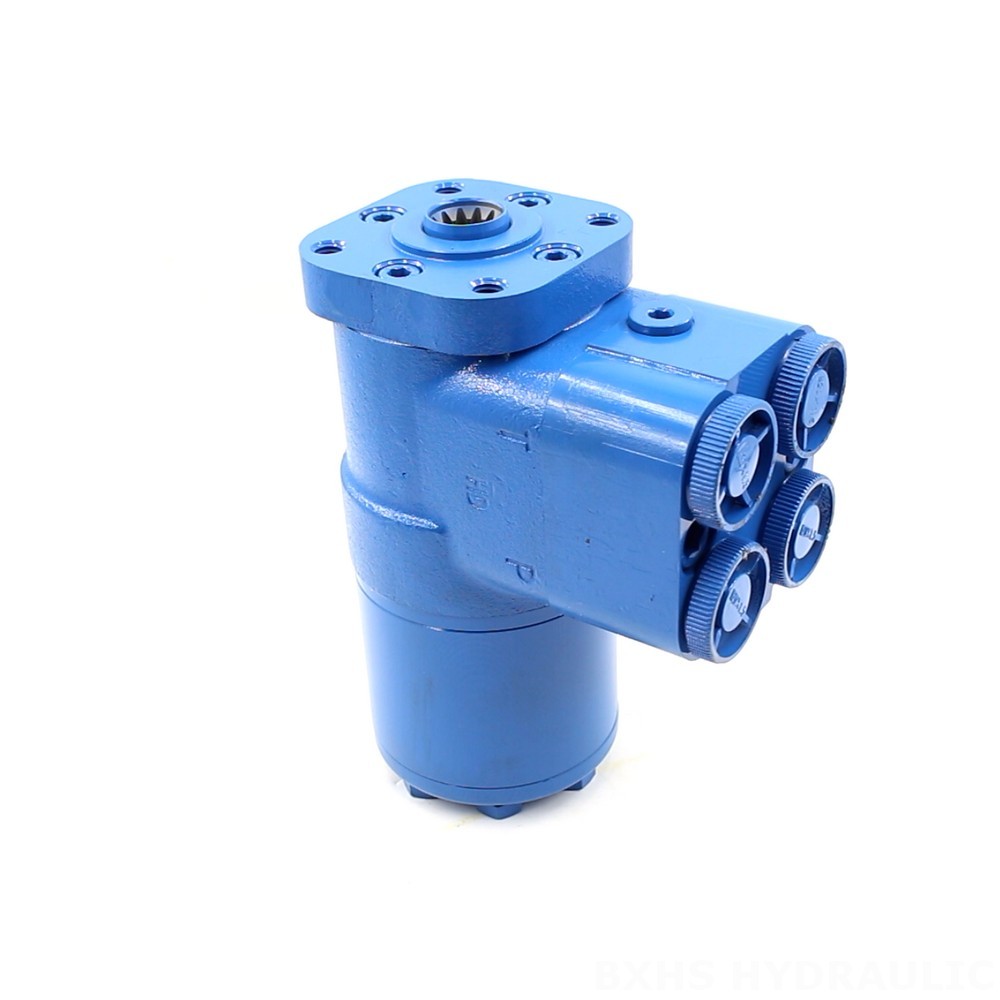

High-quality BZZ5-E100B hydraulic steering unit (100 ml/r displacement, 16 MPa max pressure) for material handling, construction, agriculture, and industrial vehicles. Cast iron construction. OEM, ODM, and wholesale opportunities available.
| BZZ5 Series Streering Unit Parameters | |
|---|---|
| Displacement | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| Valve Block | Customizable |
| Material | Cast Iron |
| Rated flow | 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/min, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| Max Cont Back pressure | 1.6 Mpa |
| Max input pressure | 16 Mpa |
We are a hydraulic product manufacturer offering global distribution of the BZZ5-E100B hydraulic steering unit. This robust unit features a 100 ml/r displacement, a maximum input pressure of 16 MPa, and a maximum continuous back pressure of 1.6 MPa. Its rated flow is 7.5 L/min. The unit is constructed from durable cast iron for long-lasting performance. The valve block is customizable to meet specific application needs. It's ideal for a wide range of applications, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors and front-end loaders, mini-excavators, backhoe loaders, harvesters, and balers.
**Collaborate with Us:** We are seeking distributors, wholesalers, dealers, and trading companies worldwide to partner with us. We offer a full range of services, including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), private labeling, and wholesale options. As a factory-direct supplier, we ensure competitive pricing and high-quality products. Contact us today to discuss partnership opportunities and explore the potential of our BZZ5-E100B hydraulic steering unit. We provide factory wholesale prices and offer flexible customization options to meet your specific requirements. Let's work together to grow your business!
