Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD11 Series Monoblock Directional Valve

Productsize:26*15*11

Netweight:6.40 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Electric
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
73 Views are Looking for this Product

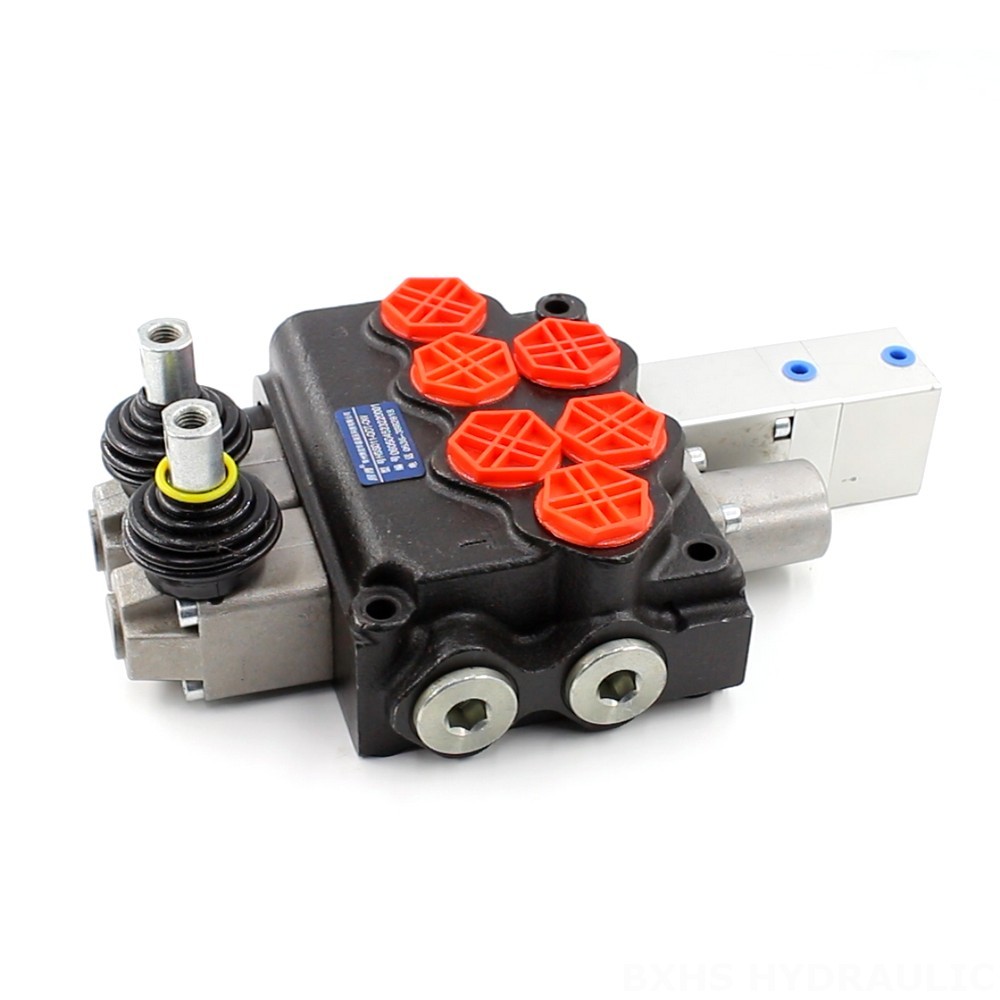

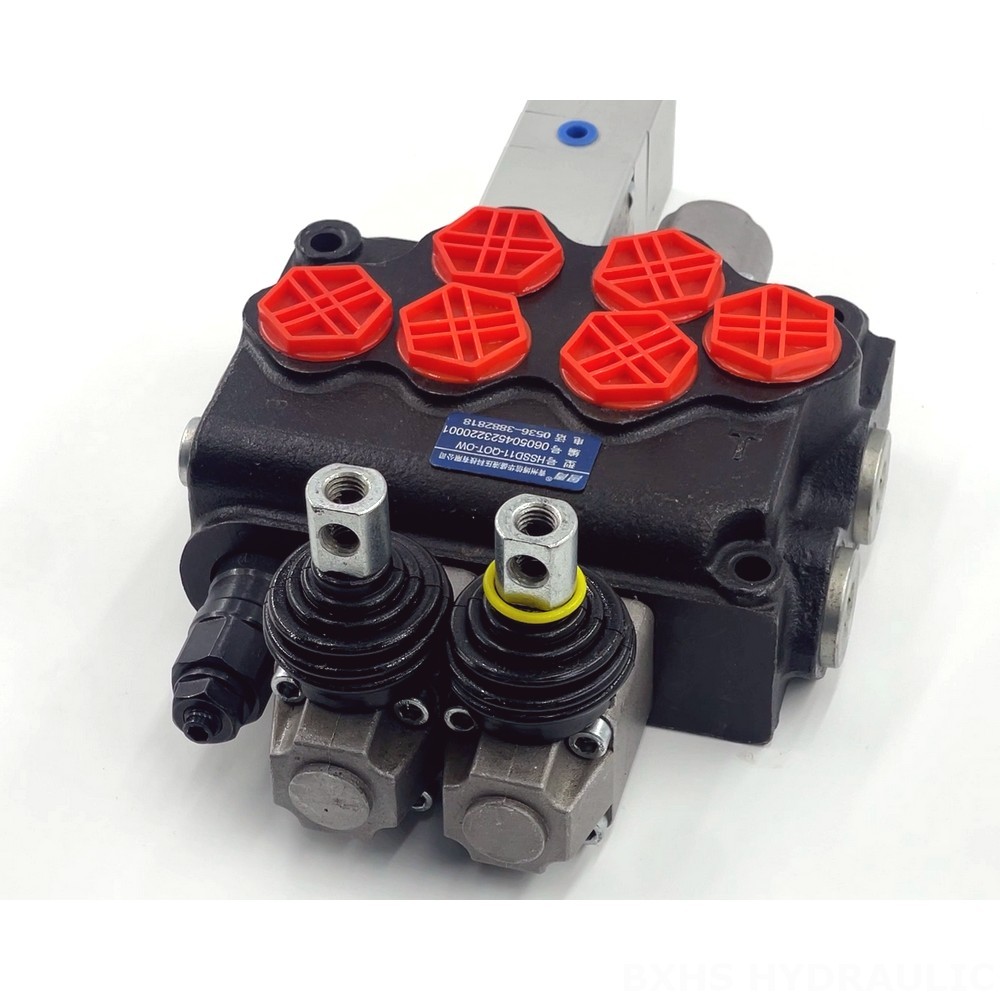

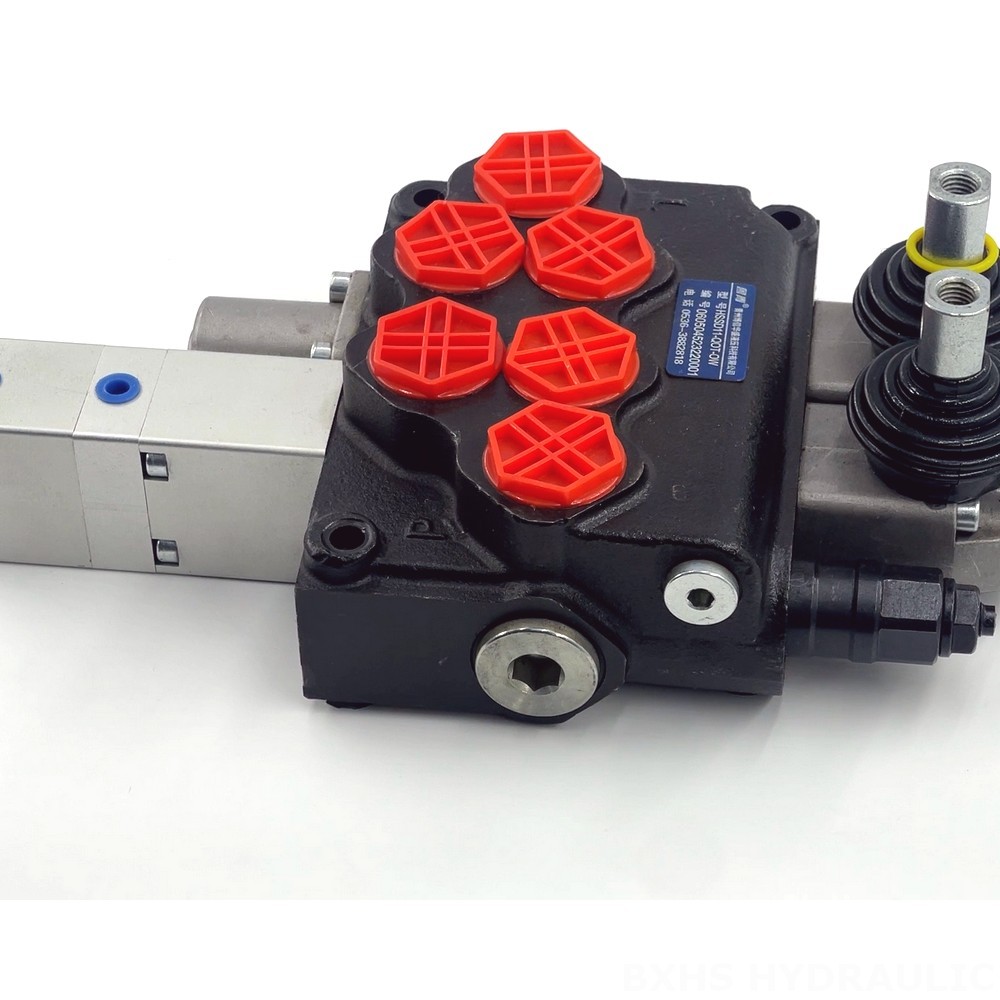

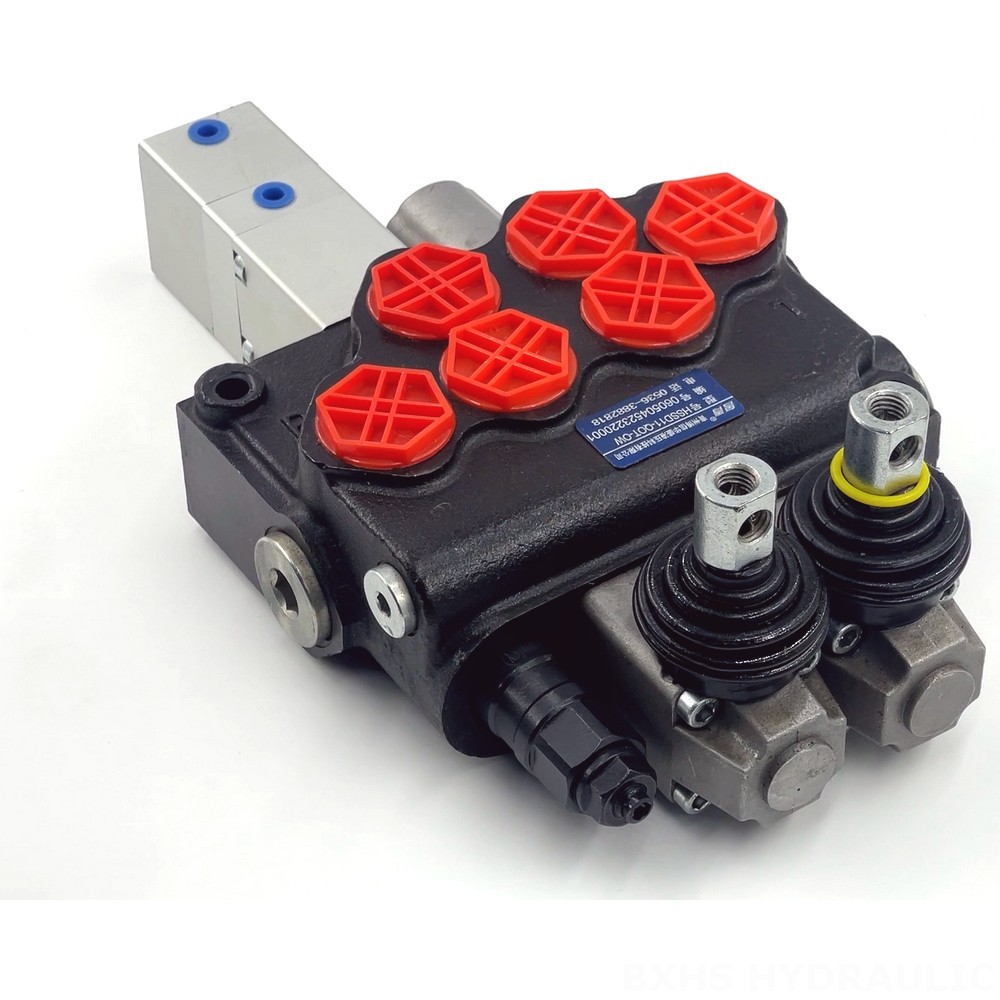

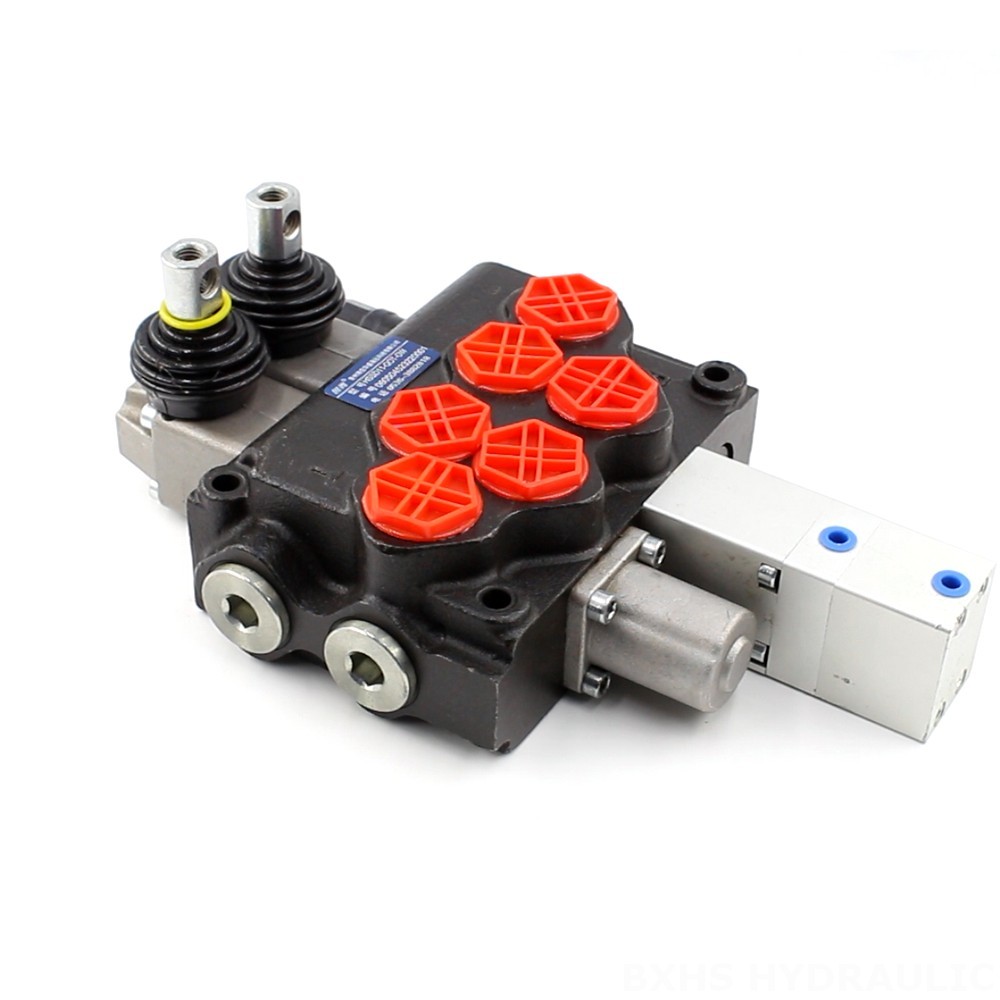

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects detailed image

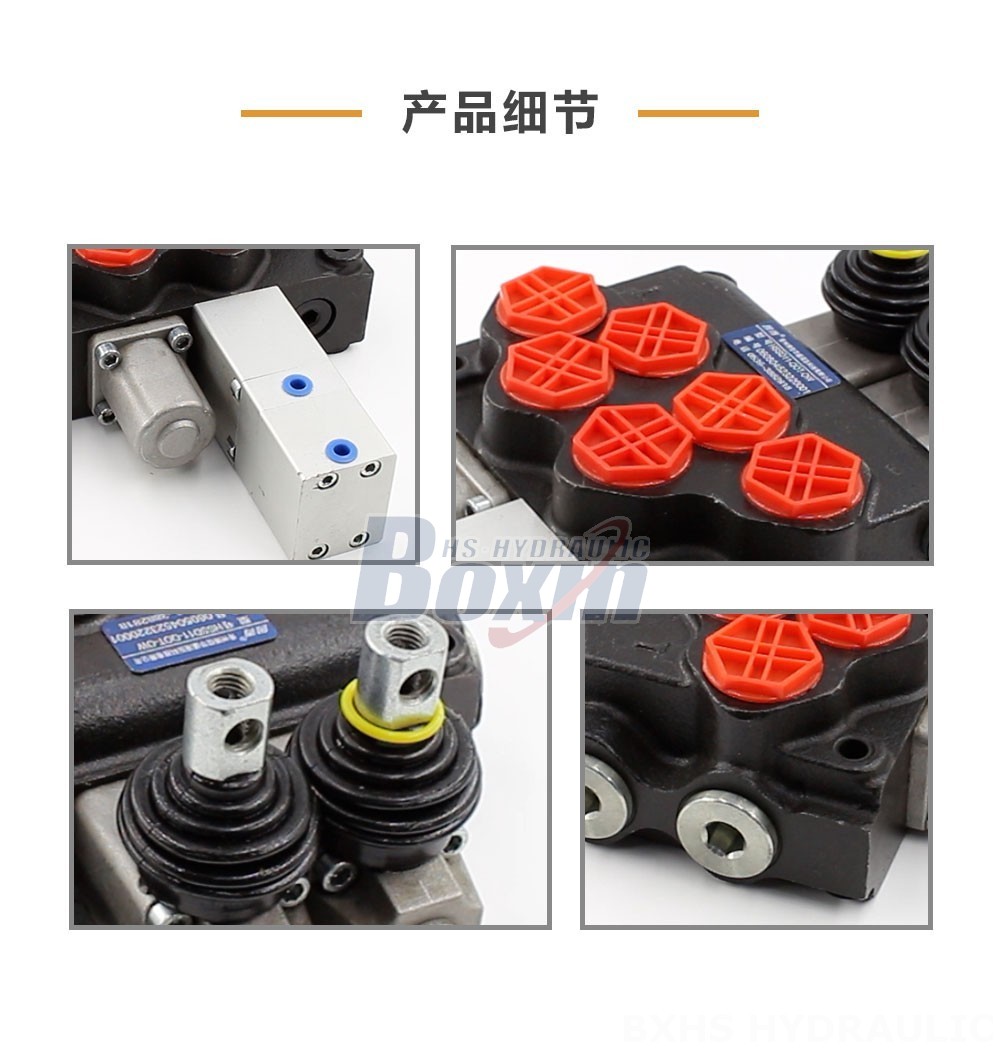

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects detailed image

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects drawing image

Customize Your Hydraulic System with SD11 Monoblock Valve for OEM and ODM Projects.

Section 1 Section,2 Section,3 Section,4 Section,5 Section
Structure Type Monoblock valve
Rated Flow 70 L/min (18.5 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)

The SD11 Monoblock Valve is a hydraulic system component designed for OEM and ODM projects. It features manual control, a 1-section structure, and a rated flow of 70 L/min (18.5 US gpm). With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), it can handle various hydraulic applications. The ambient temperature range of -40°C to +60°C (-40°F to +140°F) ensures reliable performance in diverse environments. The valve has 1 spool and belongs to the SD11 Series. It finds applications in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dump trucks, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, stone cutters, screeners, tractors, and front-end loaders.

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects application image

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects packing image

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects company image

Customize Your Hydraulic System: SD11 Monoblock Valve for OEM and ODM Projects certification image
