DCV100E and DCV58 Electro hydraulic and Solenoid 6 Spool Sectional Directional Valve

Rated Flow:100 L/min (26.5 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:DCV100 Series Sectional Directional Valve

Productsize:45*38*18

Netweight:52.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Cable
  • Joystick
  • Manual and Joystick
  • Manual and Electro-hydraulic
  • Electric motor
  • Electro hydraulic and Solenoid
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
136 Views are Looking for this Product

DCV100E and DCV58 Electro hydraulic and  Solenoid 6 Spool Sectional Directional Valve detailed image

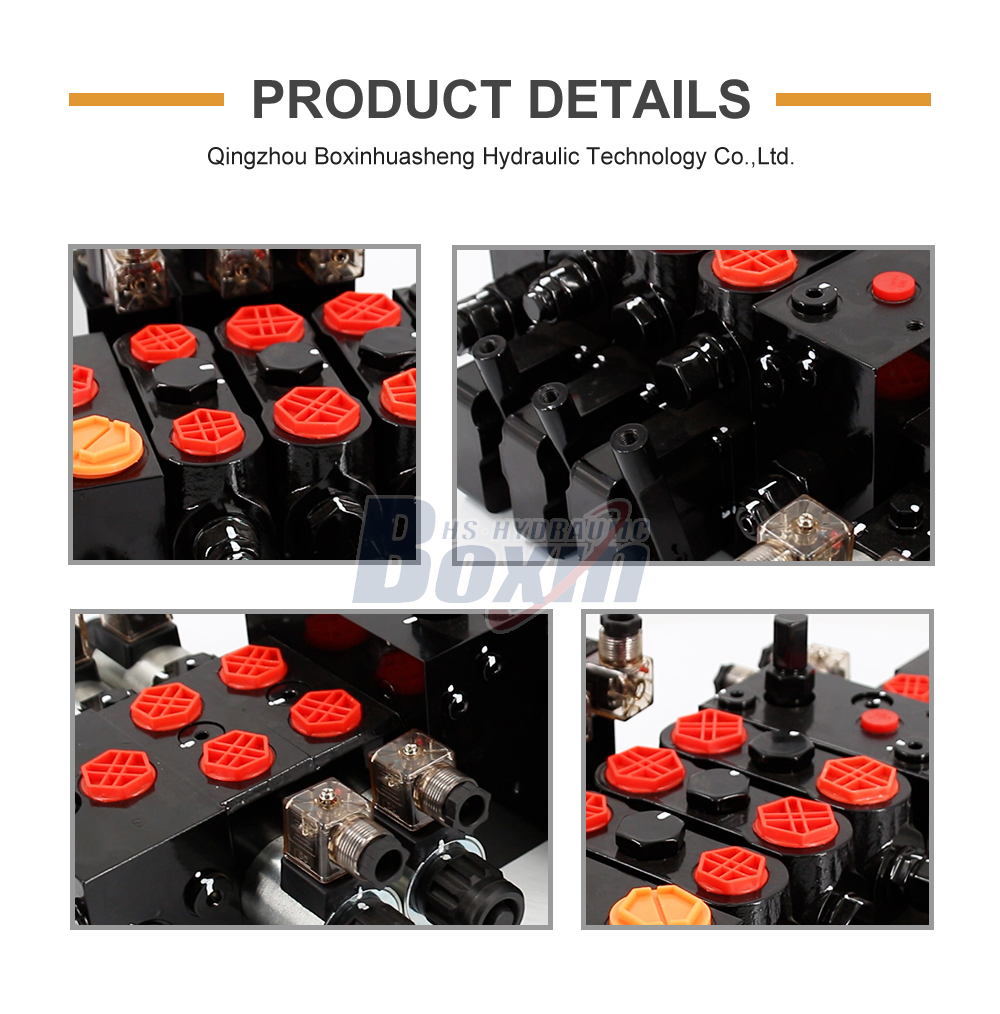

DCV100E and DCV58 Electro hydraulic and  Solenoid 6 Spool Sectional Directional Valve detailed image

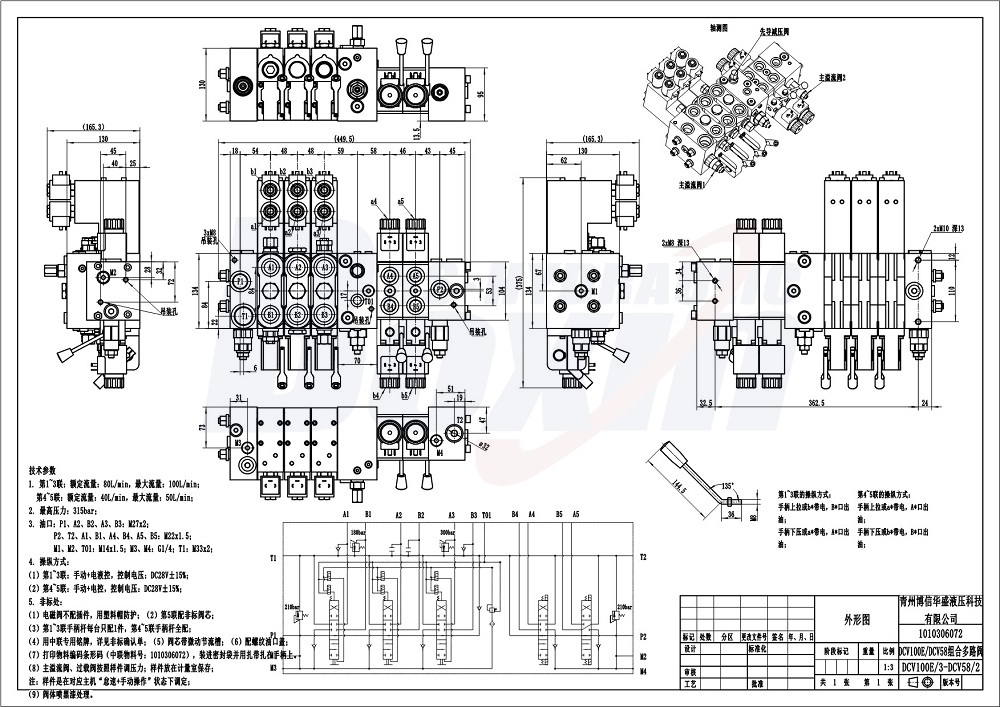

DCV100E and DCV58 Electro hydraulic and  Solenoid 6 Spool Sectional Directional Valve drawing image

High-performance DCV100E and DCV58 series 6-spool sectional directional valves designed for complex hydraulic systems, featuring electro-hydraulic and solenoid control with a rated flow of 100 L/min and maximum pressure up to 350 bar.

DCV100 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Cable, Joystick, Manual and Joystick, Manual and Electro-hydraulic, Electric motor, Electro hydraulic and Solenoid
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 100 L/min (26.5 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT
Outlet Port G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT
Port Size G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT

Our DCV100E and DCV58 series sectional valves represent the pinnacle of hydraulic control technology. Featuring a versatile 6-spool configuration, these valves offer precise electro-hydraulic and solenoid control for demanding applications. Key advantages include: 1. High Pressure Resistance: Capable of handling up to 350 bar (5100 psi) for heavy-duty operations. 2. Flexible Configuration: Sectional structure allows for easy maintenance and customization of individual sections. 3. Wide Compatibility: Multiple port sizes including G3/4, SAE, and NPT to fit global machinery standards. 4. Extreme Durability: Designed to operate flawlessly in ambient temperatures ranging from -40°C to +80°C. 5. Efficient Flow: Rated flow of 100 L/min ensures rapid response and smooth operation. Ideal for construction machinery, agricultural equipment, and industrial lifting vehicles, our valves are available for OEM, ODM, and wholesale distribution worldwide.
