DCV20 Manual 4 Spool Monoblock Directional Valve

Rated Flow:20 L/min (5.2 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product series:DCV20 Series Monoblock Directional Valve

Productsize:19.1*18.1*8.4

Netweight:5.80 kg

Availability: In Stock

  • Manual
  • Electro-hydraulic
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
147 Views are Looking for this Product

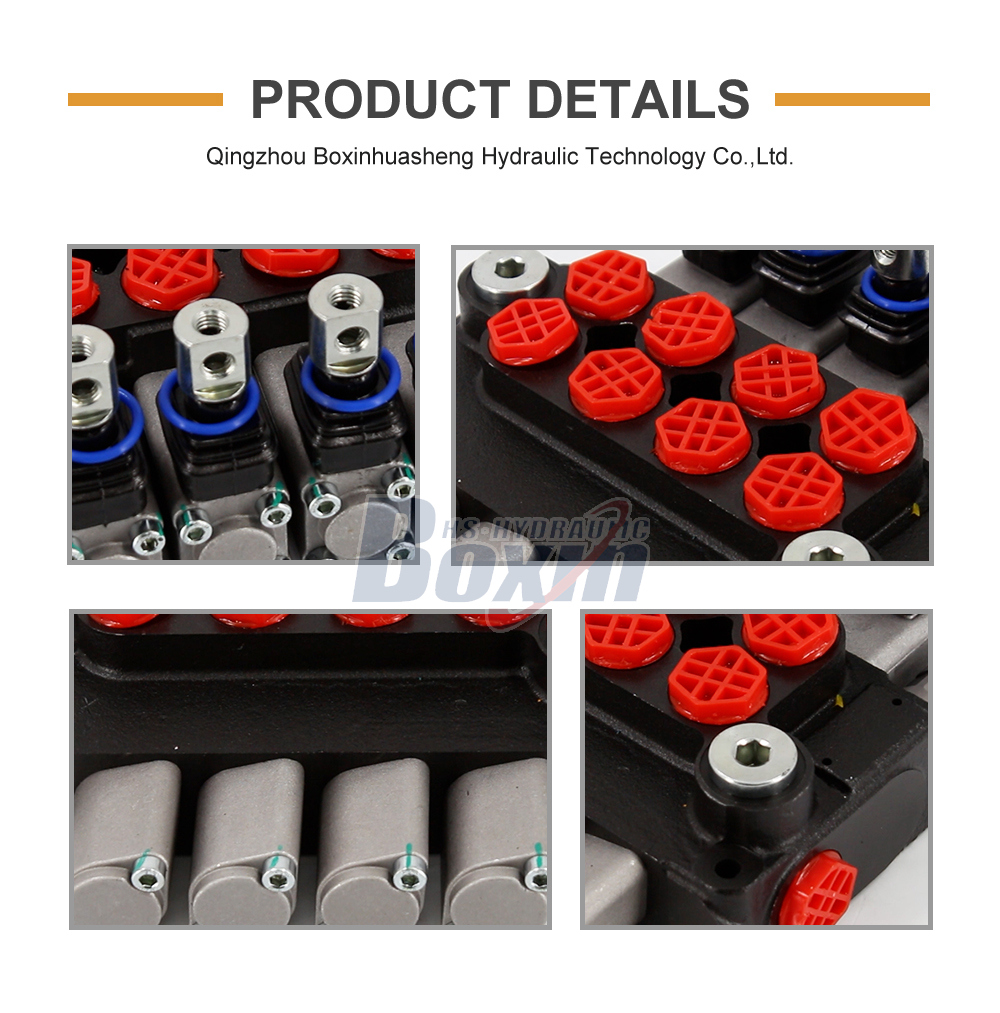

DCV20 Manual 4 Spool Monoblock Directional Valve detailed image

DCV20 Manual 4 Spool Monoblock Directional Valve detailed image

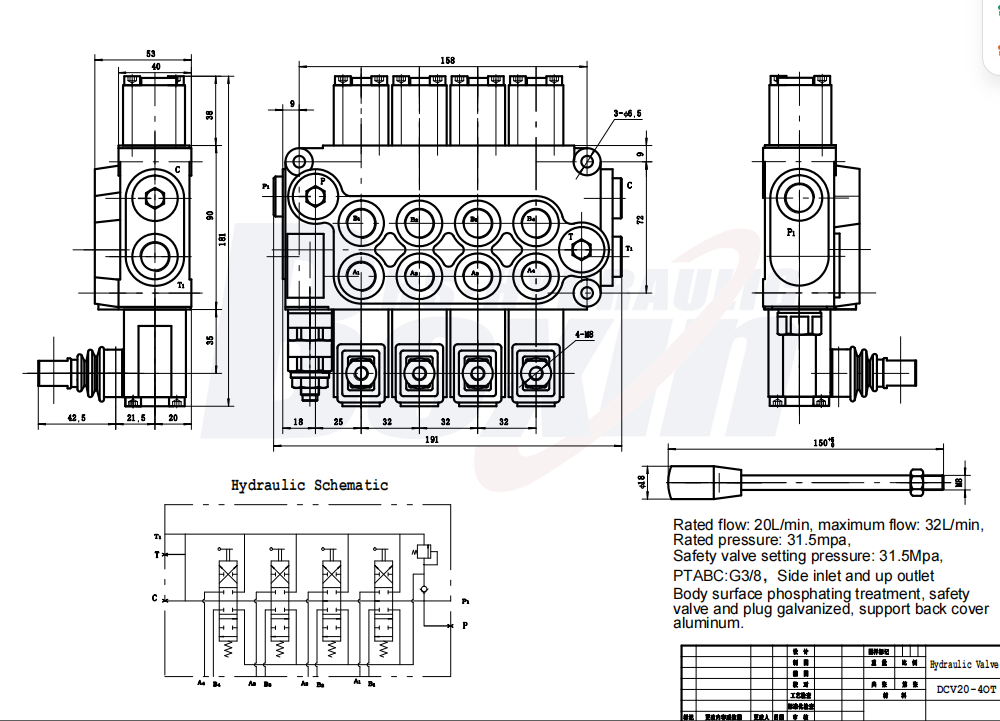

DCV20 Manual 4 Spool Monoblock Directional Valve drawing image

The DCV20 is a high-performance 4-spool monoblock directional control valve designed for precise fluid power regulation. Engineered for versatility, it supports a rated flow of 20 L/min and withstands pressures up to 350 bar, making it an ideal solution for compact mobile and industrial hydraulic systems.

DCV20 Series Monoblock Directional Valve Parameters
Control Method Manual, Electro-hydraulic, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 20 L/min (5.2 US gpm)
Max Pressure 350 bar (5100 psi)
Inlet Port G3/8, M18×1.5, SAE 8, 3/8 NPT
Outlet Port G3/8, M18×1.5, SAE 8, 3/8 NPT
Port Size G3/8, M18×1.5, SAE 8, 3/8 NPT

The DCV20 4-Spool Monoblock Valve offers superior durability and hydraulic efficiency for demanding applications. Features include: 1. Robust Design: Compact monoblock structure ensures high resistance to pressure spikes up to 350 bar (5100 psi). 2. Versatile Integration: Configurable with multiple port standards (M18x1.5, G3/8, 3/8 NPT, SAE 8) for seamless fitment into diverse hydraulic circuits. 3. Wide Environmental Range: Optimized for extreme temperature conditions from -40°C to +80°C. 4. Precise Control: The 4-spool manual configuration provides accurate, reliable flow distribution for attachments and machinery functions. Ideally suited for agriculture, construction machinery, and material handling equipment, this valve is available for wholesale, OEM customization, and private labeling to meet global technical requirements.
