DCV200 Electro-hydraulic 2 Spool Sectional Directional Valve

Rated Flow:200 L/min (52 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV200 Series Sectional Directional Valve

Productsize:45*25*18

Netweight:28.00 kg

Availability: In Stock

Description

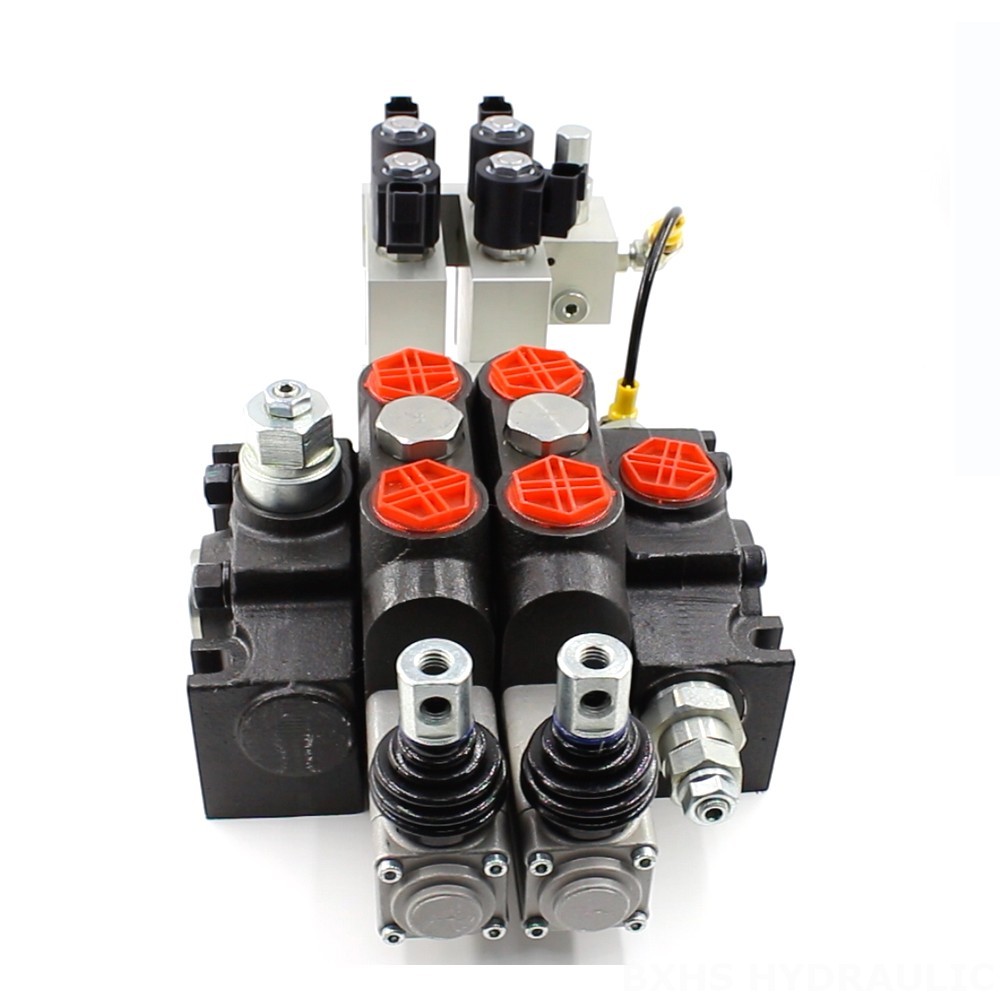

DCV200 Electro-hydraulic 2 Spool Sectional Directional Valve detailed image

DCV200 Electro-hydraulic 2 Spool Sectional Directional Valve drawing image

The DCV200 is a 2-spool, electro-hydraulic, sectional directional valve designed for use in a wide range of mobile and industrial applications. It features a compact design, high-pressure rating (350 bar), and a wide operating viscosity range (15 - 75 mm²/s). The DCV200 is suitable for use in applications requiring precise control of fluid flow direction and pressure.

DCV200 Series Sectional Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow	200 L/min (52 US gpm)
Max Pressure	350 bar (5100 psi)
Inlet Port	G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT
Outlet Port	G1, M33×2.0, SAE 16, 1 NPT
Port Size	G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type	Sectional valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Key Features and Benefits:**

* Compact and lightweight design
* High-pressure rating (350 bar)
* Wide operating viscosity range (15 - 75 mm²/s)
* Low leakage and high efficiency
* Easy to install and maintain

**Applications:**

The DCV200 is suitable for use in a wide range of applications, including:

* Mobile hydraulics
* Industrial automation
* Material handling
* Construction and earth moving
* Agriculture
* Forestry
* Mining
* Oil and gas
