DCV40 Pneumatic 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:DCV40 Series Monoblock Directional Valve

Productsize:15.0*11.1*9.2

Netweight:5.80 kg

Availability: In Stock

Description

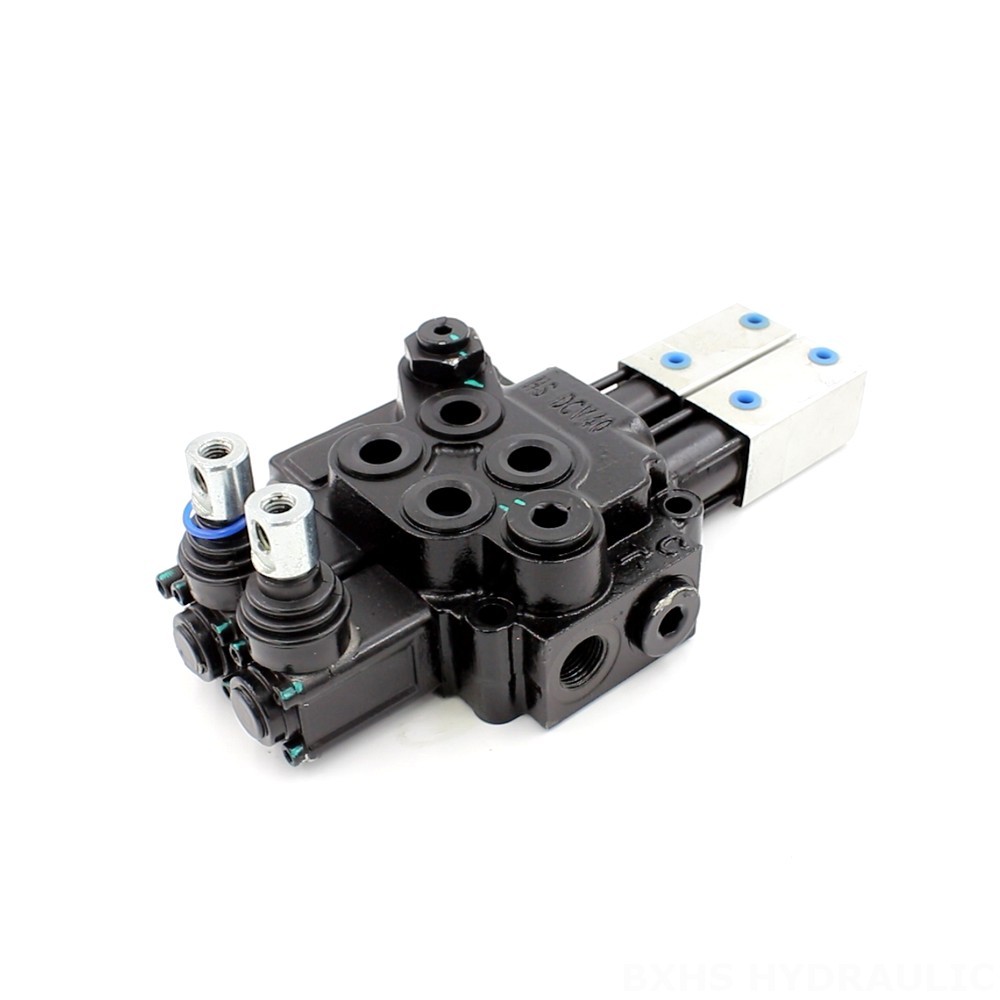

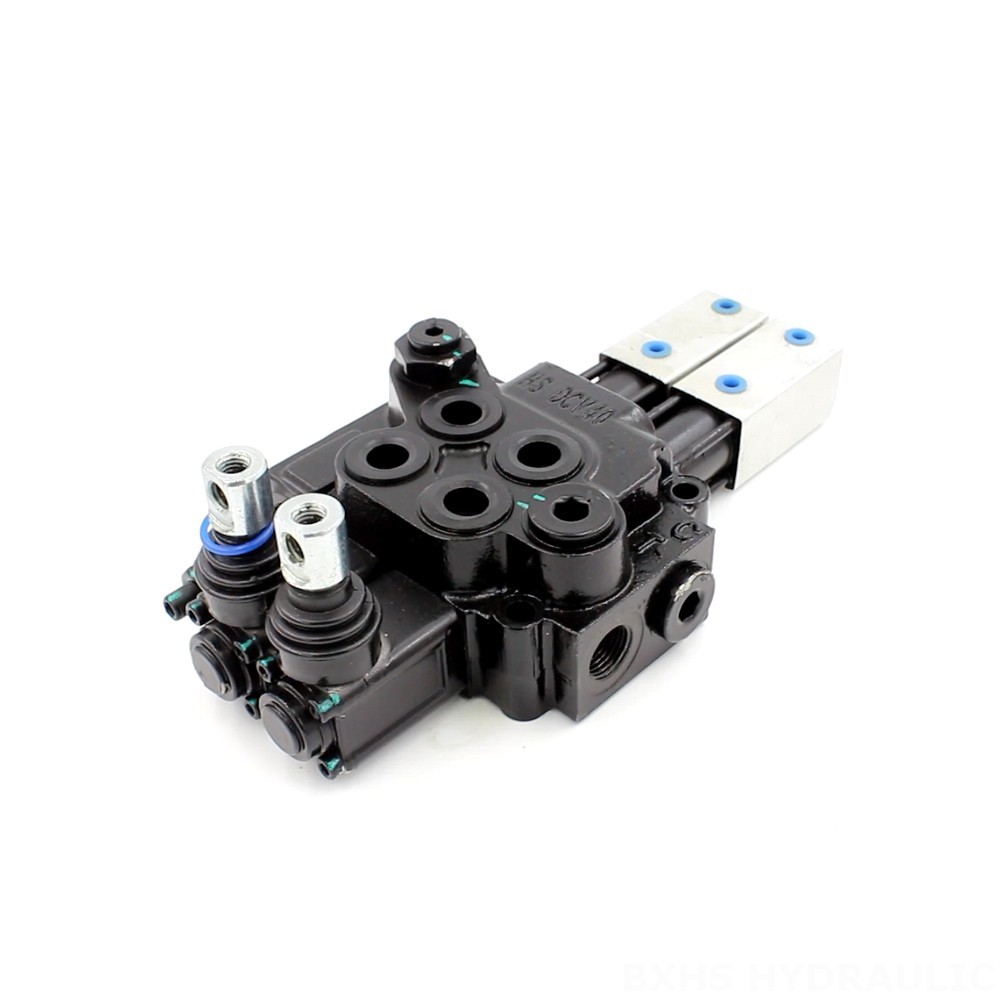

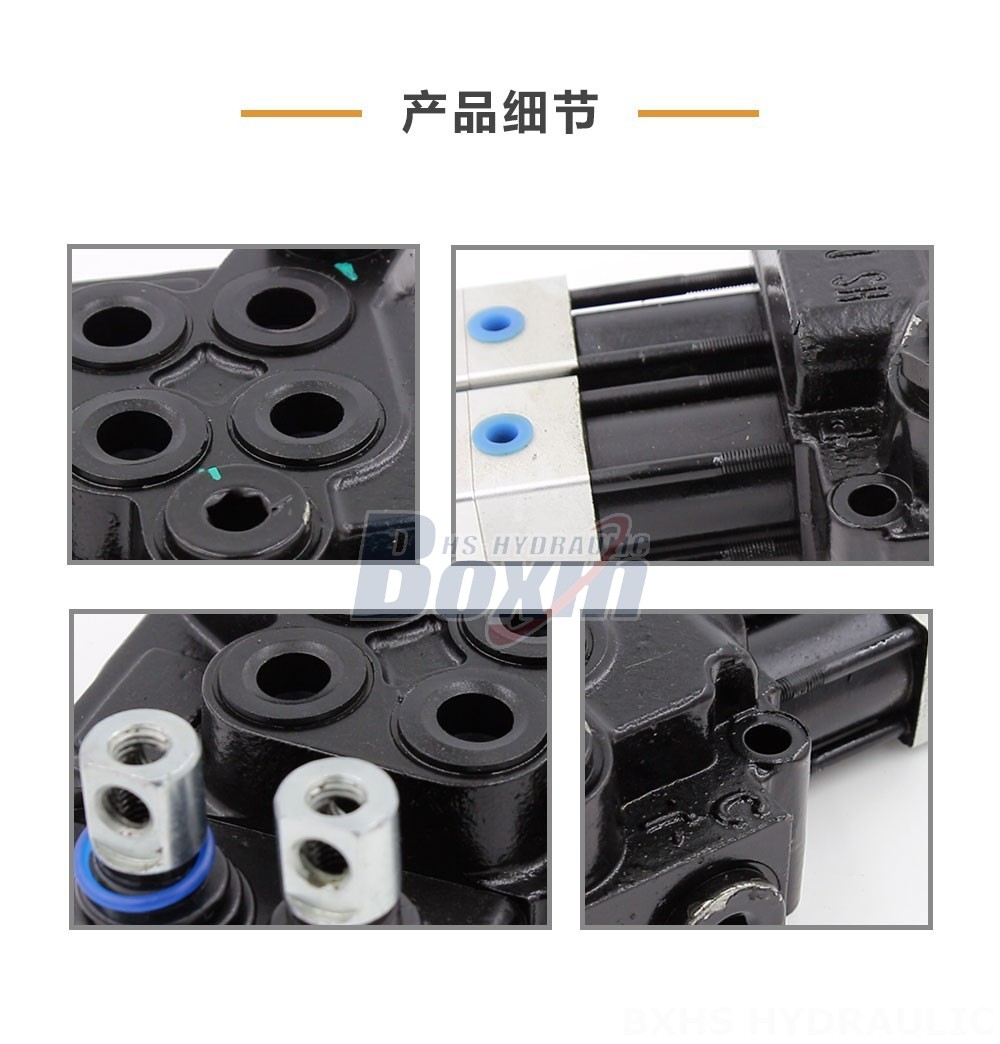

DCV40 Pneumatic 2 Spool Monoblock Directional Valve detailed image

DCV40 Pneumatic 2 Spool Monoblock Directional Valve drawing image

The DCV40 Pneumatic 2 Spool Monoblock Directional Valve is a high-performance hydraulic component designed for demanding applications in various industries. With a rated flow of 40 L/min and a maximum pressure of 350 bar, this valve provides precise and reliable control of fluid flow in hydraulic systems. Its compact monoblock design offers durability and space optimization, making it ideal for both mobile and stationary equipment.

Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Control Method	Pneumatic
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	350 bar (5100 psi)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

Product Features and Benefits: Pneumatic control for remote operation
,Two spool design for independent control of two fluid paths
, Monoblock construction for compact and robust design
, High flow capacity of 40 L/min for efficient fluid handling,Maximum pressure rating of 350 bar for demanding applications
,Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various fluids
,Operating temperature range of -40°C to +80°C for use in diverse environments

.

Applications: The DCV40 Pneumatic 2 Spool Monoblock Directional Valve is widely used in a variety of applications across industries, including: Material Handling: Forklifts, telehandlers, stackers, aerial platforms
; Construction and Earth Moving: Excavators, motor graders, compact wheel loaders
. Agriculture: Tractors, harvesters, balers , Industrial Vehicles: Sweepers, waste compactors, skip loaders.

DCV40 Pneumatic 2 Spool Monoblock Directional Valve application image
