DCV40DY Electro-hydraulic 5 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:DCV40 Series Monoblock Directional Valve

Productsize:36*35*16

Netweight:19.00 kg

Availability: In Stock

Description

DCV40DY Electro-hydraulic 5 Spool Monoblock Directional Valve detailed image

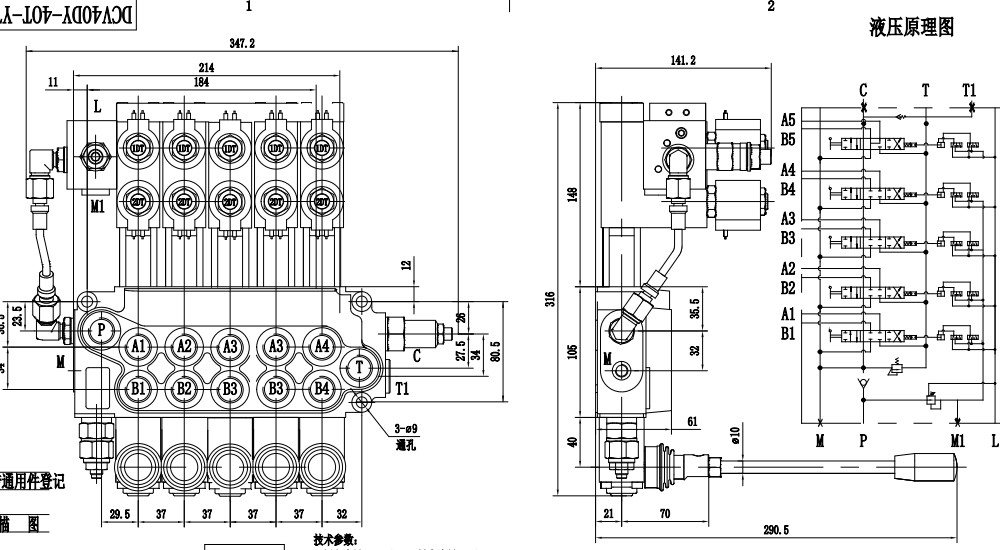

DCV40DY Electro-hydraulic 5 Spool Monoblock Directional Valve drawing image

The DCV40Z manual 5 Spool Outrigger Control Valve is a high-performance valve designed for demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 350 bar, it offers reliable and efficient control of hydraulic systems. Its compact monoblock design and manual control provide precise and responsive operation.

DCV40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid And Manual, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	350 bar (5100 psi)
Inlet Port	G3/8, G1/2, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT
Outlet Port	G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 1/2 NPT
Port Size	G1/2, M18×1.5, M22×1.5, SAE 8, SAE 14, 3/8 NPT, 1/2 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

Manual control for precise and responsive operation, Monoblock design for compact and robust construction
, 5 spool design for versatile control capabilities
.

Rated flow of 40 L/min for high system efficiency
,Maximum pressure of 350 bar for demanding applications, Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
,Wide ambient temperature range (-40°C to +80°C) for operation in harsh environments.

Applications: Construction and earth moving equipment
, Industrial vehicles, Material handling equipment
, Agricultural machinery
, Forestry equipment, Mining equipment
,Waste management equipment.
