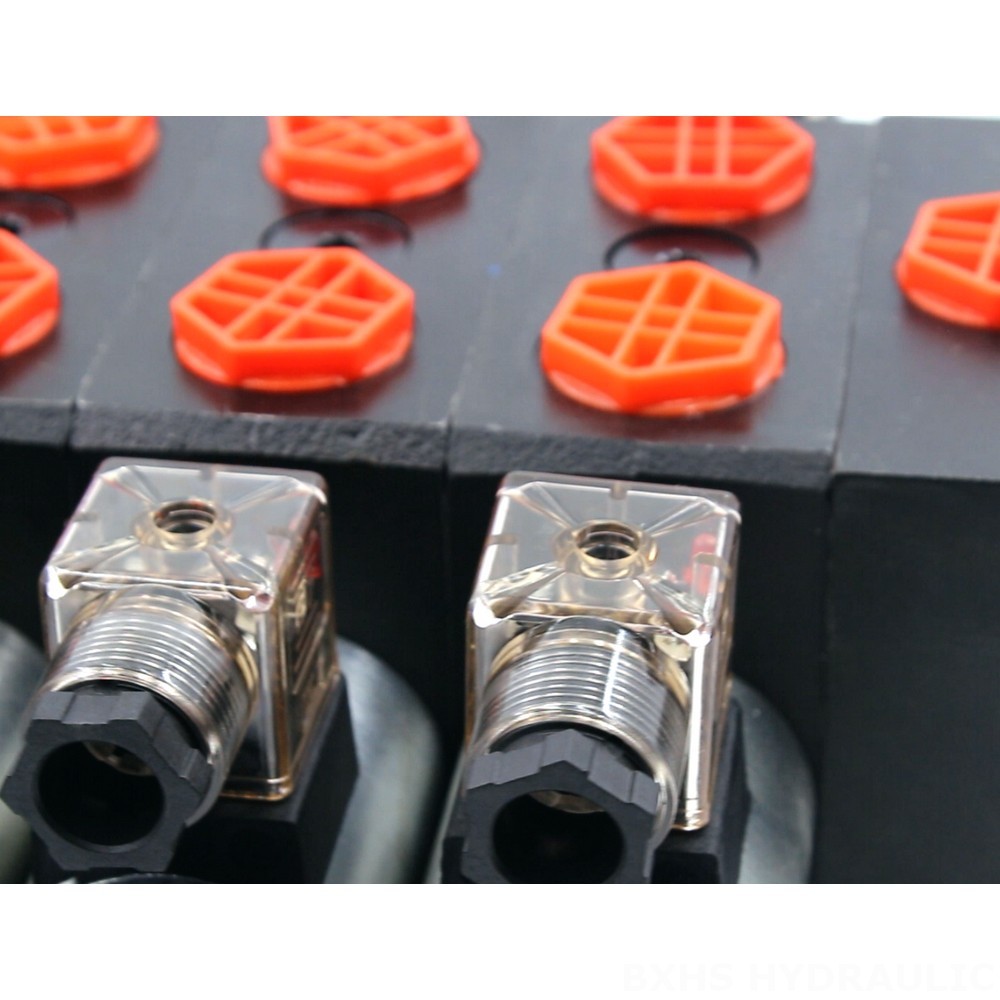

The DCV58 Solenoid 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 60 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 15 - 75 mm²/s, it offers precise control and reliable operation in demanding hydraulic systems.
| DCV58 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Solenoid, Solenoid And Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 60 L/min (15.8 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Outlet Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Size | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
Product Features: Solenoid control for reliable and precise operation, Sectional design allows for easy integration into hydraulic systems , Rated flow of 60 L/min (15.8 US gpm) for efficient fluid transfer ,Maximum pressure of 350 bar (5100 psi) for handling high-pressure applications, Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids ,Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in demanding environments .
Applications:Controlling hydraulic cylinders and actuators,Flow and pressure regulation in hydraulic systems , Material handling equipment ,Construction machinery ,Agricultural and forestry equipment , Industrial vehicles , Mobile hydraulics .
The DCV58 Solenoid 3 Spool Sectional Directional Valve is a reliable and efficient solution for hydraulic system control, providing precise fluid flow management for a wide range of applications.
We can also make OEM/ODM orders ,if you have any request ,please feel free to contact us .
