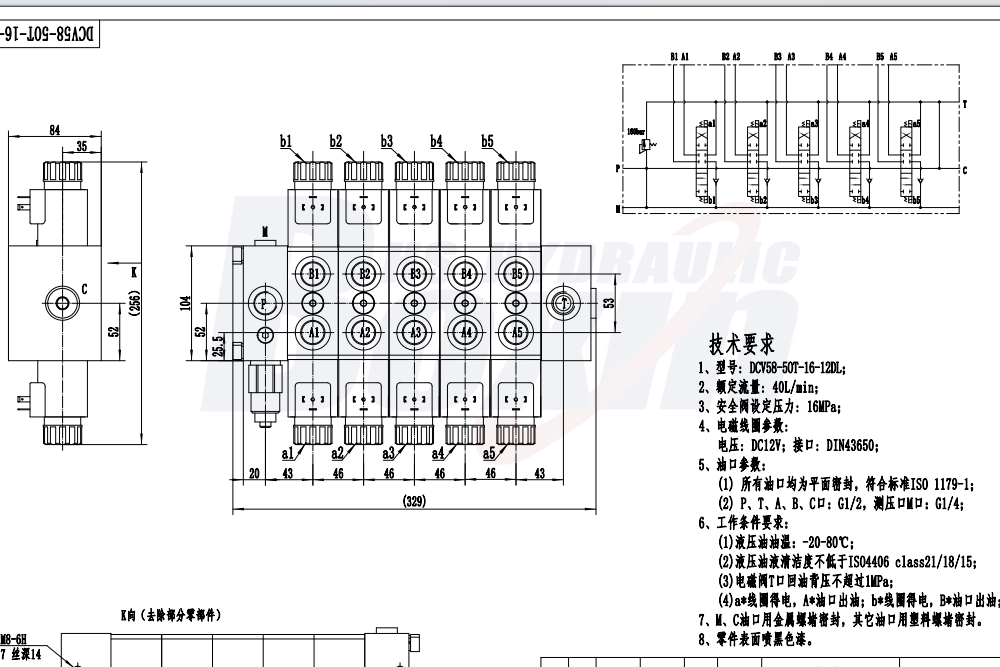

The DCV58 is a high-performance 5-spool sectional directional control valve designed for versatile hydraulic systems. Featuring a dual control method of solenoid and manual operation, it offers a rated flow of 40 L/min and can withstand pressures up to 350 bar, making it ideal for precision control in demanding environments.
| DCV58 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Solenoid, Solenoid and Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Outlet Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Size | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 series sectional valve is engineered for professional-grade hydraulic applications requiring multi-functional control. Key features and advantages include:
1. Dual Control Integration: Seamlessly switch between or simultaneously use solenoid (electric) and manual lever control for maximum operational flexibility.
2. Compact Sectional Design: The 5-spool configuration allows for independent control of five separate hydraulic circuits, with a rugged sectional structure that ensures easy maintenance.
3. High Pressure Capability: Rated for 350 bar (5100 psi), it is suitable for heavy-duty construction and agricultural tasks.
4. Wide Compatibility: Available with multiple port options (NPT, Metric, BSPP, SAE) to fit global piping standards.
5. Superior Durability: Operates efficiently in extreme climates ranging from -40°C to +80°C.
Ideal for OEM and aftermarket use in machinery like tractors, skid steers, and aerial platforms, providing smooth flow regulation and reliable safety performance.
