DCV58F Solenoid 2 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV58F Series Sectional Directional Valve

Productsize:21.6*25.6*14

Netweight:16.43 kg

Availability: In Stock

  • Solenoid
  • Solenoid And Manual
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
693 Views are Looking for this Product

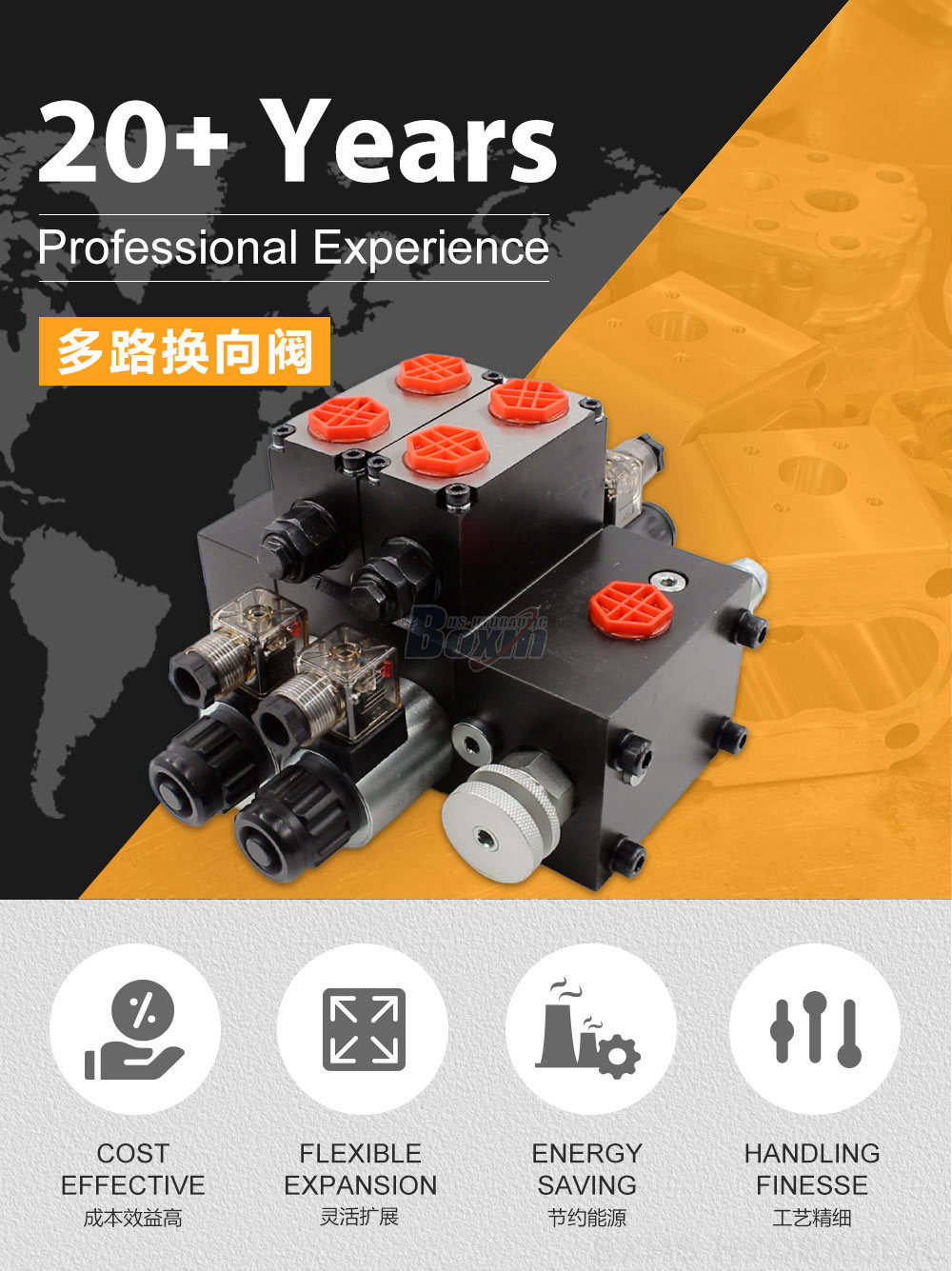

DCV58F Solenoid 2 Spool Sectional Directional Valve detailed image

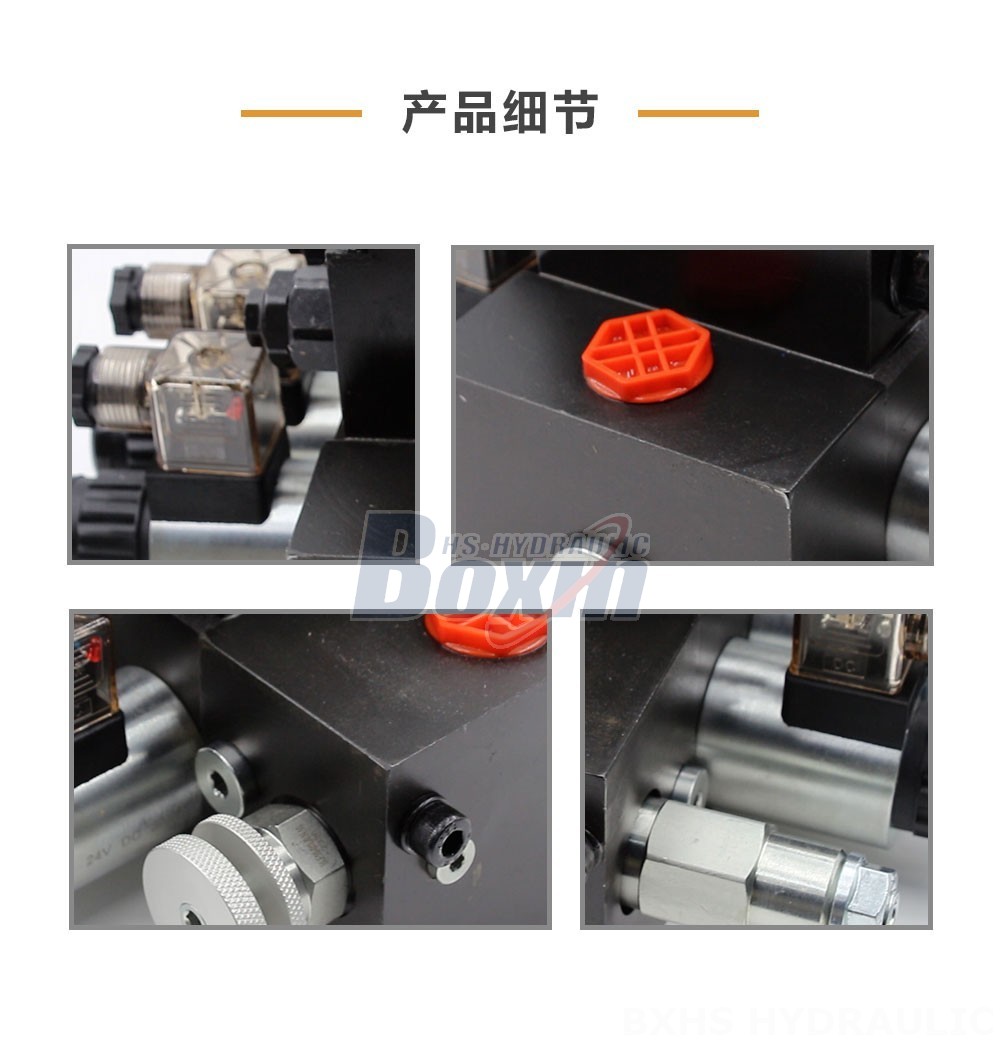

DCV58F Solenoid 2 Spool Sectional Directional Valve detailed image

DCV58F Solenoid 2 Spool Sectional Directional Valve drawing image

The DCV58F Solenoid 2 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile equipment applications. With a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve provides precise and reliable flow control, pressure control, and directional control.

DCV58F Series Sectional Directional Valve Parameters
Control Method Solenoid, Solenoid And Manual
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 350 bar (5100 psi)
Inlet Port G1/2, M22×1.5, SAE 10, 1/2 NPT
Outlet Port G1/2, M22×1.5, SAE 10, 1/2 NPT
Port Size G1/2, M22×1.5, SAE 10, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

Compact and modular design: Enables easy integration into existing systems and allows for flexible configuration. High flow capacity (60 L/min): Handles demanding hydraulic applications with ease. Durable construction: Built to withstand harsh operating conditions and ensures long service life.  Versatile control options: Solenoid actuation provides precise and responsive control. Applications:The DCV58F Solenoid 2 Spool Sectional Directional Valve is ideal for use in a variety of hydraulic applications, including: Material handling equipment (forklifts, telehandlers, cranes) ,Construction and earth-moving machinery (excavators, skid steer loaders, wheel loaders), Agricultural equipment (tractors, harvesters, balers) ,Industrial vehicles (sweepers, waste compactors, hook-loaders)。

Customization Options:In addition to its standard configuration, the DCV58F Solenoid 2 Spool Sectional Directional Valve can be customized to meet specific application requirements, such as:  Pressure and flow rate adjustments , Alternative spool configurations , Integrated sensors and feedback devices By partnering with our experienced engineering team, you can create a hydraulic valve solution that perfectly matches your unique needs.

Please feel free to contact us ,we can also make OEM/ODM orders for you.
