DCV60 Cable 3 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV60 Series Sectional Directional Valve

Productsize:24*30*12

Netweight:17.50 kg

Availability: In Stock

Description

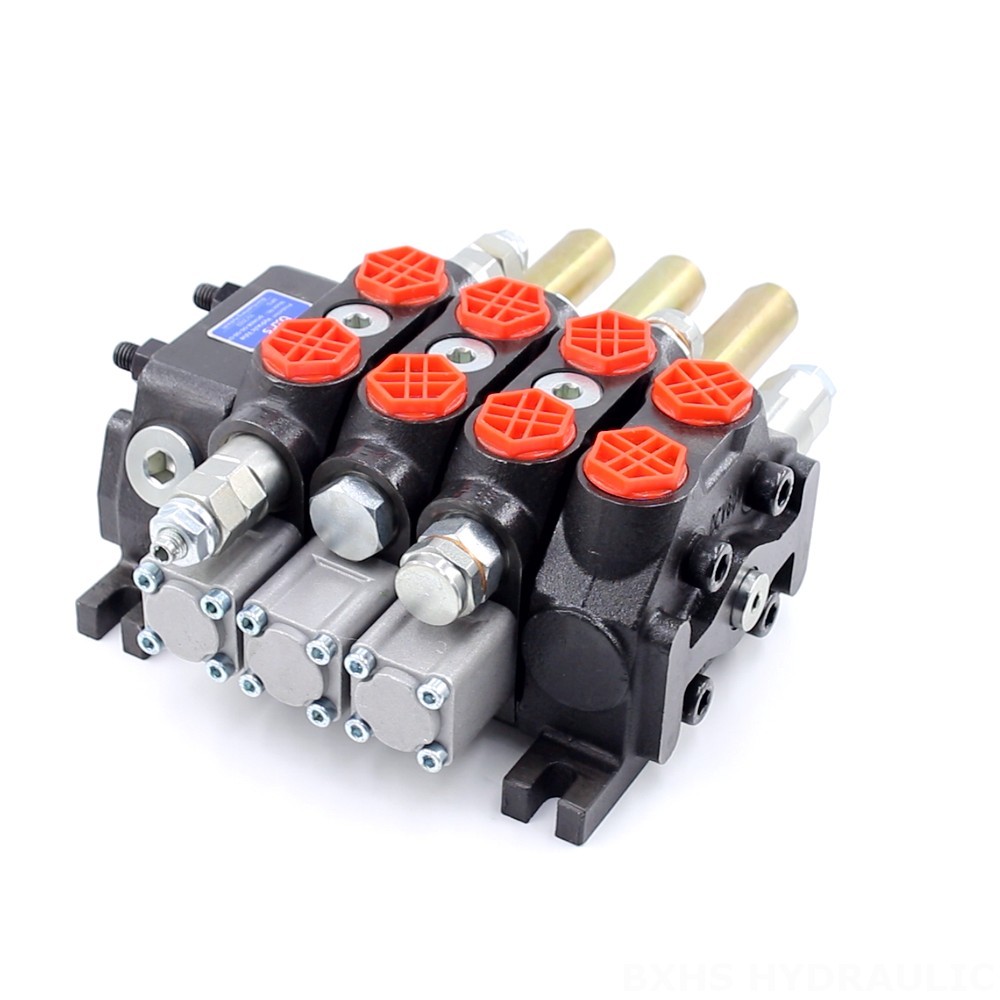

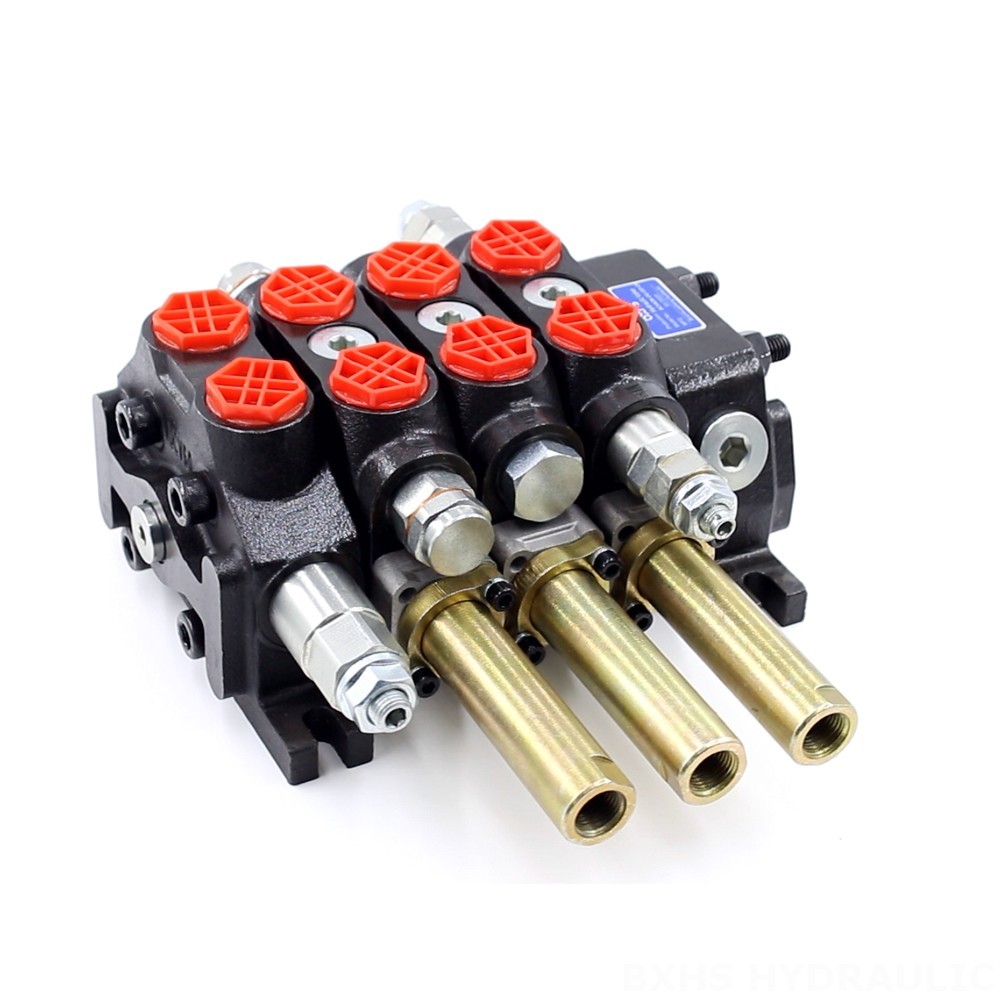

DCV60 Cable 3 Spool Sectional Directional Valve detailed image

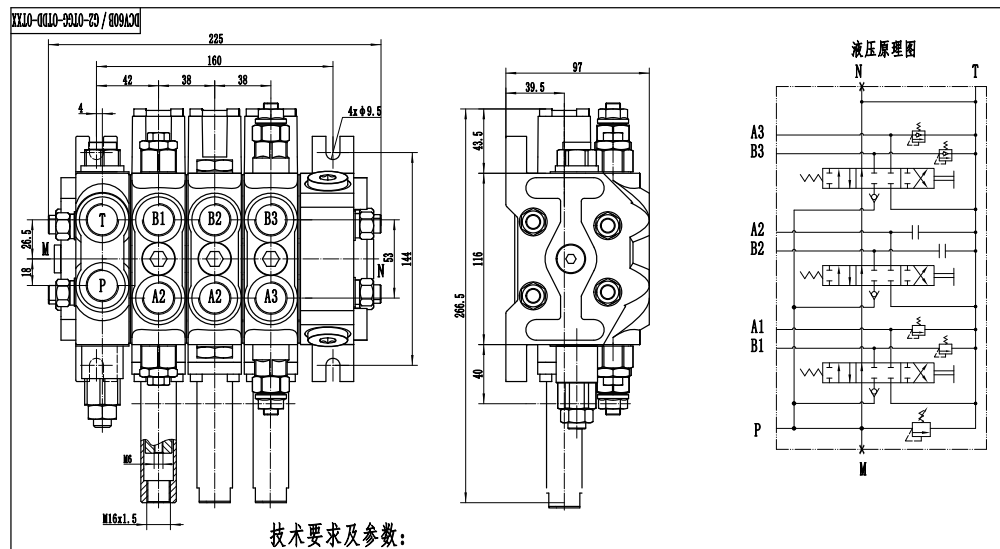

DCV60 Cable 3 Spool Sectional Directional Valve drawing image

The DCV60 with Cable base 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in demanding applications. It offers precise control over fluid flow, making it ideal for a wide range of industrial and mobile machinery applications.

DCV60 Series Sectional Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid And Manual, Solenoid and Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow	60 L/min (15.8 US gpm)
Max Pressure	350 bar (5100 psi)
Inlet Port	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type	Sectional valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

Rated flow of 60 L/min (15.8 US gpm)
,Max pressure of 350 bar (5100 psi)
, Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
, Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
, 3 spool design
, Sectional valve construction
,Cable control method .

Applications:The DCV60 Cable 3 Spool Sectional Directional Valve is suitable for use in a wide range of applications, including: Material handling
, Construction and earth moving
, Agriculture, Industrial vehicles.

Specific applications include: Telehandlers , Forklifts
, All terrain cranes, Stackers
, Aerial platforms
, Motor graders, Midi-excavators
,Mini-excavators
,Skid steer loaders
,Compact wheel loaders.

DCV60 Cable 3 Spool Sectional Directional Valve application image
