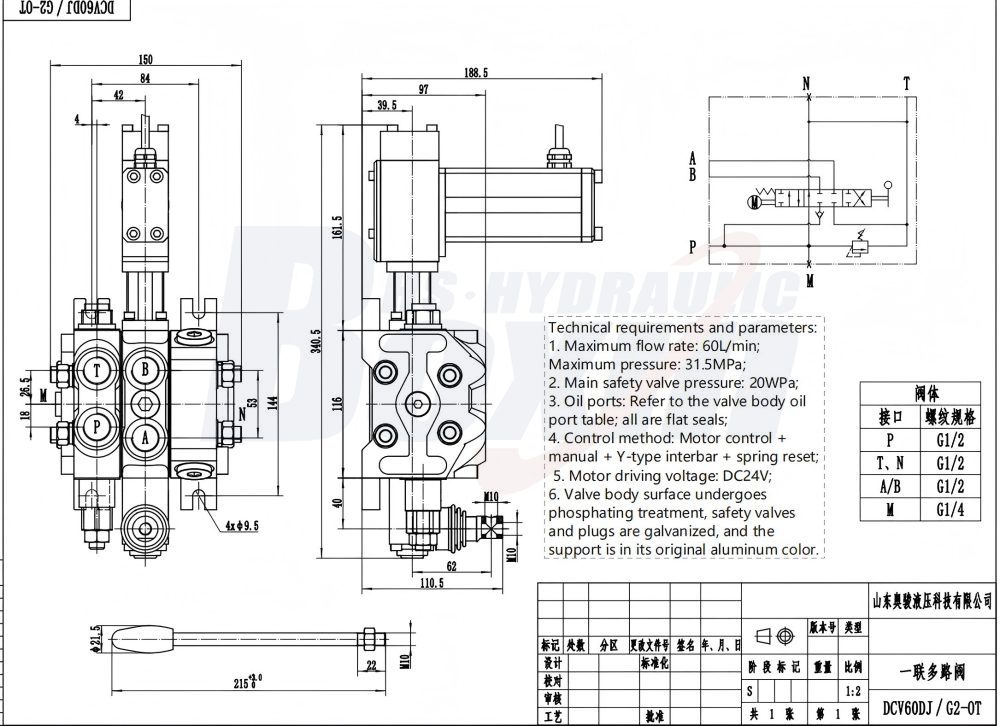

The DCV60 is a high-performance 1-spool sectional directional control valve featuring precise electric motor actuation. Designed for medium-to-high pressure hydraulic systems, it delivers a rated flow of 60 L/min and can withstand peak pressures up to 350 bar. Its modular sectional design and versatile porting options make it an ideal choice for modern automated machinery requiring reliable remote operation.
| DCV60 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick, Electric motor |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 60 L/min (15.8 US gpm) |
| Max Pressure | 315 bar (4600 psi), 350 bar (5100 psi) |
| Inlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
Product Features & Advantages: 1. Advanced Control: Equipped with an electric motor for precise, remote control of hydraulic functions, reducing operator fatigue and improving automation. 2. Flexible Configuration: Sectional structure allows for easy maintenance and scalability. 3. High Durability: Engineered to operate in extreme environments ranging from -40°C to +80°C with a maximum pressure rating of 350 bar. 4. Universal Compatibility: Multiple inlet and outlet port options (NPT, SAE, G, M threads) ensure seamless integration into global hydraulic systems. 5. Precise Performance: Optimized for viscosity ranges of 15-75 mm²/s, ensuring smooth spool movement and consistent flow. Application Scenarios: Ideal for agricultural machinery (balers, loaders), construction equipment (excavators, skid steers), and specialized industrial vehicles requiring automated directional control for lifting, tilting, or rotating mechanisms.
