DCV60 Electric motor 2 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:DCV60 Series Sectional Directional Valve

Productsize:27*39*23

Netweight:17.60 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Manual
  • Solenoid and Joystick
  • Manual and Joystick
  • Electric motor
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
315 Views are Looking for this Product

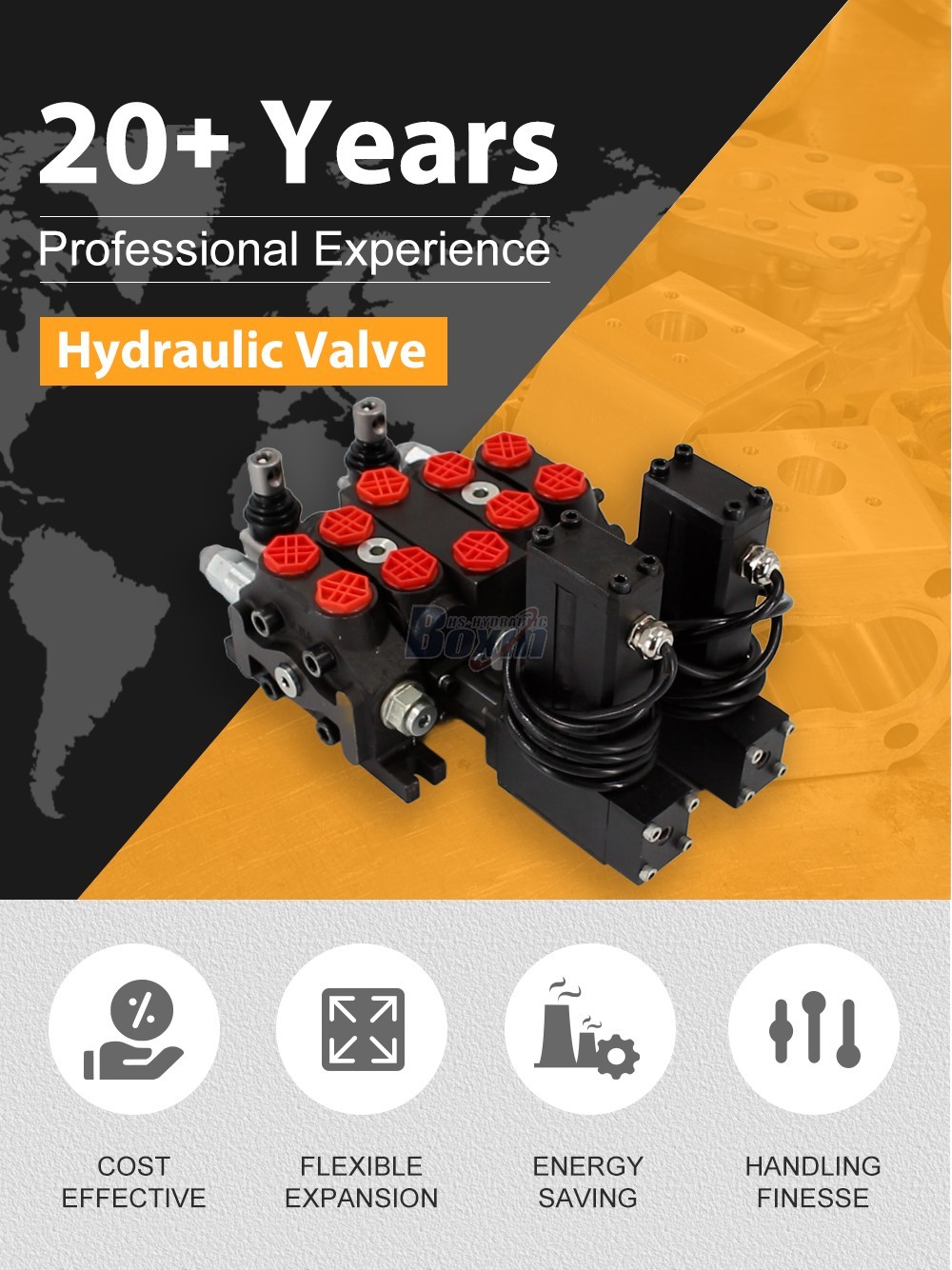

DCV60 Electric motor 2 Spool Sectional Directional Valve detailed image

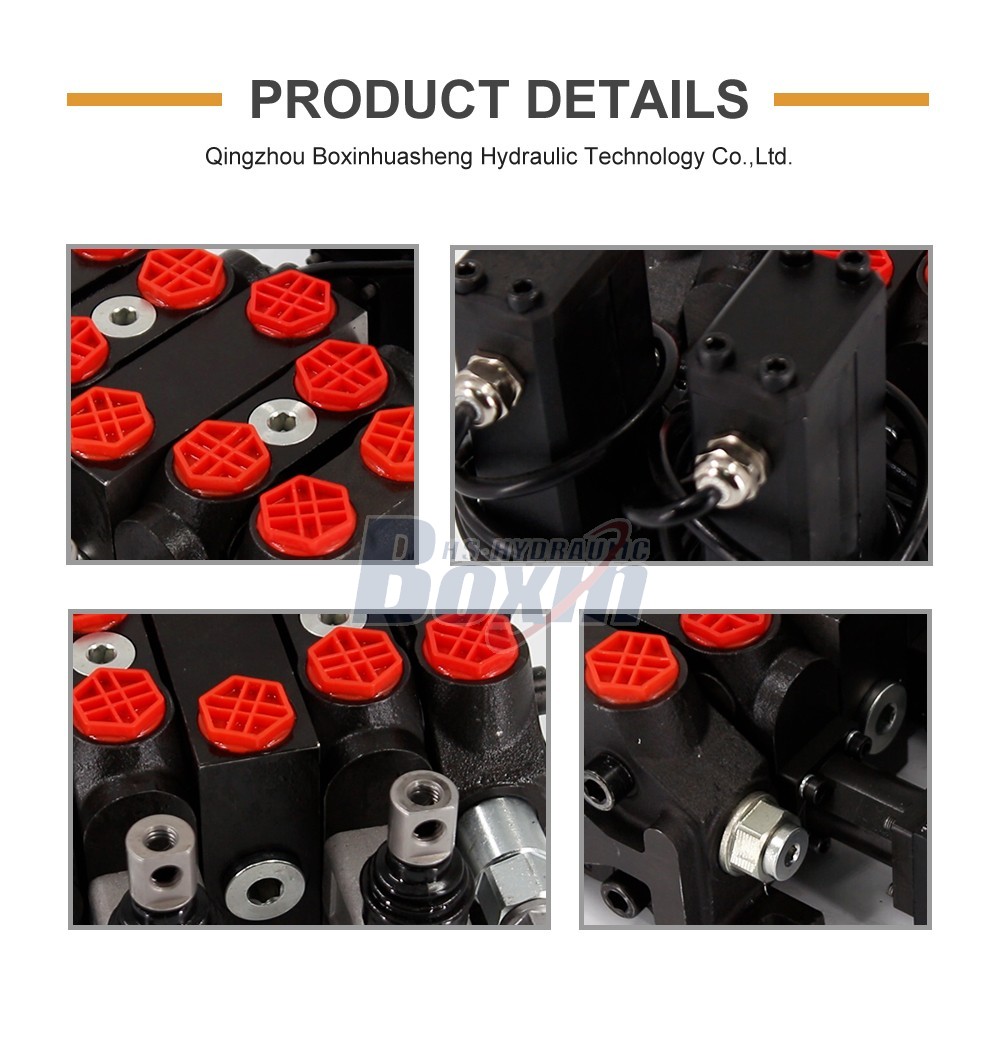

DCV60 Electric motor 2 Spool Sectional Directional Valve detailed image

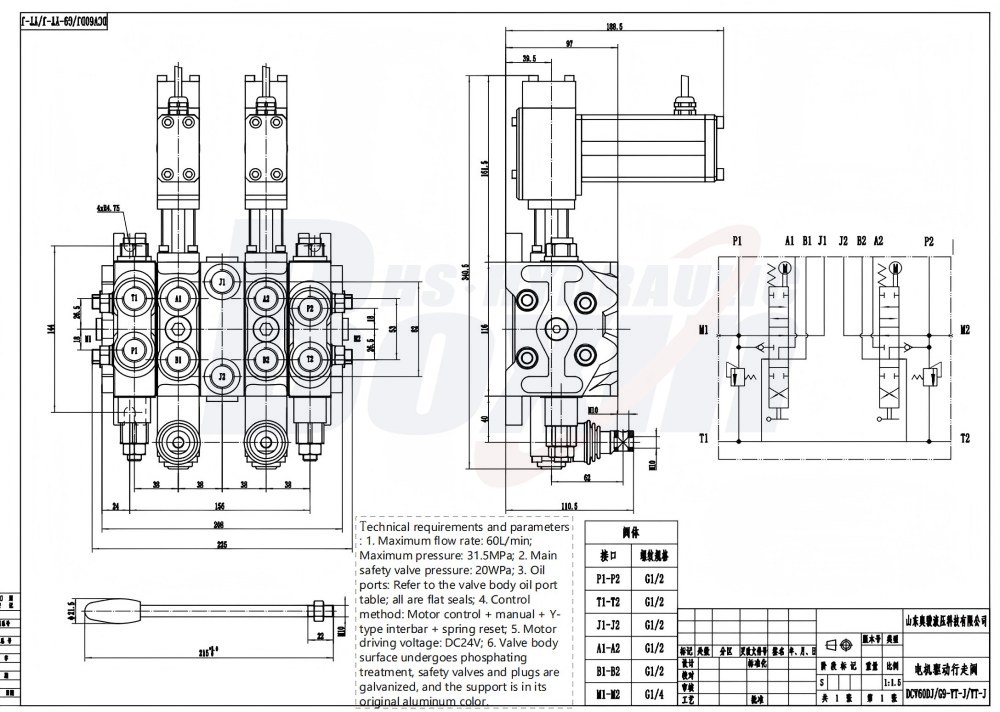

DCV60 Electric motor 2 Spool Sectional Directional Valve drawing image

The DCV60 is a high-performance 2-spool sectional directional control valve driven by an integrated electric motor. Featuring a flow rate of 60 L/min and capable of handling pressures up to 350 bar, it offers precise remote control for complex hydraulic systems in demanding environments.

DCV60 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick, Electric motor
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 315 bar (4600 psi), 350 bar (5100 psi)
Inlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

Product Overview: The DCV60 Electric Motor Sectional Valve is engineered for versatile hydraulic control, combining robust mechanical design with advanced electric motor actuation. Key Features: 1. Sectional structure allows for flexible configuration and easy maintenance. 2. Electric motor control method provides efficient remote operation, reducing manual labor and improving reaction precision. 3. High pressure resistance: Rated for peak pressures up to 350 bar (5100 psi) to handle heavy-duty loads. 4. Superior Adaptability: Functions flawlessly in extreme temperatures from -40°C to +80°C. 5. Universal Porting: Offers extensive port options including NPT, SAE, G, and Metric threads to meet global standards. Application Scenarios: Ideal for modern agricultural machinery, construction equipment, and material handling systems where precise, automated control of multiple cylinders or motors is required. We provide full OEM/ODM services and are actively seeking global distributors.
