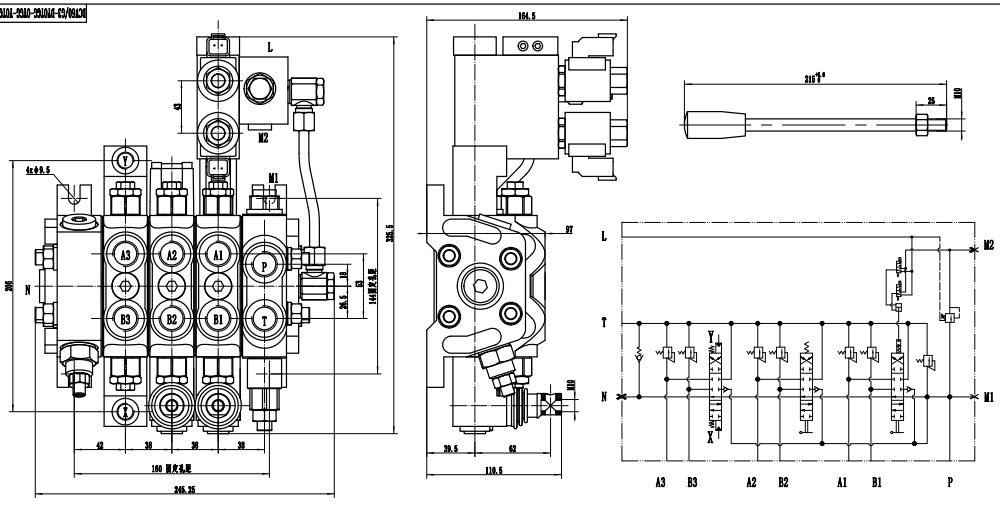

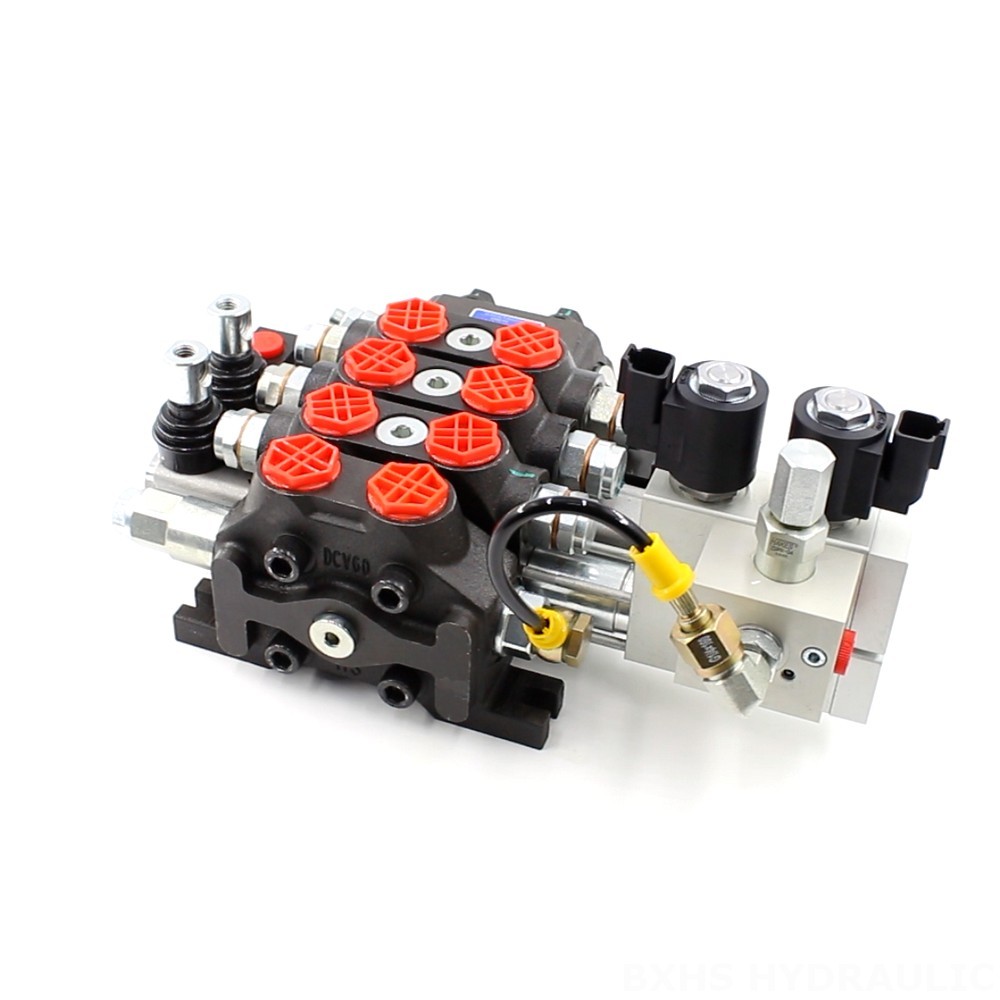

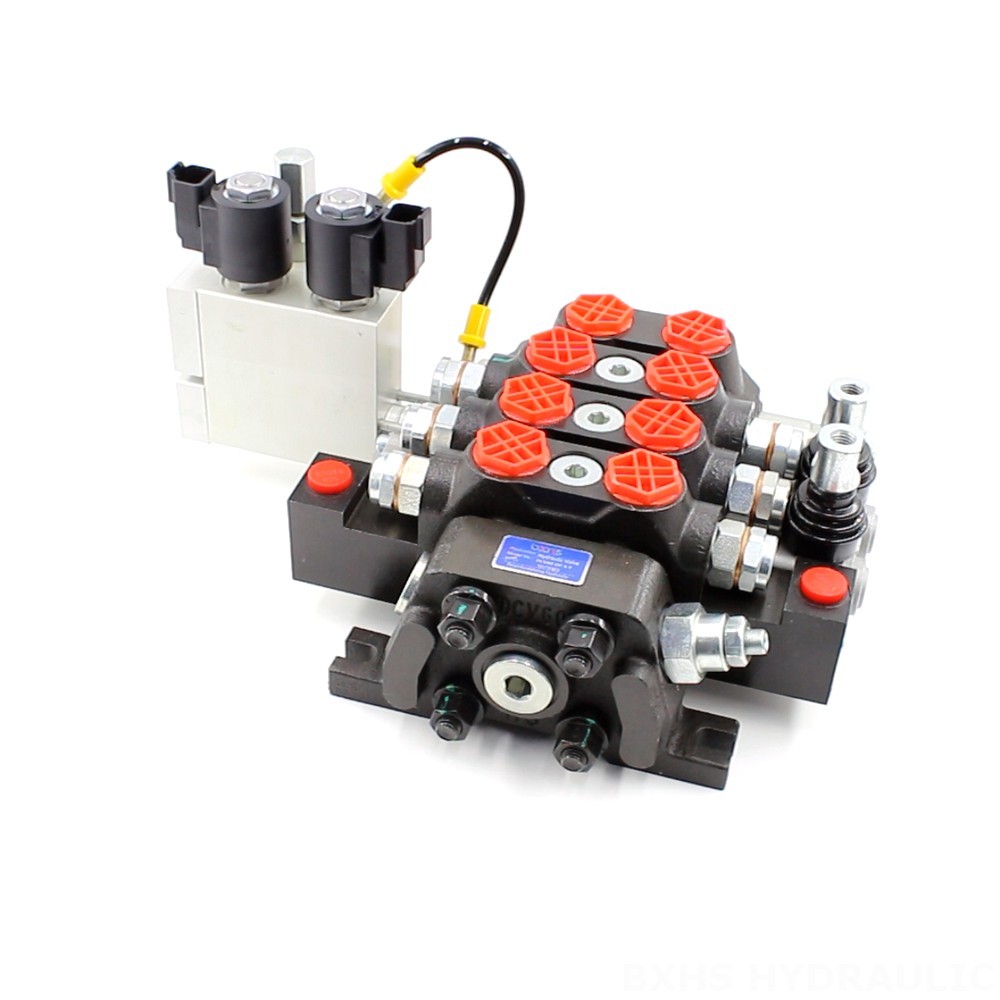

The DCV60 Electro-hydraulic 2 Spool Sectional Directional Valve is a high-performance valve designed for use in a wide range of applications. With a rated flow of 60 L/min and a max pressure of 350 bar, this valve is ideal for use in demanding applications. The valve's sectional design allows for easy customization and installation, and its electro-hydraulic control provides precise and responsive control.
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section,11 Section,12 Section |
|---|---|
| Structure Type | Sectional valve |
| Control Method | Electro-hydraulic |
| Rated Flow | 60 L/min (15.8 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
Rated flow of 60 L/min (15.8 US gpm)
,Max pressure of 350 bar (5100 psi)
, Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
, Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
, Sectional design for easy customization and installation
, Electro-hydraulic control for precise and responsive control
.
Applications:The DCV60 Electro-hydraulic 2 Spool Sectional Directional Valve is ideal for use in a wide range of applications, including: Material handling
, Construction and earth moving
, Agriculture
, Industrial vehicles .For more information or to discuss your specific hydraulic valve requirements, please contact our sales team. We are here to assist you with your project and provide tailored solutions that meet your needs.
