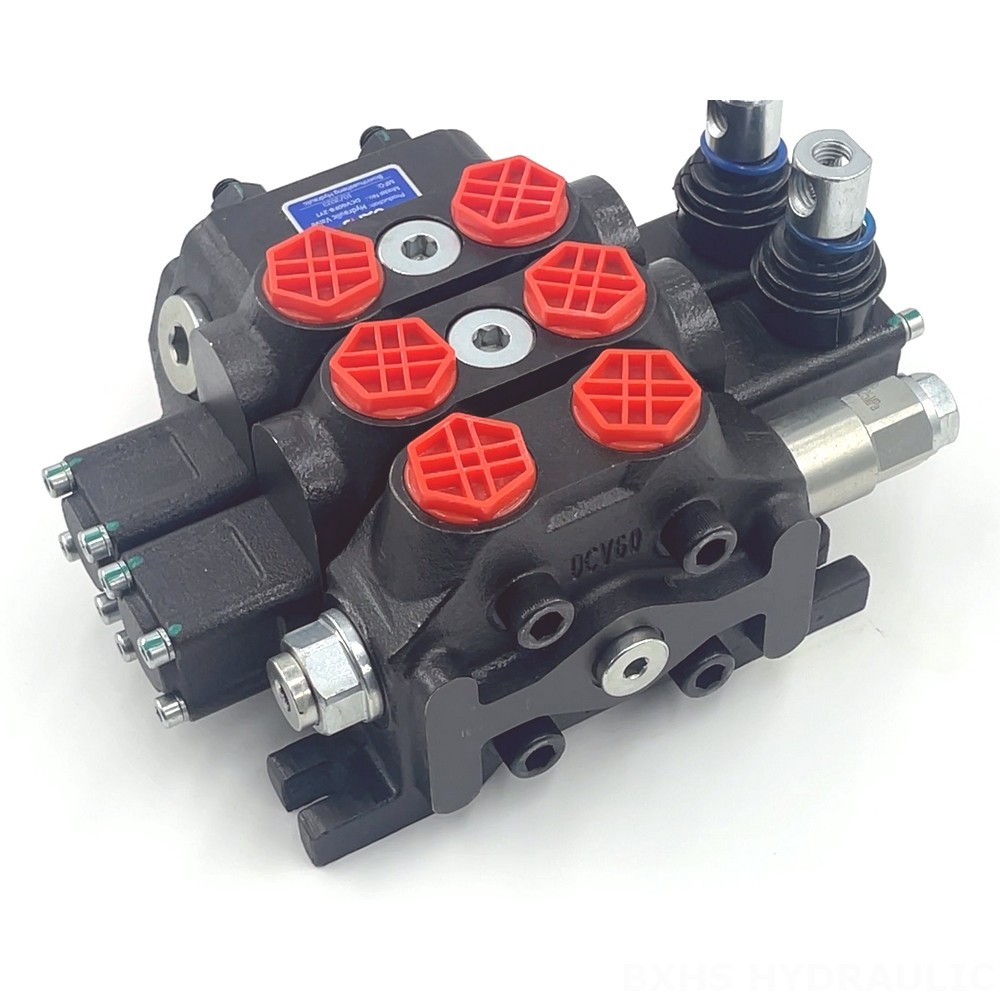

The DCV60 Manual 2 Spool Sectional Directional Valve is a versatile and reliable hydraulic valve designed for use in a wide range of applications. With its manual control, 2 spool design, and high flow rate of 60 L/min, this valve offers precise control and efficiency in demanding hydraulic systems. Its robust construction, operating viscosity range of 15 - 75 mm²/s, and wide ambient temperature range of -40°C to +80°C ensure durability and performance in challenging environments.
| DCV60 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid And Manual, Solenoid and Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 60 L/min (15.8 US gpm) |
| Max Pressure | 350 bar (5100 psi) |
| Inlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
Manual control for precise and reliable operation , 2 spool design for versatile flow control .
Rated flow rate of 60 L/min for high efficiency
,Maximum pressure of 350 bar for demanding applications
, Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
, Ambient temperature range of -40°C to +80°C for use in extreme environments
.Compact and modular design for easy integration .
The DCV60 Manual 2 Spool Sectional Directional Valve is commonly used in a variety of applications, including: Material handling equipment, such as forklifts and telehandlers
, Construction and earth moving machinery, such as excavators and loaders
,Agricultural equipment, such as tractors and harvesters
, Industrial vehicles, such as sweepers and waste compactors
