Direct from the Factory: Eliminate Middlemen and Save with the P80-U78 Hydraulic Valve

Control Method:Manual

Spool:1 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 10

Outlet Port:SAE 10

Port Size:SAE 10

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*15*11

Grossweight:5.00 kg

Availability: In Stock

767 Views are Looking for this Product

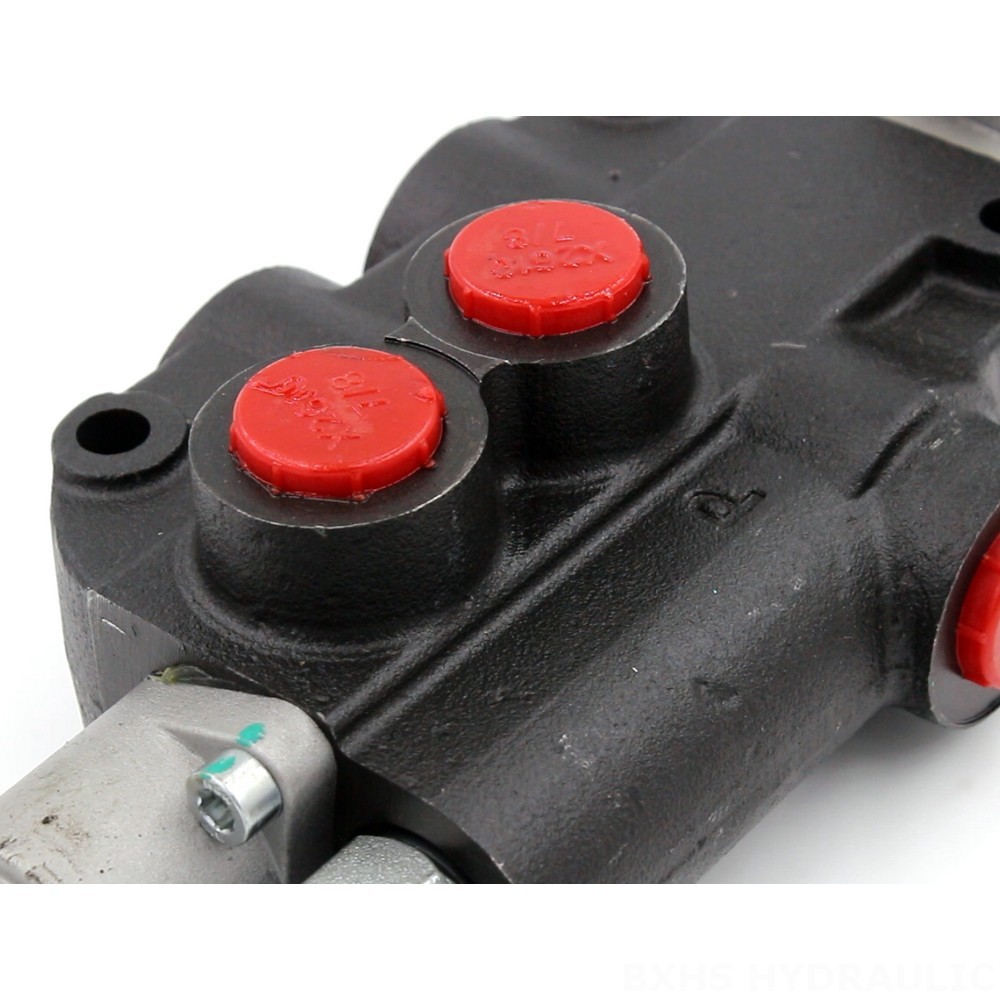

Direct from the Factory: Eliminate Middlemen and Save with the P80-U78 Hydraulic Valve detailed image

Direct from the Factory: Eliminate Middlemen and Save with the P80-U78 Hydraulic Valve detailed image

Direct from the Factory: Eliminate Middlemen and Save with the P80-U78 Hydraulic Valve drawing image

The P80-U78 Hydraulic Valve is a high-performance, monoblock valve designed for use in a wide range of industrial applications. It features a manual control method, a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve is also designed to operate in a wide ambient temperature range of -40°C to +80°C.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80-U78 Hydraulic Valve is manufactured to the highest quality standards and is backed by our comprehensive warranty. It is the perfect choice for OEMs and end-users looking for a reliable and cost-effective hydraulic valve. We offer a variety of customization options to meet your specific needs, including different port sizes, mounting options, and spool configurations. Contact us today to learn more about the P80-U78 Hydraulic Valve and how it can benefit your application.
