Diverter Valve 2 Way Hydraulic P40-G12-G38 Directional Valve | Hydraulic Component Manufacturer

Control Method:Manual

Spool:3 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:24*21*13

Grossweight:7.00 kg

Availability: In Stock

805 Views are Looking for this Product

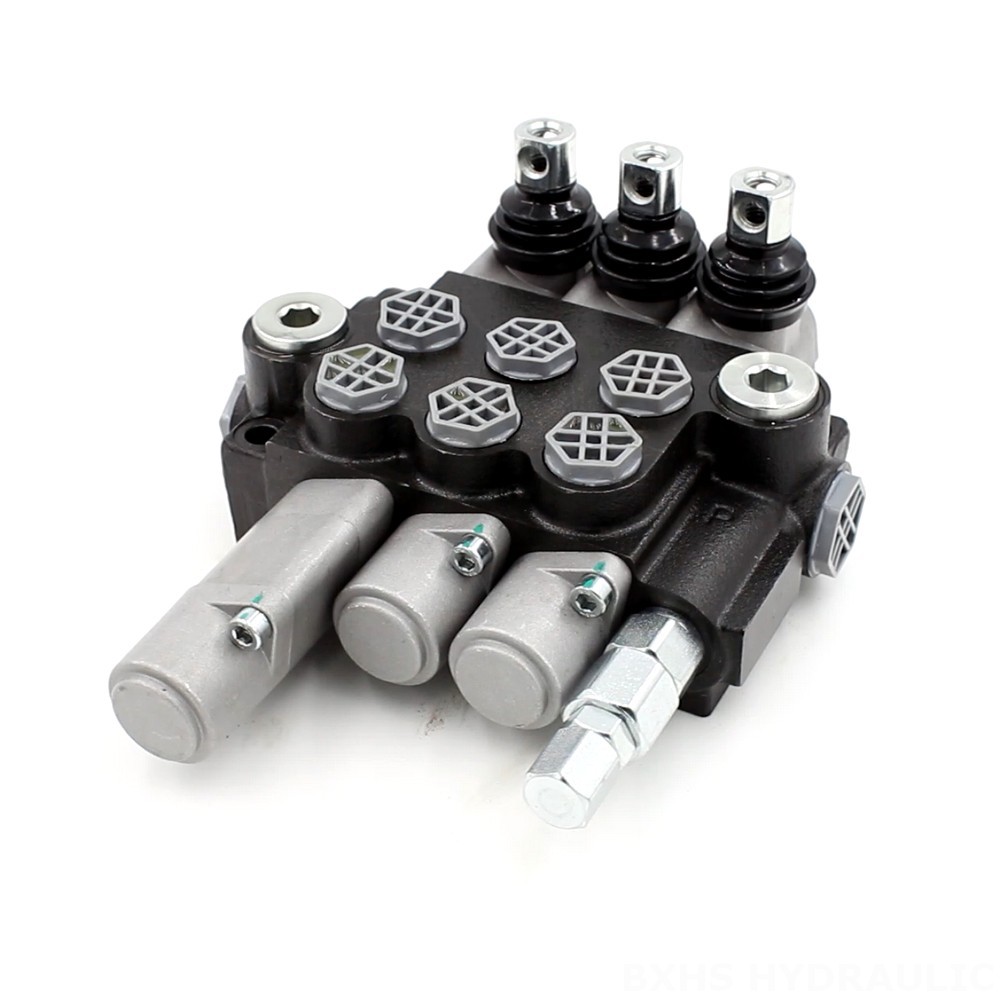

Diverter Valve 2 Way Hydraulic P40-G12-G38 Directional Valve | Hydraulic Component Manufacturer detailed image

Diverter Valve 2 Way Hydraulic P40-G12-G38 Directional Valve | Hydraulic Component Manufacturer detailed image

Diverter Valve 2 Way Hydraulic P40-G12-G38 Directional Valve | Hydraulic Component Manufacturer drawing image

The P40 Series 2 Way Hydraulic Diverter Valve is a manually controlled, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features a 3-section design, a 40 L/min rated flow, and a maximum pressure of 250 bar.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40 Series 2 Way Hydraulic Diverter Valve is a robust and reliable directional valve designed for demanding applications. It features manual control, a 3-section design, and a monoblock structure for optimal performance and durability. The valve is rated for a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The 3-spool design provides versatility and control, while the P40 series ensures high quality and reliability. This valve is ideal for a wide range of applications in material handling, construction and earthmoving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
