DM45 Cable 2 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:DM45 Series Monoblock Directional Valve

Productsize:17*32*12

Netweight:10.00 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Cable
  • Joystick
1067 Views are Looking for this Product

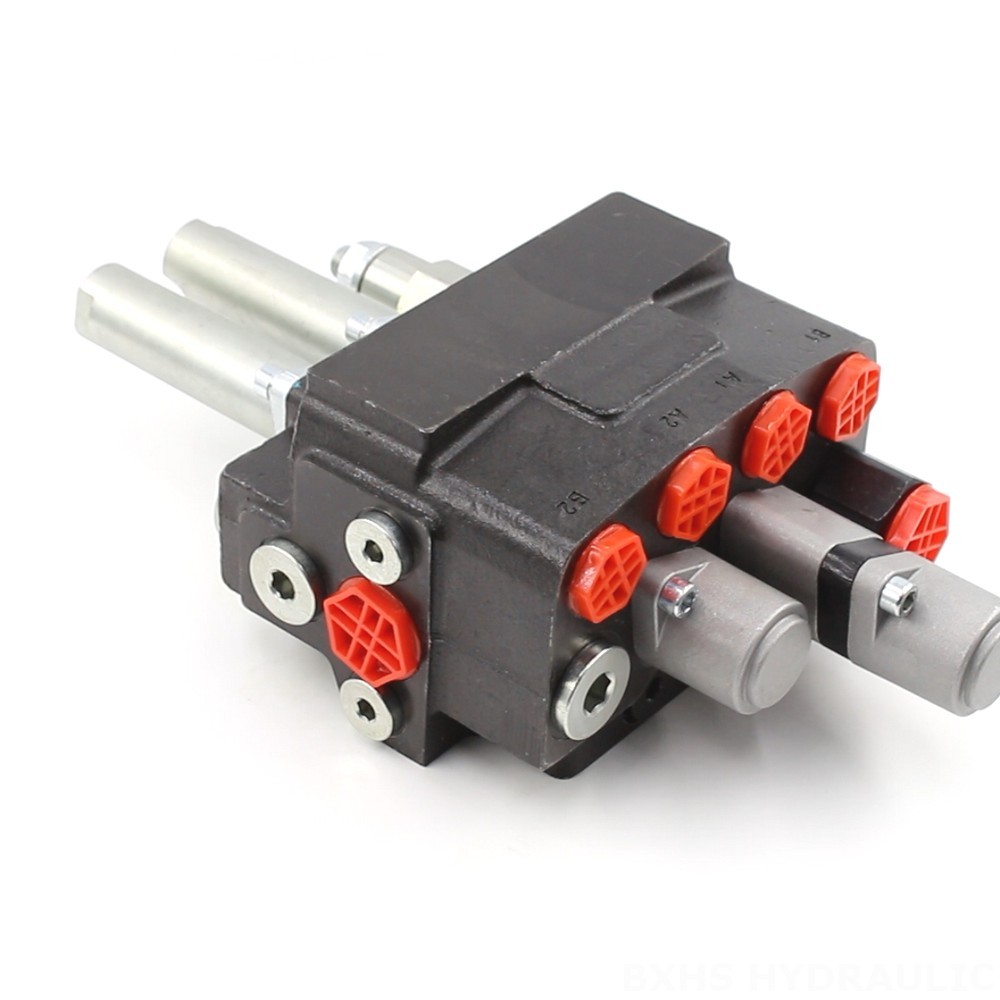

DM45 Cable 2 Spool Monoblock Directional Valve detailed image

DM45 Cable 2 Spool Monoblock Directional Valve detailed image

DM45 Cable 2 Spool Monoblock Directional Valve drawing image

The DM45 Cable 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in construction, agriculture, and industrial vehicles. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it provides precise control and reliable operation even in the most challenging conditions.

DM45 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Cable, Joystick
Port Size G3/8, G1/2
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Outlet Port G1/2
Max Pressure 315 bar (4600 psi)
Rated Flow 45 L/min (11.8 US gpm)
Structure Type Monoblock valve

**Product Features and Benefits:**

* Cable control for smooth and responsive operation
* Monoblock construction for compact size and durability
* 2 spool design for versatile flow control
* High flow capacity of 45 L/min
* Maximum pressure of 315 bar for demanding applications
* Wide operating viscosity range from 15 to 75 mm²/s
* Operating temperature range from -40°C to +80°C for use in extreme environments

**Applications:**

* Mobile hydraulic systems in construction equipment, such as excavators, loaders, and cranes
* Industrial machinery, including material handling equipment, forklifts, and conveyors
* Agricultural equipment, such as tractors, harvesters, and sprayers
* Forestry equipment, such as skidders, feller bunchers, and log loaders
* Waste management equipment, such as compactors and sweepers

DM45 Cable 2 Spool Monoblock Directional Valve application image

DM45 Cable 2 Spool Monoblock Directional Valve packing image

DM45 Cable 2 Spool Monoblock Directional Valve company image

DM45 Cable 2 Spool Monoblock Directional Valve certification image
