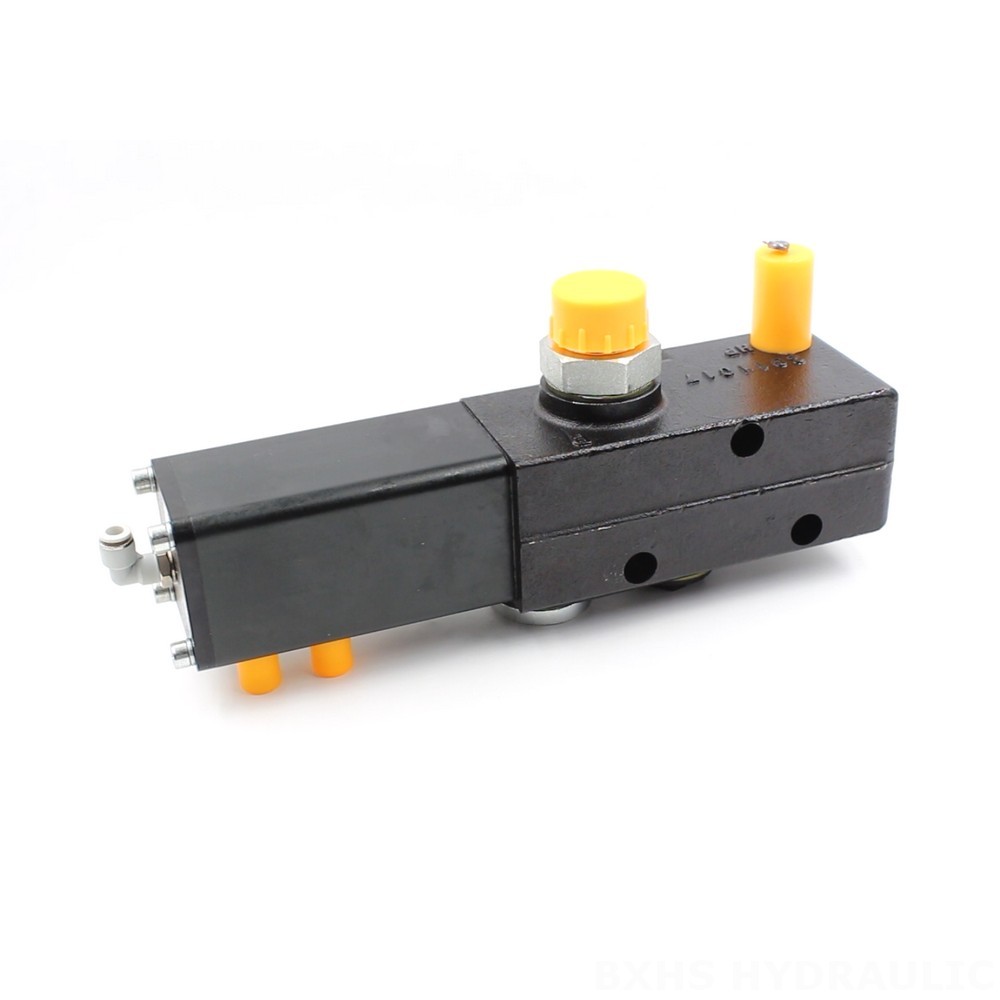

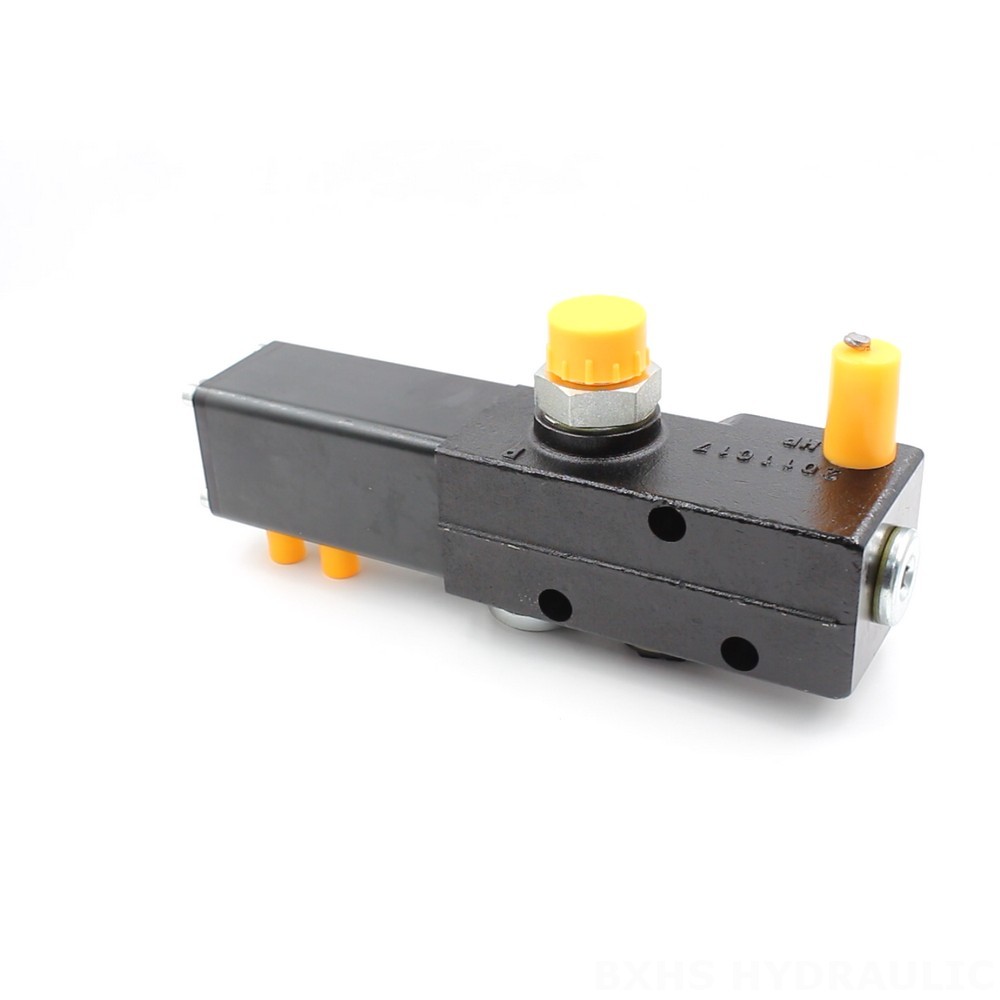

This high-performance electric hydraulic transfer valve is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring a single spool and monoblock construction, it delivers reliable operation at high flow rates and pressures.
| Section | 1 Section |
|---|---|
| Structure Type | Monoblock valve |
| Rated Flow | 220 L/min (58 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
The PT-1220 Series Electric Hydraulic Transfer Valve offers exceptional performance with a rated flow of 250 L/min (66 US gpm) and a maximum pressure of 250 bar (3600 psi). It features a single spool design and a robust monoblock construction, ensuring reliable operation even in harsh environments. This valve is ideal for applications requiring precise control and high efficiency, such as telehandlers, forklifts, mini-excavators, skid steer loaders, and wheel loaders. Available for wholesale and OEM orders, this valve is designed to meet the specific needs of our customers.
