Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

Control Method:Manual

Spool:5 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80F Series Monoblock Directional Valve

Packagingsize:26*30*11

Grossweight:16.00 kg

Availability: In Stock

1550 Views are Looking for this Product

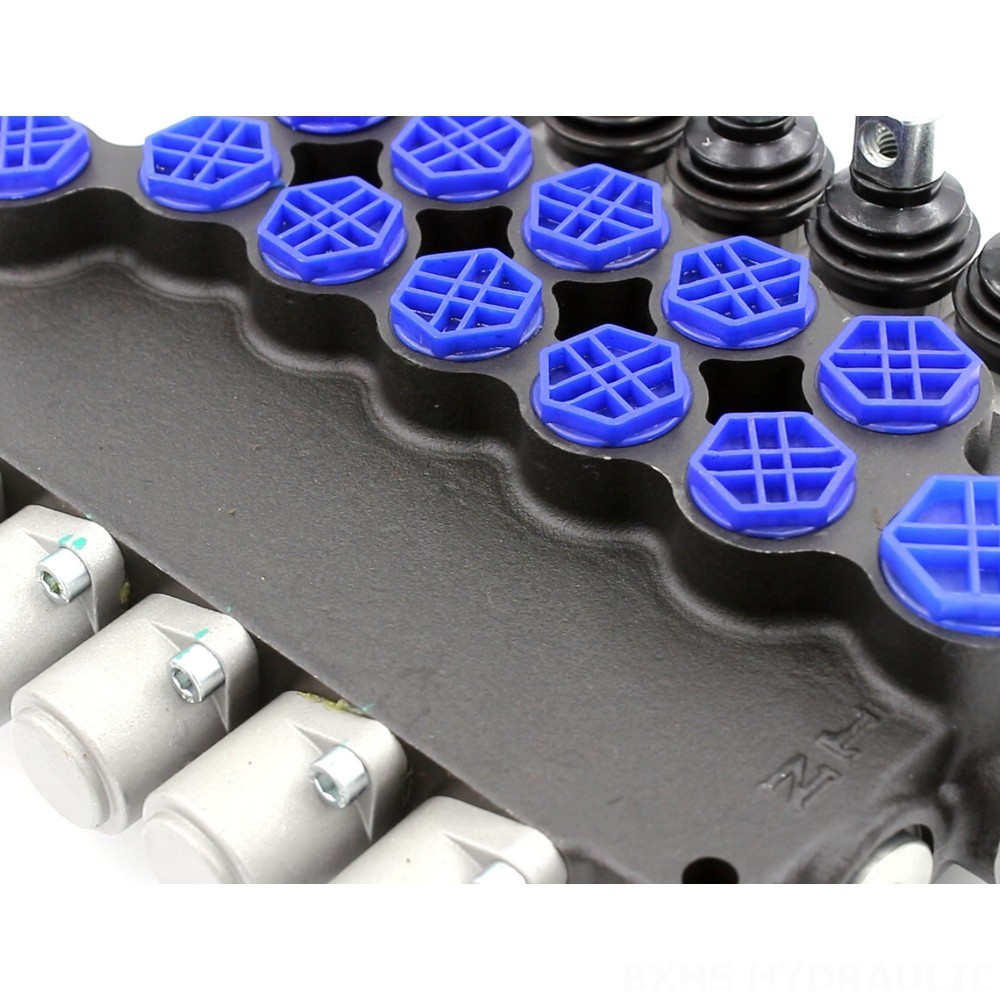

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve detailed image

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve detailed image

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80F-G34-OT is a robust 5-spool monoblock directional valve designed for demanding applications in construction, material handling, and industrial vehicles. It features manual control, 80 L/min flow rate, and 250 bar maximum pressure, making it ideal for controlling hydraulic systems in telehandlers, forklifts, excavators, loaders, and other heavy-duty equipment.

P80F Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80F-G34-OT is a high-performance, manual control, 5-spool monoblock directional valve specifically engineered for heavy-duty applications in construction, material handling, and industrial vehicles. This valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), ensuring efficient and reliable operation in demanding environments. The P80F-G34-OT's robust construction and versatile design make it a versatile solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to operate effectively in a wide range of hydraulic fluids and temperatures, from -40°C to +80°C (-40°F to +176°F). The P80F-G34-OT is a reliable and efficient hydraulic control solution designed to withstand the rigors of heavy-duty applications.

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve application image

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve packing image

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve company image

Electronic Hydraulic Flow Control Valve P80F-G34-OT Manual 5 Spool Monoblock Directional Valve certification image
