High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance

Displacement:82 cc/rev

Material:Cast Iron

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:CBHC Series Hydraulic Gear Pump

Productsize:166*159*234.6

Availability: In Stock

  • 40 cc/rev
  • 50 cc/rev
  • 63 cc/rev
  • 80 cc/rev
  • 25 cc/rev
  • 34 cc/rev
  • 82 cc/rev
4 Views are Looking for this Product

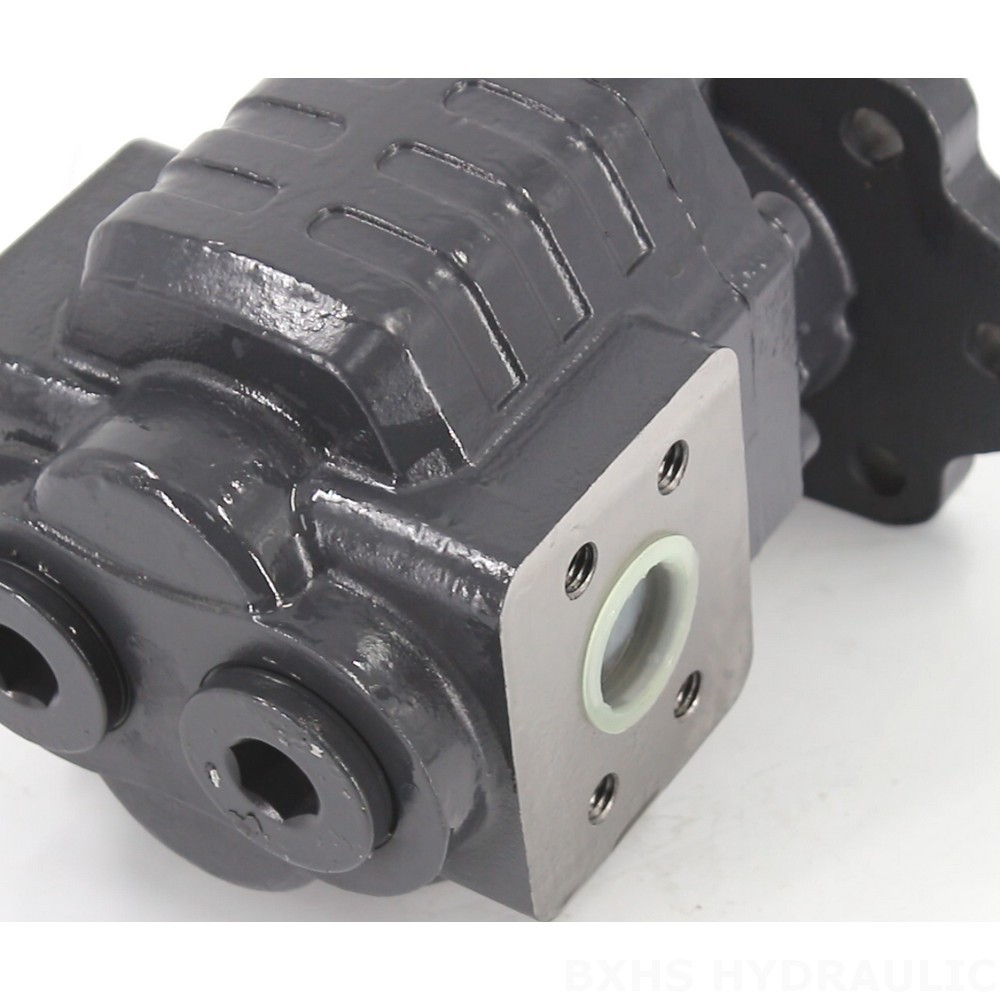

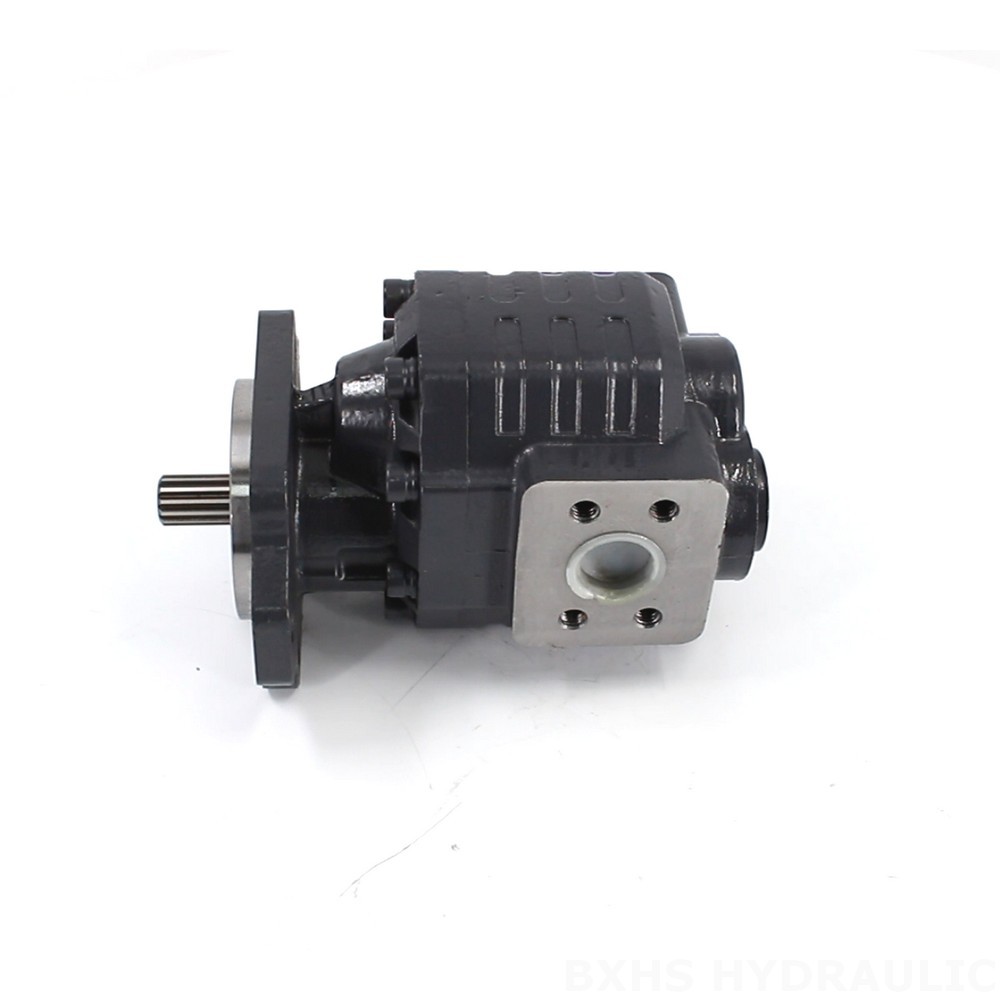

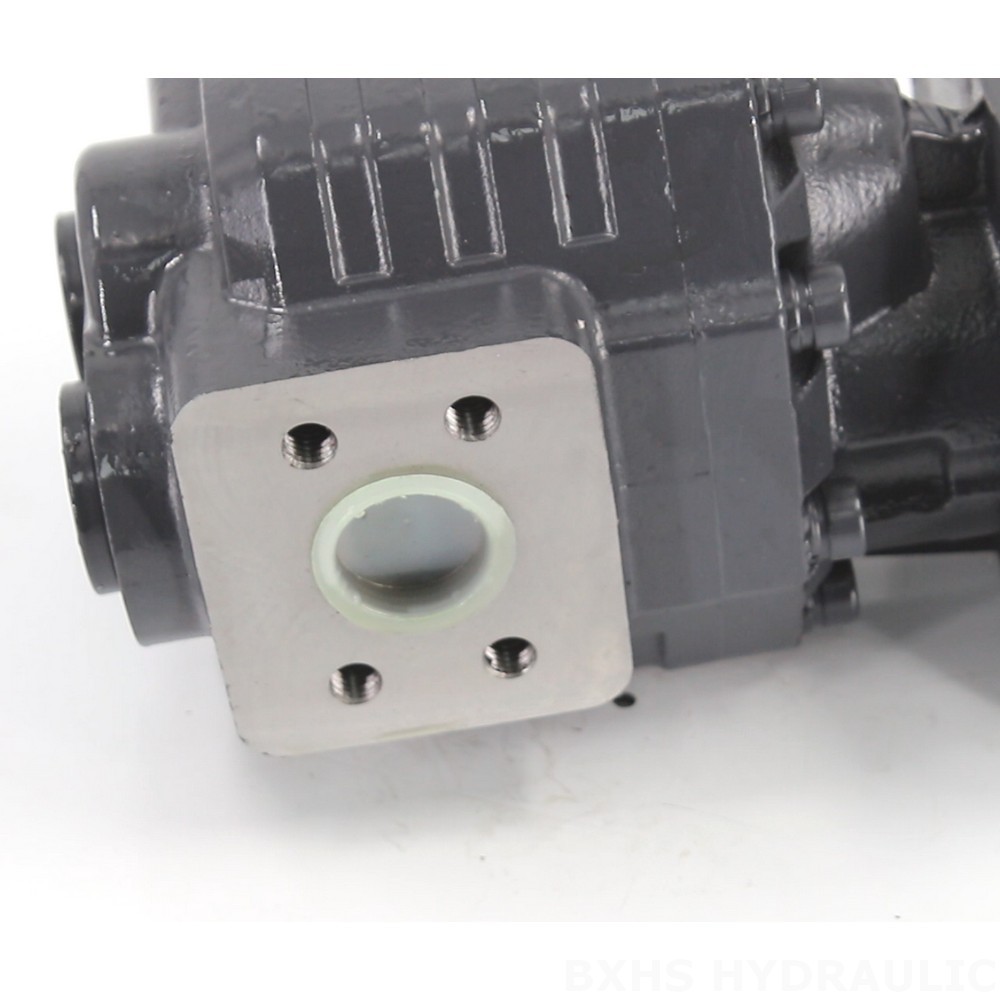

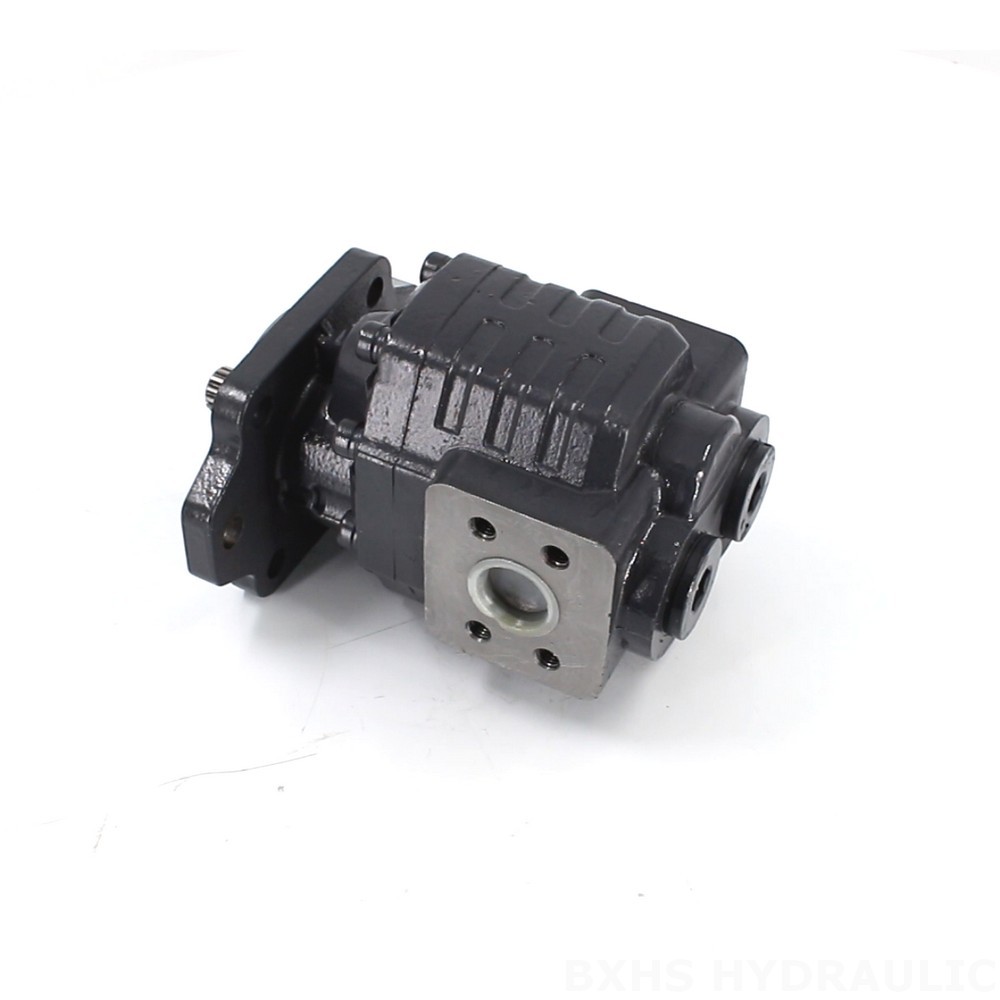

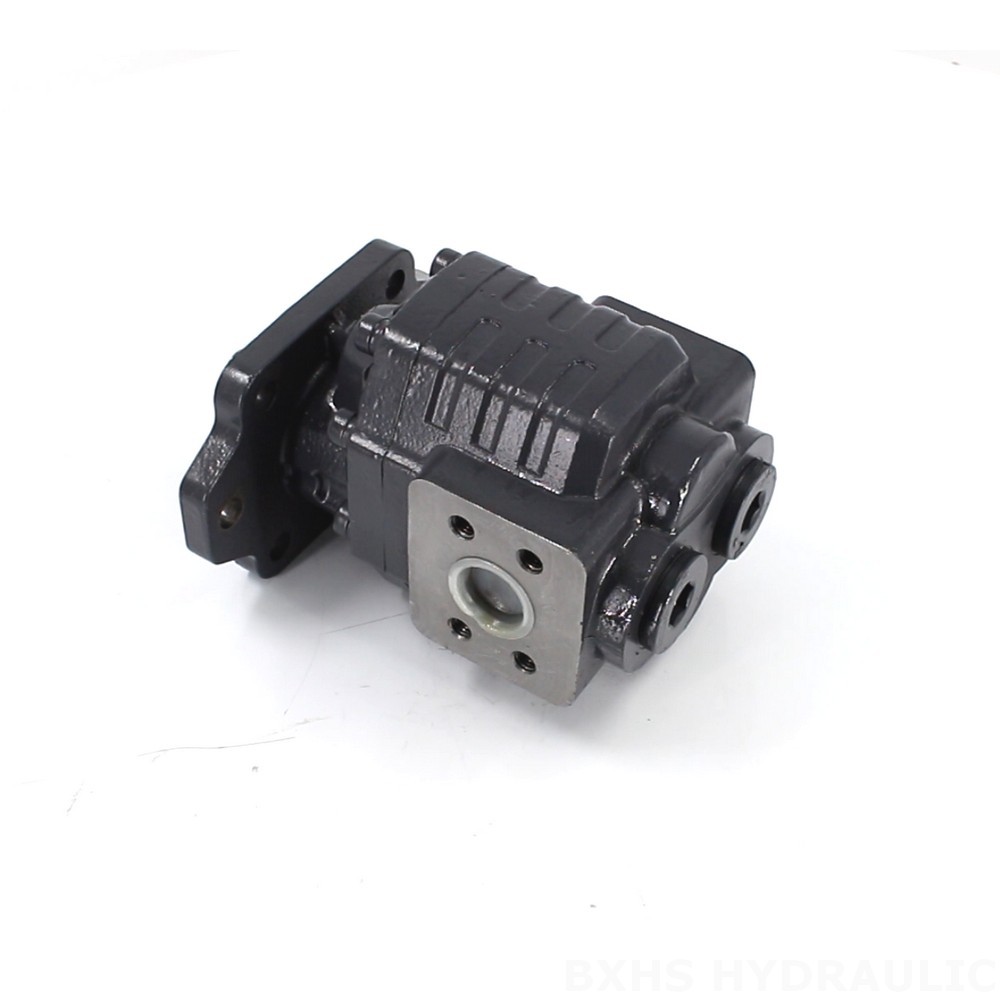

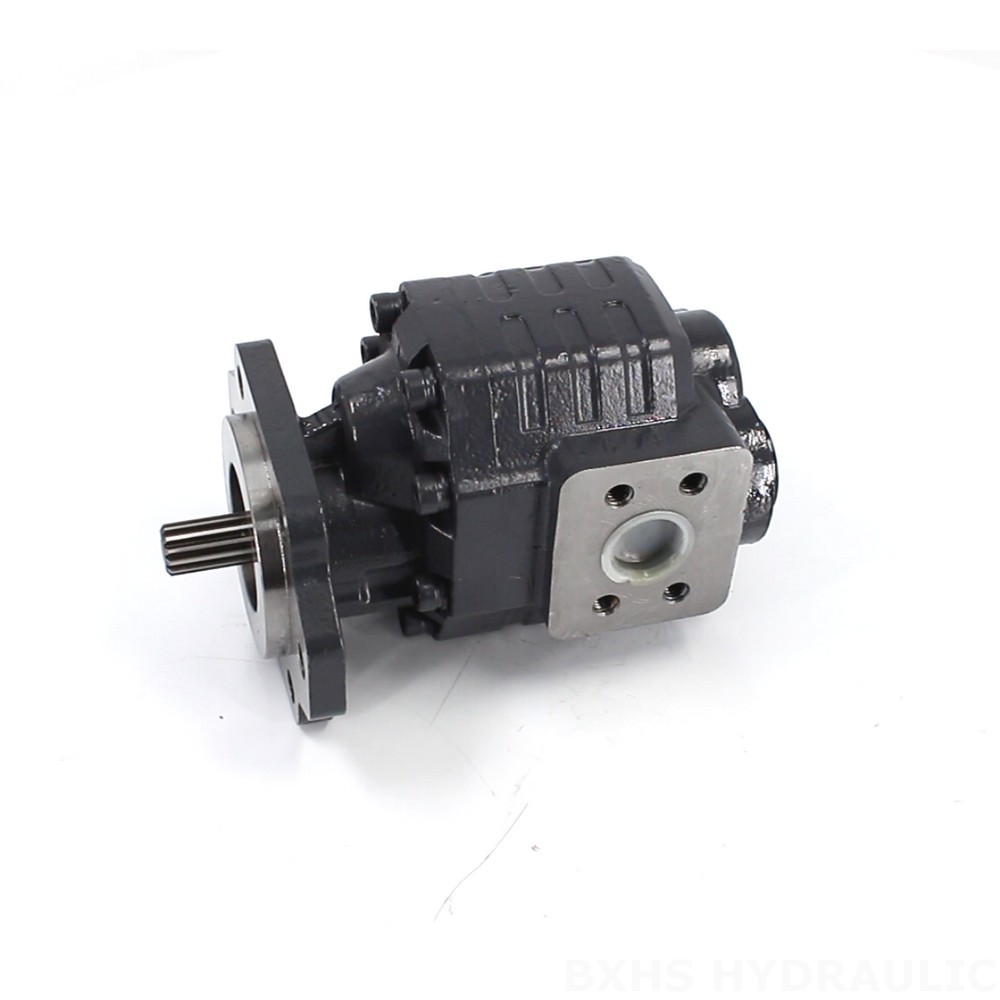

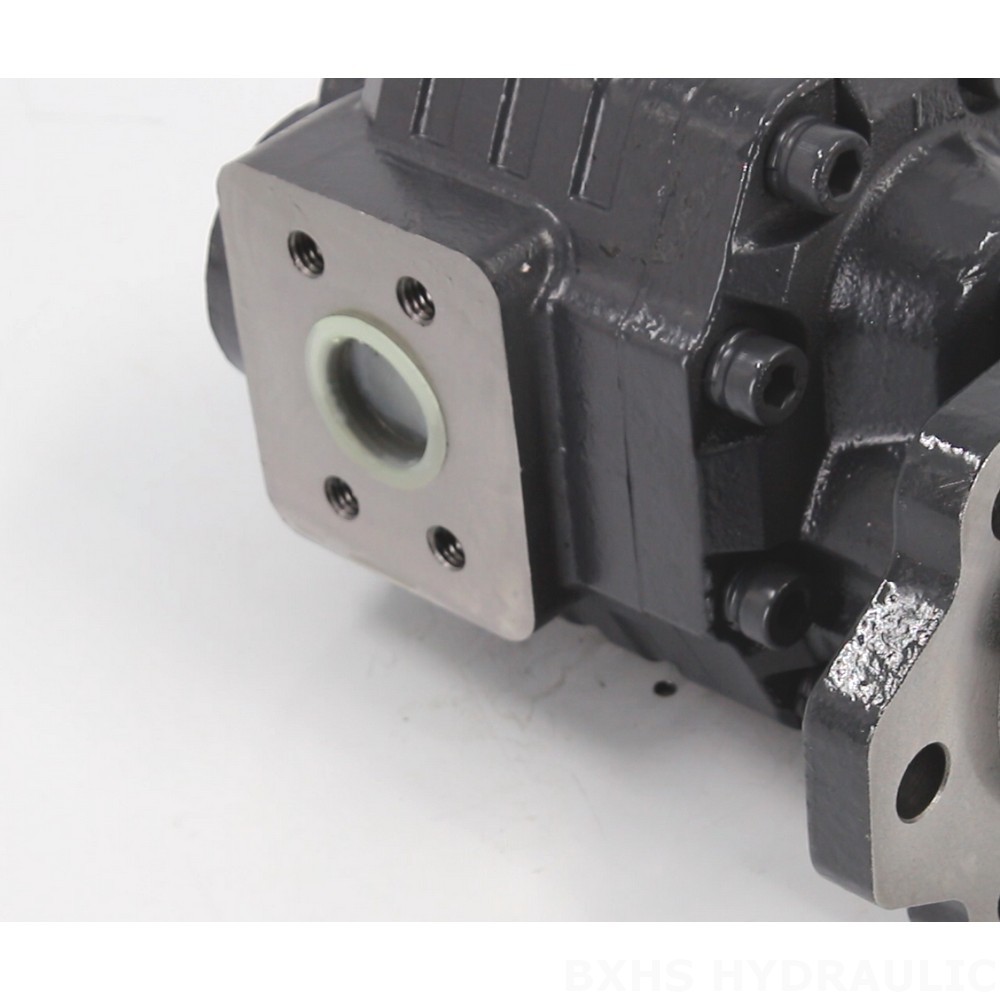

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance detailed image

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance detailed image

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance drawing image

Discover the CBHC-2082 high-pressure hydraulic gear pump, offering 82 cc/rev displacement and up to 30 MPa maximum pressure. Built with durable cast iron and an SAE flange, this versatile pump is suitable for heavy-duty applications in construction, agriculture, and material handling, available for global distribution.

Rated Pressure 16 MPa (2320 psi),18 MPa (2610 psi),28 MPa (4061 psi),29 MPa (4206 psi)
Rated Speed 2200 r/min
Structure External Gear Pump
Shaft Type H: Rectangle Spline
Flange Version SAE Flange
Max Pressure 30 MPa (4351 psi)
Rotation L: Left (counter-clockwise),R: Right (clockwise),/: (Bidirectional)
Max Speed 2500 r/min

As a leading **hydraulic product manufacturer**, we proudly present the **High-Pressure CBHC-2082 Hydraulic Gear Pump**, engineered for demanding global applications. This robust **external gear pump** features an 82 cc/rev displacement and handles rated pressures up to 29 MPa (4206 psi), with a maximum pressure capacity of 30 MPa (4351 psi). Designed for reliability, our **CBHC-2082 pump** boasts a durable **cast iron** structure, **SAE flange** version, and a **rectangle spline shaft (Type H)**, ensuring stable and efficient operation.

This versatile **hydraulic pump** is available in bidirectional, right, and left rotation options, making it suitable for a wide range of **heavy-duty applications**. It performs effectively in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles**. Specific **applicable models** include telehandlers, forklifts, all terrain cranes, aerial platforms, midi-excavators, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and waste compactors.

We offer comprehensive services including **manufacturing**, **OEM (Original Equipment Manufacturing)**, **ODM (Original Design Manufacturing)**, **private label**, and **custom hydraulic pump solutions**. Our **factory direct supply** ensures quality control and competitive pricing for all your **hydraulic system components**. We are actively seeking strong partnerships with **distributors**, **wholesalers**, **agents**, and **trade partners** worldwide to expand our reach for this **high-performance hydraulic pump** and other **factory wholesale** products. Partner with us for reliable, **high-quality hydraulic gear pumps** directly from the source.

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance application image

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance packing image

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance company image

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance certification image
