HSDM80-QTWDD-OTDD Cable 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product series:HSDM80 Series Monoblock Directional Valve

Productsize:32.1*19.1*11.7

Netweight:13.75 kg

Availability: In Stock

  • Cable
  • 2 Spool
608 Views are Looking for this Product

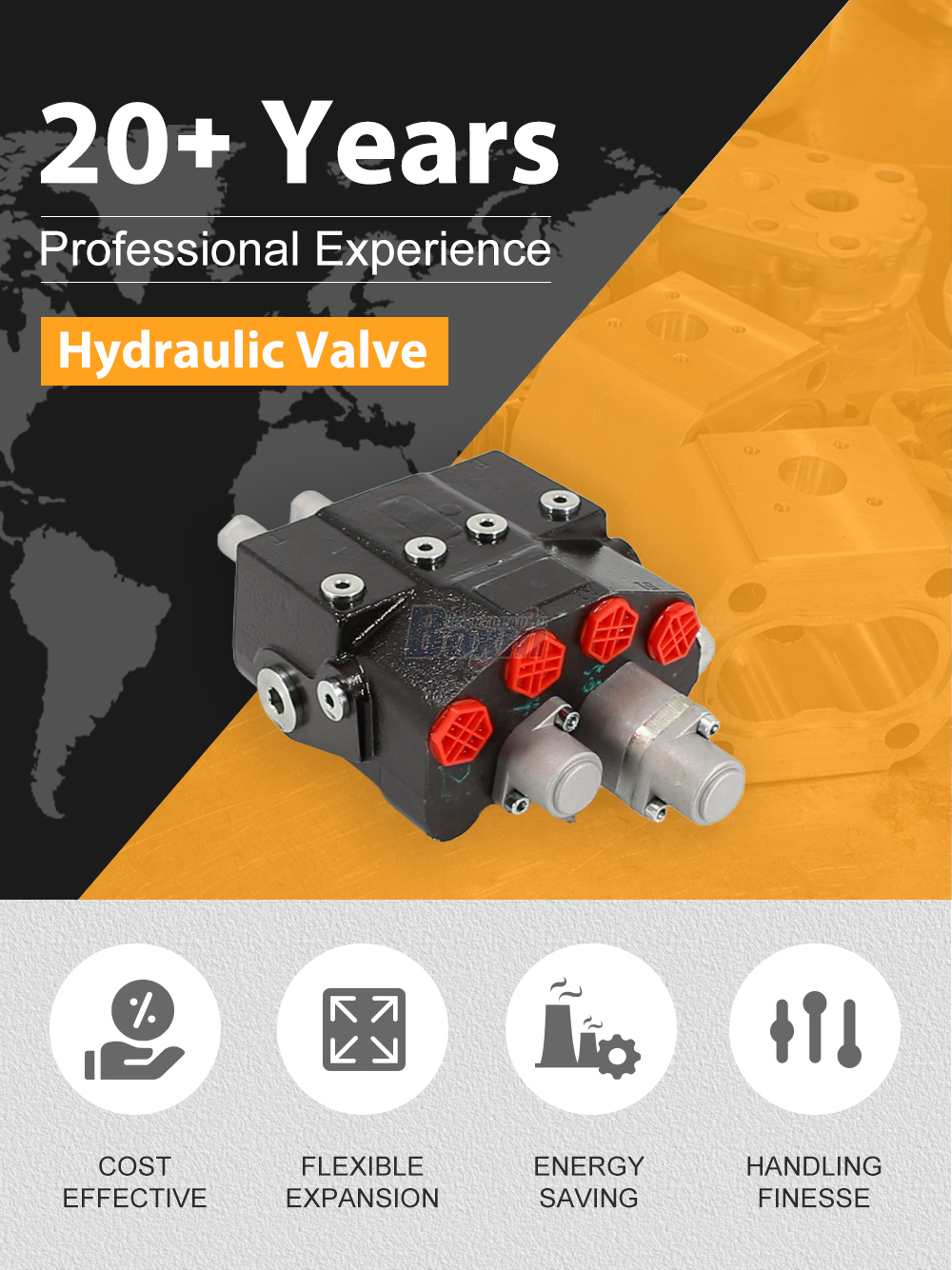

HSDM80-QTWDD-OTDD Cable 2 Spool Monoblock Directional Valve detailed image

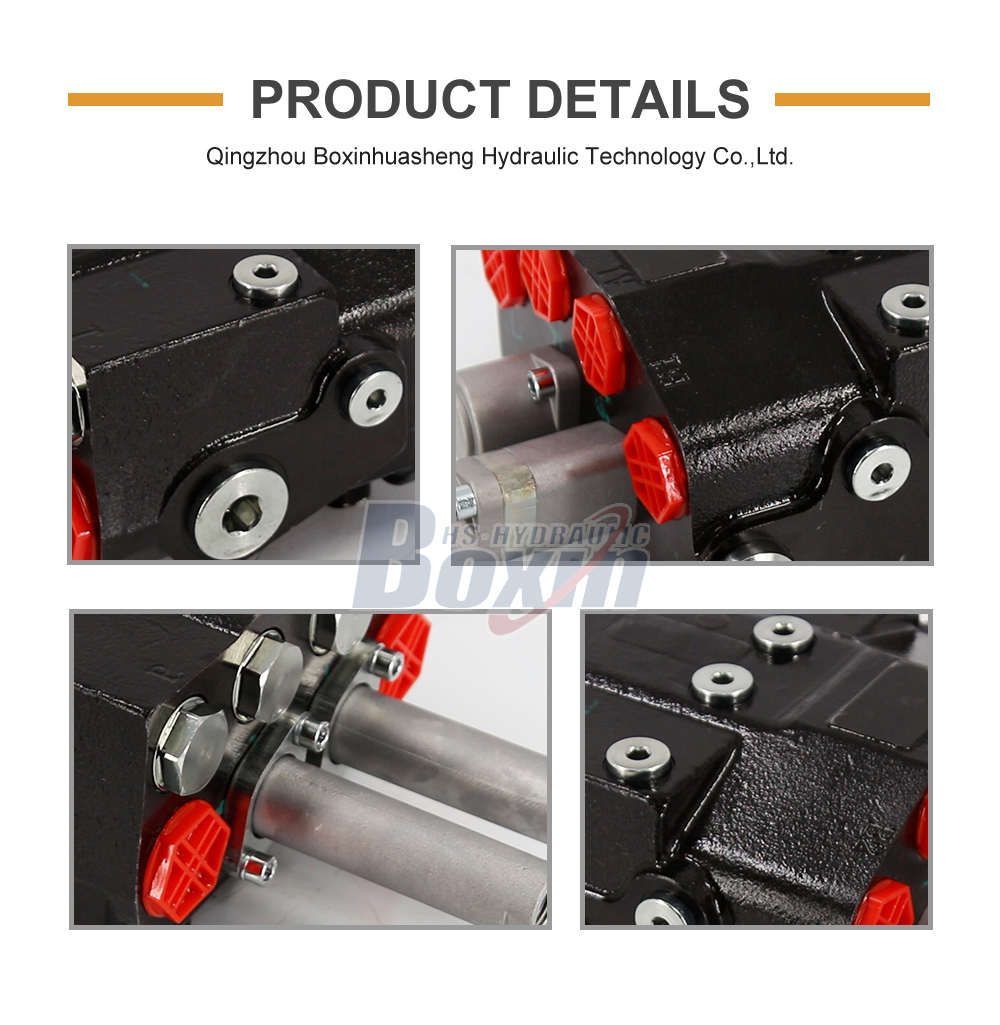

HSDM80-QTWDD-OTDD Cable 2 Spool Monoblock Directional Valve detailed image

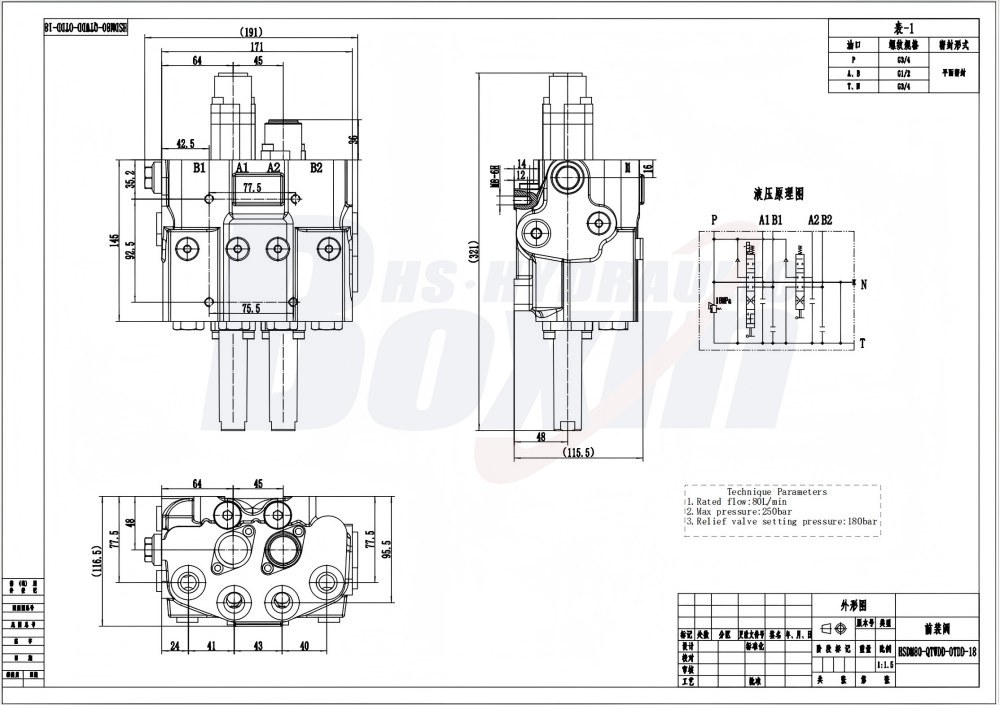

HSDM80-QTWDD-OTDD Cable 2 Spool Monoblock Directional Valve drawing image

The HSDM80-QTWDD-OTDD is a high-performance 2-spool monoblock directional control valve designed for precise hydraulic management via cable operation. Featuring a rated flow of 80 L/min and capable of withstanding pressures up to 250 bar, this robust valve is engineered for demanding mobile and industrial applications requiring remote control flexibility.

HSDM80 Series Monoblock Directional Valve Parameters
Control Method Cable
Spool 2 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 2 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/4
Outlet Port G3/4
Port Size G1/2

This HSDM80 series monoblock valve offers a compact and reliable solution for controlling hydraulic cylinders and motors. Key features include: 1. Remote Operation: Designed specifically for cable control, allowing operators to manage hydraulic functions from a distance or within a cabin, enhancing safety and ergonomic efficiency. 2. Robust Performance: With a 250 bar maximum pressure rating and 80 L/min flow capacity, it handles heavy-duty tasks with ease. 3. Extreme Durability: Optimized for wide temperature ranges (-40°C to +80°C) and various oil viscosities, ensuring stable performance in harsh environments. 4. Precise Control: The 2-spool configuration provides independent control of two hydraulic circuits with excellent metering characteristics. 5. Versatile Connectivity: Features G3/4 inlet/outlet ports and G1/2 work ports for standard integration. It is ideal for agricultural machinery like wood splitters and front-end loaders, as well as construction equipment such as skid steers and mini-excavators.
