HSDV33-2 Manual 1 Spool Flow Diverter Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Flow Diverter Valve

Product Series:HSDV33 Series Flow Diverter Valve

Productsize:11.03*0.70*0.77

Netweight:2.60 kg

Availability: In Stock

  • Manual
  • 1 Spool
  • 2 Spool
123 Views are Looking for this Product

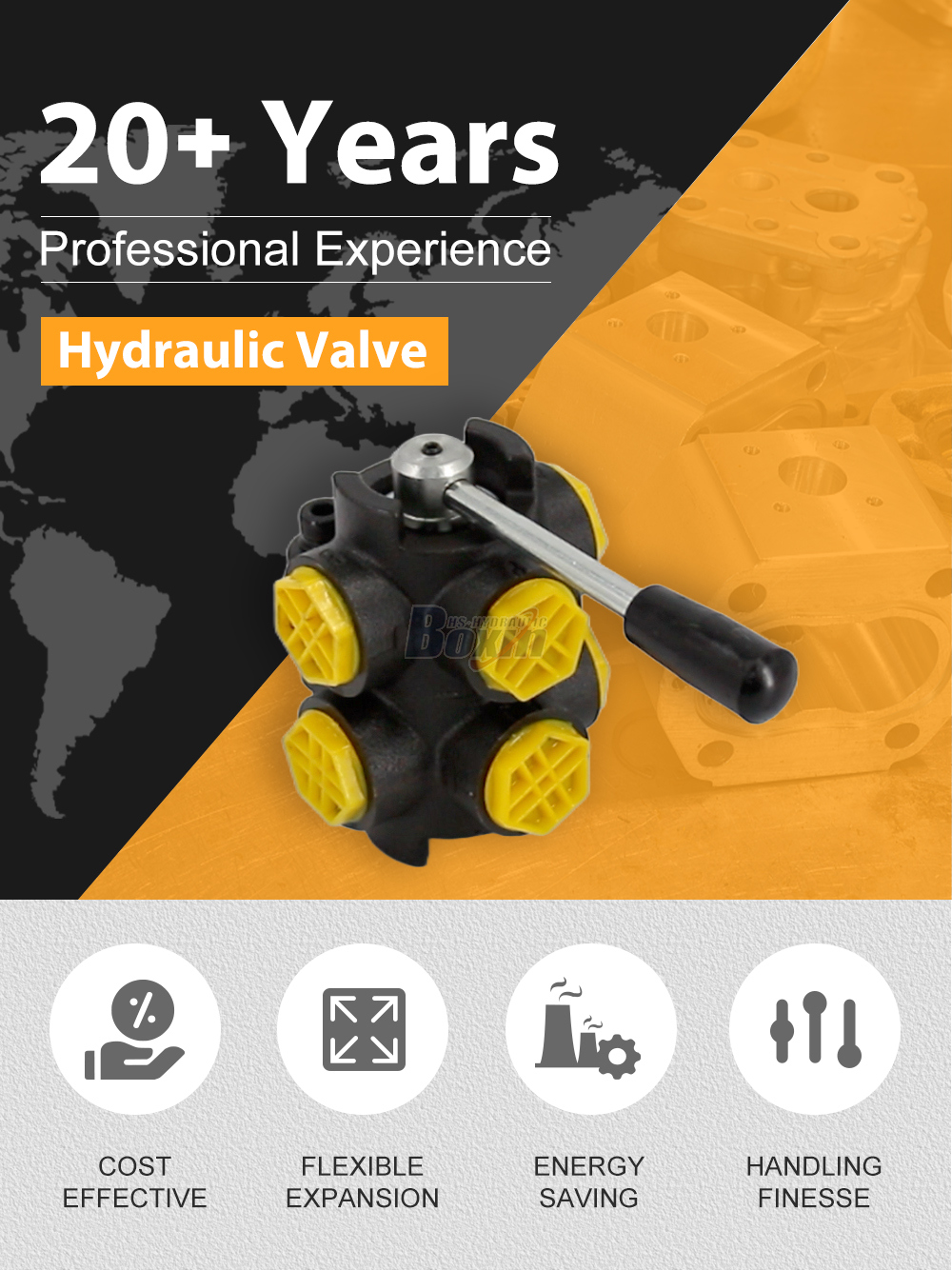

HSDV33-2 Manual 1 Spool Flow Diverter Valve detailed image

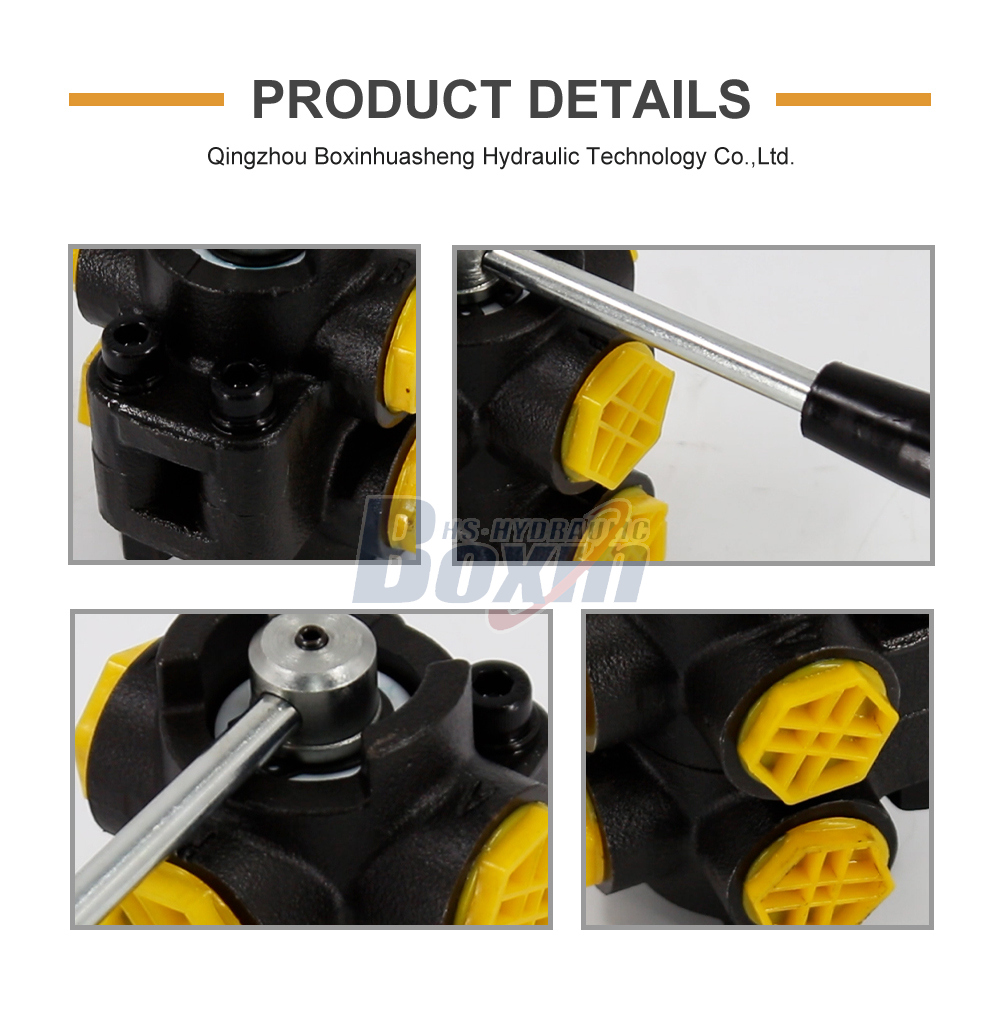

HSDV33-2 Manual 1 Spool Flow Diverter Valve detailed image

HSDV33-2 Manual 1 Spool Flow Diverter Valve drawing image

The HSDV33-2 is a high-performance manual 2-spool monoblock flow diverter valve designed for flexible hydraulic routing. Engineered for durability, it supports flow rates up to 200 L/min and operating pressures up to 315 bar, making it an ideal solution for controlling multiple hydraulic circuits in demanding environments.

HSDV33 Series Flow Diverter Valve Parameters
Control Method Manual
Spool 1 Spool, 2 Spool
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Structure Type Monoblock valve
Section 1 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 40 L/min (10.5 US gpm), 60 L/min (15.8 US gpm), 120 L/min (31.7 US gpm), 200 L/min (52 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G3/8, G1/2, G3/4, G1
Outlet Port G3/8, G1/2, G3/4, G1
Port Size G3/8, G1/2, G1

The HSDV33-2 Manual 2 Spool Flow Diverter Valve is a robust monoblock solution designed for precision hydraulic control. Key advantages include its versatile flow options (ranging from 40 to 200 L/min) and high-pressure tolerance (up to 4600 psi), ensuring compatibility with heavy-duty machinery. Its monoblock construction offers a leak-proof, compact design that simplifies installation. With multiple port sizes (G1 to G3/8) and a wide operating temperature range (-40°C to +60°C), it excels in extreme weather conditions. Common applications include diverting oil flow between different hydraulic cylinders or motors on agricultural tractors, construction loaders, and material handling equipment. As a leading manufacturer, we provide full OEM/ODM services, custom configurations, and wholesale opportunities for global distributors and traders looking for reliable hydraulic components.
