HSV06-AQF-2 Solenoid 2 Spool Flow Diverter Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Flow Diverter Valve

Product series:HSV06 Series Flow Diverter Valve

Productsize:14*16.9*6.3

Netweight:5.00 kg

Availability: In Stock

  • Manual
  • Solenoid
  • Hydraulic
  • Electric
  • 1 Spool
  • 2 Spool
  • 3 Spool
351 Views are Looking for this Product

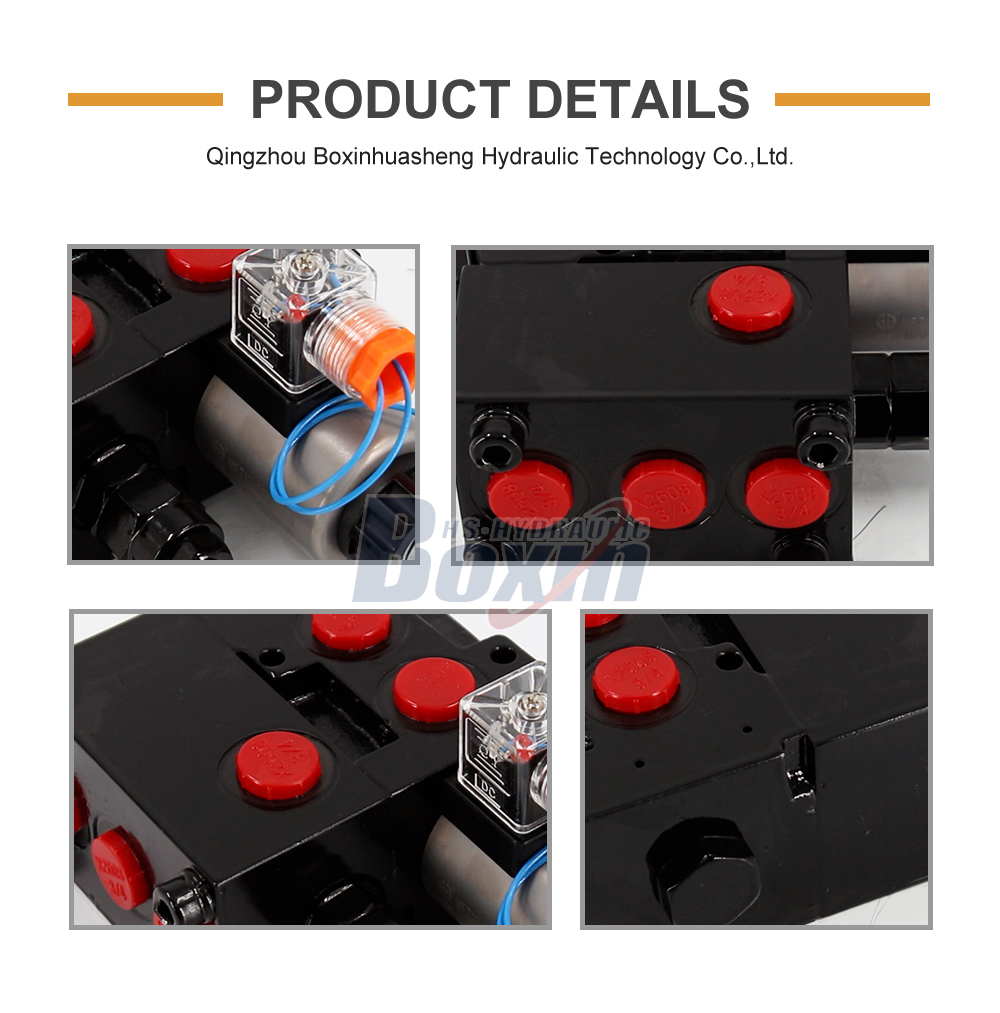

HSV06-AQF-2 Solenoid 2 Spool Flow Diverter Valve detailed image

HSV06-AQF-2 Solenoid 2 Spool Flow Diverter Valve detailed image

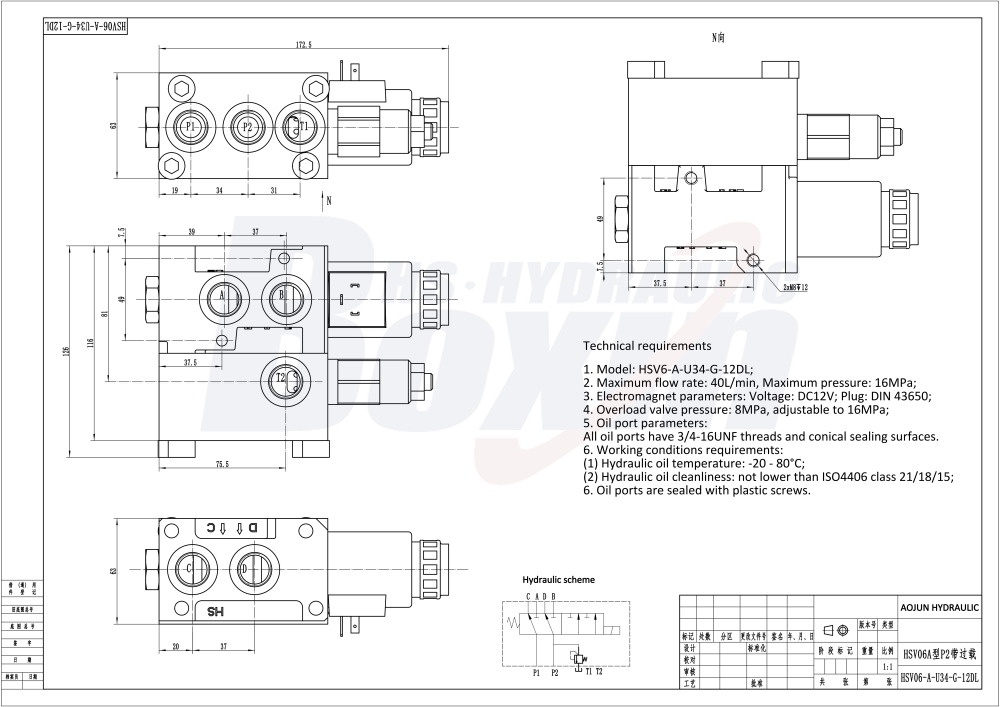

HSV06-AQF-2 Solenoid 2 Spool Flow Diverter Valve drawing image

The HSV06-AQF is a high-performance Solenoid 2 Spool Flow Diverter Valve designed for versatile hydraulic circuit control. Boasting a rated flow of 50 L/min and capable of handling pressures up to 250 bar, this sectional valve allows operators to switch fluid flow between different circuits efficiently via electromagnetic control.

HSV06 Series Flow Diverter Valve Parameters
Control Method Manual, Solenoid, Hydraulic, Electric
Spool 1 Spool, 2 Spool, 3 Spool
Rated Flow 50 L/min (13.2 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2
Outlet Port G3/8, G1/2
Port Size G3/8, G1/2
Section 1 Section, 2 Section, 3 Section
Structure Type Sectional valve
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The HSV06-AQF Solenoid Flow Diverter Valve is engineered for heavy-duty applications requiring precise fluid redirection. Key features include: 1. High Efficiency: Rated for 50 L/min (13.2 US gpm) and 250 bar (3600 psi), ensuring reliable performance in high-pressure systems. 2. Flexible Configuration: Available with G3/8 or G1/2 port sizes to suit various plumbing requirements. 3. Robust Design: Sectional structure with a 2-spool configuration leads to compact installation and easy maintenance. 4. Wide Operating Range: Functions optimally within -20°C to +80°C and a viscosity range of 15-75 cSt. 5. Versatile Application: Perfect for adding auxiliary functions to tractors, forklifts, and skid steers without adding extra main valve banks. This valve is ideal for global distributors and OEMs looking for a high-quality, customizable hydraulic solution for agricultural machinery, construction equipment, and material handling vehicles.
