HSV09 Solenoid 1 Spool Flow Diverter Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:180 bar (2600 psi)

Vendor:BXHS

Product Type:Flow Diverter Valve

Product Series:HSV09 Series Flow Diverter Valve

Productsize:9*24*11

Netweight:4.80 kg

Availability: In Stock

  • Manual
  • Solenoid
  • Hydraulic
  • Electric
  • 1 Spool
  • 2 Spool
  • 3 Spool
5272 Views are Looking for this Product

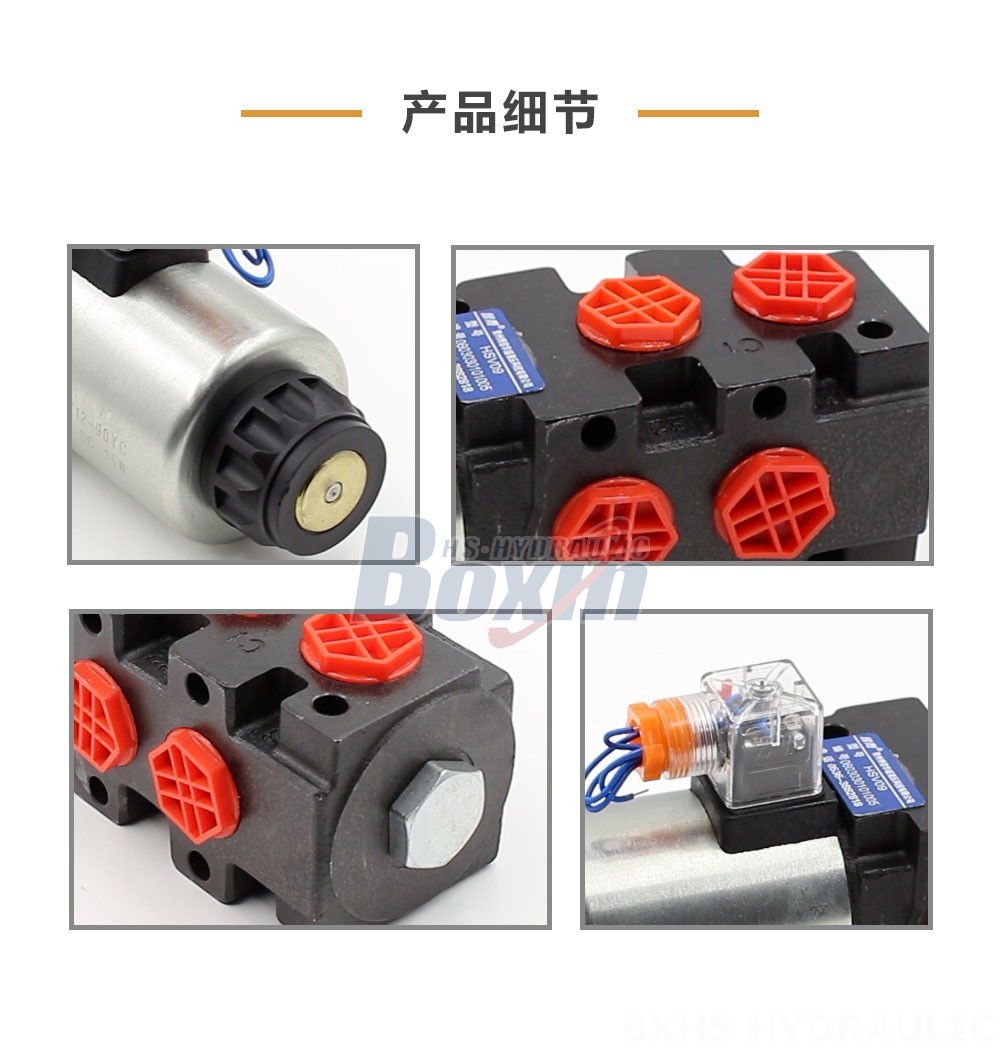

HSV09 Solenoid 1 Spool Flow Diverter Valve detailed image

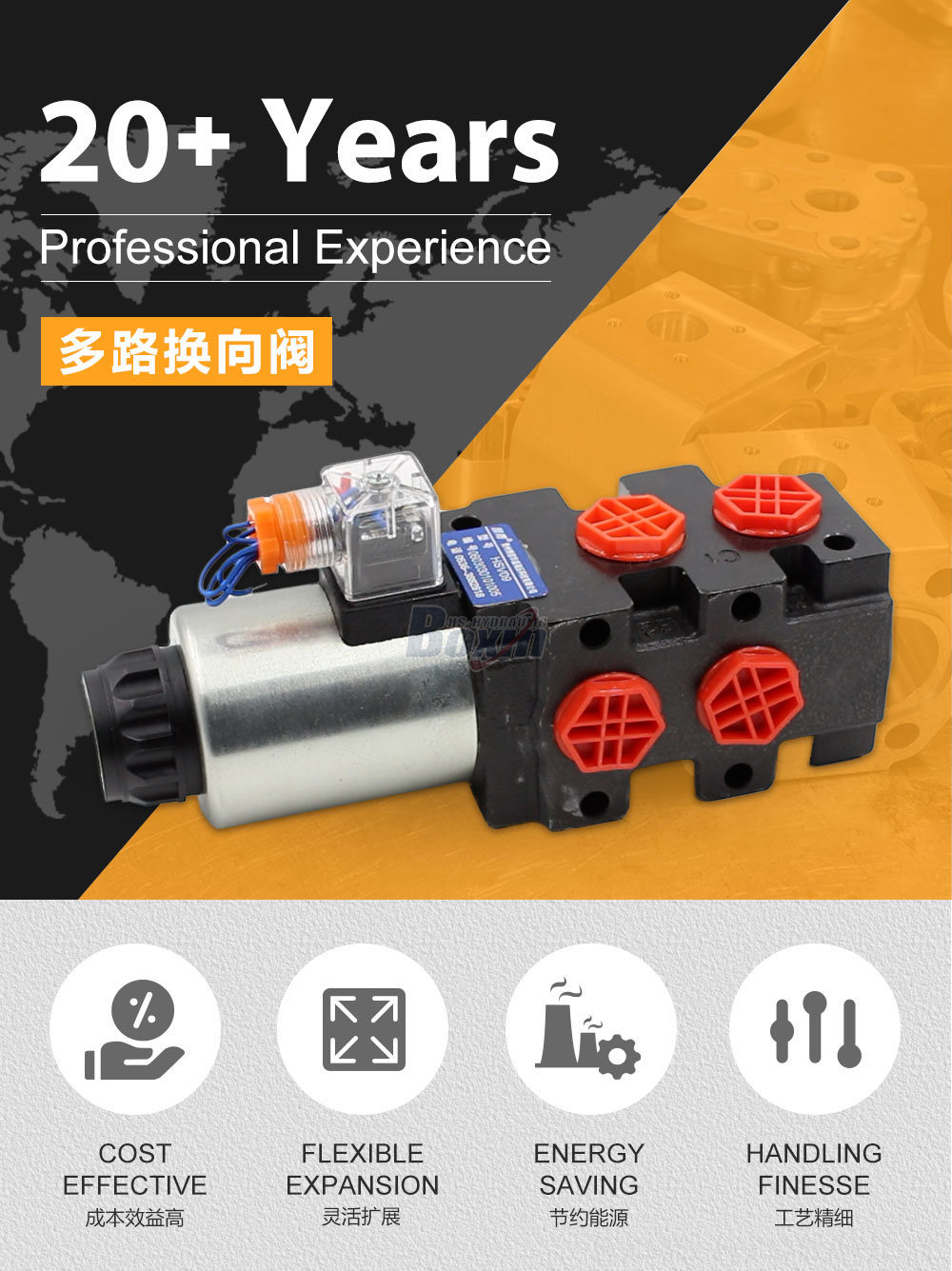

HSV09 Solenoid 1 Spool Flow Diverter Valve detailed image

HSV09 Solenoid 1 Spool Flow Diverter Valve drawing image

The HSV09 Solenoid 1 Spool Flow Diverter Valve is a sectional valve designed for flow control in hydraulic systems. With a rated flow of 90 L/min and a maximum pressure of 250 bar, it is suitable for applications in material handling, construction, agriculture, and industrial vehicles.

HSV09 Series Flow Diverter Valve Parameters
Control Method Manual, Solenoid, Hydraulic, Electric
Spool 1 Spool, 2 Spool, 3 Spool
Rated Flow 90 L/min (23.8 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G1/2, G3/4
Outlet Port G1/2, G3/4
Port Size G1/2, G3/4
Section 1 Section, 2 Section, 3 Section
Structure Type Sectional valve
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features:**

* Solenoid control for precise flow diversion
* Sectional valve design for modularity and flexibility
* High flow capacity of 90 L/min (23.8 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)

**Applications:**

* Flow control in hydraulic systems for various industries
* Diverting flow between different circuits or actuators
* Controlling the direction of hydraulic fluid flow
* Suitable for applications in material handling, construction, agriculture, and industrial vehicles
