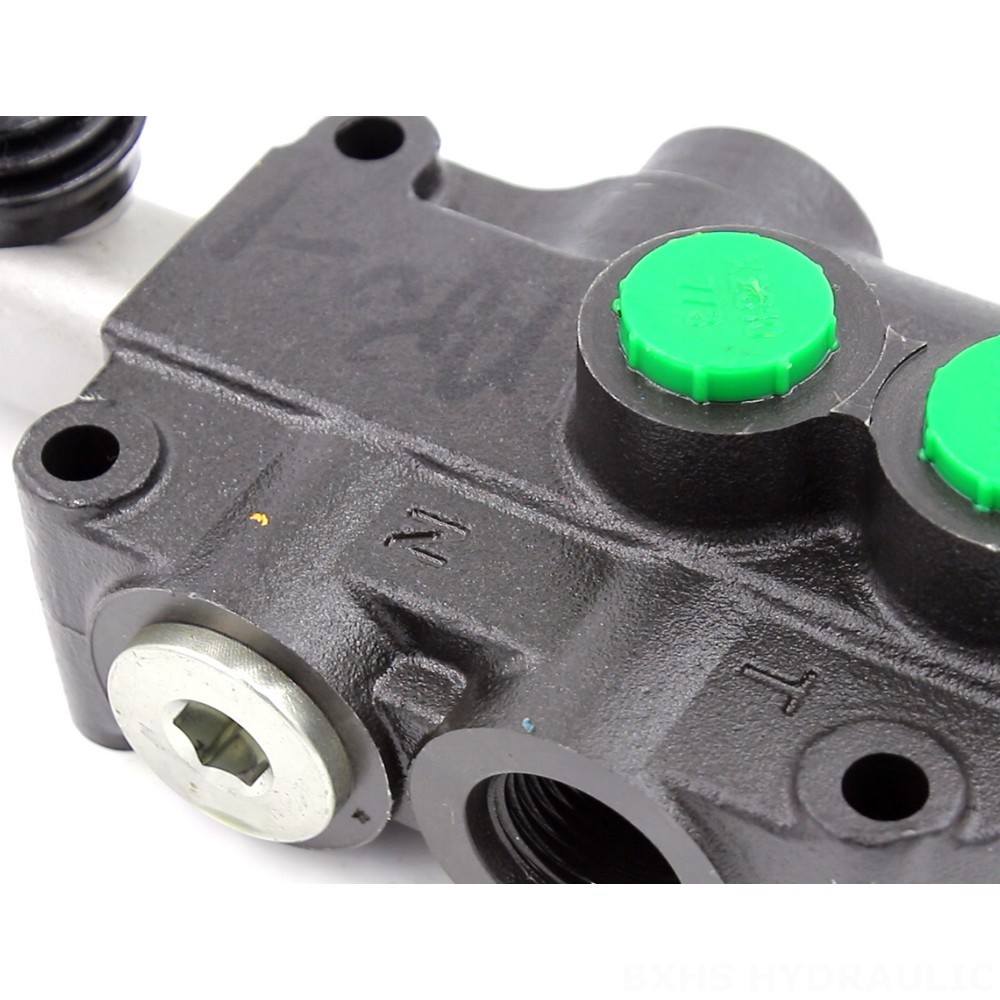

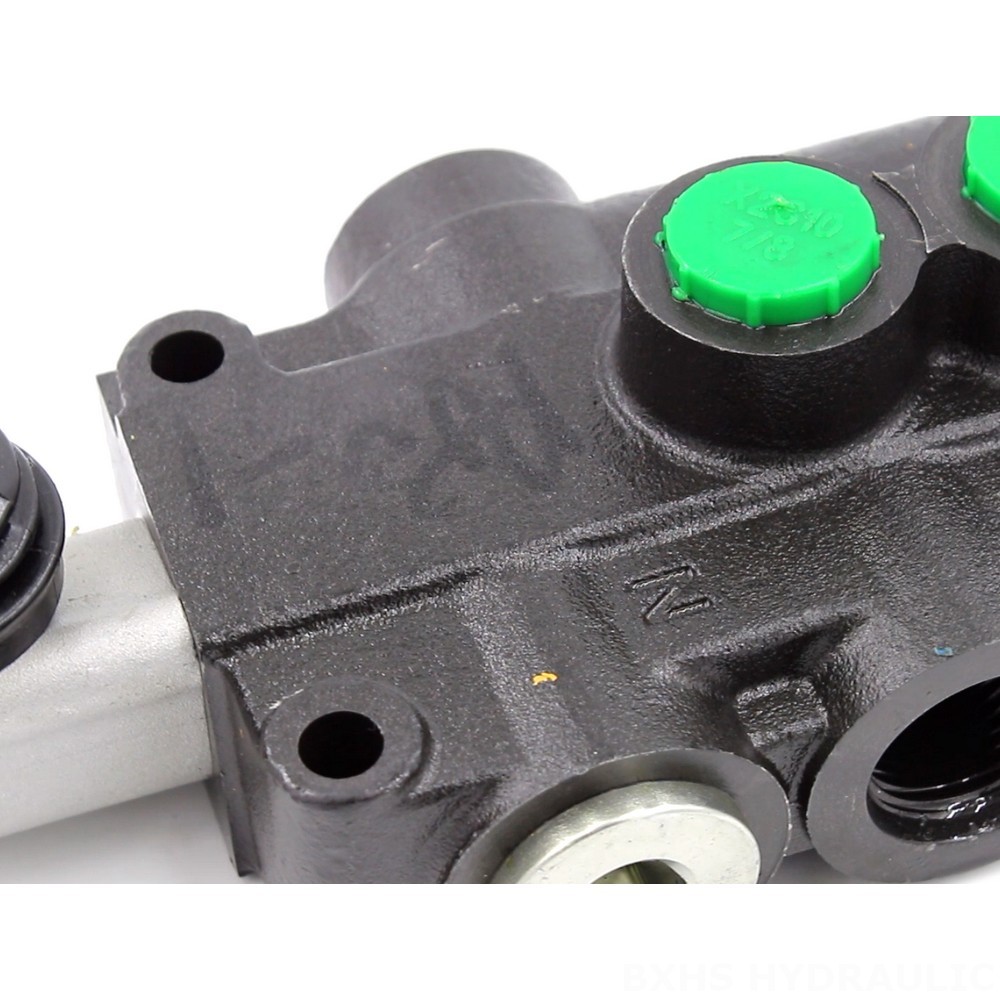

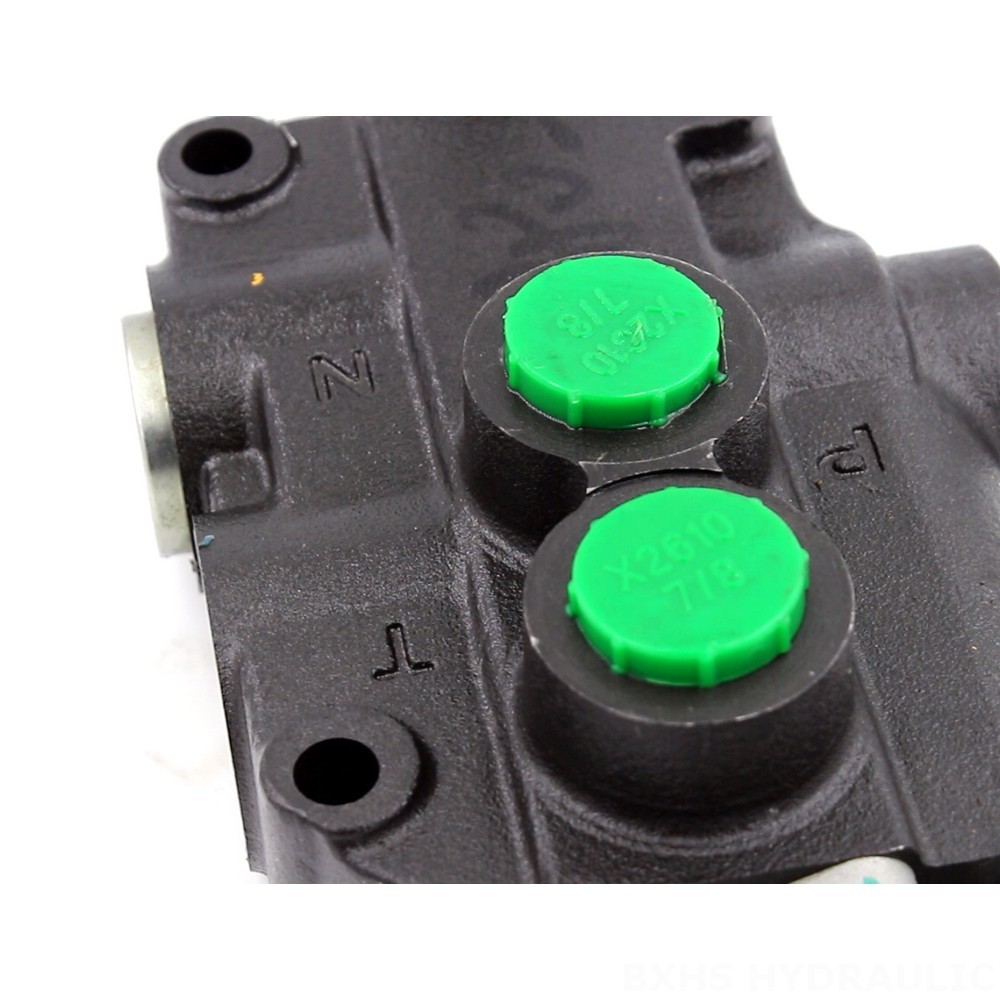

The P80-LDG-U78-OT Hydraulic Cartridge Valve is a high-performance, manual control monoblock valve designed for a wide range of applications in material handling, construction, and industrial vehicles. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Structure Type | Monoblock valve |
This P80 Series hydraulic cartridge valve features a robust monoblock construction, manual control, and a single spool for reliable operation. It is suitable for various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. The operating viscosity range of 15-75 mm²/s ensures optimal performance in a variety of conditions. The valve is designed to operate in ambient temperatures ranging from -40°C to +80°C, making it suitable for use in diverse environments.
