Fast Delivery
30 days express delivery
Innovation drives development Technology forges future
- 1 Spool
- 2 Spool
- 3 Spool
- 4 Spool
- 5 Spool
- 6 Spool
- 7 Spool
- 8 Spool
- 9 Spool
- 10 Spool
- Solenoid
537 Views are Looking for this Product

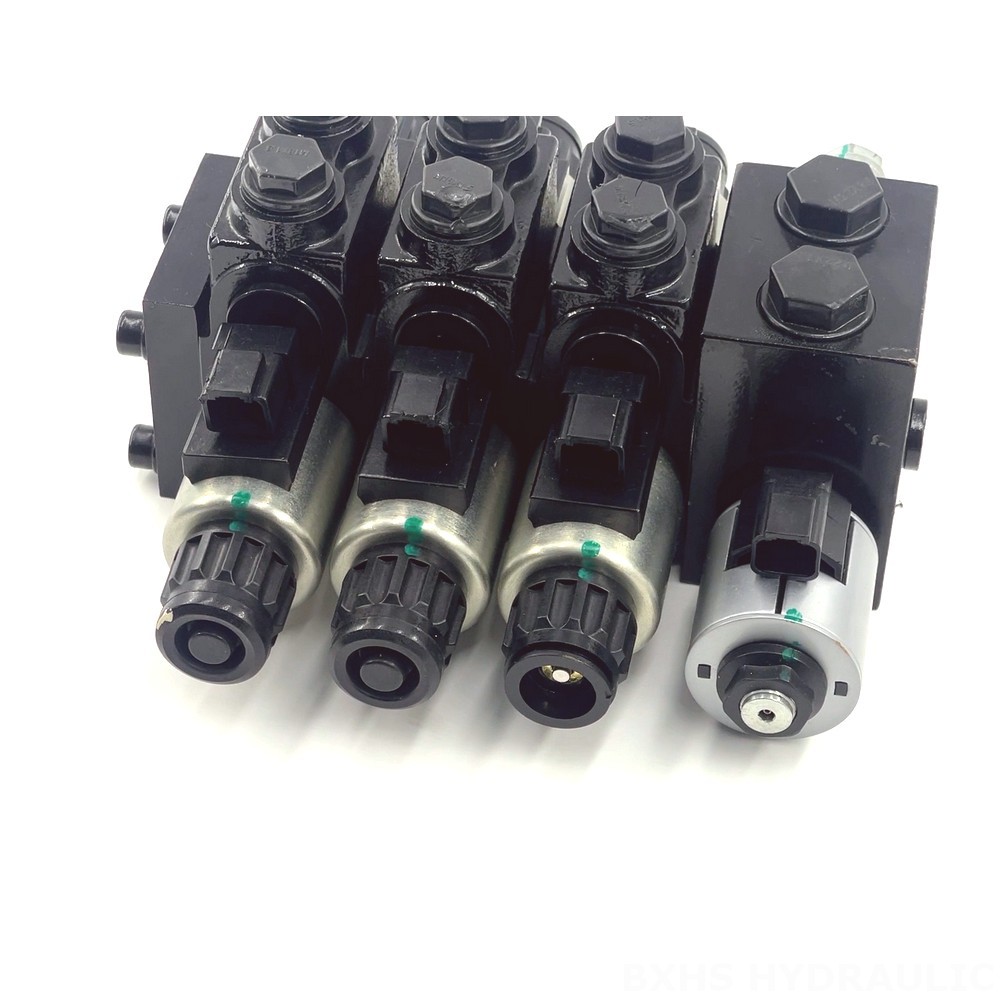

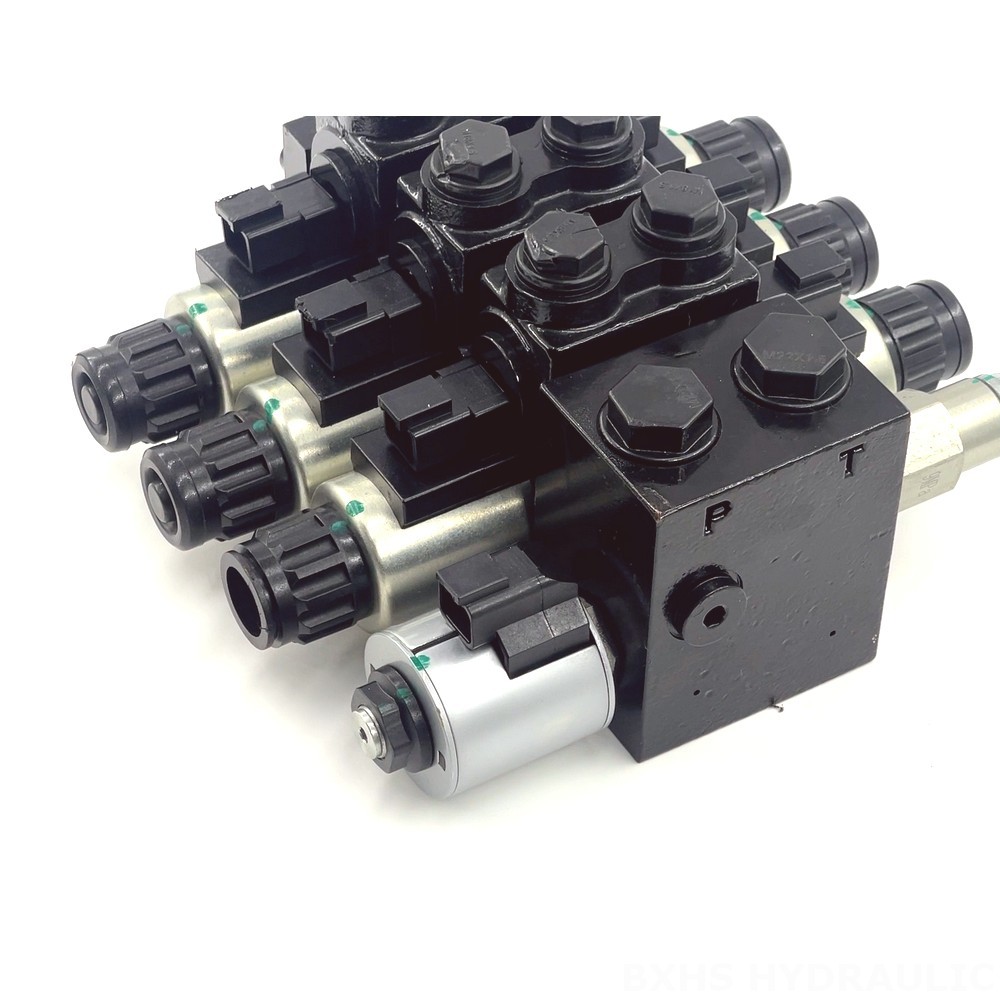

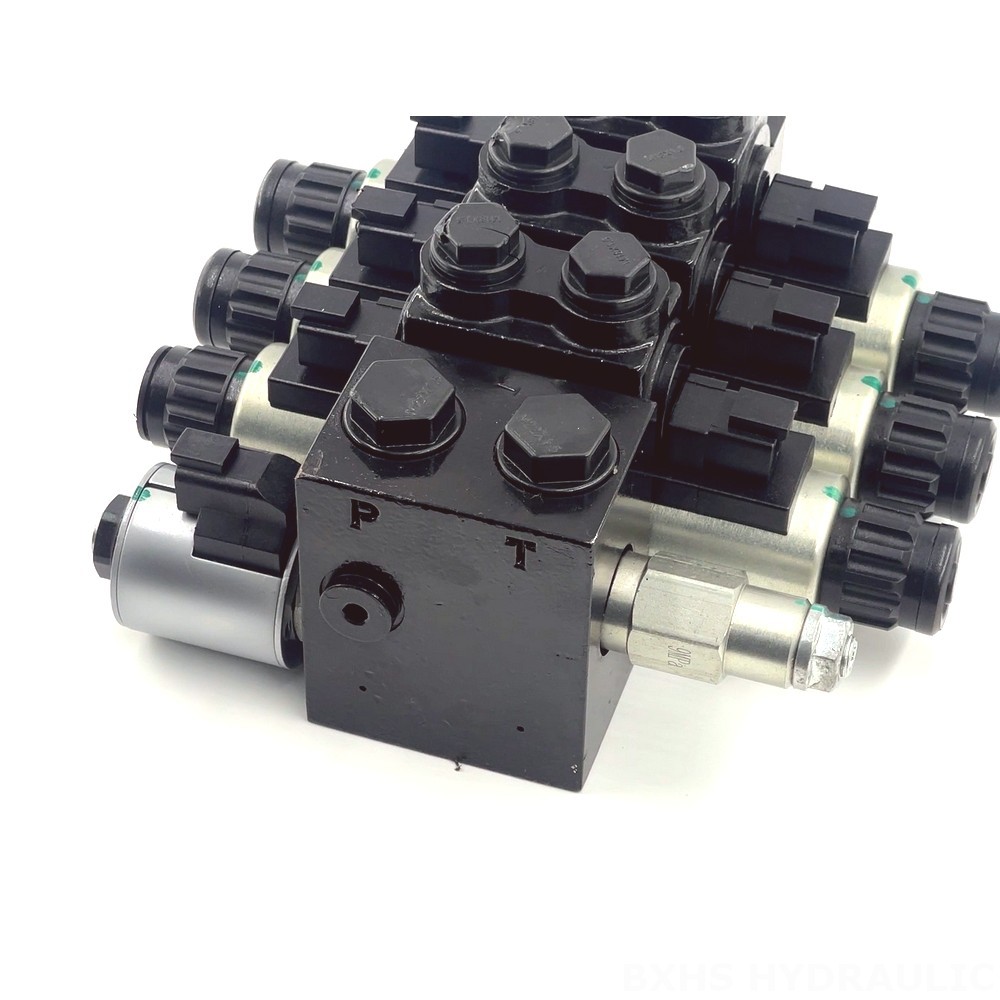

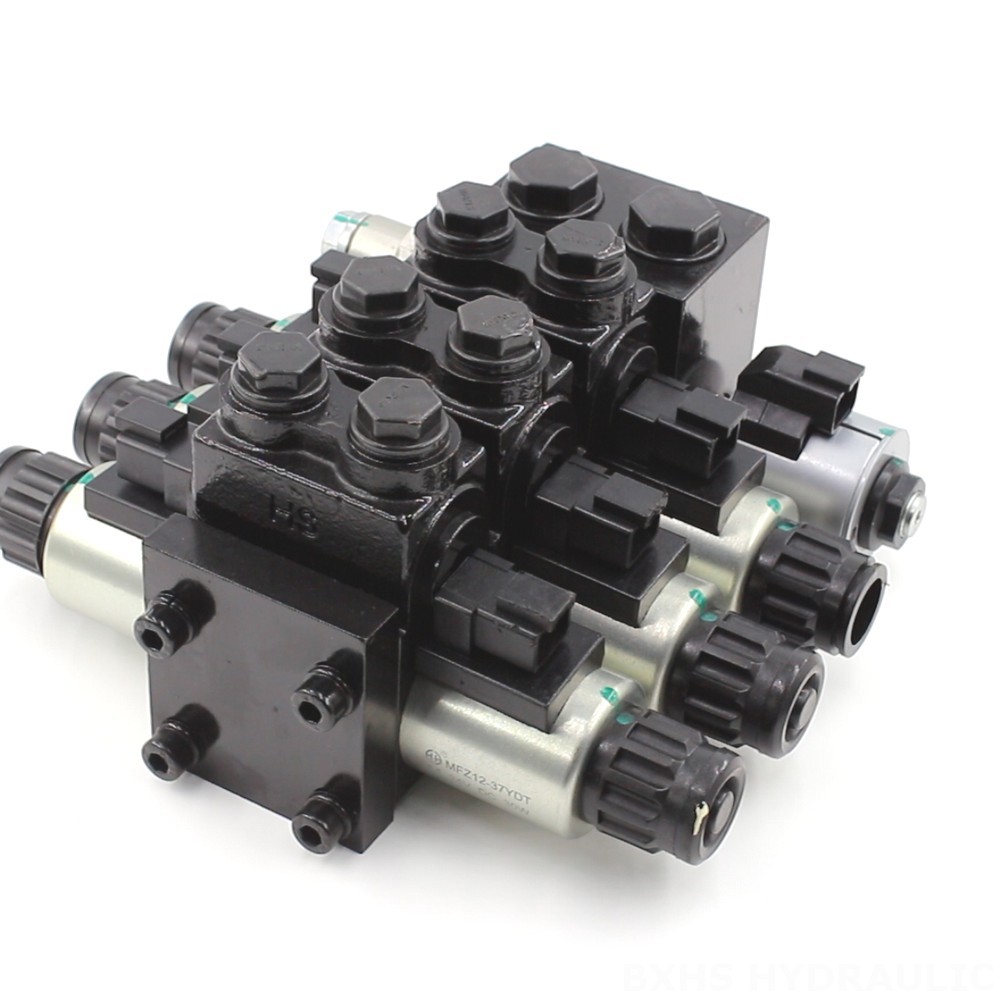

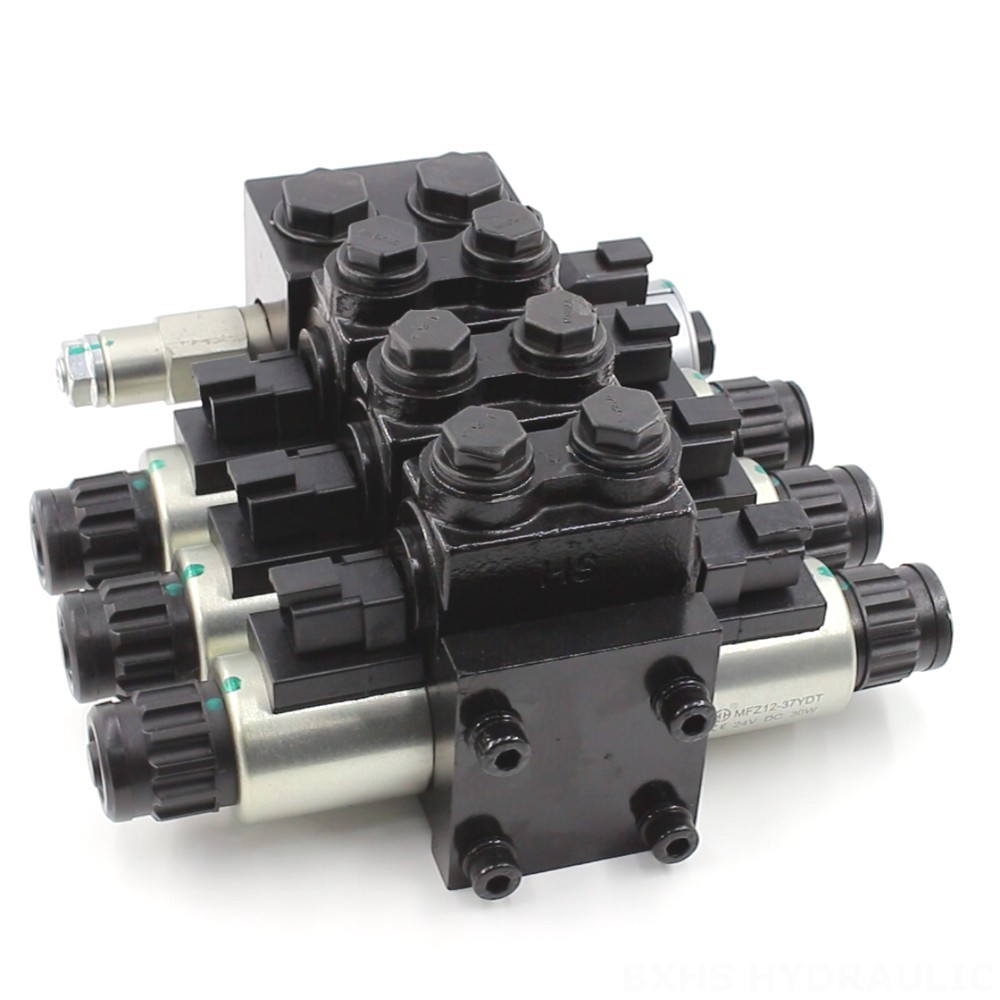

The HDCF50 Series Hydraulic Control Valve is a versatile 3-section solenoid valve designed for a wide range of applications in construction, agriculture, and material handling. We offer flexible manufacturing options including OEM, ODM, and private label to meet your specific needs.
| Port Size | M22×1.5,SAE 8 |
|---|---|
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Outlet Port | M18×1.5,M22×1.5,SAE 8 |
| Max Pressure | 160 bar (2300 psi) |
| Rated Flow | 50 L/min (13.2 US gpm) |
| Structure Type | Sectional valve |
| Inlet Port | M18×1.5,M22×1.5,SAE 8 |
The HDCF50 Series Hydraulic Control Valve is a high-performance, 3-section solenoid valve with a rated flow of 50 L/min and a maximum pressure of 160 bar. It features a sectional valve design and a 3-spool configuration, providing precise control for hydraulic systems. This valve is ideal for applications in telehandlers, forklifts, cranes, excavators, and other construction, agricultural, and industrial vehicles. We offer flexible manufacturing options including OEM, ODM, and private label, allowing you to customize the valve to meet your specific requirements. Contact us today to discuss your project and explore our custom manufacturing solutions.
