Hydraulic Directional Control Valve - ZT20 Series | Factory Direct & Customizable

Control Method:Manual

Spool:2 Spool

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Hydraulic Control Valve

Product Series:ZT20 Series Hydraulic Control Valve

Packagingsize:23*18*11

Grossweight:7.91 kg

Availability: In Stock

767 Views are Looking for this Product

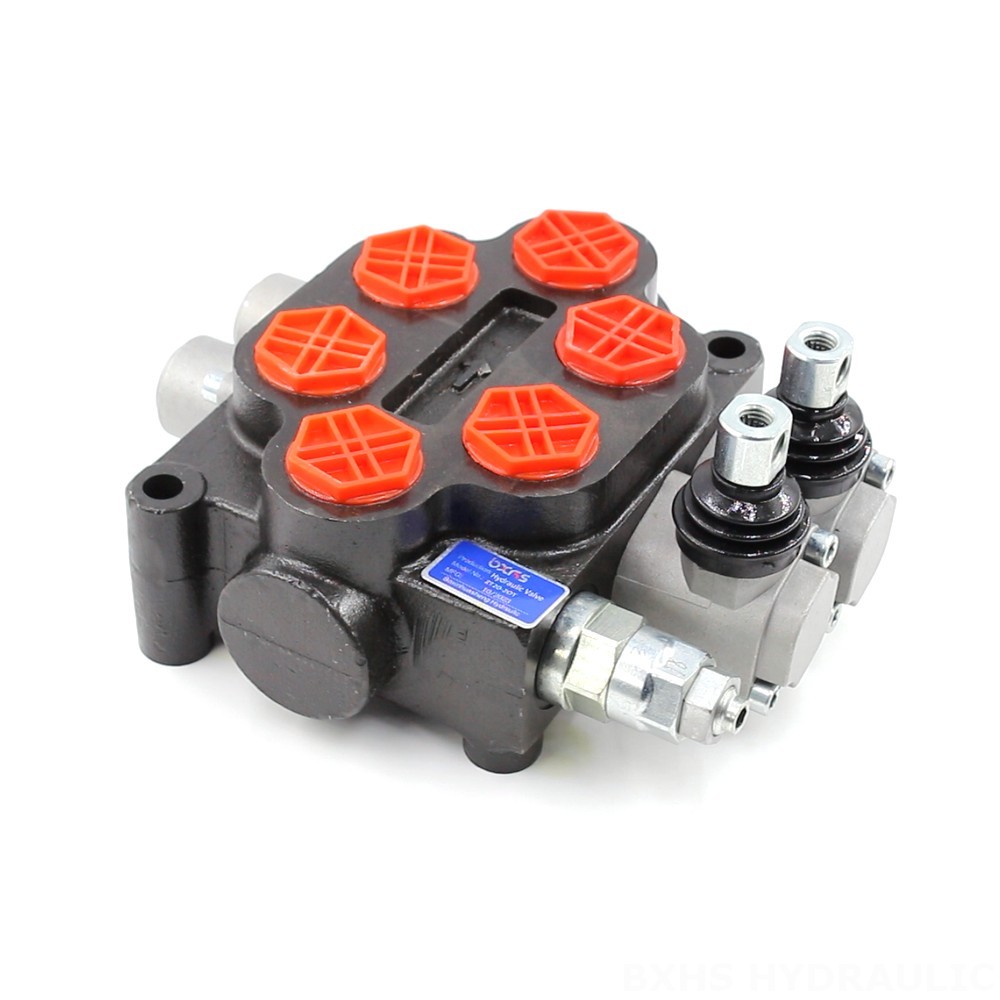

Hydraulic Directional Control Valve - ZT20 Series | Factory Direct & Customizable detailed image

Hydraulic Directional Control Valve - ZT20 Series | Factory Direct & Customizable detailed image

Hydraulic Directional Control Valve - ZT20 Series | Factory Direct & Customizable drawing image

ZT20 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its manual control and 2-section design provide precise flow control, while its monoblock structure ensures durability and compactness.

ZT20 Series Hydraulic Control Valve Parameters
Control Method Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 100 L/min (26.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**ZT20 Series Hydraulic Directional Control Valve**

**Key Features:**

* Manual Control
* 2 Section
* Monoblock Valve
* Rated Flow: 100 L/min (26.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool

**Applications:**

* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES

**Applicable Models:**

* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
