Hydraulic Directions Hydraulic Valve Solutions: Manual 3 Spool Monoblock Directional Valves

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:HSDS15 Series Monoblock Directional Valve

Productsize:22*22*9

Netweight:10.90 kg

Availability: In Stock

Description

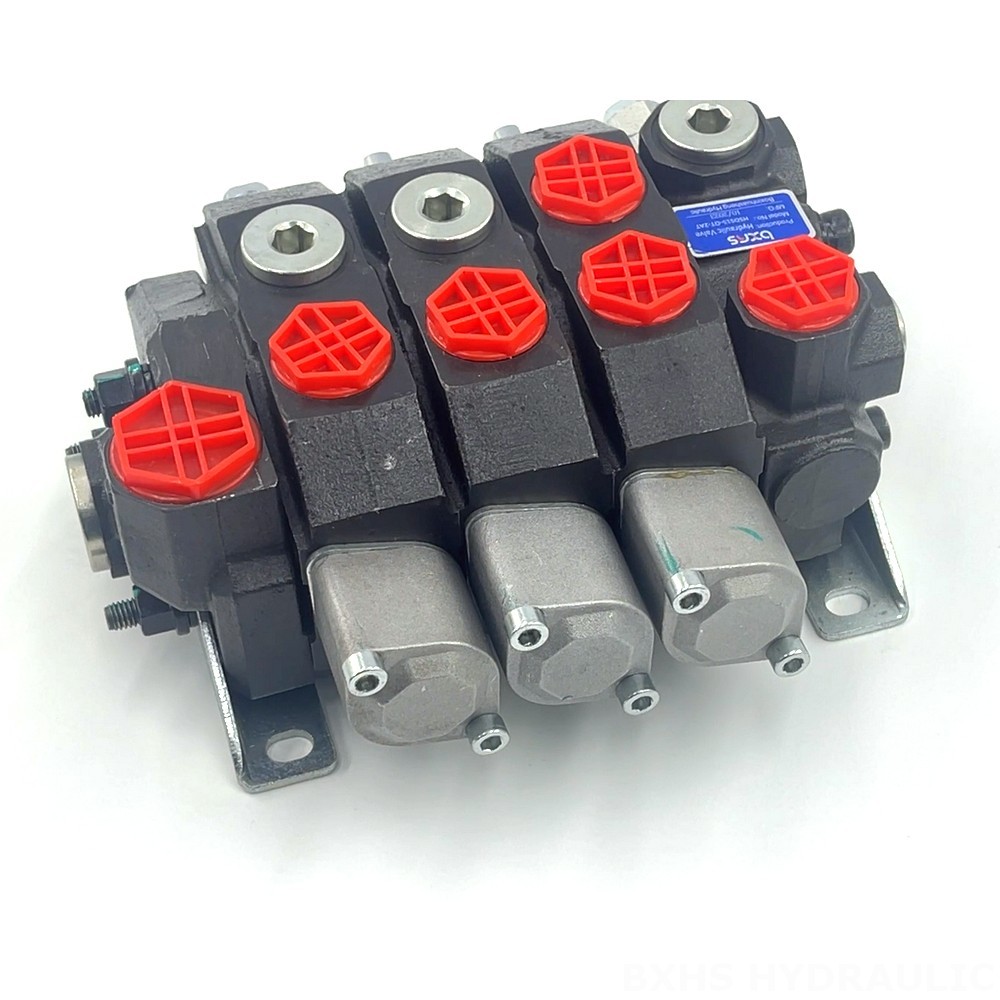

Hydraulic Directions Hydraulic Valve Solutions: Manual 3 Spool Monoblock Directional Valves detailed image

Hydraulic Directions Hydraulic Valve Solutions: Manual 3 Spool Monoblock Directional Valves drawing image

The HSDS15 Series Manual 3 Spool Monoblock Directional Valve is a high-performance, reliable hydraulic valve designed for use in a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It features a 3 spool configuration, a rated flow of 60 L/min, and a maximum pressure of 315 bar.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	60 L/min (15.8 US gpm)
Structure Type	Sectional valve
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section,11 Section,12 Section

This manual 3 spool monoblock directional valve is a robust and versatile solution for controlling hydraulic systems. Designed for demanding applications, it offers a rated flow of 60 L/min and a maximum pressure of 315 bar. Its compact and modular design makes it easy to integrate into existing systems. The valve is suitable for various applications, including forklifts, telehandlers, mini excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers. The HSDS15 series is known for its reliability and durability, making it an ideal choice for demanding operating environments.

Hydraulic Directions Hydraulic Valve Solutions: Manual 3 Spool Monoblock Directional Valves application image
