Hydraulic Flow Divider Valve SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SHFY-G25L-00 Series Monoblock Directional Valve

Productsize:11*28*12

Netweight:6.23 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Electric
  • 1 Spool
162 Views are Looking for this Product

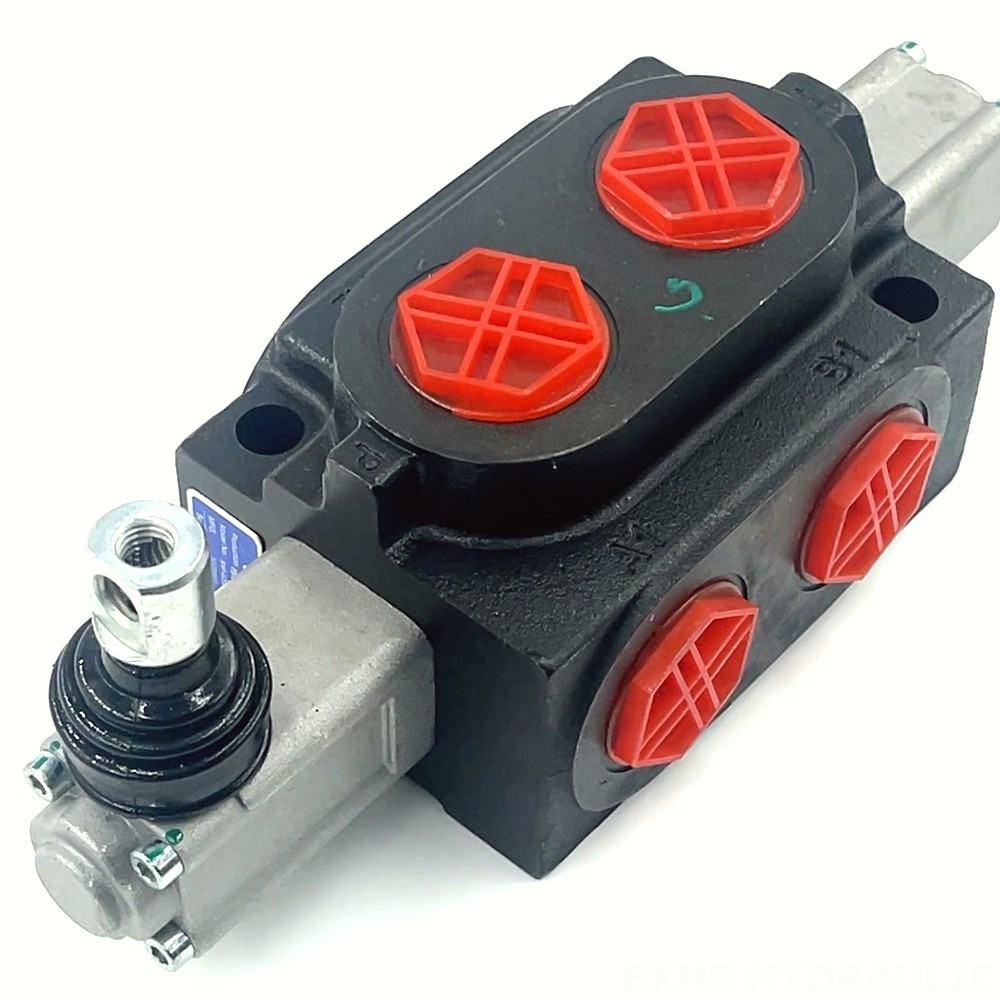

Hydraulic Flow Divider Valve SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information detailed image

Hydraulic Flow Divider Valve SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information detailed image

Hydraulic Flow Divider Valve SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information drawing image

The SHFY-G25L-00 is a manual, sectional hydraulic flow divider valve with a rated flow of 200 L/min and a maximum pressure of 315 bar. It is ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, and more.

Section 1 Section
Structure Type Sectional valve
Rated Flow 200 L/min (52 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

The SHFY-G25L-00 is a high-performance hydraulic flow divider valve designed for demanding applications. Featuring manual control, a sectional valve structure, and a rated flow of 200 L/min, this valve is capable of handling a maximum pressure of 315 bar. Its operating viscosity range is 12 - 400 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. This valve is specifically designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Some examples of applicable models include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, and balers.
