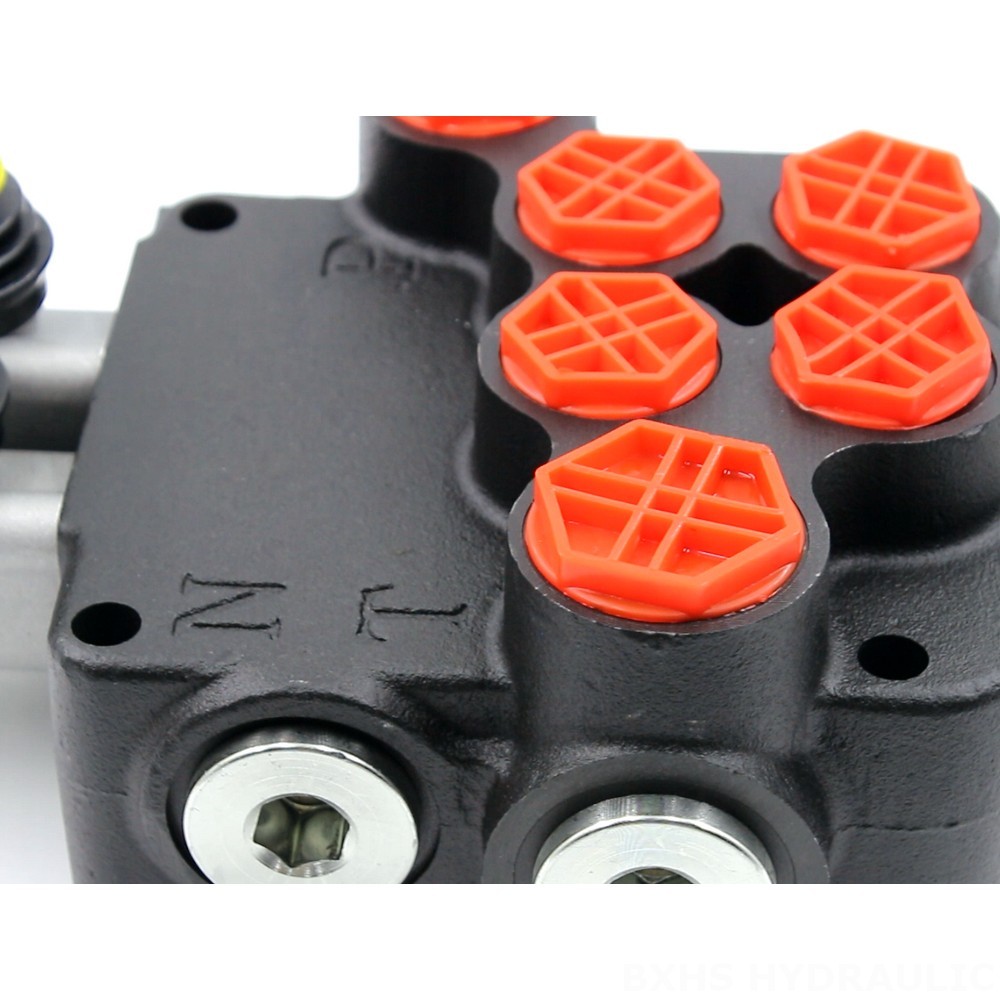

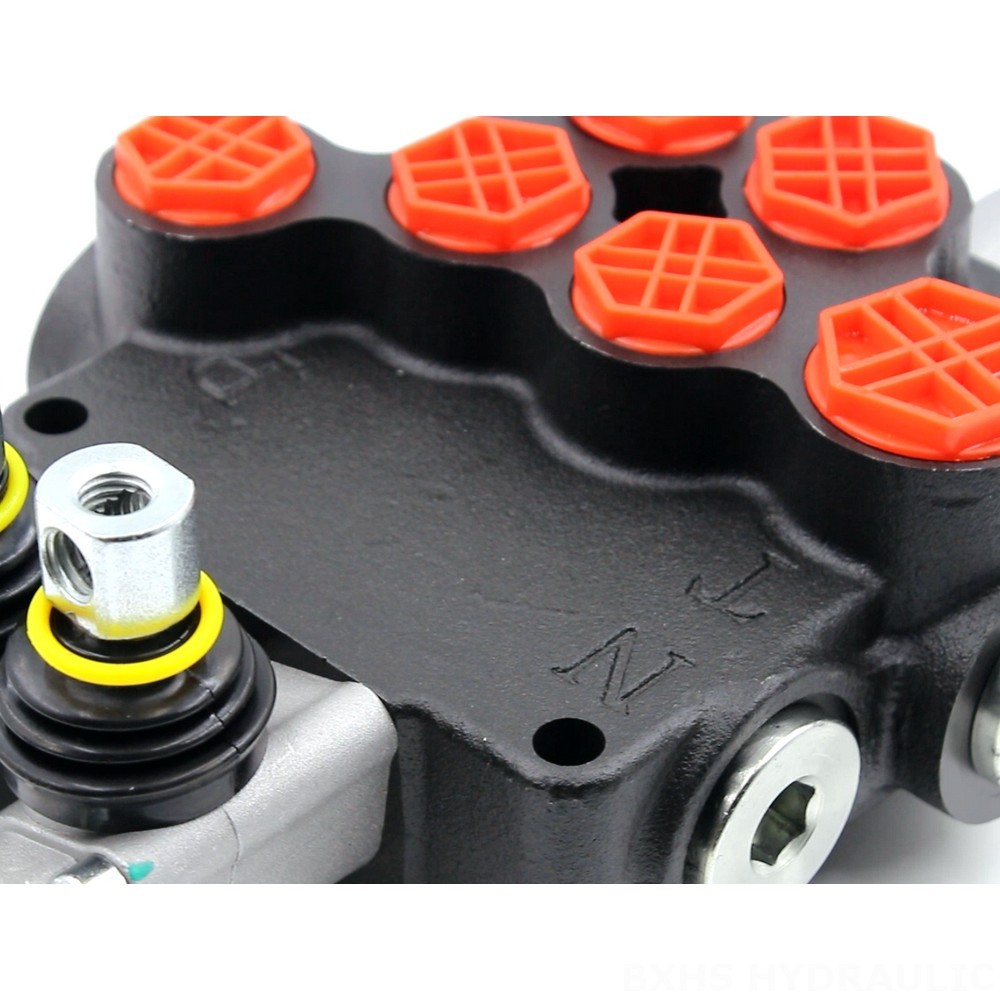

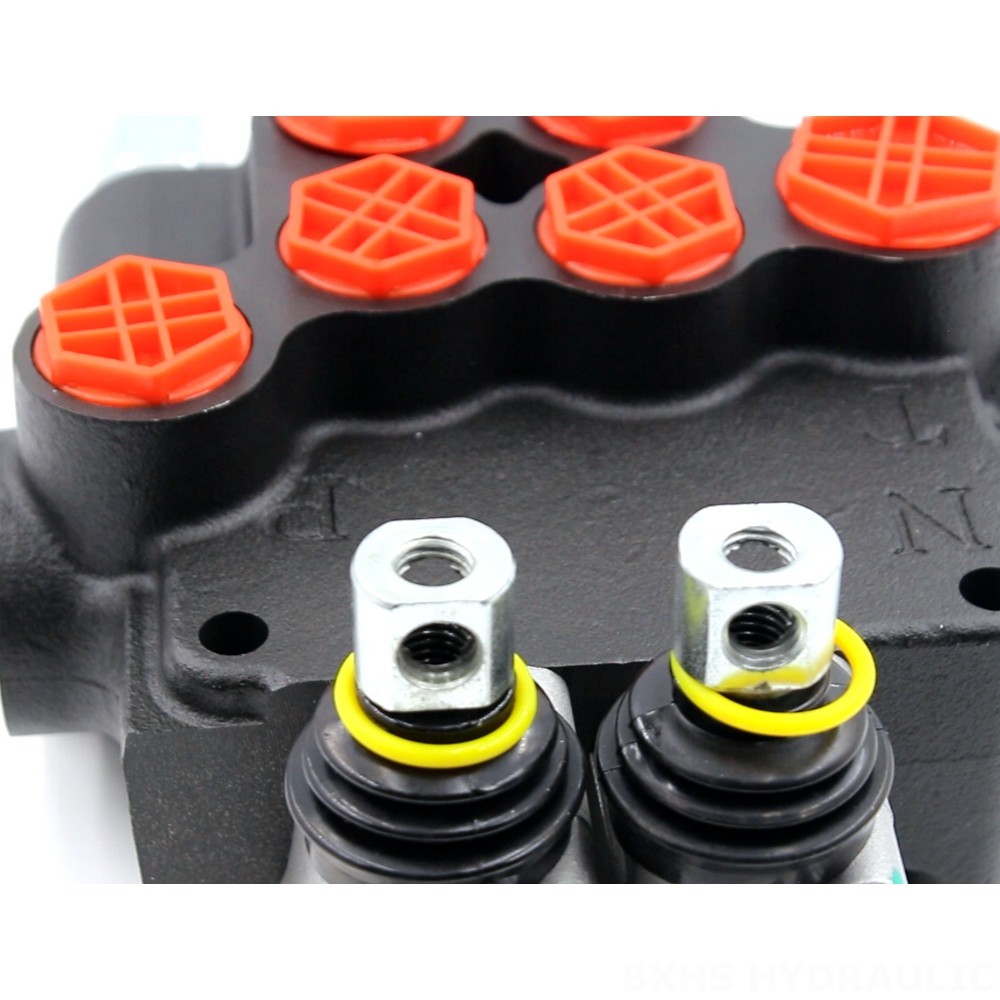

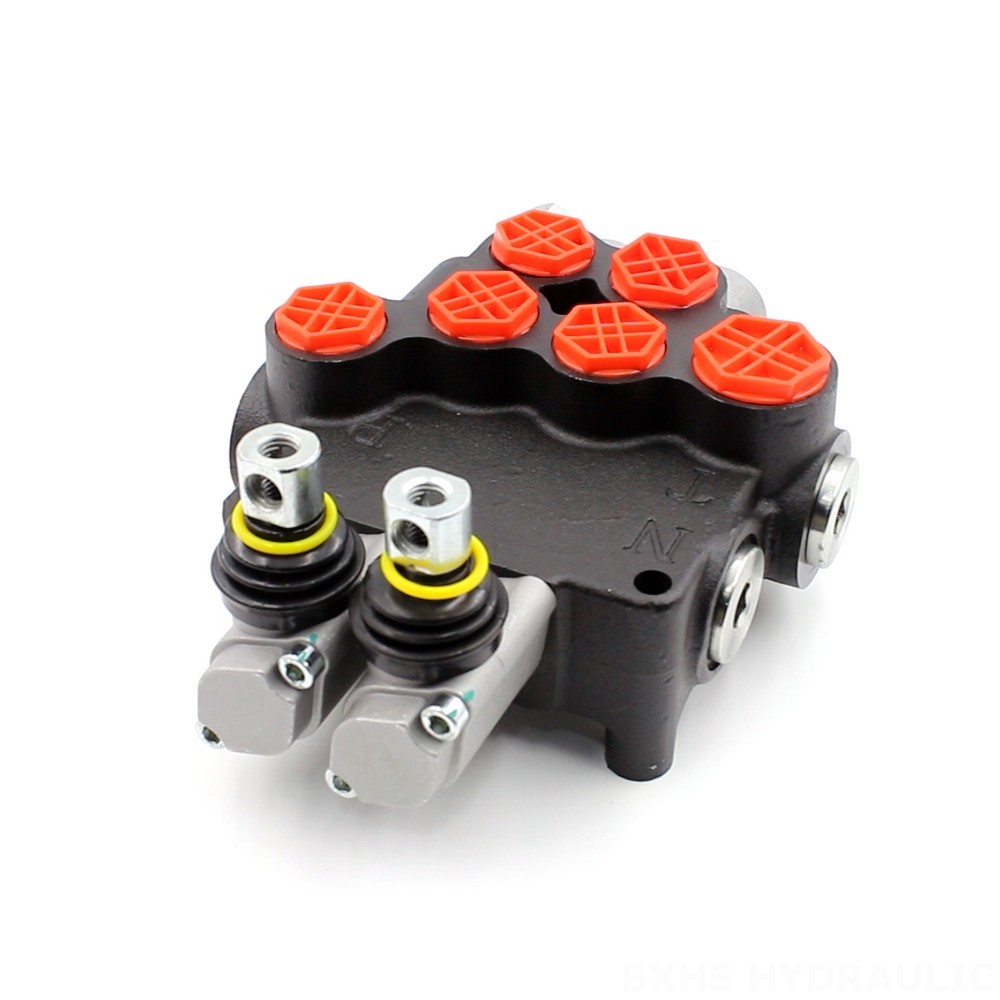

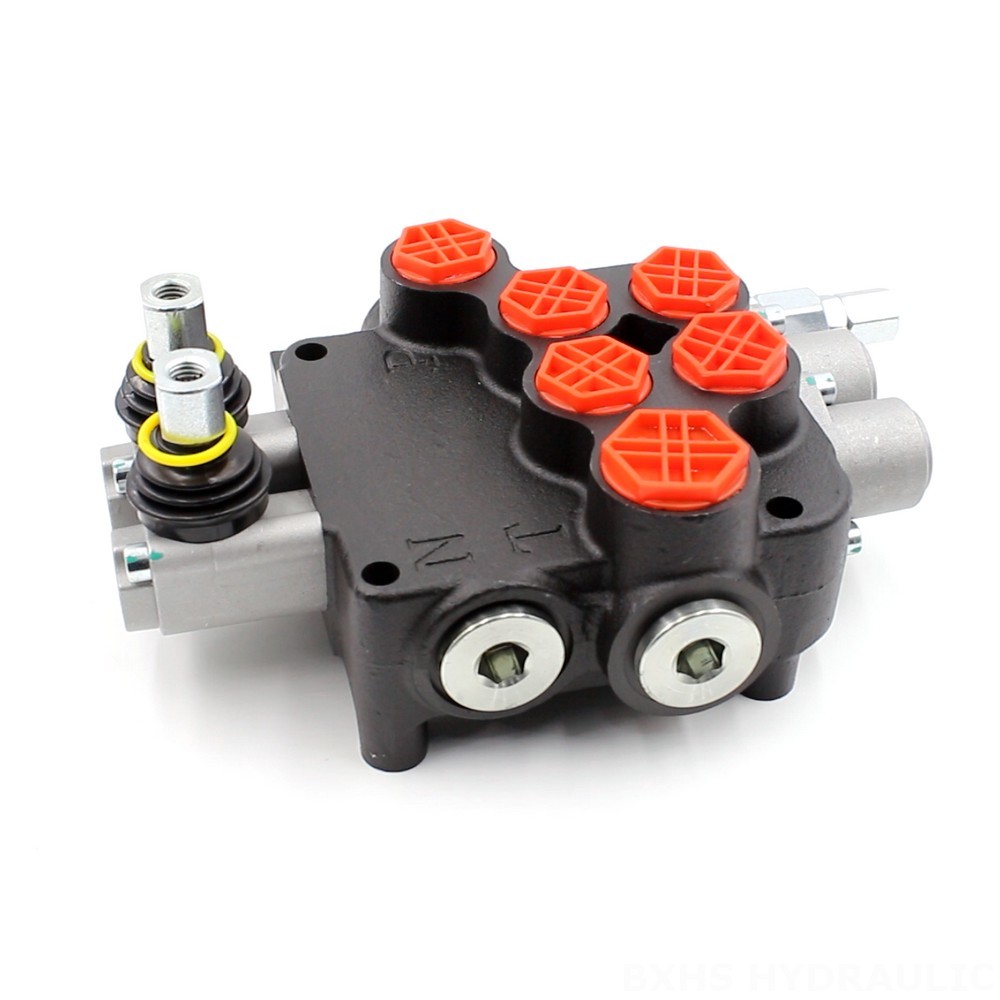

The P80 Series Hydraulic Load Lowering Metering Valve is a manually operated, two-section monoblock valve designed for precise load control in various applications like material handling, construction, and agriculture.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Structure Type | Monoblock valve |
This P80 Series Hydraulic Load Lowering Metering Valve is a reliable and versatile solution for controlled lowering of loads in demanding environments. It features a manual control mechanism, two sections for directional control, and a robust monoblock construction. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, this valve is ideal for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and various construction and agricultural equipment. Available for wholesale and OEM projects, this valve offers high-quality performance and durability.
